HP Compaq dc5000 SFF Manuale operativo e di manutenzione

Hardware Reference Guide

HP Compaq Business Desktop

dc5000 Small Form Factor Model

Document Part Number: 359513-001

January 2004

This guide provides basic information for upgrading this computer

model.

The information contained herein is subject to change without notice.

Microsoft, MS-DOS, Windows, and Windows NT are trademarks of Microsoft

Corporation in the U.S. and other countries.

Intel, Pentium, Intel Inside, and Celeron are trademarks of Intel Corporation in

the U.S. and other countries.

Adobe, Acrobat, and Acrobat Reader are trademarks or registered trademarks of

Adobe Systems Incorporated.

The only warranties for HP products and services are set forth in the express

warranty statements accompanying such products and services. Nothing herein

should be construed as constituting an additional warranty. HP shall not be liable

for technical or editorial errors or omissions contained herein.

This document contains proprietary information that is protected by copyright.

No part of this document may be photocopied, reproduced, or translated to

another language without the prior written consent of Hewlett-Packard

Company.

ÅWARNING: Text set off in this manner indicates that failure to follow

directions could result in bodily harm or loss of life.

ÄCAUTION: Text set off in this manner indicates that failure to follow

directions could result in damage to equipment or loss of information.

Hardware Reference Guide

HP Compaq Business Desktop

dc5000 Small Form Factor Model

First Edition January 2004

Document Part Number: 359513-001

Hardware Reference Guide www.hp.com iii

Contents

1 Product Features

Standard Configuration Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1

Front Panel Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

Rear Panel Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–3

Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–4

Windows Logo Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5

Special Mouse Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6

Serial Number Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6

2 Hardware Upgrades

Serviceability Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1

Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1

Using the Small Form Factor Computer in a Minitower Configuration. . . . . . . . . . . . 2–2

Removing the Computer Access Panel and Front Bezel. . . . . . . . . . . . . . . . . . . . . . . . 2–3

Installing Additional Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–5

DIMMs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–5

DDR-SDRAM DIMMs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–5

DIMM Sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–6

Installing an Expansion Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–11

Installing Additional Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–14

Locating Drive Positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–15

Removing an Optical Drive or Diskette Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–16

Installing an Optional Optical Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–18

Upgrading the Hard Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–21

iv www.hp.com Hardware Reference Guide

Contents

A Specifications

B PATA Hard Drive Installation Guidelines

Using the Cable-Select Feature with Parallel ATA (PATA) Devices. . . . . . . . . . . . . . B–1

Guidelines for Installing PATA Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–1

C Battery Replacement

D Security Lock Provisions

Installing a Security Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D–1

E Port Security Bracket

Installing the Port Security Bracket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E–1

Removing the Port Security Bracket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E–6

F Electrostatic Discharge

Preventing Electrostatic Damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . F–1

Grounding Methods. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . F–1

G Routine Computer Care and Shipping Preparation

Routine Computer Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G–1

Optical Drive Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G–2

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G–2

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G–2

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G–2

Shipping Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G–3

Index

Hardware Reference Guide www.hp.com 1-1

Product Features

Standard Configuration Features

The HP Compaq Small Form Factor features may vary depending on

the model. For a complete listing of the hardware and software

installed in the computer, run the Diagnostics for Windows utility.

Instructions for using this utility are provided in the Troubleshooting

Guide on the Documentation CD.

✎To use the computer in a minitower configuration, you must purchase

a tower stand from HP (part number 316593-001).For more

information, see the “Using the Small Form Factor Computer in a

Minitower Configuration” section in this guide.

Small Form Factor Configuration

1-2 www.hp.com Hardware Reference Guide

Product Features

Front Panel Components

Drive configuration may vary by model.

Front Panel Components

1Diskette Drive Activity Light (optional) 7USB (Universal Serial Bus) Ports

2Diskette Drive (optional) 8Hard Drive Activity Light

3Diskette Eject Button (optional) 9Power On Light

4Optical Drive (CD-ROM, CD-R/RW,

DVD-ROM, DVD +R/RW, or

CD-RW/DVD Combo Drive)

-Power Button

5Microphone Connector qOptical Drive Activity Light

6Headphone Jack wOptical Drive Eject Button

Hardware Reference Guide www.hp.com 1-3

Product Features

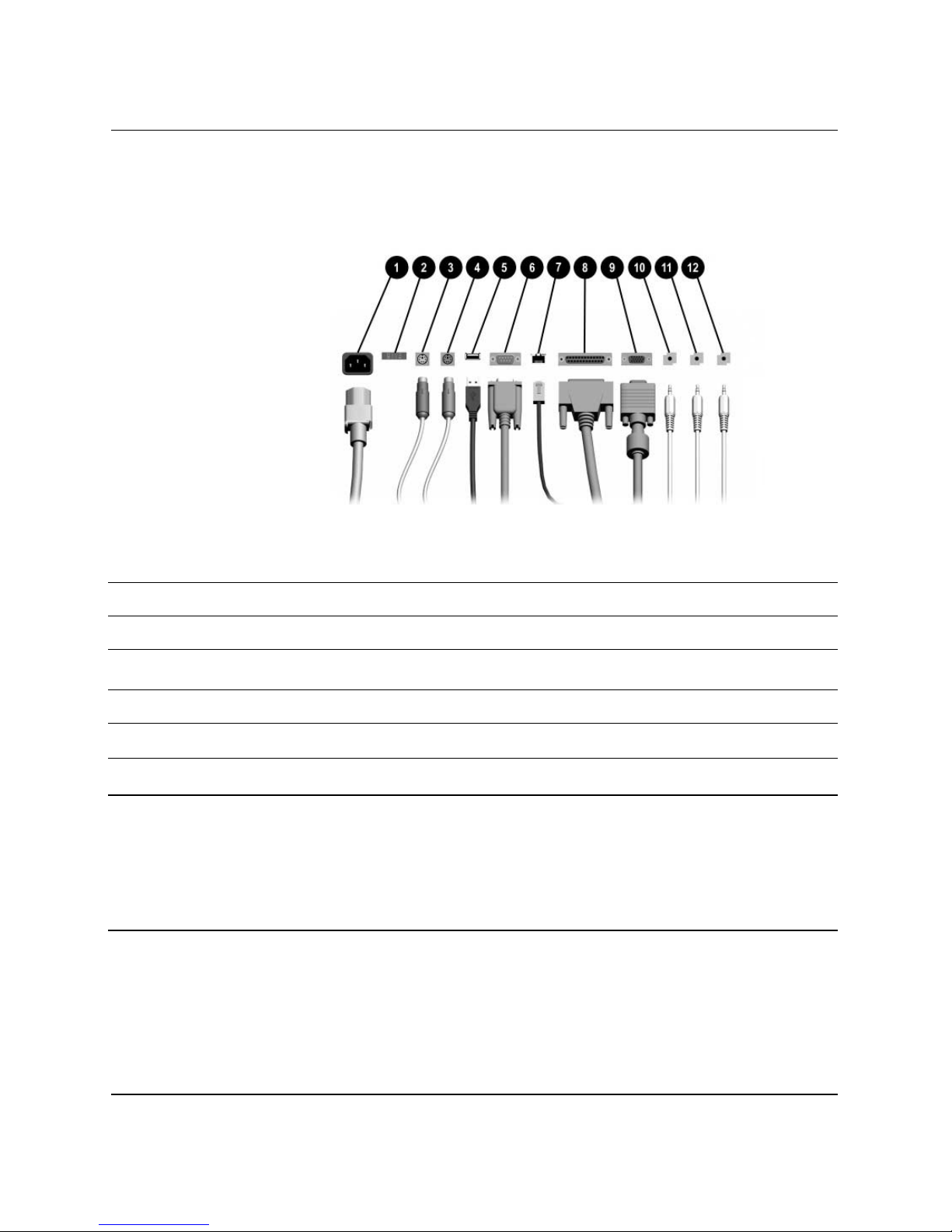

Rear Panel Components

1Power Cord Connector 7nRJ-45 Network Connector

2Voltage Select Switch 8lParallel Connector

3bPS/2 Mouse Connector 9cMonitor Connector

4aPS/2 Keyboard Connector -hHeadphone/Line-Out Connector

5oUniversal Serial Bus (USB) qjLine-In Audio Connector

6mSerial Connector wgMicrophone Connector

✎Arrangement and number of connectors may vary by model.

When a PCI graphics card is installed, the connectors on the card and the system board may

be used at the same time. Some settings may need to be changed in F10 setup to use both

connectors. In F10 setup, go to Advanced > PCI VGA Configuration to change the settings. For

more information about F10 setup, refer to the Computer Setup (F10) Utility Guide on the

Documentation CD.

1-4 www.hp.com Hardware Reference Guide

Product Features

Keyboard

Keyboard Components

1Function Keys Perform special functions depending on the software application

being used.

2Editing Keys Includes the following: Insert, Home, Page Up, Delete,

End, and Page Down.

3Status Lights Indicate the status of the computer and keyboard settings

(Num Lock, Caps Lock, and Scroll Lock).

4Numeric Keys Work like a calculator keypad.

5Arrow Keys Used to navigate through a document or Web site. These keys

allow you to move left, right, up, and down, using the keyboard

instead of the mouse.

6Ctrl Key Used in combination with another key; its effect depends on the

application software you are using.

7Application Key* Used (like the right mouse button) to open pop-up menus in a

Microsoft Office application. May perform other functions in other

software applications.

Hardware Reference Guide www.hp.com 1-5

Product Features

Windows Logo Key

Use the Windows Logo key in combination with other keys to

perform certain functions available in the Windows operating system.

Refer to the “Keyboard” section to identify the Windows Logo key.

8Windows Logo Key* Used to open the Start menu in Microsoft Windows. Used in

combination with other keys to perform other functions.

9Alt Key Used in combination with another key; its effect depends on the

application software you are using.

*Keys available in select geographic regions.

Keyboard Components (Continued)

Windows Logo Key Functions

Windows Logo Key Displays or hides the Start menu.

Windows Logo Key + dDisplays the Desktop.

Windows Logo Key + mMinimizes all open applications.

Shift + Windows Logo Key + m Undoes Minimize All.

Windows Logo Key + eLaunches My Computer.

Windows Logo Key + fLaunches Find Document.

Windows Logo Key + Ctrl + f Launches Find Computer.

Windows Logo Key + F1 Launches Windows Help.

Windows Logo Key + lLocks the computer if you are connected to a

network domain, or allows you to switch users if you

are not connected to a network domain.

Windows Logo Key + rLaunches the Run dialog box.

Windows Logo Key + uLaunches the Utility Manager.

Windows Logo Key + Tab Activates the next Taskbar button.

1-6 www.hp.com Hardware Reference Guide

Product Features

Special Mouse Functions

Most software applications support the use of a mouse. The functions

assigned to each mouse button depend on the software applications

you are using.

Serial Number Location

Each computer has a unique serial number that is located on the

top cover or the back panel of the computer. Keep this number

available for use when contacting customer service for assistance.

Serial Number Location
