Upgrading and Servicing Guide

Removing and Replacing the

Front Panel

2570981-001 — Removing and Replacing the Front Panel

Before You Begin

Observe the following requirements before removing and

replacing the front panel.

Removing the Front Panel

1Remove the Pocket Media Drive, if it is present.

2Turn off the computer.

3Disconnect all peripherals and cables from the front

and the back of the computer. Disconnect the power

cord last.

Tools Needed

Flathead screwdriver

You can use a flathead screwdriver with the

following screw (torque screw).

CAUTION: Static electricity can damage

the electronic components inside the

computer. Discharge static electricity by

touching the metal cage of the computer

before touching any internal parts or

electronic components.

WARNING:

Never open the cover with the

power cord attached or power

applied. You may damage your

computer or be injured from the

spinning fan blades.

Avoid touching sharp edges

inside the computer.

NOTE: Computer features may vary by model.

Removing and Replacing the Front Panel

10–20 minutes

570981-001 — Removing and Replacing the Front Panel 3

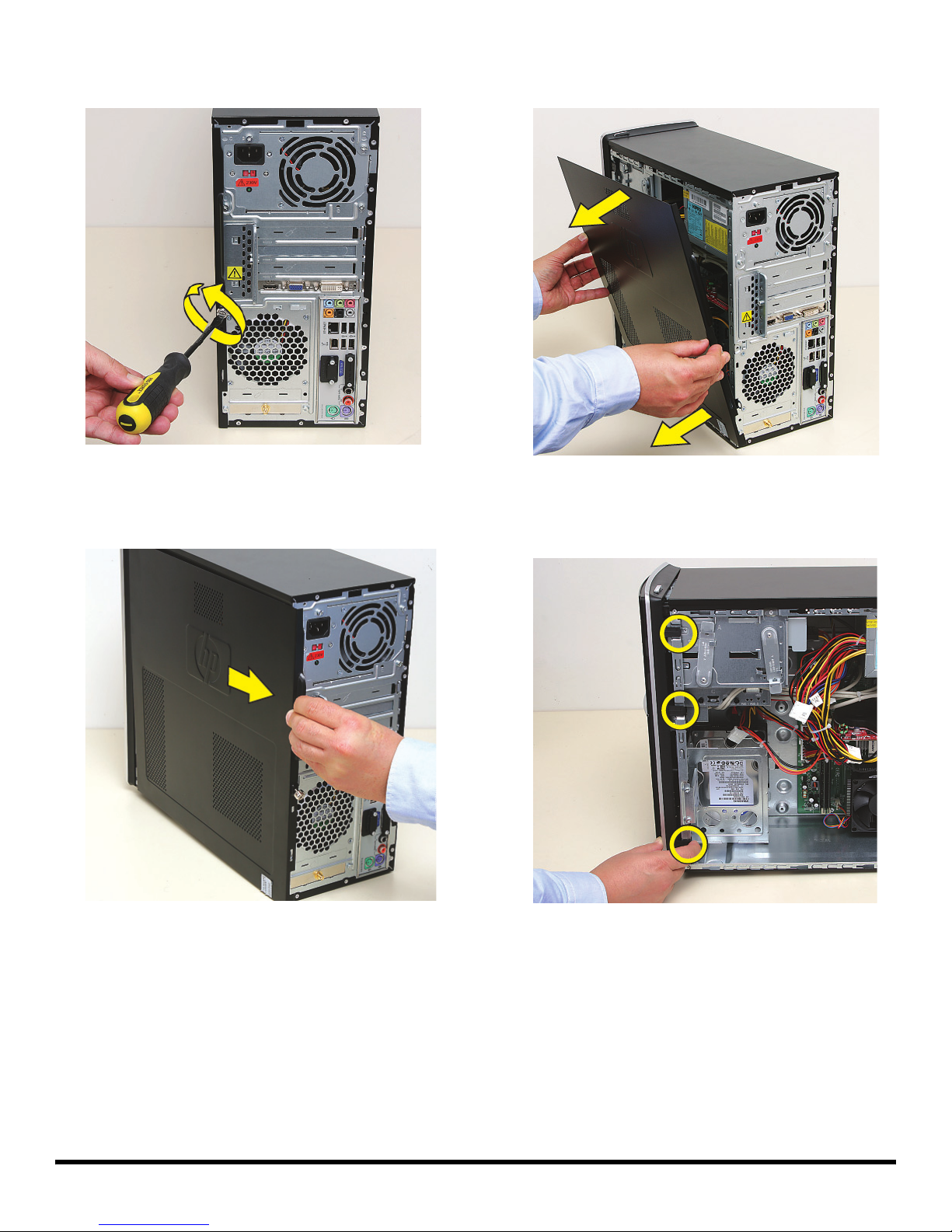

4Loosen the side panel thumbscrew on the back of the

computer.

5Grasp the handle, and pull the side panel about

2.5 cm (1 inch) toward the back of the computer to

release it.

6Tilt out the top of the side panel, and then lift the panel

from the computer.

--

7Locate the three tabs that secure the front panel to the

computer. Pull each of the tabs out slightly, away from

the computer, to release the panel.

4570981-001 — Removing and Replacing the Front Panel

8Swing the front panel open toward the left, and then

lift it off the computer. Replacing the Front Panel

1Hold the front panel over the front of the computer,

and then press the left side of the front panel, inserting

the tabs into the computer holes. Swing the right side

of the panel toward the computer, inserting the panel

tabs, and then press it into the computer.

2Hold the side panel over the side of the computer with

the front edge of the panel about 2.5 cm (1 inch) from

the front of the computer.

IMPORTANT: The new (replacement) part may not look

the same as the original part, due to different

manufacturers or models. Hewlett-Packard always

provides quality parts that meet or exceed your original

computer specifications.

570981-001 — Removing and Replacing the Front Panel 5

3Place the bottom of the panel on the computer,

inserting the tabs on the inside of the panel into the

rail slots on the computer. Swing the top of the panel

toward the computer, inserting the top tabs into the

rail slots.

4Slide the side panel toward the front of the computer

and into place.

5Tighten the side panel thumbscrew on the back of the

computer.

6Reconnect all peripherals and cables, and then turn

on the computer.

6570981-001 — Removing and Replacing the Front Panel

Removing and Replacing an

Optical Disc Drive

2537487-001 — Removing and Replacing an Optical Disc Drive

Before You Begin

Observe the following requirements before removing and

replacing the optical disc drive.

Removing an Optical Disc Drive

1Before you begin servicing the computer, press the

Eject button, and remove any CD or DVD from the

optical disc drive tray.

Tools Needed

Flathead screwdriver

You can use a flathead screwdriver with the

following screw (torque screw).

CAUTION: Static electricity can damage

the electronic components inside the

computer. Discharge static electricity by

touching the metal cage of the computer

before touching any internal parts or

electronic components.

WARNING:

Never open the cover with the

power cord attached or power

applied. You may damage your

computer or be injured from the

spinning fan blades.

Avoid touching sharp edges

inside the computer.

NOTE: Computer features may vary by model.

Removing and Replacing an Optical Disc Drive

15–25 minutes
