Installation and
Reference Guide
HP J3136A
HP AdvanceStack Switch 2000
Redundant Power Supply
HP AdvanceStack Switch 2000
Redundant Power Supply
Installation and Reference Guide
©Copyright Hewlett-Packard Company 1996.
All Rights Reserved. Disclaimer
Reproduction, adaptation, or translation without
prior written permission is prohibited, except as
allowed under the copyright laws.
The information contained in this document is
subject to change without notice.
HEWLETT-PACKARD COMPANY MAKES NO
WARRANTY OF ANY KIND WITH REGARD TO
THIS MATERIAL, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. Hewlett-Packard shall
not be liable for errors contained herein or for
incidental or consequential damages in
connection with the furnishing, performance, or
use of this material.
Hewlett-Packard assumes no responsibility for
the use or reliability of its software on
equipment that is not furnished by
Hewlett-Packard.
Warranty
A copy of the specific warranty terms applicable
to your Hewlett-Packard product and
replacement parts can be obtained from your
HP Sales and Service Office or authorized dealer.
Publication Number
J3136-90001
Edition 1
March 1996
Printed in U.S.A.
Applicable Product
HP J3136A
Trademark Credits
MS-DOS®and Microsoft®are U.S. registered
trademarks of Microsoft Corporation.
Ethernet is a registered trademark of Xerox
Corporation.
8000 Foothills Boulevard, MS 5551
Roseville, California 95747-5551
http://www.hp.com/go/network_city
Contents
HP Switch 2000 Redundant Power Supply . . . . . . . . . . . 2
At A Glance . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation Summary . . . . . . . . . . . . . . . . . . . . . . . 3
Included Parts . . . . . . . . . . . . . . . . . . . . . . . 3
Installation Steps . . . . . . . . . . . . . . . . . . . . . 4
Frequently Asked Questions . . . . . . . . . . . . . . . . . . . 7
HP Customer Support Services . . . . . . . . . . . . . . . . . 8
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . 13
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
1
HP Switch 2000 Redundant Power Supply
At A Glance
The HP J3136A AdvanceStack Switch 2000 Redundant Power Supply
provides redundant DC power to the HP J3100A AdvanceStack Switch 2000.
The Redundant Power Supply (RPS) shares the power load with the Switch
2000’s main power supply. If the Switch 2000’s power supply components
were to fail, the RPS power supply component will instantly supply power to
the Switch 2000.
Features
Network Connections Provides fully redundant power to the Switch 2000.
Modular, Easy-to-Use Design The RPS is easy to mount on the back of the Switch 2000.
Each Switch 2000 has an RPS LED to report the status of the Redundant Power
Supply.
RPS status information available from HP Stack Manager (Windows 3.1
software shipped with the devices that support the RPS) and HP Interconnect
Manager.
Management SNMP indication on the RPS connection and the RPS fault condition through the
connected devices.

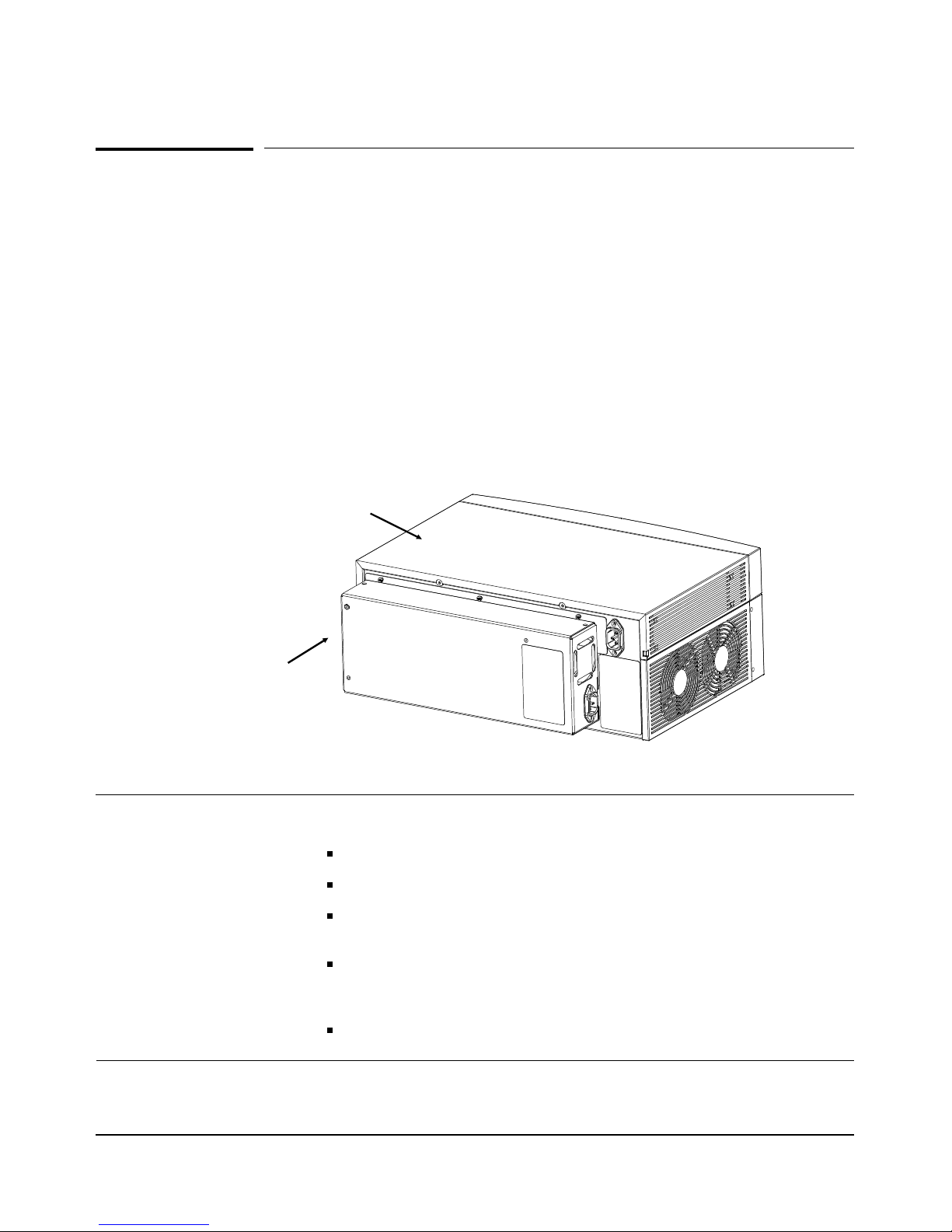

RPS
Rear view of
Switch 2000
HP Switch 2000 Redundant Power Supply
2
Installation Summary
The basic hardware installation procedure for the RPS is as follows:
1. Disconnect the power to the Switch 2000.
2. Mount the RPS to the Switch 2000.
3. Verify the RPS’s operation.
Included Parts
Each RPS has the following components shipped with it:
HP Switch 2000 Redundant Power Supply Installation and
Reference Guide−this manual (J3136-90001)
One AC power cord, one of the following:
Australia/New Zealand
Denmark
Europe
Japan
Switzerland
United Kingdom
U.S./Canada/Mexico/Taiwan
(8120-1369)
(8120-2956)
(8120-1689)
(8120-4753)
(8120-2104)
(8120-1351)
(8120-1378)
Installation Summary
3
Installation Steps
To add redundant power to your Switch 2000, follow these steps:
Warning 1. Disconnect the power supply from the Switch 2000 before
installing the RPS. Electrical shock or other injury can result
if you attempt to install the module without unplugging the
Switch 2000.

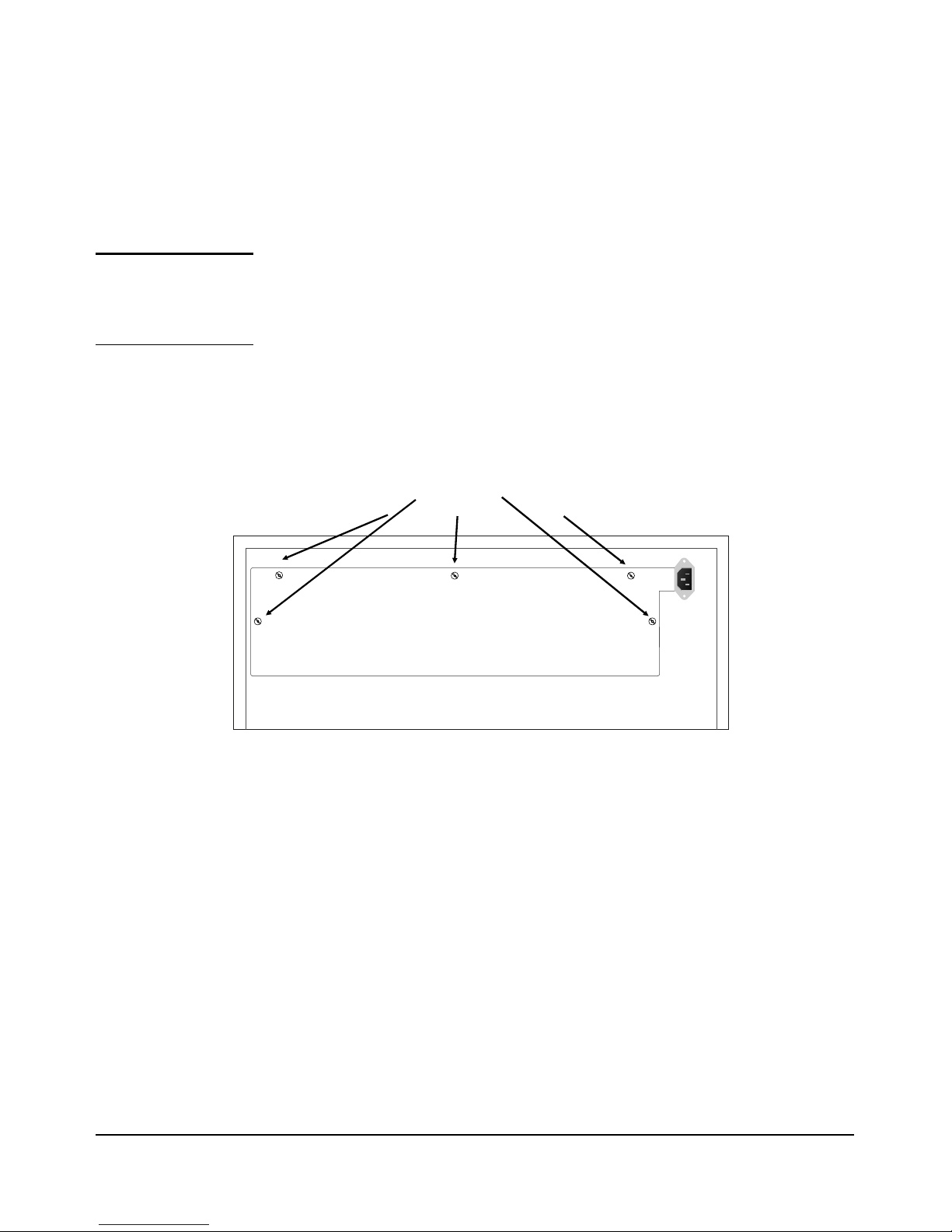

2. Using a Torx T-10 or flat-bladed screw driver, loosen the five cap-
tured screws on the cover plate on the back of the Switch 2000.
3. Store the cover plate.
(Steps continued on next page.)
Loosen these screws
Installation Summary
4

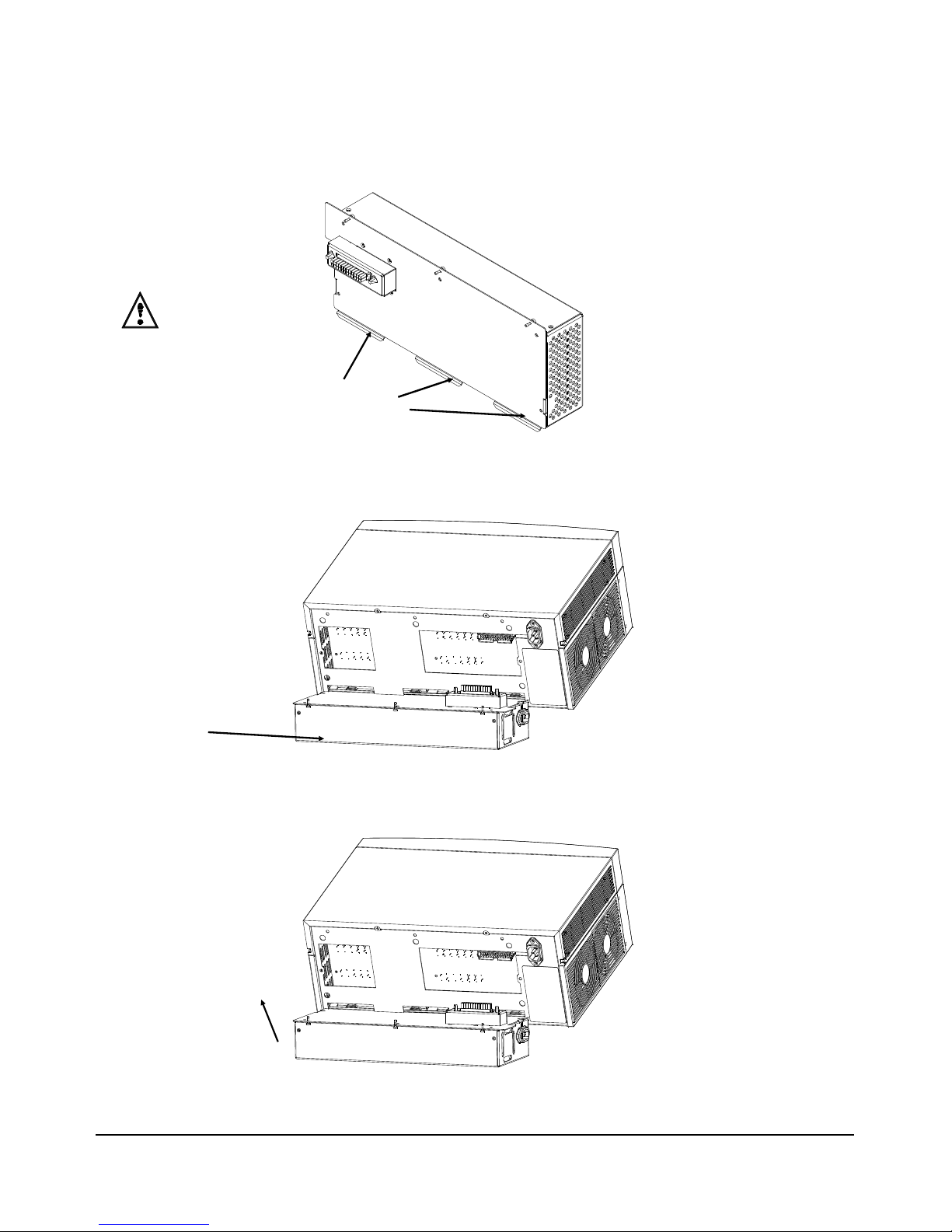

4. Notice that the RPS has three metal tabs on its bottom.
5. Line up the RPS metal tabs to the Switch 2000 and insert the tabs
into the three slots on the Switch 2000 as shown below.
6. Rotate the RPS up and towards the Switch 2000. Then push the RPS
until it is firmly seated into the connector inside the Switch 2000.
Metal tabs
RPS attaching to
Switch 2000, metal
tabs first.
Rotate the RPS up.
Installation Summary
5

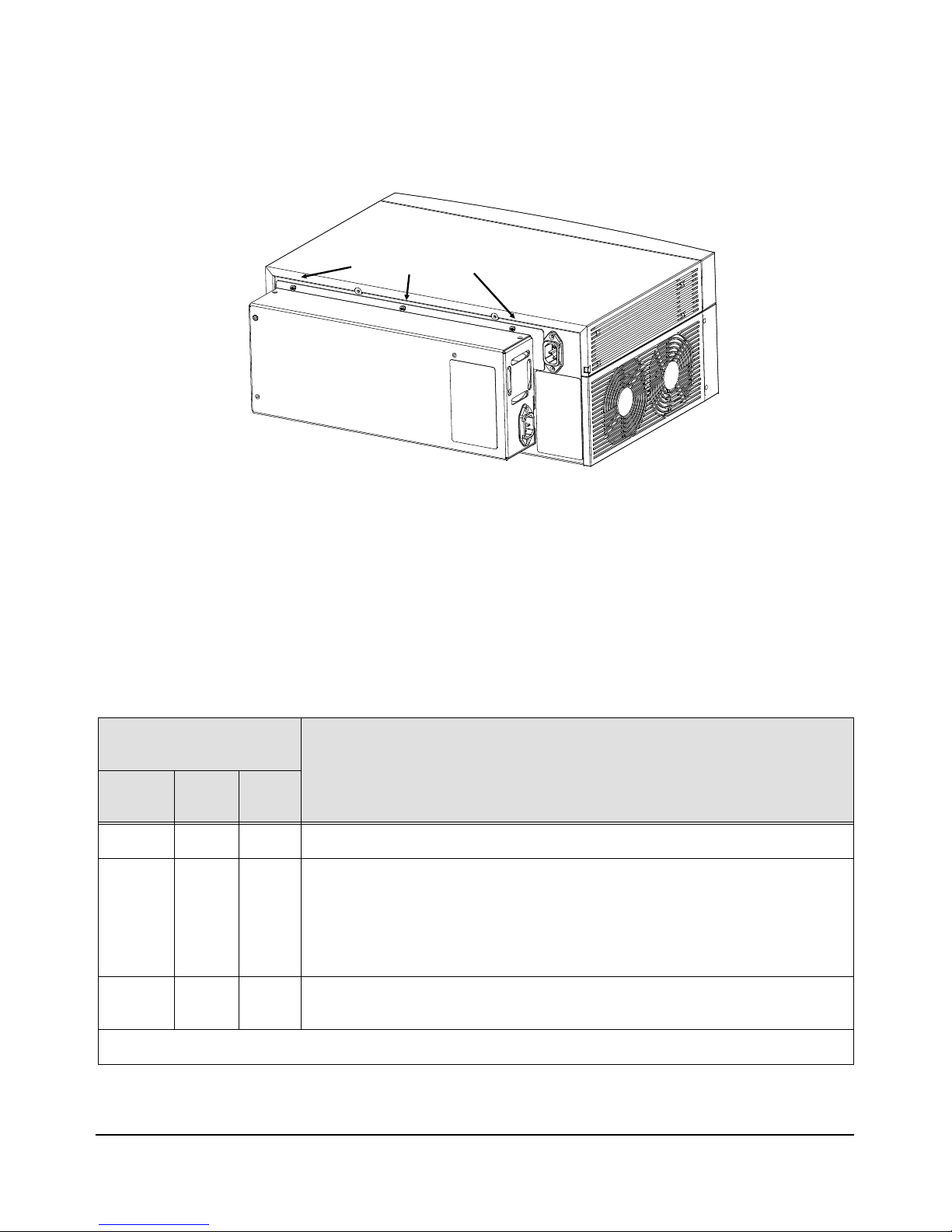

7. Using the same screw driver, tighten the three screws on the RPS.
8. Connect the Switch 2000 AC power cord to an AC outlet.
9. Connect the RPS AC power cord to an AC outlet (on a different
breaker if possible).
Both AC power cords must be connected to provide full redundancy.
The RPS LED on the Switch 2000 will be on solid to indicate the RPS
is working properly. The following table explains the LEDs that
reflect the operating state of the RPS.
LED patterns indicating
problems Diagnostic Tips
Fault Power
Fault RPS
OFF OFF ON The RPS is connected and functioning properly.
Flashing
Slowly Flashing
Slowly OFF The RPS is present but failed. Try:
Verify that the power cords are connected at both ends.
Verify the AC outlet is providing power to another device.
Try a different power cord.
If the problem persists, the RPS power supply may have failed. Contact your
HP-authorized LAN dealer to replace the RPS.
Flashing
Slowly Flashing
Slowly ON The Switch 2000 main power supply has failed. Contact your HP-authorized LAN
dealer for assistance.
The slow flash rate is approximately once each 1.5 seconds.
Tighten these screws
Installation Summary
6
