HP integrated VMware ESXi 3.5

Update 5

Getting Started guide

Overview

Thank you for downloading HP integrated VMware ESXi 3.5. Update 5. HP has

seamlessly integrated VMware ESXi, delivering active HP ProLiant management and

consolidated lifecycle management for a consistent, reliable ProLiant experience.

HP Common Information Module (CIM) providers and integrated VMware ESXi

provide active hardware management using HP Systems Insight Manager (SIM). These

HP CIM providers proactively surface hardware monitoring data to deliver the most up-

to-date server state information.

You can update integrated VMware ESXi using the standard VMware update tools.

The integrated hypervisor installation is partitioned with redundant images, enabling a

robust upgrade and recovery process.

The HP integrated VMware ESXi 3.5 Update 5 Getting Started guide is for integrated

ESXi 3.5 Standalone Edition or HP integrated VMware ESXi VI3 Enterprise Edition. The

accompanying ISO installs HP integrated VMware ESXi 3.5 Update 5.

The installation ISO includes a trial license for standalone edition. To obtain a

permanent license for standalone edition, go to the VMware website and register to

obtain the serial number license.

The integrated ESXi Stand-Alone Edition is well suited for single server virtualization

installations and is managed using the VMware free VI Client management console.

HP Technical Software Support and Update Service is optional.

You can upgrade HP integrated VMware ESXi 3.5 Stand-Alone Edition to any of the

fully licensed products for VMware vSphere including Essentials, Essentials Plus,

Standard, Advanced, Enterprise and Enterprise Plus editions.

HP VMware vSphere products includes one-year, 9x5 unlimited HP Technical Software

Support and Update Service and are upgradeable to a 3, 4, or 5 year Technical

Software Support and Update Service. You can downgrade VMware vSphere 4

licenses to ESXi 3.5 using VMware license portal.

To learn more about license delivery and enabling enterprise entitlement, see License

information.

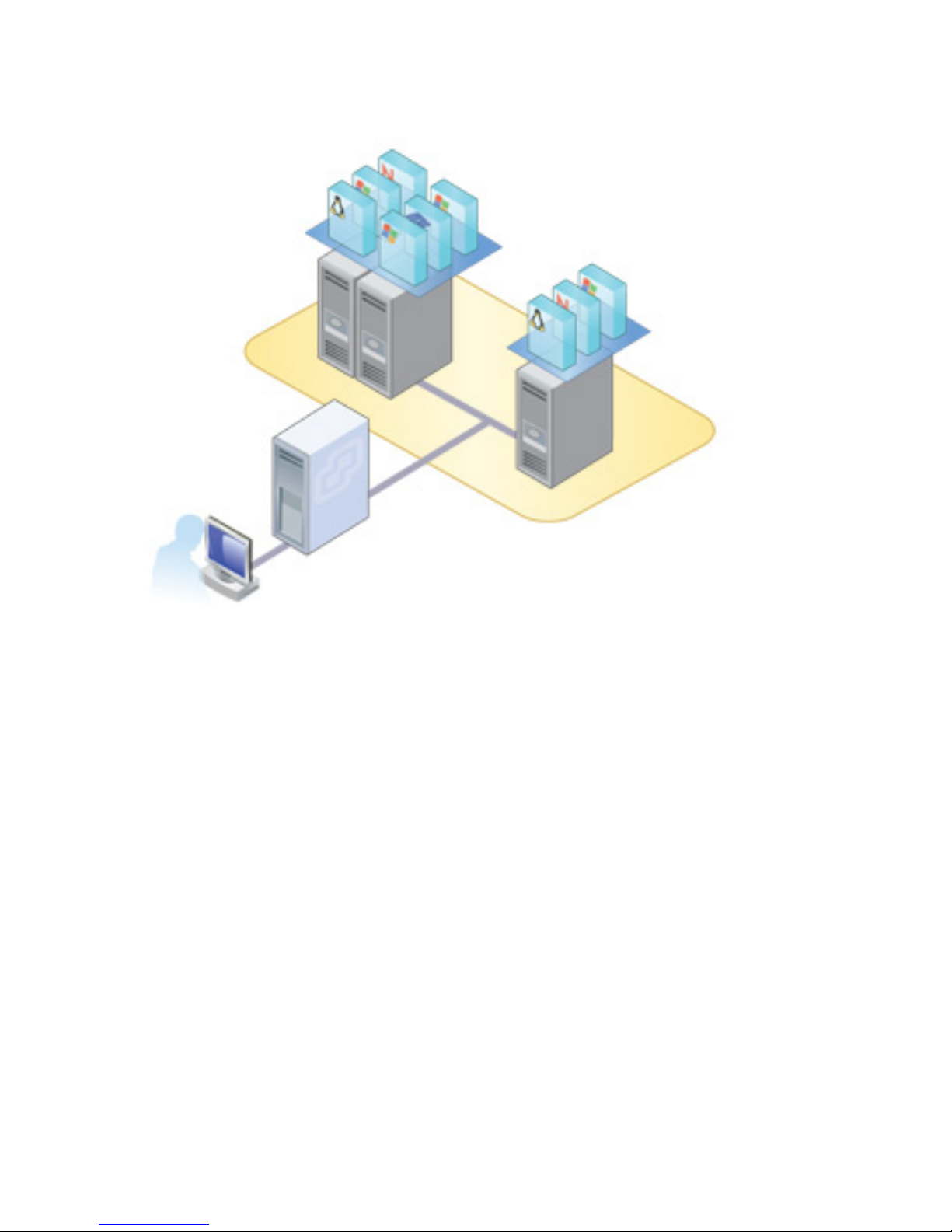

Understanding VMware infrastructure

The following components make up VMware infrastructure:

Virtual machine—A virtual machine is a software-based computer capable of running

an operating system such as Microsoft® Windows® or GNU/Linux just as if the

operating system is installed on a physical machine.

Host—A host is a physical machine running platform virtualization software such as

ESXi. Hosts provide processor, memory, storage, and network resources for one or

more virtual machines.

VirtualCenter Server—VirtualCenter Server continuously monitors your virtual

infrastructure, automates system administration tasks, and centralizes remote

management sessions. It coordinates the resources and activities of individual hosts to

efficiently distribute virtual machines and tolerate hardware downtime across a data

center.

VMware Infrastructure Client (VI Client)—VI Client is the primary interface for

interacting with hosts and virtual machines. VI Client can manage a stand-alone host

by connecting directly to the host, or manage multiple hosts by connecting to a

VirtualCenter Server machine.

Management network—A management network enables the server administrator to

manage discrete, physical servers without relying on a general purpose

communications network. This dedicated network enables a reliable connection to the

hardware in the event of a failure in the general-purpose network.

Virtual machine communication network—A virtual machine communication network is

built on the traditional, general-purpose communication network. As with physical

servers, virtual machine traffic is brokered through a general-purpose network if the

virtual machines are on different, discrete servers. Virtual machine communication on

the same physical server is handled by a virtual switch within the server.

HP storage network—A storage network enables virtual machines to access SAN

devices similarly to physical servers. The medium for a storage network can be Fibre

Channel or Ethernet. HP recommends HP StorageWorks SAN solutions.

Configuring your HP ProLiant server to use

VMware ESXi

HP recommends upgrading to the latest ProLiant firmware revisions. For more

information, see your server documentation.

VMware ESXi supports only the following installation destinations for HP integrated

VMware ESXi:

•Hard drive

•Secure Digital (SD) memory card

oHP 4GB SD flash media

oHP part number 580387-B21

oHP spare kit part number 583306-001

•Flash media (USB flash drive)

oHP 4GB USB flash media drive key

oHP part number 580385-B21

oHP spare kit part number 583307-001

VMware ESXi does not support any other USB or SD card devices.

To configure your ProLiant server using VMware ESXi:

1. Download either the hard drive installation ISO or the flash device installation

ISO from the HP website

(https://h20392.www2.hp.com/portal/swdepot/displayProductInfo.do?product

Number=HPVM05).

2. Burn the installation ISO to a CD-ROM, or move the ISO image to a location

accessible using the virtual media capabilities of iLO2.

NOTE: The CD-ROM is bootable. Boot up the server and choose

to install the HP integrated VMware ESXi product either to the

hard drive or to flash media (USB key or SD card). The flash

media must be installed into the internal port on your ProLiant

server.

3. Set up the server hardware, and if desired, connect your server to the network.

4. If you install to flash media (USB or SD card,) you must install the flash media

into the internal port on your ProLiant server.

For instructions on how to access the internal flash media (USB or SD card) port,

see the server documentation included with your server.

For hardware requirements, see the server documentation included with your

server.

5. Access the server console in one of the following ways:

oLocally—Use your local keyboard and monitor.

oRemotely—Use iLO Integrated Remote Console remotely from a network

client using a web browser.

Remote setup requires HP iLO2 Advanced Pack, which is sold separately for

HP ProLiant ML and DL servers. The remote graphics capability is included

with BL servers.

IMPORTANT: After you boot up the server, you must press the

correct function key when prompted to enter setup mode to

configure boot order, configure hardware virtualization, and

configure iLO and the Smart Array controller. Familiarize yourself

with the following steps and prompts; each prompt is available

for only a few seconds during the boot process.

If you are installing to the hard drive, proceed to step 7.

6. To enable use of flash media (USB flash drive or SD card):

a. Configure your flash device to boot before the hard drive. By default, flash

media is configured to boot before the hard drive.

b. Boot the server, and then press F9 to enter ROM Based Setup Utility (RBSU).

c. Scroll down to Standard Boot Order (IPL), and press Enter.

d. To modify the boot order, select the device you want to move, and then press

Enter. A menu appears to change the device boot order.

e. Ensure the flash media is set to boot before the hard drive.

7. Enable CPU virtualization.

For CPU specific virtualization capabilities, you can select Intel® Virtualization

Technology or AMD® Virtualization. You must perform this step for supporting

Windows® 64 bit operating systems and all guest 64 bit operating systems, such

as Linux.

a. If you are not in RBSU, boot the server, and then press F9 to enter ROM

Based Setup Utility (RBSU).

b. Scroll down to Advanced Options, and press Enter.

c. Scroll down to Processor Options, and press Enter.

d. Scroll down to the servers supported processor (either Intel® Virtualization

Technology or AMD® Virtualization), and press Enter.

e. At the next screen select Enable, and press Enter.

f. Save configuration changes, and then exit. The server reboots.

8. To configure iLO network parameters, directory settings, global settings, and user

accounts, when prompted at POST, press F8.

For more information, see the HP Integrated Lights-Out 2 User Guide.

9. To create, view, or delete a logical drive for the Smart Array Controller using

local storage, press F8 when prompted.

For more information, see the Configuring Arrays on HP Smart Array Controllers.

Installing HP integrated VMware ESXi 3.5

To install the software image locally:

1. Place the installation CD into the CD-ROM drive, and then boot the server.

2. Follow the on screen instructions to complete the installation.

To install the software image remotely using iLO2:

1. Verify that the server has the appropriate iLO license to use Virtual Media, open

a web browser on your local machine, and then log in to iLO.

HP c-Class servers include a license for Virtual Media. For other servers, the HP

iLO2 Advanced Pack license is required and is sold separately.

2. Select the Virtual Media tab, and then select the Virtual Media Applet.

3. Choose from one of the following options:

oLocal Media Drive

i. Under the Virtual CD/DVD-Rom section, select Local Media Drive.

ii. From the menu, select the drive letter of the desired physical CD/DVD-

ROM drive on your client computer.

iii. Click Connect. The connected drive icon turns green.

oLocal Image File

i. Under the Virtual CD/DVD-ROM section, select Local Image File.

ii. Enter the path or file name of the image (ISO file) in the text box or click

Browse to locate the image file.

iii. Click Connect. The connected drive icon turns green.

4. Follow the prompts generated by the installation CD to complete the installation.

If doing a restoration or recovery, when installation is complete, restore from

backup files.

5. To complete the VMware ESXi configuration, see the Getting Started with ESXi

Guide, which you can download from the same website as installation ISO.

6. (Optional) To discover and manage this server, configure HP SIM.

For more information about hosting and managing a VMware ESXi virtualization

environment on ProLiant servers, see the HP website

(http://www.hp.com/go/VMware).

For more information about VMware and setting up your virtualized environment,

see the VMware website (http://www.vmware.com/products/vi/esx/).

Enabling standalone license

The installation ISO does not include a permanent license serial number. To obtain a

permanent license serial number, register at the VMware web site

(https://www.vmware.com/tryvmware) and download the serial number. After you

have received the serial number, use the VI Client to insert the license serial number.

Enabling enterprise entitlement

If you purchased a license for VMware ESX/ESXi V13 Enterprise Edition, follow the

instructions included in your package to redeem and apply the license.

Updating VMware ESXi

Updates and patches for VMware ESXi are provided and delivered by VMware. These

updates and patches include the latest ESXi software from VMware as well as updated

CIM providers from HP.

The updates and patches are delivered and installed by VMware Update Manager

(VUM). For more information on this process, consult the VUM Administration Guide

(http://www.vmware.com/pdf/vi3_vum_10_admin_guide.pdf).

Recovering from a system failure

If you encounter a system failure and need to re-install, see "Installing HP integrated

VMware ESXi" section.

IMPORTANT: Using the installation CD completely erases all

existing data and user configuration. All preconfigured settings,

user data and license information is lost. After reinstalling the

software you must reapply your licenses.

The information contained herein is subject to change without notice. The only warranties for HP

products and services are set forth in the express warranty statements accompanying such

products and services. Nothing herein should be construed as constituting an additional warranty.

HP shall not be liable for technical or editorial errors or omissions contained herein.

Confidential computer software. Valid license from HP required for possession, use or copying.

Consistent with FAR 12.211 and 12.212, Commercial Computer Software, Computer Software

Documentation, and Technical Data for Commercial Items are licensed to the U.S. Government

under vendor’s standard commercial license.

Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation.

Intel is a trademark or registered trademark of Intel Corporation in the U.S. and other countries.

AMD is a trademark of Advanced Micro Devices, Inc.

Part Number 469408-004

December 2009 (Fourth Edition)

Altri manuali per BL680c - ProLiant - G5

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali HP Software

HP ProCurve 3500yl Series Come usare

HP 2230s - Compaq Business Notebook Manuale di istruzioni

HP T5720 - Compaq Thin Client Manuale di istruzioni

HP Data Protector A.06.11 Guida rapida alla configurazione

HP ProLiant DL320e Manuale utente

HP t5300 - Thin Client Manuale utente

HP Brocade BladeSystem 4/12 Manuale utente

HP vc4825T - Thin Client Manuale di servizio

HP C7791C - DesignJet 130 Color Inkjet Printer Guida alla configurazione

HP 6100 Manuale di istruzioni

HP HP Integrated Lights-Out Manuale utente

HP Deskjet 812c Manuale di istruzioni

HP AJ878A - StorageWorks 320 GB Hard Drive Manuale di istruzioni

HP BladeSystem Dual NC370i - Multifunction Network... Manuale di istruzioni

HP C7791C - DesignJet 130 Color Inkjet Printer Guida alla configurazione

HP Integrity rx1600 Guida di riferimento rapido

HP ProLiant BL420c Manuale utente

HP 455031-L22 - Intel Quad-Core Xeon 2.13 GHz Processor... Manuale utente

HP StorageWorks MSA 2/8 - SAN Switch Manuale utente

HP OpenView Storage Area Manager (SAM) 3.1 Manuale utente

HP BladeSystem Dual NC370i - Multifunction Network... Manuale utente

HP B2355-92068 Manuale di istruzioni

HP BB118BV - StorageWorks Data Protector Express... Istruzioni operative

HP ProLiant ML310 Generation 5p Manuale utente

Manuali Software popolari di altre marche

COMPRO

COMPRO COMPROFM Manuale utente

Muratec

Muratec OFFICEBRIDGE ONLINE Manuale utente

Oracle

Oracle Contact Center Anywhere 8.1 Manuale utente

Adobe

Adobe 65007312 - Photoshop Lightroom Manuale

Avaya

Avaya NULL One-X for RIM Blackberry Manuale utente

PS Audio

PS Audio PowerPlay Manuale del proprietario

Brady

Brady LOCKOUT PRO 3.0 Manuale di servizio

Avaya

Avaya Interaction Center Manuale utente

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manuale

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manuale utente

Oracle

Oracle Application 9i Manuale utente

Acer

Acer RDM Manuale utente

Canon

Canon Vixia HF21 Manuale utente

Canon

Canon ZR950 Manuale utente

Samsung

Samsung Auto Backup Manuale utente

Polycom

Polycom Vortex EF2201 Istruzioni per l'installazione e il funzionamento

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manuale utente

Novell

Novell SP2 - S Manuale di istruzioni
