HP Data Protector and Oracle 10g RAC configuration best practices

Table of contents

Executive summary............................................................................................................................... 3

Overview............................................................................................................................................ 3

Target audience .................................................................................................................................. 3

Review of test configuration .................................................................................................................. 3

10gRAC configurations on hp-ux ....................................................................................................... 6

Oracle Virtual IP Address.................................................................................................................. 7

Oracle Services to manage workloads................................................................................................ 7

Oracle Services definition ................................................................................................................. 7

Oracle Online Backup Configuration ................................................................................................... 10

Configuration Guidelines ................................................................................................................ 10

Use the hostname and the Instance name to configure the backup ....................................................... 11

Use a VIP and the Instance names to configure the backup ................................................................. 12

Use a VIP and a service name to configure the backup....................................................................... 12

Use a VIP and allocate the channels to the instances manually ............................................................ 13

Storing the connection string in the Recovery Catalog......................................................................... 14

Backup Configuration Recommendations .......................................................................................... 16

SAN Backup versus LAN Backup......................................................................................................... 18

Disk Agent and Media Agent are NOT allocated on the same host...................................................... 18

Disk Agent and Media Agent are allocated on the same host.............................................................. 18

File System Backup: Oracle Base and Cluster configuration .................................................................... 19

Oracle Cluster Registry (OCR) ......................................................................................................... 20

Oracle Voting Disk......................................................................................................................... 20

Oracle SPFILE ................................................................................................................................ 21

ORACLE Directories ....................................................................................................................... 21

File system Backup Recommendations............................................................................................... 21

Oracle RMAN Restore and Recovery ................................................................................................... 22

Oracle Restore Enhancements.......................................................................................................... 22

Oracle RMAN Restore script............................................................................................................ 23

Oracle Restore Configuration .......................................................................................................... 24

Restore Recommendations Summary................................................................................................. 25

Recovery Considerations................................................................................................................. 25

Summary .......................................................................................................................................... 27

Appendix A. Reference documentation................................................................................................. 28

HP................................................................................................................................................ 28

Oracle.......................................................................................................................................... 28

Tools ............................................................................................................................................ 28

Appendix B. RMAN helpful Scripts ...................................................................................................... 29

B.1 How to monitor RMAN job progress .......................................................................................... 29

B.2 How to monitor RMAN waits..................................................................................................... 29

B.3 How to monitor RMAN wait states ............................................................................................. 30

B.4 How to monitor RMAN channels current speed............................................................................ 30

Appendix C. Session Reports .............................................................................................................. 31

Session 1: Backup using ita018 and RAC1....................................................................................... 31

Session 2: Backup using ita018-vip and RAC1, RAC2, RAC3, RAC4................................................... 35

Session 3: Backup using ita018-vip and service BACKUP ................................................................... 40

Session 4: Backup using ita018-vip and service MSL5000.................................................................. 45

Session 5: Backup allocating channels manually on RAC1 and RAC2.................................................. 49

Session 6: Restore allocating channels manually on RAC1 and RAC2 .................................................. 53

Session 7: Restore and Recovery using an incremental backup ............................................................ 56

For more information.......................................................................................................................... 60

Executive summary

This white paper provides guidance and best practices for performing backup and restore of Oracle

10g Real Application Clusters using HP Data Protector Software.

Since the release of Oracle 9i Real Application Clusters, there has always been uncertainty about

what needs to be backed up and how to backup the RAC database. We will try to address these

questions throughout this paper.

This paper is not:

•Intended to replace the HP Software Data Protector installation and integration guides with Oracle

•A performance whitepaper on backup and recovery of Oracle Real Application Clusters

•A step-by-step installation and configuration guide

Overview

HP Data Protector Software Oracle integration enables customers to perform online and offline

backups of an Oracle database by using the Oracle Recovery Manager and acting as a Media

Management Layer. In the past, the integration with an Oracle Real Application Cluster environment

was performed using just one of the instances of the cluster.

On the other side, Oracle’s Workload Management in a Cluster environment managed the workload

distribution, providing optimal performance. With Oracle 10g, the concept of Services was

introduced. It enables to group database workloads and distribute them over specific instances.

Integrating HP Software Data Protector with Oracle 10g Real Application Clusters, helps you benefit

from using the workload management functionality by distributing the backup and restore load over

more than one instance in the cluster.

Target audience

The target audience for this whitepaper are customers, system integrators and solution architects.

Basic knowledge of Data Protector and Oracle 10g RAC is advisable to understand this white paper

fully.

Review of test configuration

The following hardware configuration was used for the testing:

•5 HP Integrity Server rx2620 running HP-UX 11.23

•1 HP StorageWorks EVA5000

•1 SAN Tape Library MSL5000 with 2 SDLT320 drives

•2x 1000 Base-T per server

The following software configuration was used for the testing:

•HP Data Protector 6.0 Cell Manager running on HP-UX

•Oracle 10g RAC version 10.2.0.3 running on 4 nodes using Oracle clusterware

•Oracle 10g version 10.2.0.3 for the Oracle Recovery Catalog (RCVCAT)

The Oracle10g RAC database (RAC) was configured using 2 ASM disk groups:

•Disk Group DG_DB (database): 4 EVA LUN (Vdisk), each with 100 GB

•Disk Group DG_FRA (Flash Recovery Area): 4 EVA LUN (Vdisk), each with 25 GB

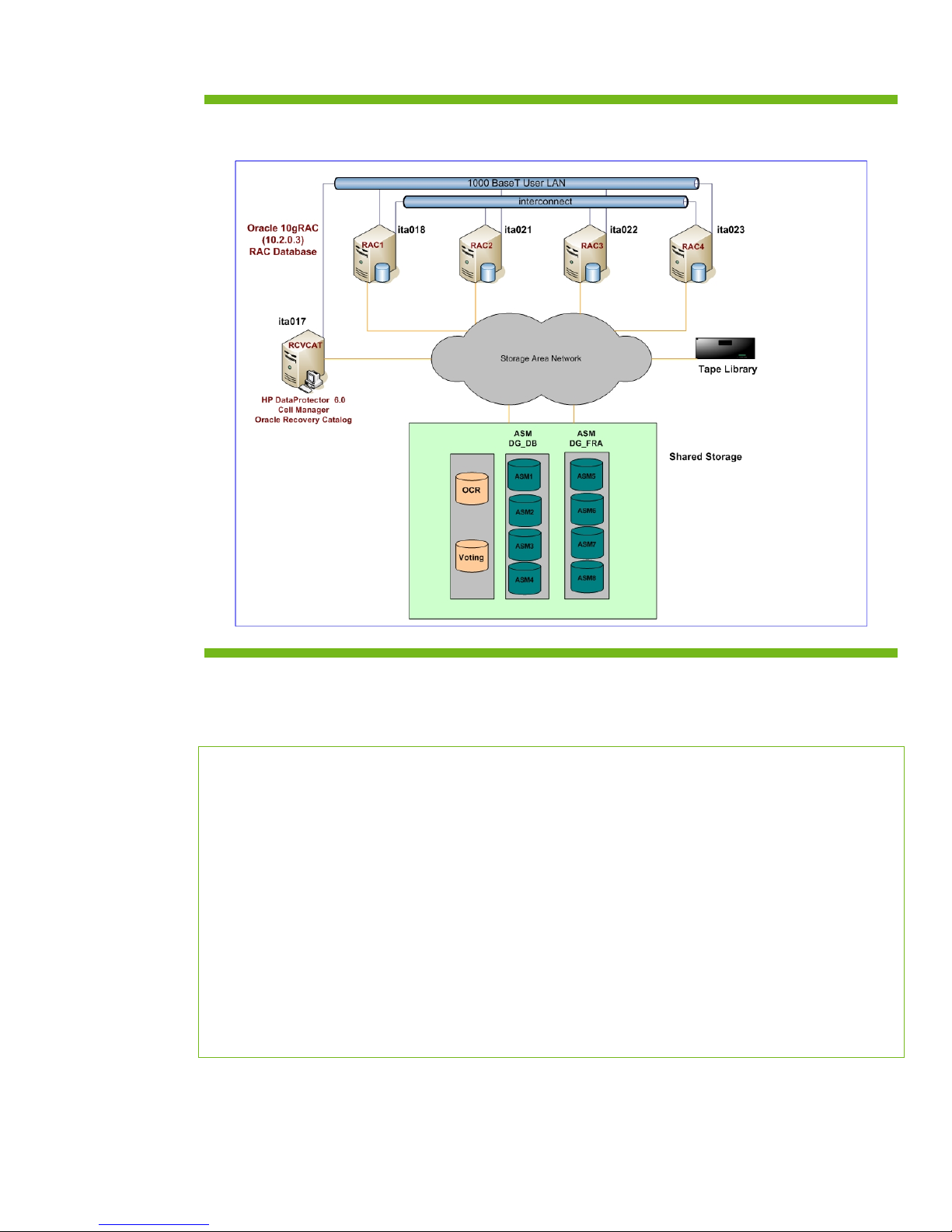

The following figure shows the environment described above:

Figure 1. Hardware architecture

The database had a size of 300GB and was created using the AXWORK suite. This suite created a

new tablespace called POOL, with 66 datafiles, each 4095MB in size. The following representation

shows the distribution of the datafiles. Note that they are all of equal size:

FILE_NAME MB

-------------------------------------------------- ----------

+DG_DB/rac/datafile/tbs_pool_001.dbf 4095

+DG_DB/rac/datafile/tbs_pool_002.dbf 4095

+DG_DB/rac/datafile/tbs_pool_003.dbf 4095

+DG_DB/rac/datafile/tbs_pool_004.dbf 4095

+DG_DB/rac/datafile/tbs_pool_005.dbf 4095

+DG_DB/rac/datafile/tbs_pool_006.dbf 4095

+DG_DB/rac/datafile/tbs_pool_007.dbf 4095

+DG_DB/rac/datafile/tbs_pool_008.dbf 4095

+DG_DB/rac/datafile/tbs_pool_064.dbf 4095

+DG_DB/rac/datafile/tbs_pool_065.dbf 4095

+DG_DB/rac/datafile/tbs_pool_066.dbf 4095

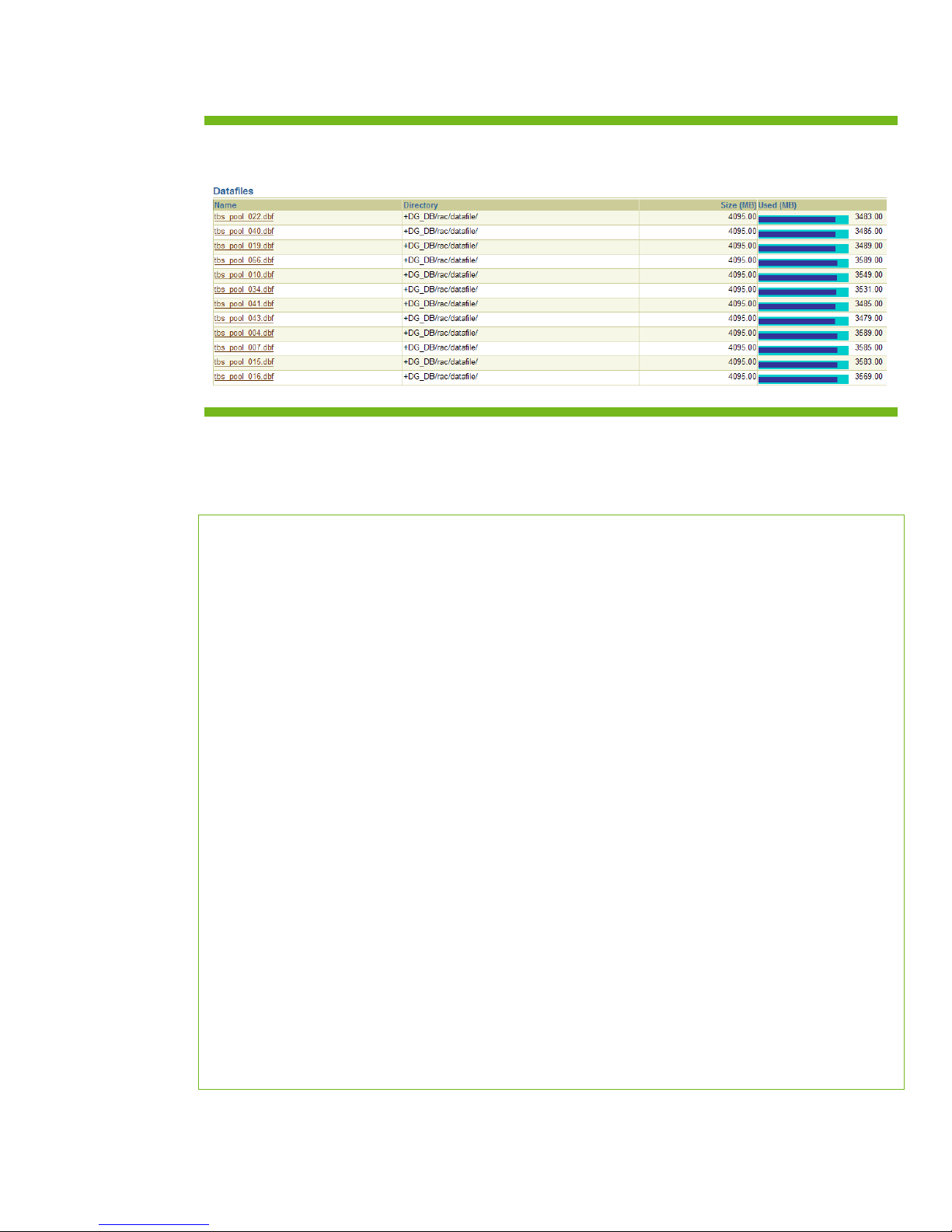

The following screenshot shows the graphical display shown by the Oracle Enterprise Manager

(Database Console):

Figure 2. Oracle Enterprise Manager: POOL datafiles view

Two extra LUN were allocated on the shared storage for the Oracle Cluster Registry (OCR) and

Oracle voting disks.

Below, a list of CRS resources defined in our cluster and their status:

oracle@ita018[RAC1]:/opt/oracle/product/CRS/bin$ ./crsstat.sh

HA Resource Target State

----------- ------ -----

ora.RAC.BACKUP.RAC1.srv ONLINE ONLINE on ita018

ora.RAC.BACKUP.RAC2.srv ONLINE ONLINE on ita021

ora.RAC.BACKUP.RAC3.srv ONLINE ONLINE on ita022

ora.RAC.BACKUP.RAC4.srv ONLINE ONLINE on ita023

ora.RAC.BACKUP.cs ONLINE ONLINE on ita018

ora.RAC.MSL5000.RAC1.srv ONLINE ONLINE on ita018

ora.RAC.MSL5000.RAC2.srv ONLINE ONLINE on ita021

ora.RAC.MSL5000.cs ONLINE ONLINE on ita018

ora.RAC.RAC1.inst ONLINE ONLINE on ita018

ora.RAC.RAC2.inst ONLINE ONLINE on ita021

ora.RAC.RAC3.inst ONLINE ONLINE on ita022

ora.RAC.RAC4.inst ONLINE ONLINE on ita023

ora.RAC.db ONLINE ONLINE on ita021

ora.ita018.ASM1.asm ONLINE ONLINE on ita018

ora.ita018.LISTENER_ITA018.lsnr ONLINE ONLINE on ita018

ora.ita018.gsd ONLINE ONLINE on ita018

ora.ita018.ons ONLINE ONLINE on ita018

ora.ita018.vip ONLINE ONLINE on ita018

ora.ita021.ASM2.asm ONLINE ONLINE on ita021

ora.ita021.LISTENER_ITA021.lsnr ONLINE ONLINE on ita021

ora.ita021.gsd ONLINE ONLINE on ita021

ora.ita021.ons ONLINE ONLINE on ita021

ora.ita021.vip ONLINE ONLINE on ita021

ora.ita022.ASM3.asm ONLINE ONLINE on ita022

ora.ita022.LISTENER_ITA022.lsnr ONLINE ONLINE on ita022

ora.ita022.gsd ONLINE ONLINE on ita022

ora.ita022.ons ONLINE ONLINE on ita022

ora.ita022.vip ONLINE ONLINE on ita022

ora.ita023.ASM4.asm ONLINE ONLINE on ita023

ora.ita023.LISTENER_ITA023.lsnr ONLINE ONLINE on ita023

ora.ita023.gsd ONLINE ONLINE on ita023

ora.ita023.ons ONLINE ONLINE on ita023

ora.ita023.vip ONLINE ONLINE on ita023

10gRAC configurations on hp-ux

Starting with Oracle10g RAC, there are different configurations possible for HP-UX; essentially, the

customer needs to decide about which clustering solution will be deployed:

•Service Guard Extension for RAC + Oracle Clusterware

•Oracle Clusterware only

Based on the storage volume manager choice, there are three main alternatives:

•Oracle Automatic Storage Management (ASM)

•HP Cluster File system (CFS)

•RAW devices

Important Note: RAW devices do NOT provide a shared location for storing archive logs (archived

logs cannot be located on RAW). In this case, an extra approach has to be addressed to have all

archived logs accessible by all RAC instances. This is needed for backup and recovery purposes. Two

possible approaches are to:

•Define an archivelog destination local on each node (i.e. /arch1 on RAC1, /arch2 on RAC2) and

export it and cross mount it on every system. In case one of the nodes is down, the archivelog

directory is also not available.

•Define a shared archivelog destination for all RAC nodes on an NFS share and use a clustering

solution as HP Service Guard to guarantee its availability.

Figure 3. Oracle 10gRAC on hp-ux supported configurations

SGeRAC &

Oracle

Clusterware

10g RAC

HP-UX

Oracle

Clusterware

SLVM CVM ASM

RAW ASM RAW CFS

SGeRAC &

Oracle

Clusterware

10g RAC

HP-UX

Oracle

Clusterware

SLVM CVM ASM

RAW ASM RAW CFS

Oracle Virtual IP Address

Since Oracle 10g, clients use a Virtual IP Address (VIP) to connect to the database. The VIP is a static

IP which is defined in the Oracle Clusterware installation.

When a RAC node fails, its associated VIP will failover automatically to one of the remaining nodes.

The new node hosting the failed VIP will associate a new MAC address for this VIP and will make it

known outside.

When clients are not using a VIP for their connections, in case of node failure, they run in a TCP

timeout. For availability and failover purposes, we have defined a VIP on each RAC node (ita018-vip,

ita021-vip, ita022-vip and ita023-vip). We will use the VIP to configure the integration, thus

providing Failover capabilities.

Oracle Services to manage workloads

Applications using an RAC database need to have their workload managed across the entire cluster.

For this purpose, Oracle introduced the Workload Management framework. Based on the use of

Services, it presents the application using the cluster an interface for managing their load in a very

simple way.

Oracle Services allow breaking down workloads in a manageable way, based on Service Level

Agreements, High Availability needs, or business needs and route them to the optimal instances

assigned. It is recommended to group load with the same service level. Load balancing among the

available instances is provided by Oracle Net Services.

When defining a new service, we can specify on which RAC instances the service should run on:

•Preferred: service should run on this instance

•Available: service should run on this instance if a preferred fails

•Not Used: the service should not use this instance

Transparent Application Failover (TAF) enables Oracle Net to failover to a different listener. Based on

the TAF method, the services can be defined as:

•None:

•Basic: connection to failover server will be established at failover time

•Preconnect: pre-established connections are allocated to provide faster failover

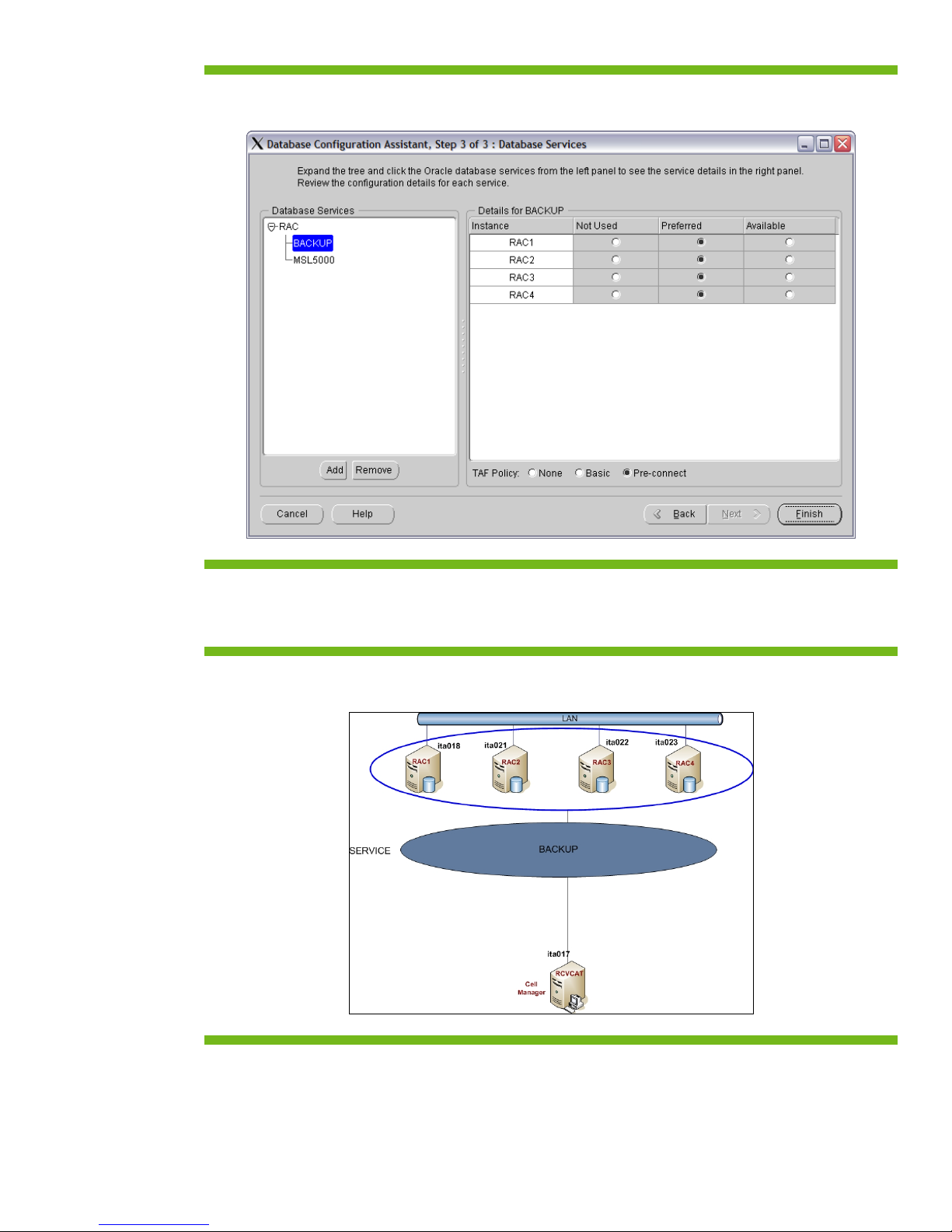

Oracle Services definition

To define a new service, you can use the command line interface, srvctl, or the database

configuration assistant, dbca:

$ srvctl add service –d RAC –s BACKUP –r RAC1,RAC2,RAC3,RAC4 –P PRECONNECT

In the above example, we add a new service called BACKUP in the database RAC. With the option –

r we specified the list of preferred instances and the option –P specifies the TAF policy.

The same can be achieved using the Database Configuration Assistant (dbca) GUI:

Figure 4. Database Configuration Assistant: Database Service BACKUP

The following figure is a graphical representation of the BACKUP service, which expands over all

available instances:

Figure 5. Oracle Service BACKUP

We define also a service called MSL5000, allowed to run on two of the four instances; we set two

instances to Preferred and two instances to Not Used.

Figure 6. Database Configuration Assistant: Database Service MSL5000

For the Oracle Service MSL5000, we can see below how only instances RAC1 and RAC2 are

available for this service:

Figure 7. Oracle Service MSL5000

The configuration can be verified using the following command:

oracle@ita018[RAC1]:/home/oracle$ srvctl status service -d RAC -s BACKUP,MSL5000

Service BACKUP is running on instance(s) RAC1, RAC4, RAC3, RAC2

Service MSL5000 is running on instance(s) RAC1, RAC2

Oracle Online Backup Configuration

This section discusses topics such as Backup Session Failover and Backup Load Balancing.

In a large customer environment, hundreds of Oracle Databases are backed up daily. Backup

sessions have to run independently from the status of some of the RAC instances. While it is critical to

have regular backups for the availability of the data, it is also crucial to backup the archive logs on a

daily basis to avoid the archive log destination to fill up

The idea of Session Failover is to be able to have the backup session running although the configured

instance is not available. Session failover applies only to the start of the backup session and not to an

already running session.

Backup Load Balancing distributes the Backup Load over more than one RAC node. As a result, more

than one node will read the datafiles and write the data to tape. This is also valid for a Restore

Session.

Configuration Guidelines

The following is a list of the main tasks needed for the Oracle integration. It is only for reference and

does not replace the Data Protector Oracle online integration manual.

1. Install the Data Protector Oracle agent on each and every RAC Node

2. Add a root account has to the Data Protector Admin User group in the Users configuration

menu for every RAC Node and every virtual hostname.1(1)

3. Add the oracle account to the Data Protector Admin User group in the Users configuration

menu for every RAC Node and every virtual hostname.

4. Link the Oracle SBT library (located under $ORACLE_HOME/lib) with the Data Protector SBT

library on every node as oracle user. It can be done online (the link process is described in

the Data Protector Oracle integration documentation). This is step is not required in Data

Protector 6.1.

5. Verity that the Oracle SQLNET connectivity works between each node and the RMAN

recovery catalog

6. Optional: register database RAC in the recovery catalog (this step is done through the

Integration). The integration needs a database account with SYSDBA privileges. You can use

the Oracle Database built-in SYS account or you may prefer to create a new account (i.e.

dp_integration) and grant it SYSDBA (NOTE: the grant has to be done on each node of the

cluster).

7. Import the Virtual IP Address (VIP) of every node in the RAC cluster; this will enable us to

configure the virtual IP as the client when doing the Integration.

1A new enhancement has been developed, which doesn’t require the root account but only the oracle account is required. Contact your support

organization to receive the needed patch.

Indice

Altri manuali HP Software

HP Surestore Tape Library Model 10/180 Manuale utente

HP Compaq NW8000 Manuale utente

HP 705 Workstation Manuale operativo e di manutenzione

HP 6100 Manuale di istruzioni

HP Xw460c - ProLiant - Blade Workstation Manuale utente

HP BladeSystem Dual NC370i - Multifunction Network... Manuale utente

HP NonStop Pathway/iTS Manuale del proprietario

HP BladeSystem bc2000 - Blade PC Manuale di servizio

HP BB118BV - StorageWorks Data Protector Express... Istruzioni operative

HP BB118BV - StorageWorks Data Protector Express... Manuale per l'uso e la cura

HP ActivCard Smart Card Guida rapida

HP J4813A Manuale utente

HP P Class 450/500/550/600/650/700/750 Manuale utente

HP Media Center m1000 - Desktop PC Guida rapida

HP Surestore Disk Array 12h - And FC60 Manuale utente

HP HPE XP P9500 Manuale utente

HP ProLiant DL320e Manuale utente

HP Data Protector IDB Purge Manuale utente

HP HP Integrated Lights-Out Manuale utente

HP NonStop RDF J-series RVUs Manuale di programmazione

HP NC320m - PCI Express Gigabit Server Adapter Manuale utente

HP BladeSystem Dual NC370i - Multifunction Network... Manuale utente

HP D6030A - NetServer - E50 Manuale utente

HP C7791C - DesignJet 130 Color Inkjet Printer Guida alla configurazione

Manuali Software popolari di altre marche

COMPRO

COMPRO COMPROFM Manuale utente

Muratec

Muratec OFFICEBRIDGE ONLINE Manuale utente

Oracle

Oracle Contact Center Anywhere 8.1 Manuale utente

Adobe

Adobe 65007312 - Photoshop Lightroom Manuale

Avaya

Avaya NULL One-X for RIM Blackberry Manuale utente

PS Audio

PS Audio PowerPlay Manuale del proprietario

Brady

Brady LOCKOUT PRO 3.0 Manuale di servizio

Avaya

Avaya Interaction Center Manuale utente

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manuale

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manuale utente

Oracle

Oracle Application 9i Manuale utente

Acer

Acer RDM Manuale utente

Canon

Canon Vixia HF21 Manuale utente

Canon

Canon ZR950 Manuale utente

Samsung

Samsung Auto Backup Manuale utente

Polycom

Polycom Vortex EF2201 Istruzioni per l'installazione e il funzionamento

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manuale utente

Novell

Novell SP2 - S Manuale di istruzioni
