Product End-of-Life Disassembly Instructions

Product Category: Other Products

Marketing Name / Model

[List multiple models if applicable.]

HP R/T2200 G4 ERM

Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions

for the disassembly of HP products to remove components and materials requiring selective treatment, as defined by EU

directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).

1.0 Items Requiring Selective Treatment

1.1 Items listed below are classified as requiring selective treatment.

1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as

applicable.

Item Description Notes

Quantity

of items

included

in product

Printed Circuit Boards (PCB) or Printed Circuit

Assemblies (PCA)

With a surface greater than 10 sq cm

Batteries

All types including standard alkaline and lithium coin

or button style batteries

Mercury-containing components

For example, mercury in lamps, display backlights,

scanner lamps, switches, batteries

Liquid Crystal Displays (LCD) with a surface greater

than 100 sq cm

Includes background illuminated displays with gas

discharge lamps

Cathode Ray Tubes (CRT)

Capacitors / condensers (Containing PCB/PCT)

Electrolytic Capacitors / Condensers measuring

greater than 2.5 cm in diameter or height

External electrical cables and cords

Gas Discharge Lamps

Plastics containing Brominated Flame Retardants

weighing > 25 grams (not including PCBs or PCAs

already listed as a separate item above)

Components and parts containing toner and ink,

including liquids, semi-liquids (gel/paste) and toner

Include the cartridges, print heads, tubes, vent

chambers, and service stations.

Components and waste containing asbestos

Components, parts and materials containing

refractory ceramic fibers

EL-MF877-00 Page 1

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Components, parts and materials containing

radioactive substances

2.0 Tools Required

List the type and size of the tools that would typically be used to disassemble the product to a point where components

and materials requiring selective treatment can be removed.

Tool Description

Tool Size (if

applicable)

Star Head Screw Driver

Cross Head Screw Driver

M3,M4

Plastic Nipper

Normal

Nut Driver

Electric Iron

Normal

3.0 Product Disassembly Process

3.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment:

1. Remove the middle bezel and left panel.

2. Loosen the screws fixing battery door and right panel, and then remove the battery door and right panel.

3. Loosen the screws fixing the top cover, and remove the top cover.

4. Disconnect the battery cables, and wrap the cable terminals with insulating tape.

5. Loosen the nuts fixing the battery brackets, and remove the battery brackets.

6. Stand the batteries, and disconnect the cables connecting to Fuse Board and rear panel ASSY, and then remove the

batteries.

7. Loosen the screws fixing the cables on the Fuse Board , and loosen the screws fixing the Fuse Board , and then

remove the Fuse Board .

8. Loosen the nuts fixing the ground cable to the mainframe, and loosen the screws fixing the rear panel ASSY, and then

remove the rear panel assembly.

9. Disassemble the rear panel ASSY into separate parts.

3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items

contained in the product that require selective treatment (with descriptions and arrows identifying locations).

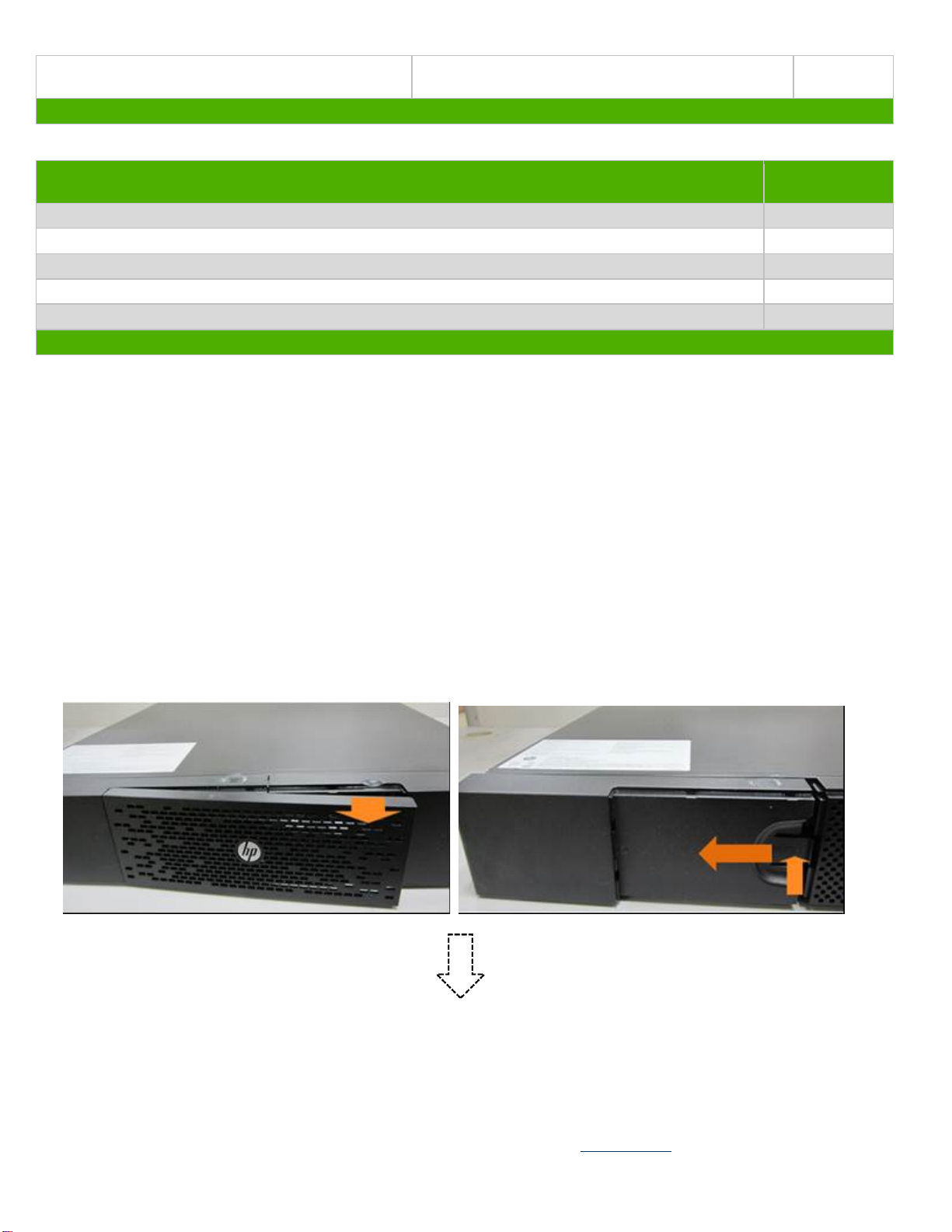

1. Remove the middle bezel and left panel.

EL-MF877-00 Page 2

Template Revision B

PSG instructions for this template are available at EL-MF877-01

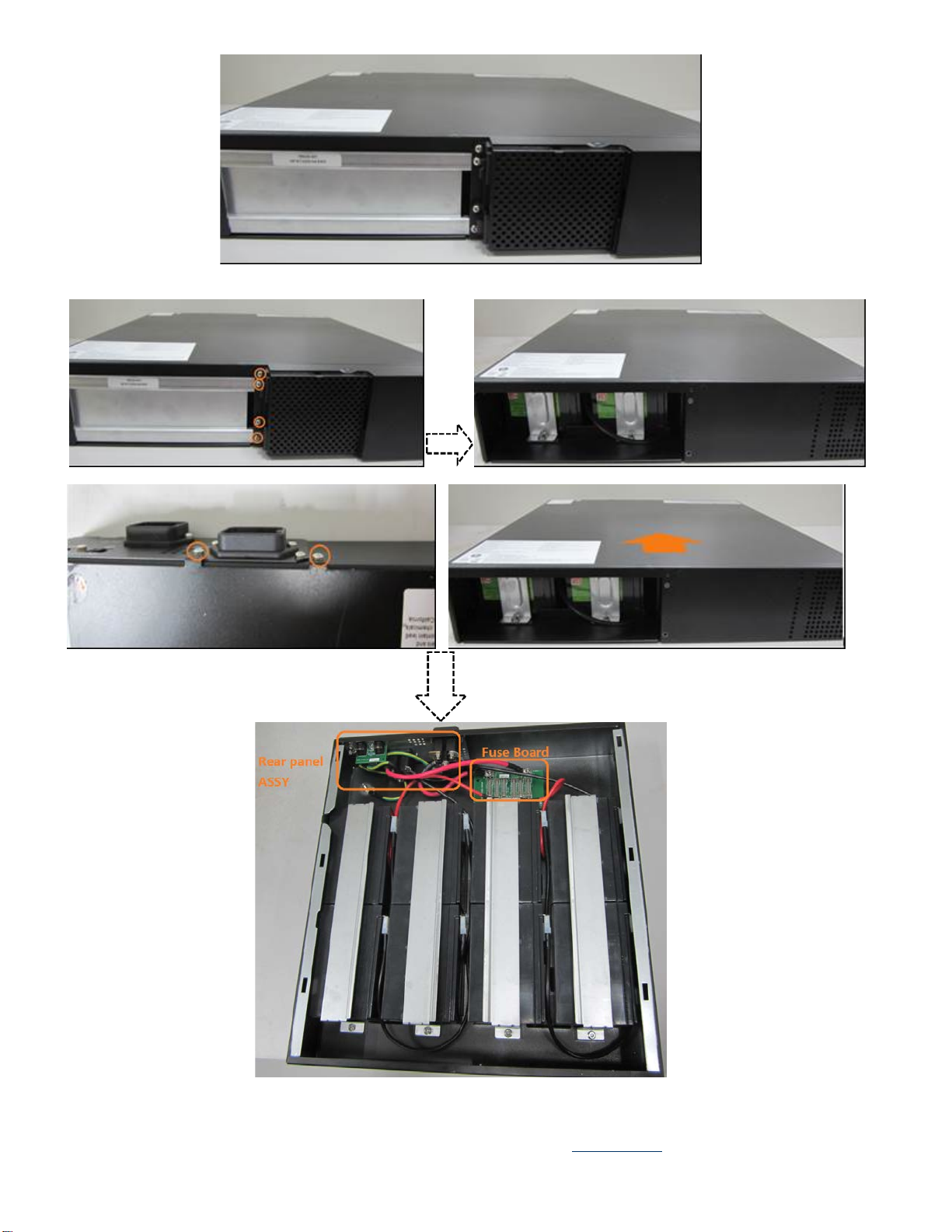

2. Loosen the screws fixing battery door and right panel, and then remove the battery door and right panel.

3. Loosen the screws fixing the top cover, and remove the top cover.

EL-MF877-00 Page 3

Template Revision B

PSG instructions for this template are available at EL-MF877-01

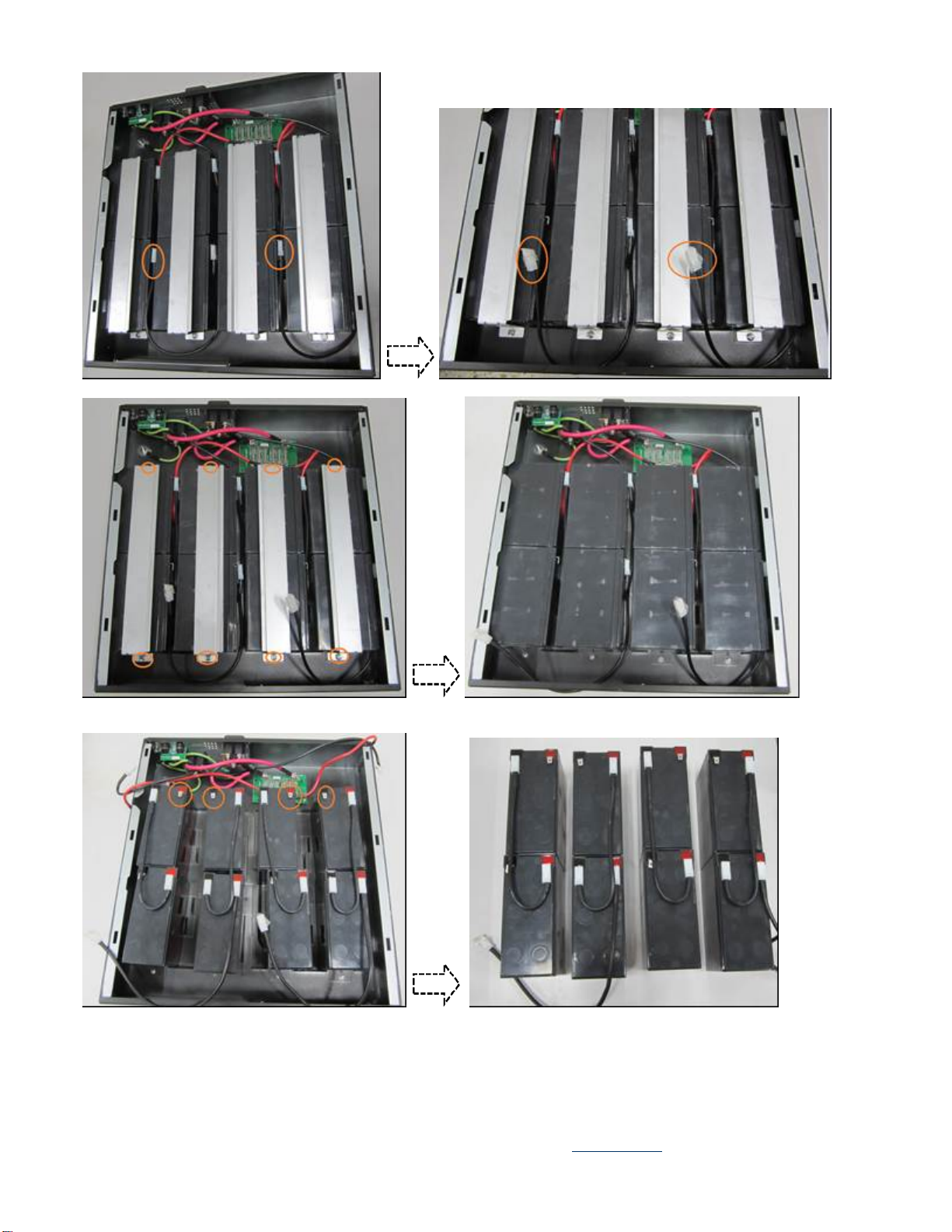

4. Disconnect the battery cables, and wrap the cable terminals with insulating tape.

5. Loosen the nuts fixing the battery brackets, and remove the battery brackets.

6. Stand the batteries, and disconnect the cables connecting to Fuse Board and rear panel ASSY, and then

remove the batteries.

EL-MF877-00 Page 4

Template Revision B

PSG instructions for this template are available at EL-MF877-01

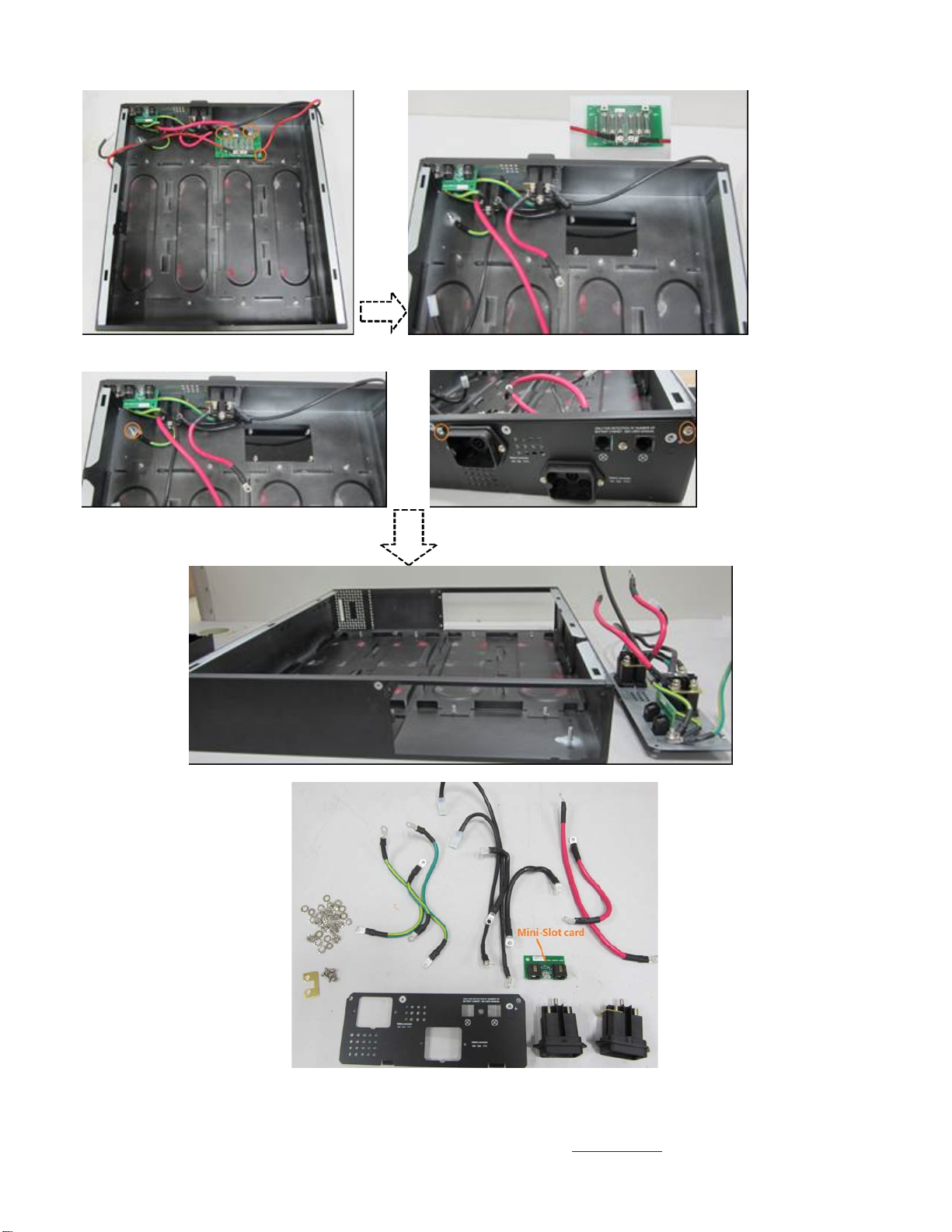

7. Loosen the screws fixing the cables on the Fuse Board, and loosen the screws fixing the Fuse Board, and

then remove the Fuse Board.

8. Loosen the nuts fixing the ground cable to the mainframe, and loosen the screws fixing the rear panel ASSY,

and then remove the rear panel assembly.

9. Disassemble the rear panel ASSY into separate parts.

EL-MF877-00 Page 5

Template Revision B

PSG instructions for this template are available at EL-MF877-01
