HPE Aruba Instant On 1960 Istruzioni per il montaggio

Product End-of-Life Disassembly Instructions

Product Category: Networking Equipment

Marketing Name / Model

[List multiple models if applicable.]

HPE Aruba Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP+ 600W Switch (JL809A)

Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions

for the disassembly of HPE products to remove components and materials requiring selective treatment, as defined by EU

directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).

1.0 Items Requiring Selective Treatment

1.1 Items listed below are classified as requiring selective treatment.

1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as

applicable.

Item Description

Notes

Quantity

of items

included

in product

Printed Circuit Boards (PCB) or Printed Circuit

Assemblies (PCA)

With a surface greater than 10 sq cm

Batteries

All types including standard alkaline and lithium

coin or button style batteries

Mercury-containing components

For example, mercury in lamps, display backlights,

scanner lamps, switches, batteries

Liquid Crystal Displays (LCD) with a surface

greater than 100 sq cm

Includes background illuminated displays with gas

discharge lamps

Cathode Ray Tubes (CRT)

Capacitors / condensers (Containing PCB/PCT)

Electrolytic Capacitors / Condensers measuring

greater than 2.5 cm in diameter or height

on PSU PCB Board

External electrical cables and cords

Power Cord

Gas Discharge Lamps

Plastics containing Brominated Flame Retardants

weighing > 25 grams (not including PCBs or PCAs

already listed as a separate item above)

Components and parts containing toner and ink,

including liquids, semi-liquids (gel/paste) and toner

Include the cartridges, print heads, tubes, vent

chambers, and service stations.

Components and waste containing asbestos

Components, parts and materials containing

refractory ceramic fibers

Components, parts and materials containing

radioactive substances

2.0 Tools Required

List the type and size of the tools that would typically be used to disassemble the product to a point where components

and materials requiring selective treatment can be removed.

Tool Description

Tool Size (if

applicable)

Phillips Screwdriver

P1 ,P2

Diagonal pliers

5”

Socket Screwdriver

5.0mm ,5.5mm

3.0 Product Disassembly Process

3.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment:

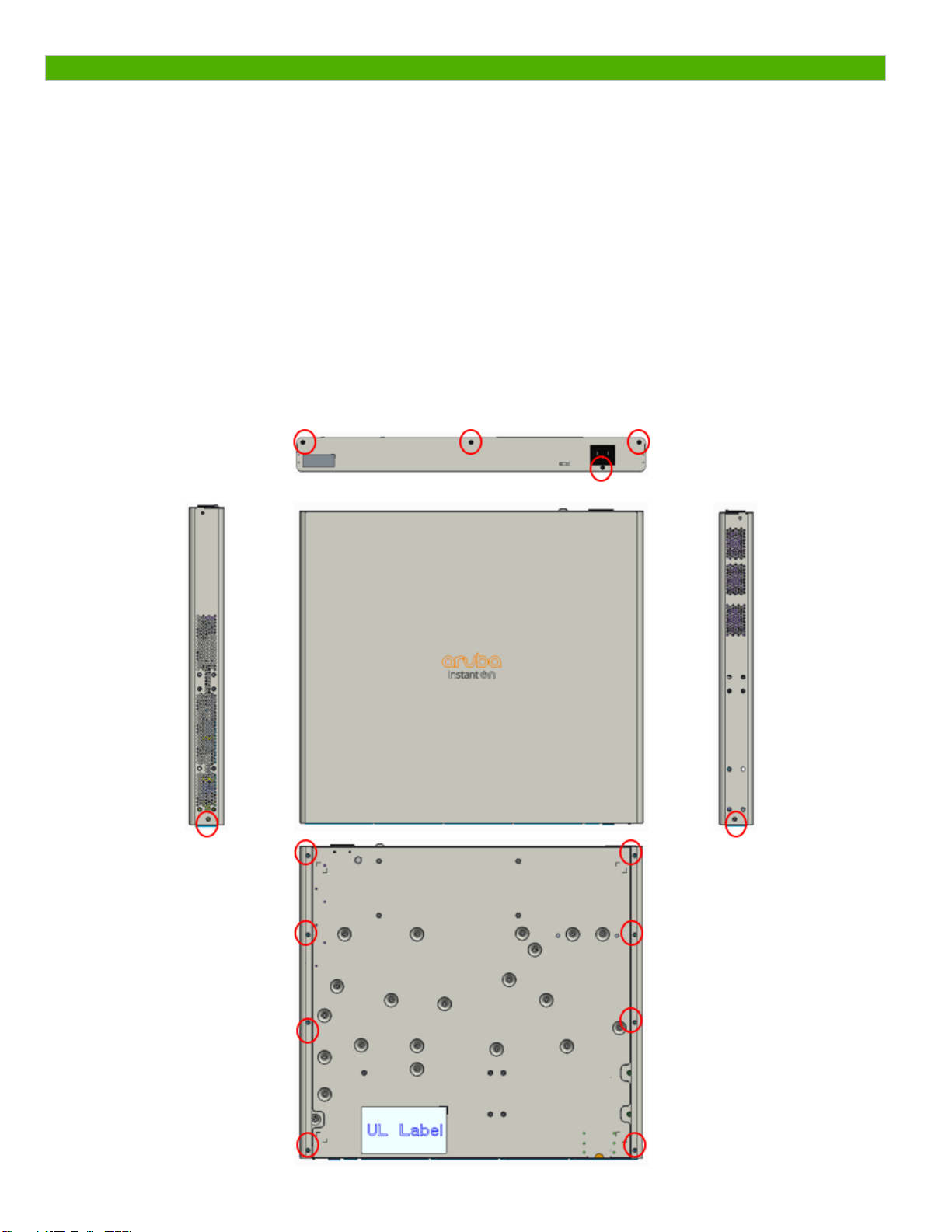

1. Using a P1 Phillips Screw Driver, remove all 14 screws securing top cover to chassis. Remove Cover. (see 3.2.1)

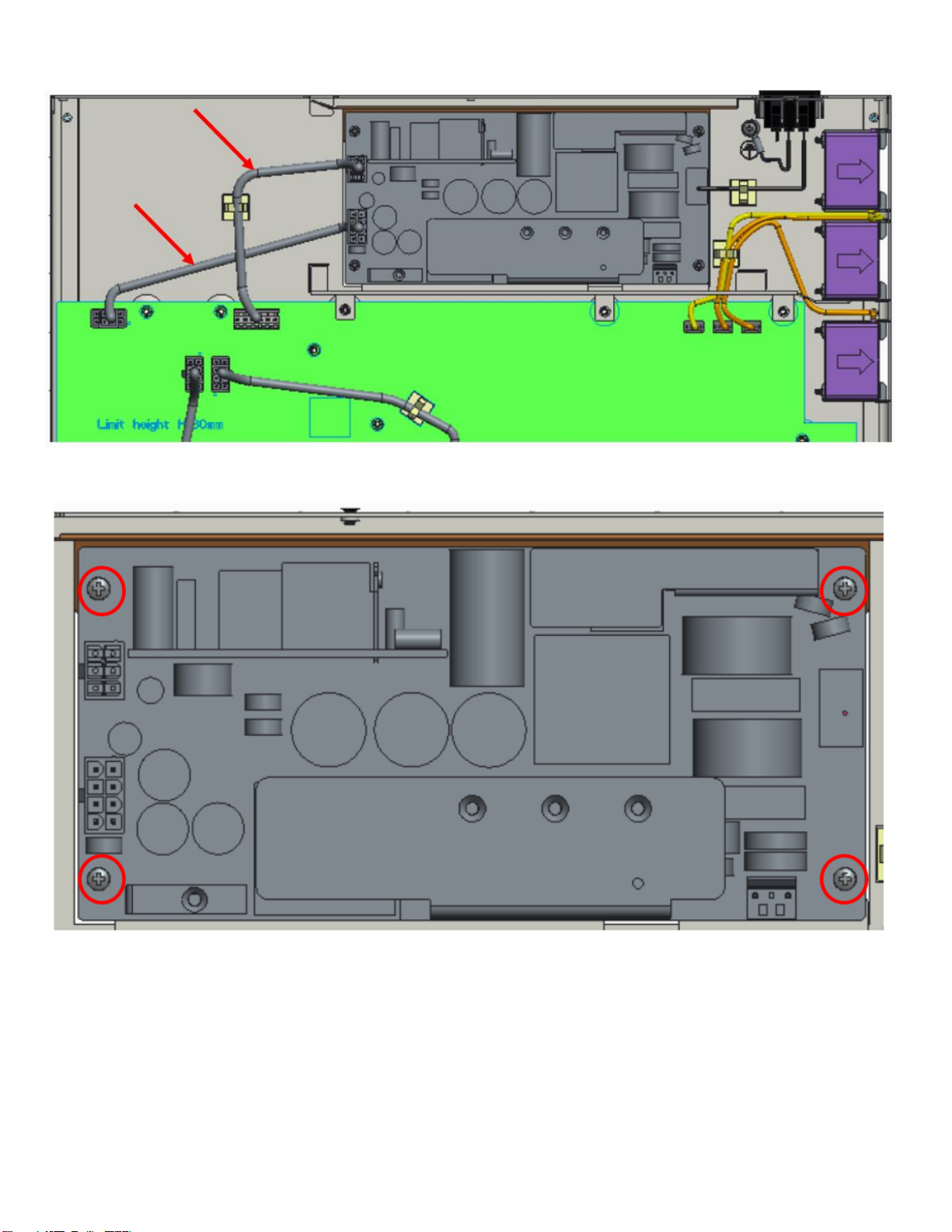

2. Disconnect Power supply and main board cable connections (2 cables connections in all)

3. Using a P2 Phillips Screw Driver, remove 4 screws to chassis ,remove Power supply(1pcs).(see 3.2.3)

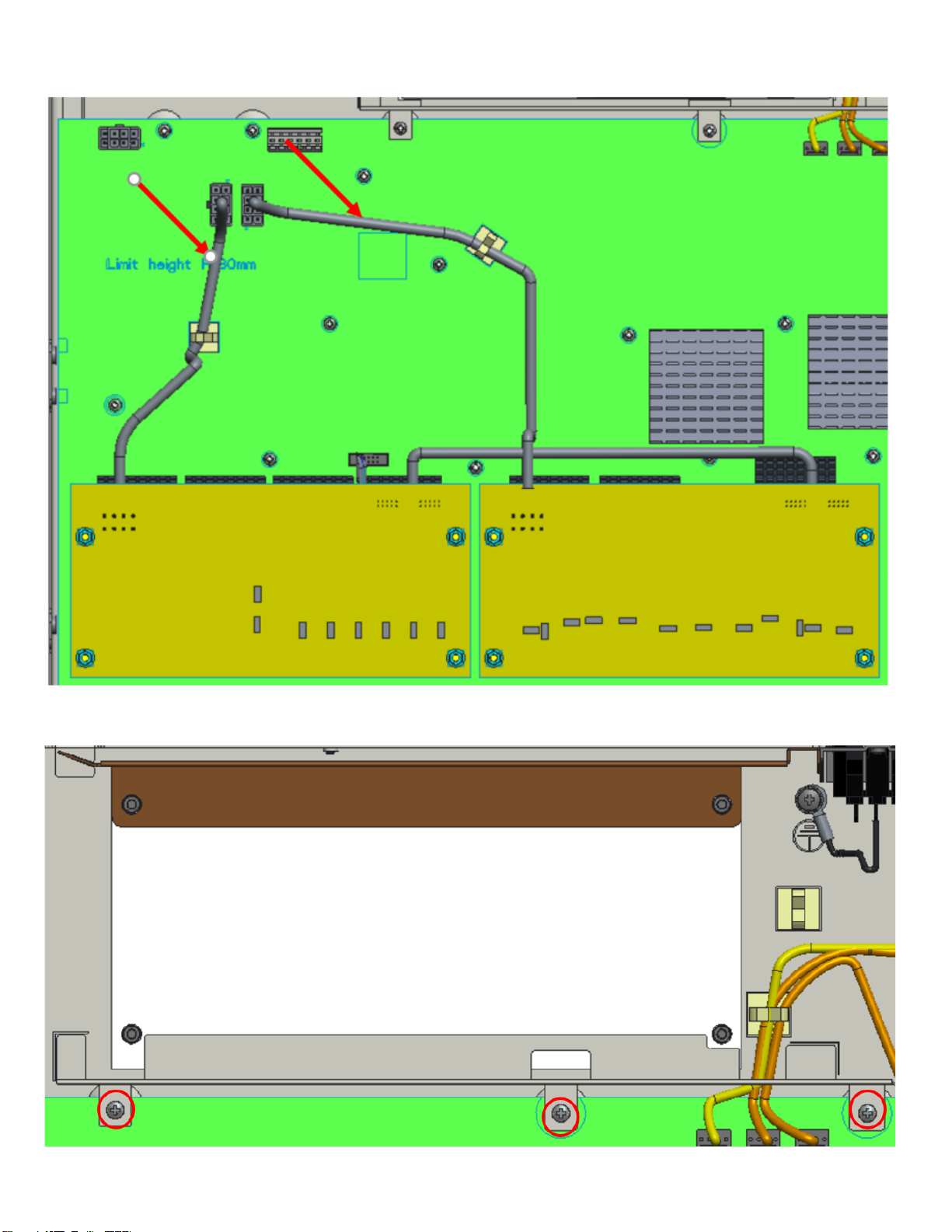

4. Disconnect PoE board and main board cable connections (2 cables connections in all) (see 3.2.4)

5. Using a P2 Phillips Screw Driver, remove 4 screws to chassis ,remove Air baffle(2pcs) (see 3.2.5)

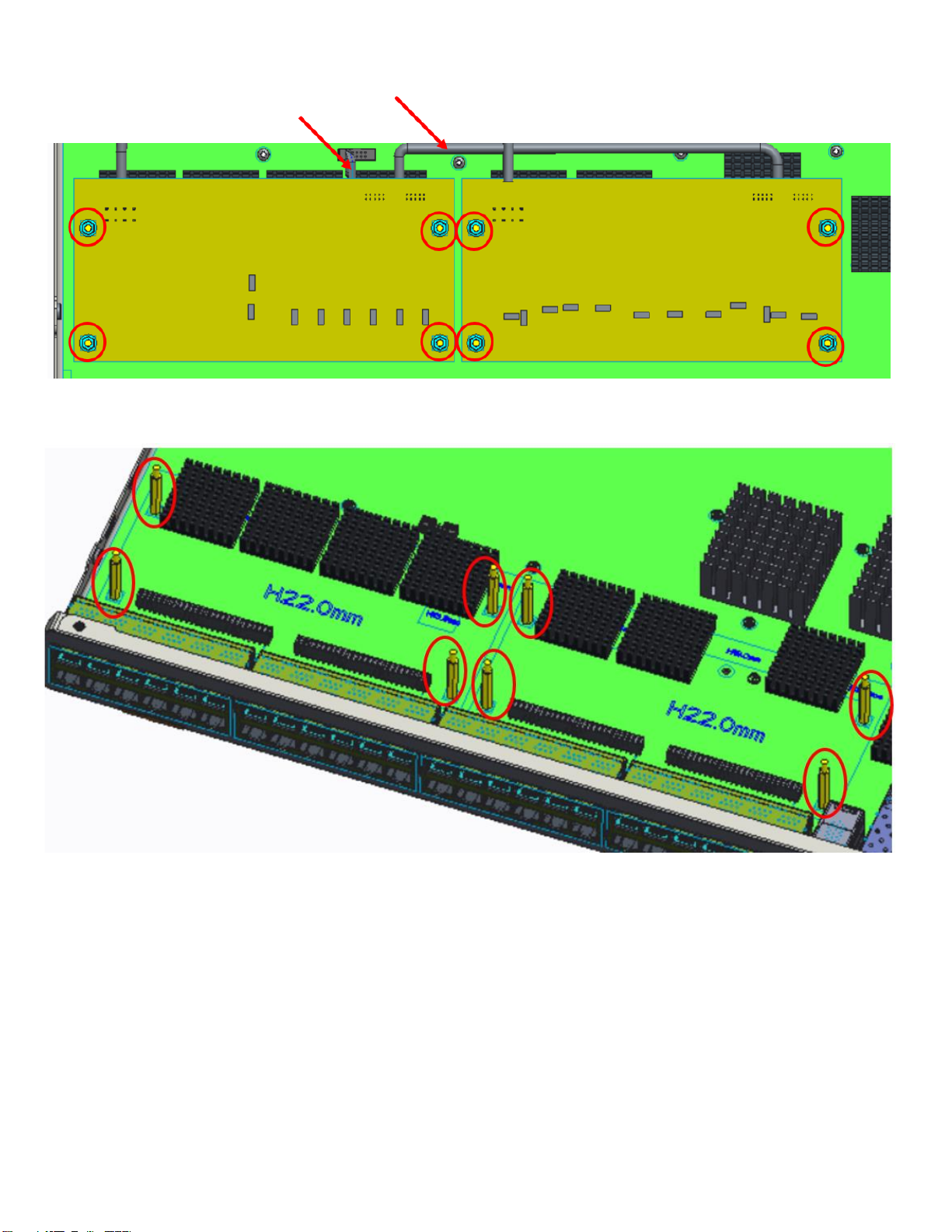

6. Using a Socket Screw Driver (5.5mm), remove all 8 nuts to PoE Board and Disconnect PoE and main board cable connections (2

cables connections in all) (see 3.2.4) (see 3.2.6)

7. Using a Socket Screw Driver (5.0mm), remove all 8 stand-off to chassis.(see 3.2.7)

8. Disconnect Fan and main board 3 cable connections and Using a P2 Phillips Screw Driver, remove 6 screws to chassis, remove

Fan(3pcs) (see 3.2.8)

9. Using a P2 Phillips Screw Driver, remove 18 screws to chassis ,remove main board (1pcs) and light-pipe (1pcs).(see 3.2.9)

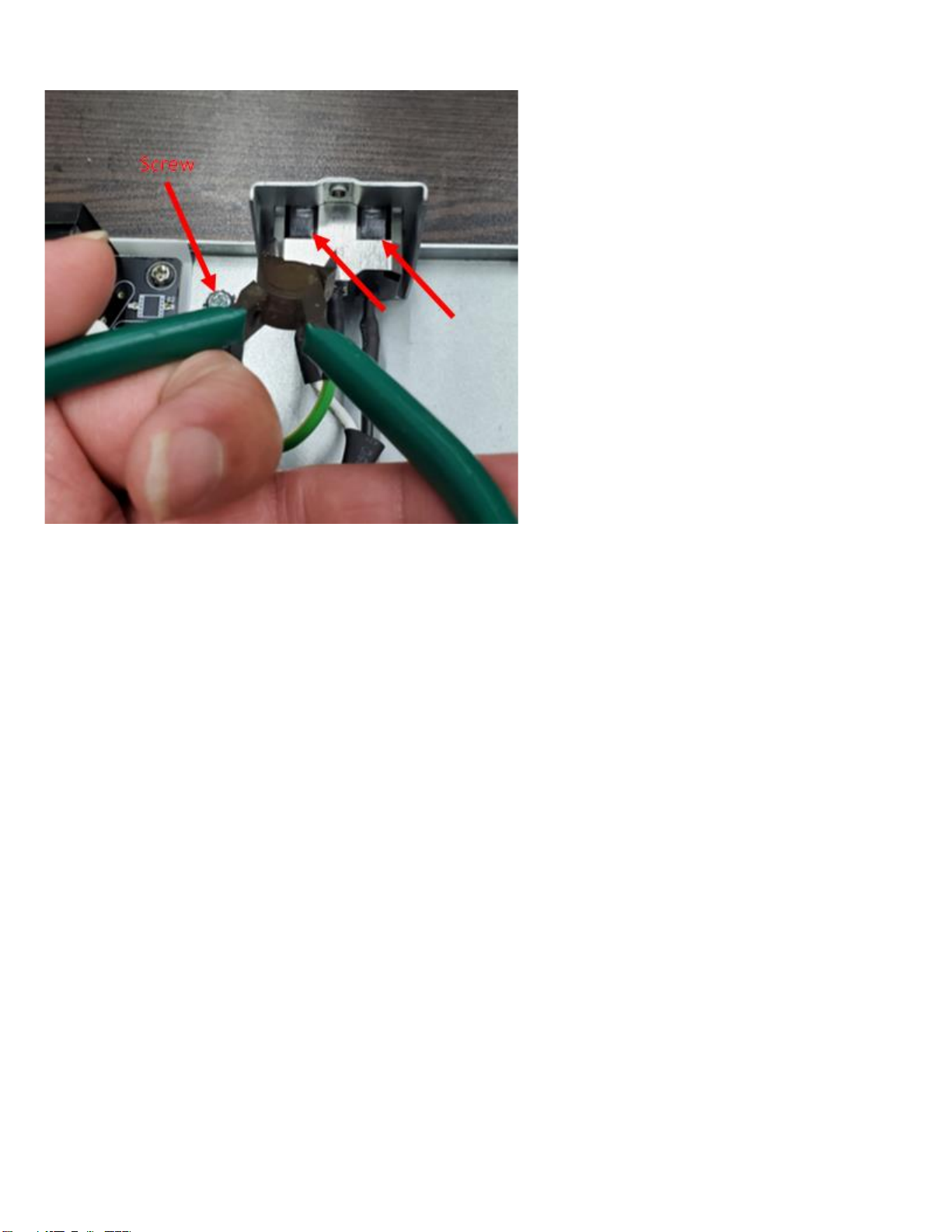

10. Cut ac-inlet materials (use Diagonal pliers) and Using a P2 Phillips Screw Driver, remove 1 screws to chassis and Disconnect

ac-inlet cable(see 3.2.10)

3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items

contained in the product that require selective treatment (with descriptions and arrows identifying locations).

3.2.1

3.2.2

3.2.3

3.2.4

3.2.5

3.2.6

3.2.7

3.2.8

3.2.9

3.2.10
