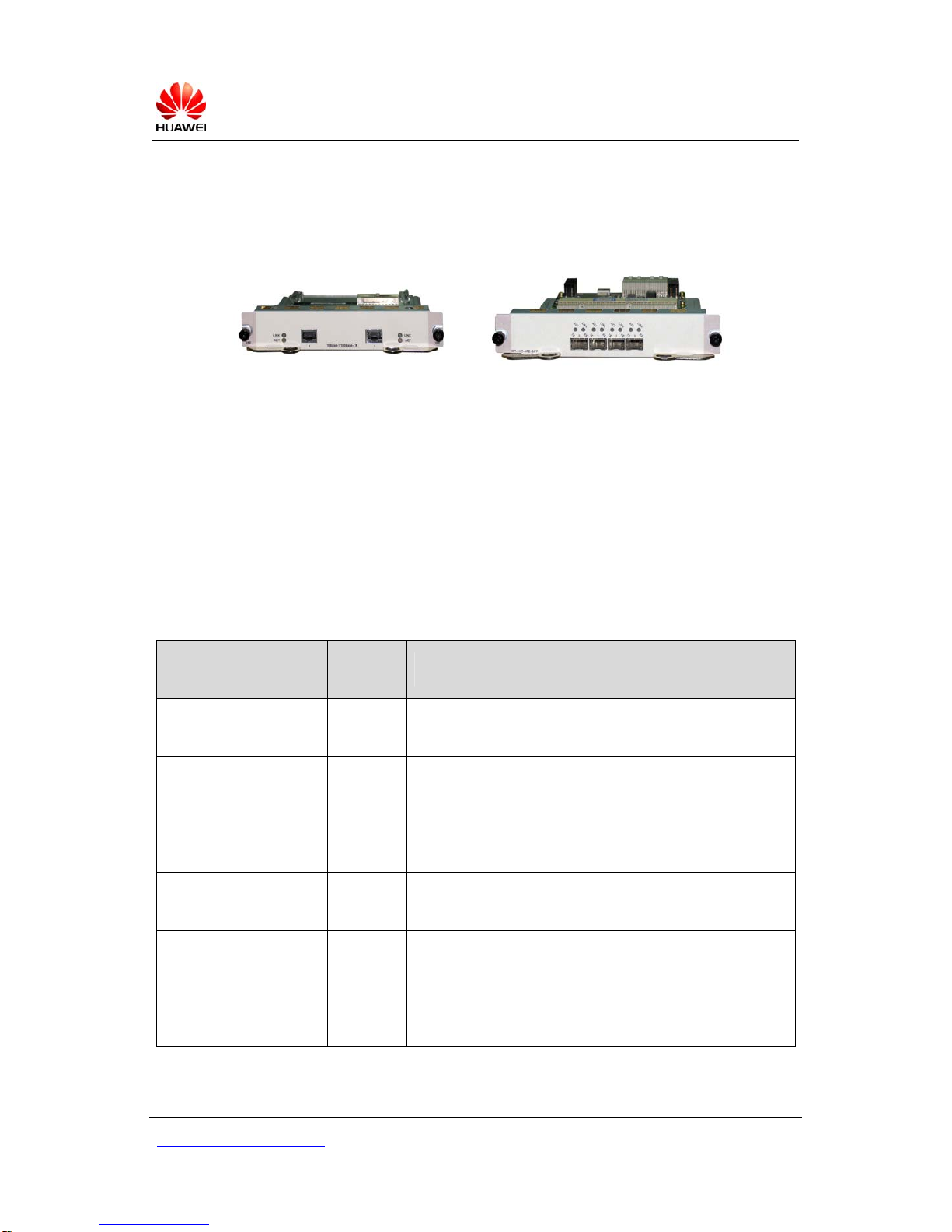

Huawei NE-HIC-2xFE Manuale utente

Quidway® NetEngine 20E Router 100 M Ethernet Line Module

Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved. 1

http://datacomm.huawei.com

Quidway® NetEngine 20E Router 100 M Ethernet Line Module

Overview

The 10/100 M Ethernet electrical interface module and the 100 M Ethernet optical interface module

of the NE20E router provide FE electrical and optical interfaces respectively. They are used for the

communication between a router and a LAN.

At present, the NE20E provides three types of 10/100 M Ethernet electrical interface modules,

including 2-port, 4-port and 8-port FE interface modules. The NE20E also provides three types of

100 M optical interface modules, including 2-port, 4-port and 8-port FE single-/multi-mode optical

interface modules.

Specifications

Specifications of the 100 M line module are described as below.

Module Interface

type Description

NE-HIC-2xFE-SFP SFP A 2-port 100 M Ethernet high-speed interface module

(providing SFP optical interfaces)

NE-HIC-4xFE-SFP SFP A 4-port 100 M Ethernet high-speed interface module

(providing SFP optical interfaces)

NE-HIC-8xFE-SFP SFP A 8-port 100 M Ethernet high-speed interface module

(providing SFP optical interfaces)

NE-HIC-2xFE-RJ45 RJ45 A 2-port 100 M Ethernet high-speed interface module

(providing RJ45 interfaces)

NE-HIC-4xFE-RJ45 RJ45 A 4-port 100 M Ethernet high-speed interface module

(providing RJ45 interfaces)

NE-HIC-8xFE-RJ45 RJ45 A 8-port 100 M Ethernet high-speed interface module

(providing RJ45 interfaces)

The NE20E provides four types of 100 M SFP optical modules.

Quidway® NetEngine 20E Router 100 M Ethernet Line Module

Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved. 2

http://datacomm.huawei.com

Interface rate 100 Mbit/s

Maximum transmission distance 2km 15km 40km 80km

Center wavelength 1310nm 1310nm 1310nm 1550nm

Questo manuale è adatto per i seguenti modelli
