Huawei E589 Istruzioni per il montaggio
1
Thank you for choosing Huwei E589 4G Mobile WiFi
This guide briefly describes the functions of your Huawei E589 4G Mobile WiFi. For more
details, see help on the web management page. See” Accessing the Web Management
Page” on page 13.
Copyright © Huawei Technologies Co., Ltd. 2012. All rights reserved.
THIS DOCUMENT IS FOR INFORMATION PURPOSE ONLY, AND DOES NOT CONSTITUTE
ANY KIND OF WARRANTIES.
2
Getting to Know Huawei E589 4G Mobile WiFi
Connection Scenario
Any WiFi device can be connected to the Internet through your Huawei E589 4G Mobile
WiFi. You can connect up to 10 different devices. The actual connection procedure
depends on the operating system of the WiFi device. The connection scenario illustrated
here is for your reference.
3
Getting to know your Huawei E589 4G Mobile WiFi
No.
Item
1
Screen
2
WPS button
Press it twice consecutively to display
the SSID and wireless network key.
Press and hold it until a WPS
activation animation is displayed to
enable the WPS function.
3
Power/Wi-Fi button
4
SIM card slot
5
Strap hole
6
USB port
7
Reset button
8
microSD card slot
1
2
3
4
5
6
7
8
4
Screen
No.
Item
1
Signal strength
2
Network
3
Wi-Fi enabled
Number of devices connected
4
Internet connection status
5
New messages
Number of new messages
6
Battery level
7
International roaming state
8
Traffic data
Connection duration
9
A: Auto mode
M: Manual mode
1
2
3
4
5
6
R
8
7
0 00:00
B
A
9
4G
5
Note:
WiFi: Wireless Fidelity
WPS: WiFi Protected Setup
Traffic statistics are for your reference only. To obtain the actual traffic data, contact
your service provider.
SSID and Wireless Network Key
To connect a WiFi device to your Mobile WiFi, an SSID and a wireless network key are
required. The default SSID and wireless network key can be found in the gift box.
Alternatively press twice consecutively to display the current SSID and wireless
network key on the screen.
6
Before You Start

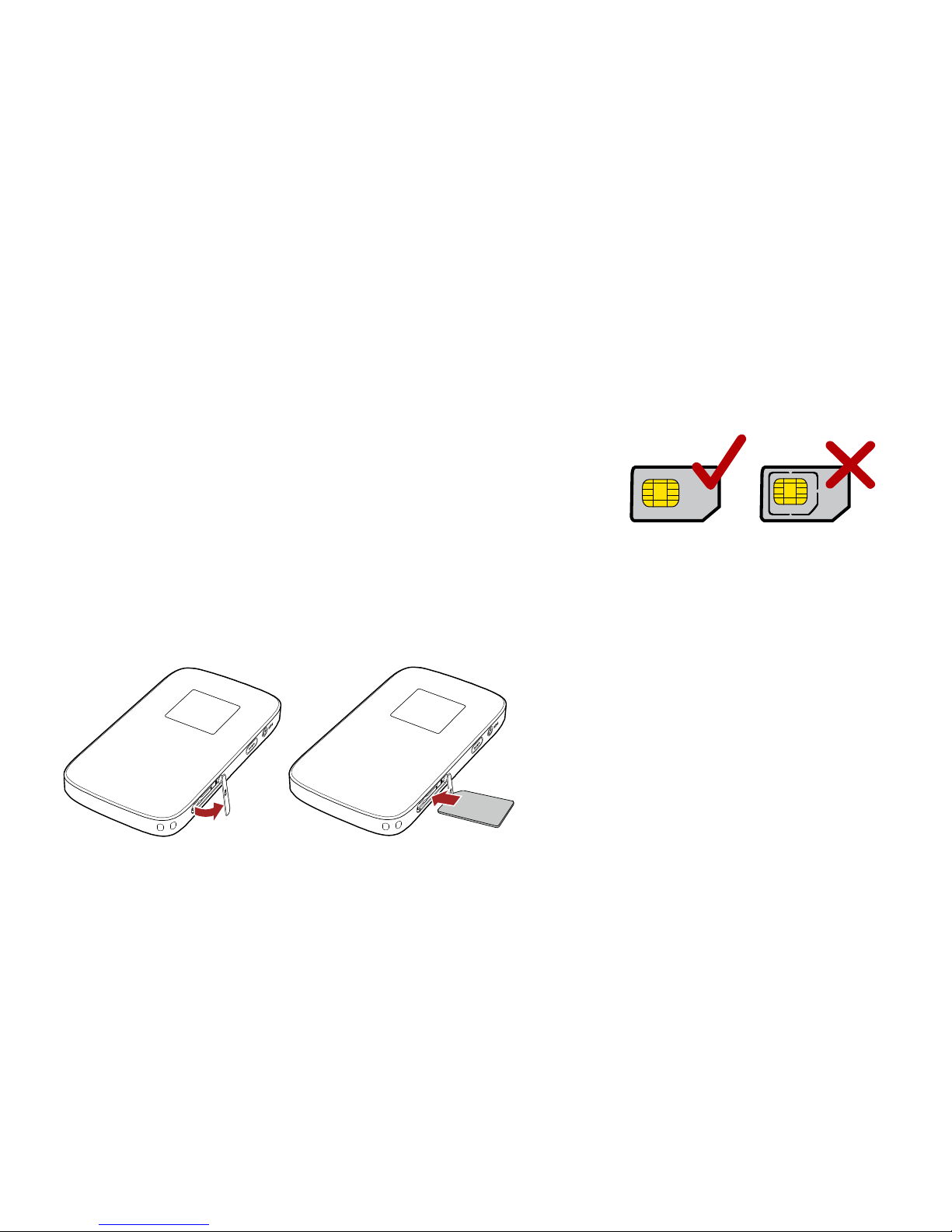

Inserting the SIM Card
Caution: Do not use any SIM card that is not standard or
is incompatible with the Mobile WiFi. Otherwise, the
Mobile WiFi may be damaged.
Insert the SIM card in the card slot. Be sure that the SIM card is facing in the right direction,
as shown in the following picture , and then slide the SIM card into the slot.
7
Inserting the micro SD Card
Insert the micro SD card into the Mobile WiFi, as shown in the picture below.
Note:
The microSD card is an optional accessory. You may purchase one yourself to enhance
data memory.
To remove the microSD or SIM card, press in the card gently. The microSD or SIM card
will pop out for removal.
Do not remove the microSD or SIM card when the card is in use. Otherwise, the card
as well as your Mobile WiFi may get damaged and the data stored on the card may be
corrupted.
8
Charging the Battery
Charge your Mobile WiFi the first time you use it or if it has not been used for a long time.
Method 1: Using the charger
Caution:
Only use the charger provided with your
Mobile WiFi device. Use of an
incompatible charger or one from an
unknown manufacturer may cause the
Mobile WiFi to malfunction, fail, or could
even cause a fire. Such use voids all
warranties, whether expressed or implied, on the product.
9

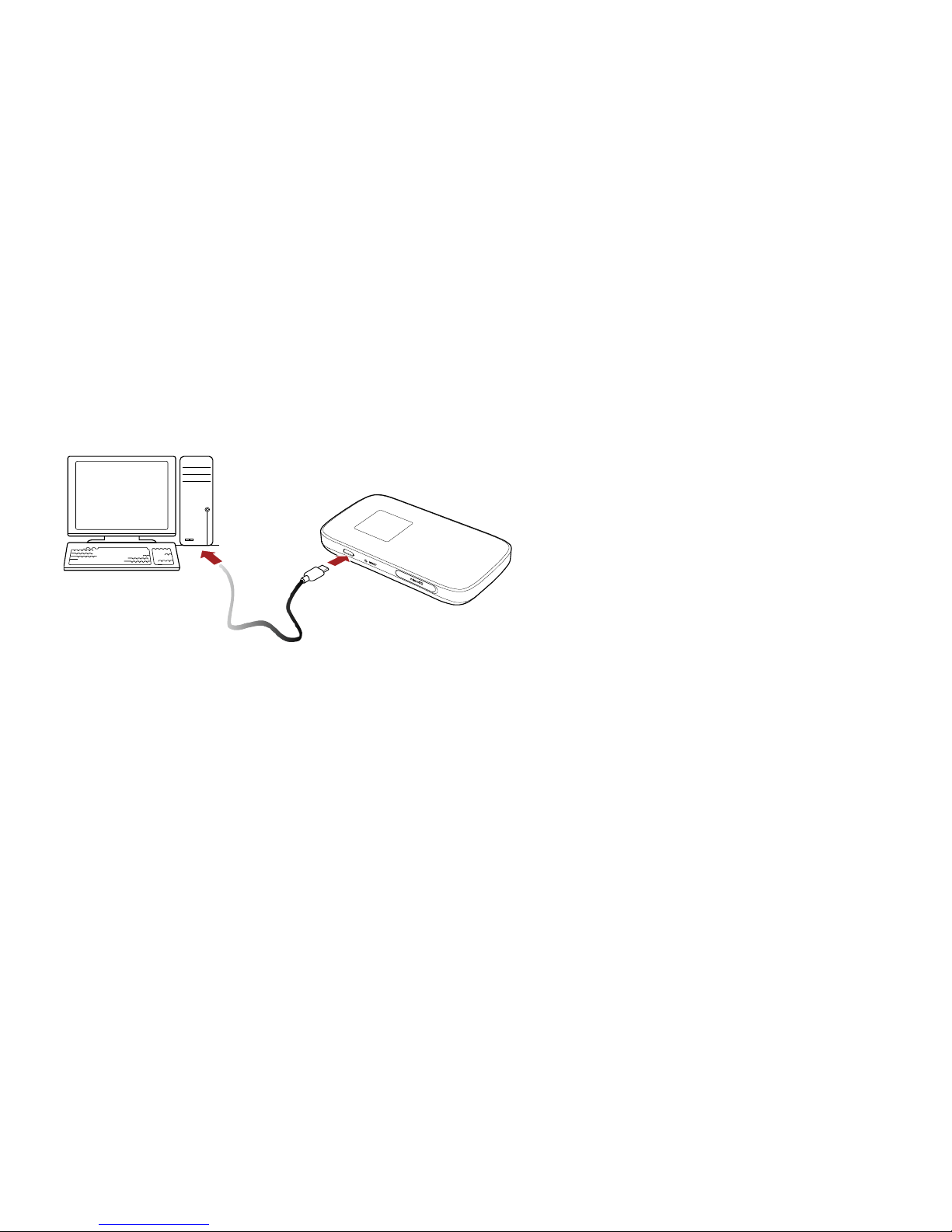

Method 2: Connecting to a PC for charging
Connect the Mobile WiFi to a PC using a compatible data cable.
10
Accessing the Internet via Wi-Fi Connection
By default, management parameters are preset on the Mobile WiFi according to the
requirements of the service provider. Follow the steps below to quickly access the Internet.
For details on how to set management parameters, see help on the web management
page.
Step1: Power on the Mobile WiFi
Press and hold until the screen lights up.
The Mobile WiFi is powered on.
Note: Press and hold to power off the
Mobile WiFi.
