Hunter NODE-100 Manuale utente

NODE

ES Programador de pilas

Manual del usuario e instrucciones de programación

EN Battery-Operated Controller

Owner’s manual and programming instructions

FR Programmateur à piles

Manuel de l'utilisateur et consignes de programmation

IT Programmatore a batteria

Manuale dell’utente e istruzioni per la programmazione

DE Batteriebetriebenes Steuergerät

Bedienungs- und Programmieranleitung

PT Controlador de Funcionamento a Pilhas

Manual do Proprietário e Instruções de Utilização

TR Pilli Kontrol Ünitesi

Kurulum, Programlama ve Kullanım Kılavuzu

TABLE OF CONTENTS

NODE FEATURES ...............................................2

NODE COMPONENTS ........................................... 3

Control Buttons

LCD Display

CONNECTING THE BATTERY/BATTERIES .........................4

ATTACHING SOLENOIDS ........................................ 5

To Wire DC Solenoids to the NODE

To Mount the NODE to a Valve (Figure 1)

MOUNTING THE NODE ..........................................6

CONNECTING A WEATHER SENSOR ..............................6

Setting the Date and Time

IDLE MODE .................................................... 7

RUN MODE..................................................... 7

PROGRAMMING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Setting Watering Start Times

Setting the Run Times

Setting Watering Days

Selecting Odd/Even Days to Water

Selecting Interval Days to Water

Setting the Seasonal Adjustment

Turning the System O

Manual Watering

Sensor Operation

ADVANCED PROGRAMMING FEATURES..........................12

Sensor Bypass

Easy Retrieve Memory

Setting Master Valve Operation (NODE-200, NODE-400,

& NODE-600 Only)

Programmable O (Up to 99 Days)

BATTERYLIFE INDICATOR ..................................... 14

RESETTING CONTROLLER ...................................... 14

TROUBLESHOOTING GUIDE .....................................15

SPECIFICATIONS .............................................. 16

NOTES .........................................................17

NODE FEATURES

• Simple push-button programming

• Single-station model (NODE-100) with DC latching solenoid. Single-, two-, four-, or six-station models are also available

(solenoids not included).

• Large Liquid Crystal Display (LCD) with easy-to-understand icons

• Operates using at least one standard nine-volt alkaline battery (use two for extended battery life)

• Three programs (A, B, or C) with up to four start times each

• Run times from one minute to six hours

• Manual watering capabilities

• Battery-life indicator

• Wired rain sensor compatible

• Non-volatile memory retains all program information

• Seasonal Adjustment from 10–150%

• Easy Retrieve™ memory allows saving/retrieval of preferred program data

• Manual bypass of rain sensor

• Total Run Time Calculator shows total program irrigation time per program

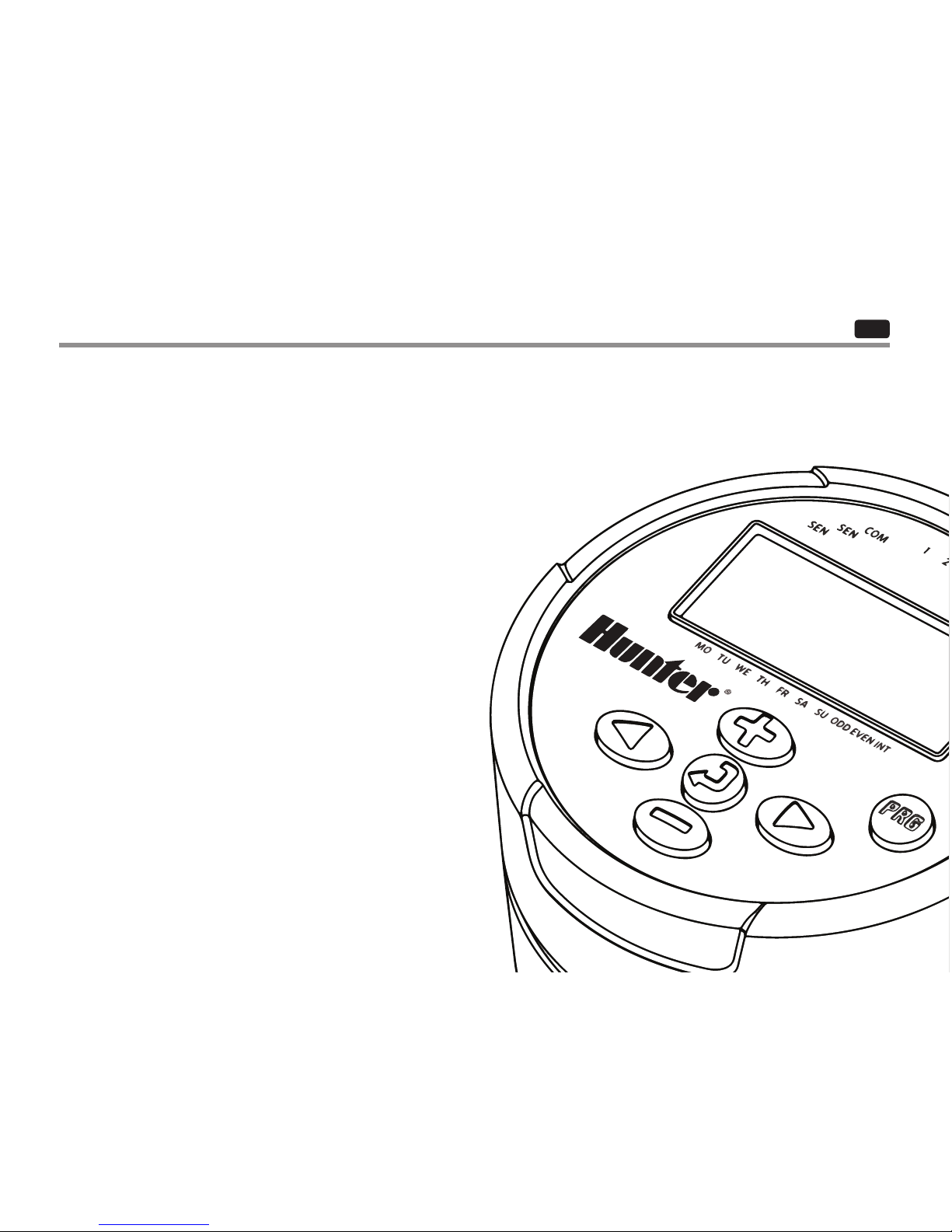

NODE COMPONENTS

This section provides an overview of some of the components of the

NODE. Each item will be discussed in further detail later. However, this

section can be helpful in getting acquainted with the dierent options

available.







   



 









Control Buttons

Button

– Increases the selected ashing display

Button

– Decreases the selected ashing display

Button

– Selects programming function

Button

– Advances the selected ashing display back to the

next item

Button

– Navigates the selected ashing display back to the

previous item

Button

– Selects the program (A, B, or C)

LCD Display

Main Display

– Indicates all program information

Station Number

– Indicates the station number being programmed

Start Time Number

– Indicates the start timer number being

programmed

Program

– Indicates the program (A, B, or C)

Current Time/Day

– Indicates when current day/time is

being set

Start Times

– Indicates when start times are being set

Run Times

– Indicates when Run Times are being set. Allows

user to set run times from one minute to six hours.

Watering Days

– Allows the user to select individual days to

water or a selected number of days between watering (interval)

Seasonal Adjustment

– Allows the seasonal adjustment to be

programmed form 10–150% (default value is 100%)

10.

System O

– Indicates that watering is suspended

11.

Manual On/O

– Indicates when manual watering is

programmed. Allows the user to activate the station manually.

12.

– Indicates that station one is set to master valve operation

(only available on two-, four-, or six-station models)

13.

Battery Status

– Indicates remaining battery life

14.

Umbrella

– Indicates the rain sensor is suspending irrigation

15.

Crossed Umbrella

– Indicates the rain sensor has been

manually bypassed

To Install the Battery/Batteries

1. Unscrew the rear body of the NODE body to gain access to the

battery compartment.

2. Insert the battery/batteries into the battery tray and connect to

the controller using the battery connector.

3. Make sure that no water is inside the battery compartment.

4. Screw the NODE rear body back onto the front half.

NOTE: Verify that the seal marker on the rear half

of the NODE lines up with the front half, ensuring

that a proper seal is created.

The NODE uses one or two standard nine-volt batteries (not included)

to operate the valves and program the controller. The controller can

operate using either a single nine-volt battery or using two nine-volt

batteries. Under normal conditions, the expected life is one year for a

single battery and two years when using two nine-volt batteries.

NOTE: The NODE has non-volatile memory. This

allows the battery to be removed without losing

program information.

CONNECTING THE BATTERY/BATTERIES

Common Wire (Black Leads)

ATTACHING SOLENOIDS

The NODE-100 is provided with a solenoid attached to the controller.

The NODE-100-LS does not include a solenoid. The NODE-200,

NODE-400, and NODE-600 multi-station controllers will operate up to

two, four, or six solenoids, respectively. Hunter DC-latching solenoids

(P/N 458200) can easily be installed on all Hunter plastic valves.

NOTE: Use DC latching solenoids operating

between 9-11 VDC. 24 VAC solenoids will not

operate with the NODE.

To Wire DC Solenoids to the NODE

1. Attach the black leads from each solenoid to the single common

wire (black lead) coming from the NODE. Secure all wire

connections with waterproof connectors.

2. Attach one red wire from each solenoid to the corresponding

station wire (red lead) from the NODE. The station numbers are

identied on the face of the NODE. Secure all wire connections

with waterproof connectors.

NOTE: The maximum wire distance between the

solenoid and NODE is 100' (30 m) using 18 AWG

(1 mm) minimum wire size.

Station Wire (Red Leads)

Figure 1 Hunter Model Mini-Clik®

The NODE can easily be mounted on any Hunter plastic valve. A

specially designed valve mounting clip makes installation a snap. A

protective rubber cover is provided to prevent dirt from accumulating

on the face of the NODE.

To Mount the NODE to a Valve (Figure 1)

. Screw the Hunter DC latching solenoid (P/N ) into

the valve bonnet.

. Set the small open end of the NODE holder on top of the solenoid.

. Set the NODE controller into the large open end of the

NODE holder.

A Hunter Mini-Clik®or Wired Rain-Clik®rain sensor can be connected

to the NODE. The purpose of this sensor is to stop watering when

weather conditions dictate.

1. Cut the yellow wire loop attached to the NODE at approximately

the middle of the loop.

2. Remove approximately ½" (13 mm) of insulation from each wire.

Attach one yellow wire to each of the wires of the weather sensor.

You can mount the rain sensor up to 100  (30 m) from the NODE

controller (18 AWG/1 mm minimum wire size).

3. Secure wire connections with waterproof connectors.

CONNECTING A WEATHER SENSOR

NOTE: When the Wired Rain Sensor is interrupting

the watering, the display will show the System O

icon , “OFF” and on the display.

MOUNTING THE NODE

NODE holder

IDLE MODE

RUN MODE

Normally, the NODE display shows the time and day, day of the

week, MV (if master valve option is activated), and the battery-life

indicator. Aer a short period of inactivity, the display will shut o to

retain battery power. Pressing any button will bring the NODE into

idle mode.

When the controller is operating a program, the items shown on the

display will include the station number, program letter, remaining

run time, and the blinking Rotor icon.

The NODE uses standard Hunter controller programming with three

programs (A, B, or C) and four start times per program. On standard

Hunter controllers a dial is used to scroll between the programming

functions. However, on the NODE the button is used to quickly

and easily create the irrigation program. When programming, the

ashing portion of the display can be changed by pressing the or

buttons. To change something that is not ashing, press the or

buttons until the desired item is ashing.

Setting the Date and Time

1. Push the button until the icon is displayed.

2. All four digits will be displayed representing the year. Use the

or buttons to change the year. Press the button to proceed

to setting the month.

3. All four digits will be displayed with the two digits on the le

representing the month ashing. Use the or buttons to

change the month. Press the button to proceed to setting

the day.

4. Only the two digits on the right side will be displayed and ashing,

representing the day. Press the or buttons to change the

day. Press the button to proceed with changing the hour. Press

the button to proceed to setting the time.

5. The AM/PM/24-hour time setting is shown ashing. Press the

or button to change the time setting to AM, PM, or 24-hour

time. Press the button to proceed to setting the hour.

PROGRAMMING

6. All four numbers are shown with the two numbers on the le

ashing, representing the hour. Use the or buttons to

change the hour. Press the button to proceed to setting

the minutes.

7. All four numbers are shown with the two numbers on the right

ashing, representing the minutes. Use the or buttons to

change the minutes. Pressing the button will advance

to the year setting at Step 2.

8. Press the button to proceed to the next programming function

or allow controller to return to idle mode.

Setting Watering Start Times

1. Press the button until the icon is displayed.

2. The start time will be displayed ashing, along with the program

letter (A, B, or C) and the start time number (1, 2, 3, or 4) in the

upper le of the display. Up to 4 dierent start times can be set for

each program.

3. Use the or buttons to change the start time for the program

that is displayed. Each press of the button will change the start

time in one-minute increments.

4. Press the button to add an additional start time to the program

displayed. The start time number is shown in the upper le corner

of the display.

5. Press the button to add start times to a dierent program.

6. Press the button to proceed to the next programming function

or allow controller to return to idle mode.

NOTE: Aer programming the run time for the last

station press the button to display the total run

time for the program.

Setting the Run Times

1. Press the button until the icon is displayed.

2. The run time will be displayed ashing. Also shown is the program

letter (A, B, or C) and the active station number on the lower

le side of the display. Press the or buttons to change the

station run time from one minute to six hours.

3. Press the button to advance to the next station.

4. Press the button to add a run time to another program.

5. Press the button to proceed to the next programming function

or allow controller to return to idle mode.

PROGRAMMING CONTINUED

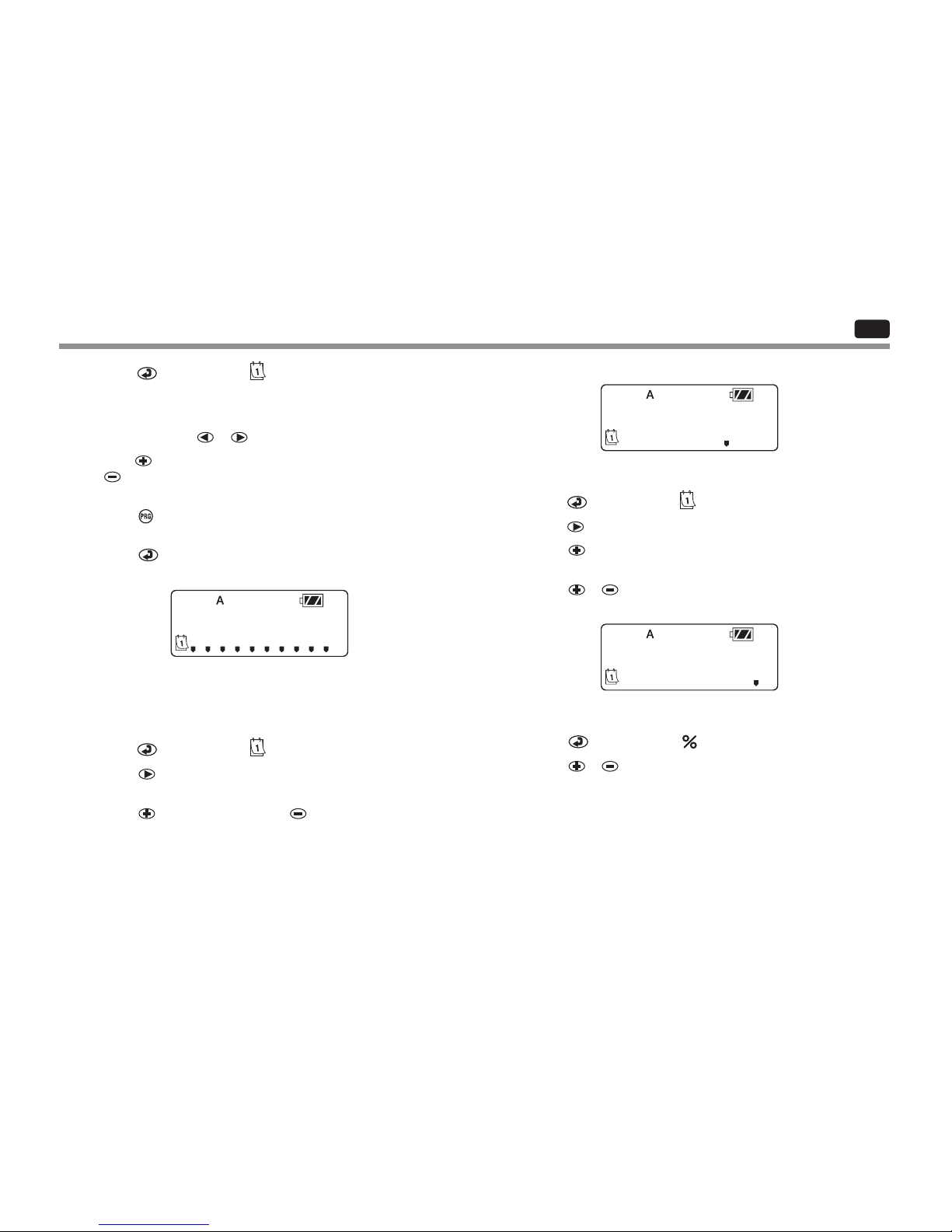

Setting Watering Days

1. Press the button until the icon is displayed.

2. The program letter (A, B, or C) will be displayed.

3. Arrows point at the specic days of the week on which watering

will occur. Press the or buttons to scroll though the days.

4. Press the button to activate that day for the program displayed, or

the button to cancel watering for that day. The arrow will show

on the watering days for the active program.

5. Press the button to set days to water for a dierent program, if

desired.

6. Press the button to proceed to the next programming function

or allow controller to return to idle mode.

Selecting Odd/Even Days to Water

This feature uses numbered days of the month for watering instead of

specic days of the week.

1. Press the button until the icon is displayed.

2. Press the button until the cursor is above either ODD or EVEN

on the display.

3. Press the button to select, or the button to cancel either

ODD or EVEN days to water.

4. Once ODD or EVEN mode is activated, it will be the only cursor

shown on the display.

Selecting Interval Days to Water

1. Press the button until the icon is displayed.

2. Press the button until the cursor is above INT on the display.

3. Press the button and a 1 will be ashing, indicating the number

of days between watering.

4. Press the or buttons to select the number of days between

watering days (1 to 31).

Setting the Seasonal Adjustment

1. Press the button until the is displayed.

2. Press the or button to increase or decrease the seasonal

adjustment value from the default 100% (down to a minimum of

10% or a maximum of 150%).

3. The value programmed for seasonal adjustment will be applied to

all irrigation programs and will immediately be reected in

the run times displayed. For example, if 20-minute run times are

programmed and then the seasonal adjustment is changed from

100% to 50%, the run times displayed will be 10 minutes.

PROGRAMMING CONTINUED

INT

Altri manuali per NODE-100

Indice

Altri manuali Hunter Controllori

Hunter

Hunter Hydrawise HCC-800-PL Manuale utente

Hunter

Hunter i-core IC-600PL Istruzioni operative

Hunter

Hunter Smart Valve Controller Istruzioni operative

Hunter

Hunter Hydrawise HCC-FPUP Manuale utente

Hunter

Hunter Hydrawise HC-1200M Manuale utente

Hunter

Hunter Pro-C Istruzioni operative

Hunter

Hunter Hydrawise Pro-HC Manuale utente

Hunter

Hunter WVC-100 Istruzioni originali

Hunter

Hunter ECO LOGIC Manuale utente

Hunter

Hunter Node Manuale utente

Hunter

Hunter Hydrawise HC-1200M Istruzioni per il montaggio

Hunter

Hunter Hydrawise Pro-HC Manuale utente

Hunter

Hunter ICC2 Manuale utente

Hunter

Hunter Hydrawise HC-1200M Manuale utente

Hunter

Hunter XC Hybrid Istruzioni operative

Hunter

Hunter XC Istruzioni operative

Hunter

Hunter XC Hybrid Istruzioni operative

Hunter

Hunter Hydrawise HC-1200M Manuale utente

Hunter

Hunter X-CORE XC-2 Istruzioni operative

Hunter

Hunter Hydrawise HC-1200M Manuale utente

Hunter

Hunter X-CORE Istruzioni operative

Hunter

Hunter X-CORE Istruzioni operative

Hunter

Hunter PRO-C PC Series Istruzioni operative

Hunter

Hunter SRC Plus Manuale di installazione e funzionamento

Manuali Controllori popolari di altre marche

Digiplex

Digiplex DGP-848 Istruzioni operative

YASKAWA

YASKAWA SGM series Manuale utente

Sinope

Sinope Calypso RM3500ZB Manuale utente

Isimet

Isimet DLA Series Style 2 Manuale di installazione

LSIS

LSIS sv-ip5a Manuale utente

Rockwell Automation

Rockwell Automation 1769-L31 Manuale utente

Airflow

Airflow Uno hab Manuale utente

ABB

ABB ACS580-01 drives Manuale utente

Panasonic

Panasonic GM1 Series Manuale utente

Emerson

Emerson SW93 Manuale utente

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuale utente

Panasonic

Panasonic FP? Positioning Unit RTEX Manuale utente

Samson

Samson Type 5824 Manuale di servizio

Alpha IP

Alpha IP MIOB 21001 Manuale utente

Siemens

Siemens OpenAir GMA 1 Series Manuale utente

Surecom

Surecom SR-629 Manuale utente

Fishman

Fishman TriplePlay Manuale utente

Regulus

Regulus SRS1 T Manuale utente
