Installation Guide
Energy Star Bath Fan Models 82043
READ and SAVE THESE INSTRUCTIONS
ENGLISH
See page 2
ESpañoL
Vea la página 19
43045-01 10/15/2009
2
1) Read all instructions before attempting to install or use this appliance. This appliance is for general ventilating
use only. Do not use this appliance for ventilating hazardous or explosive materials. Follow the heating equipment
manufacturer’s guideline and safety standards, such as those published by the National Fire Prevention Association
(NFPA), and the American Society for Heating, Refrigeration and Air-Conditioning Engineers (ASHRAE), and the
local code authorities.
Use this appliance only as described in this manual. Any other use not recommended
by the manufacturer may cause fire, electric shock, or injury to persons. SAVE THESE INSTRUCTIONS.
2)
Before installing, servicing, or cleaning the unit, disconnect the power by turning off the circuit breakers to the
outlet box and associated wall switch location. If you cannot lock the circuit breakers in the off position, securely
attach a prominent warning device, such as a tag, to the service panel.
3)
This unit must be grounded.
4)
This appliance is not suitable for tub or shower installation, and must not be installed within a minimum of 3 feet
from the tub or shower opening. See Figure A.
5)
Do not install this appliance lower than 7 feet (2.13 m) above the floor in the ceiling. See Figure A.
WARNING
TO REDUCE THE RISK OF ELECTRIC SHOCK OR INJURY, OBSERVE THE FOLLOWING:
Continued
3 ft. min.
(0.91 m)
Bath Fan
Tub or Shower area
NOTE: This illustration is not
to scale
7 ft. min.
(2.13 m)
Figure A
43045-01 10/15/2009
3
6)
Never place a switch where it can be reached from a tub or shower. Do not install this appliance in a tub or
shower enclosure.
7)
Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes
and standards, including fire-rated construction codes and standards.
8)
When cutting or drilling into wall(s) or ceiling, do not damage electrical wiring or other hidden utilities.
9) Do not install this product in a wall. This product is designed for installation in ceilings up to a 12/12
pitch (45 degrees). Ductwork must point upward.
10)
Ducted fans must always be vented to the outdoors. Keep ducting as short and as straight as possible.
11) Extreme caution is necessary when any is used by or near children or invalids and whenever the is
left operating and unattended.
12) To avoid motor bearing damage and noisy/unbalanced blower wheel, keep drywall spray, construction
dust, etc. off power unit.
13) Read specification label on product for further information and requirements.
14) Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an
electric shock or fire, or damage the unit.
15)
Do not use this appliance with a dimmer switch or a fan speed controller.
16) To reduce the risk of fire or electrical shock, do not use this fan with any solid-state speed control device.
17) To prevent a possible fire, do not block air intakes or exhaust in any manner.
18) If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application
and be connected to a GFCI (Ground Fault Circuit Interrupter)-protected branch circuit.
43045-01 10/15/2009
4
F
G
I
L
M
x2
N
x6
*
*
A
B
C
98141-01-000
03242-07-133
98142-01-000
x2
D
97134-01-000
74508-03-133
Housing
Wiring Cover
Fan Assembly
3/8” Cable Connector
Light Fixture
Wiring Cover Screw
Check all the parts. If damaged, call
1-888-830-1326 for replacement.
x4
E
Mounting Screws
Fan Mounting Screws
*
NOTE: Strain relief (not supplied) cable
connector must be installed.
Attachment Screws
97932-01-262
J
Strain Relief Bracket
K
Strain Relief Bracket Screw
65827-01-000
74508-53
H
75184-01-133
Light Fixture Thumbnuts
O
x2
Lens
87259-01-000
Q
95044-01-000
Mounting Rails
Light Bulbs
87258-01-000
P

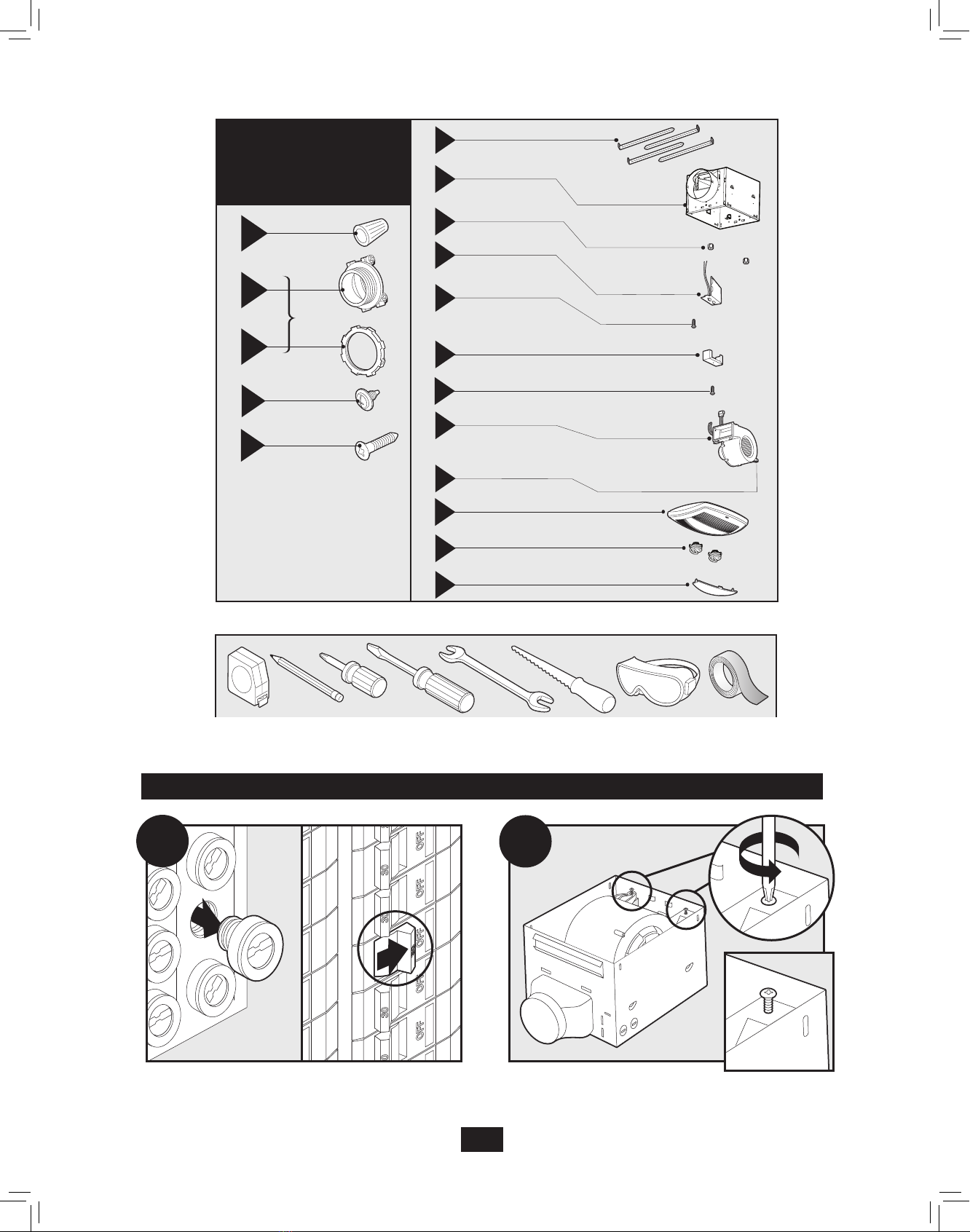

A
Turn off the power source.
Tools Needed. (Not supplied.)
Estimated assembly time: 30 to 60 minutes
Included.
B
Loosen the fan mounting screws.
Before Installation
96932-01-000
43045-01 10/15/2009
5
Loosen the wiring cover screw.
Remove the fan assembly from the housing.
Remove the wiring cover.
D
E
C
Choose Installation Option
For New Construction - attaching to joist, go to step A1, page 5.
For New Construction - suspended between, joists go to step B1, page 7.
For Existing Construction - accessible from above, go to step C1, page 9.
For Existing Construction - accessible only from below, go to step D1, page 12.
43045-01 10/15/2009
6

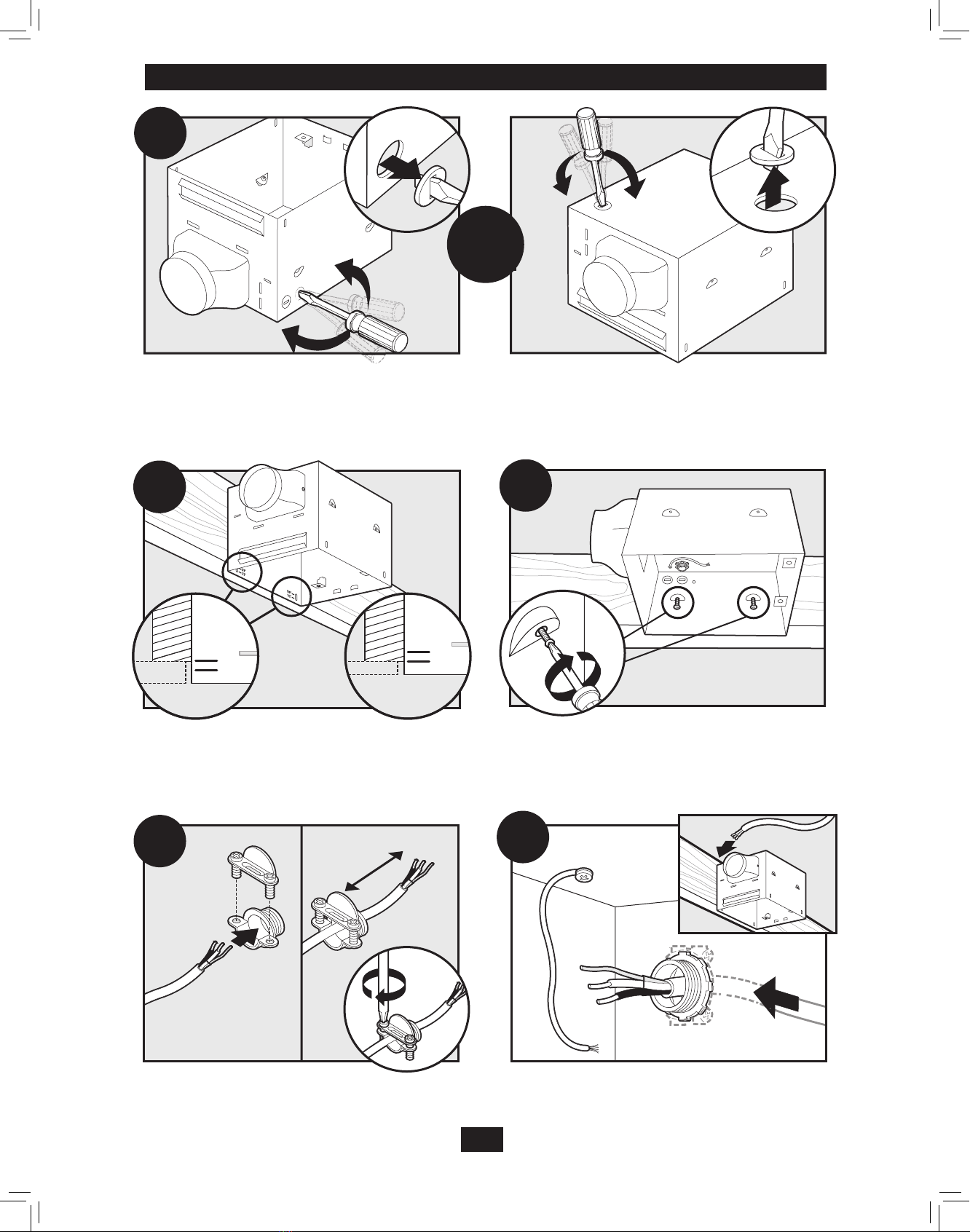

A1
Section A - New Construction - attaching to joist
Drive mounting screws (supplied) into joist or framing.Position the correct depth mark at the bottom edge of the
joist based upon the the thickness of your sheetrock.
5/8
1/2
5/8
1/2
A2
Pop out a wiring access slug.
OR
Install the wiring and the strain relief into the wiring access
hole you made earlier.
A5
Run the power supply wire through the strain relief, leaving
3” between the end of the wire and the strain relief. Tighten
the strain relief around the wire.
A3
3”
A4
43045-01 10/15/2009
7
A6

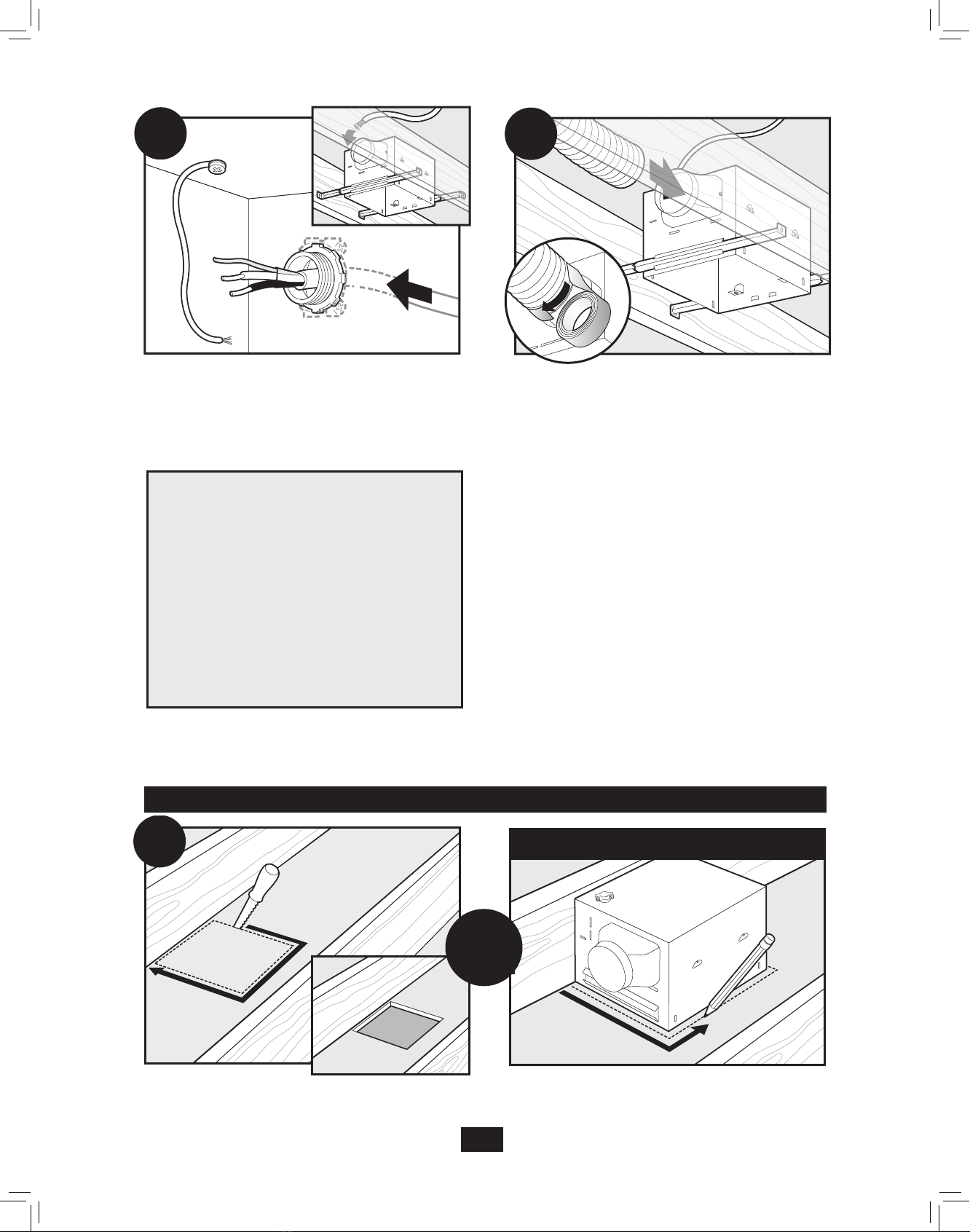

Connect 6” duct and vent to the outside. Use duct tape to
secure joints. If ducting does not fit securely, an adapter
may need to be purchased.
Vaya a la
sección E –
Instalación Final
en la página 14.
Section B - New Construction – suspended between joists
Pop out a wiring access slug.
B1
OR
Slide the mounting rails into brackets. Note the orientation
of of the outer ends of the rails.
Position the correct depth mark at the bottom edge of the
joist based upon the the thickness of your sheetrock.
5/8
1/2
5/8
1/2
B3
B2
43045-01 10/15/2009
8

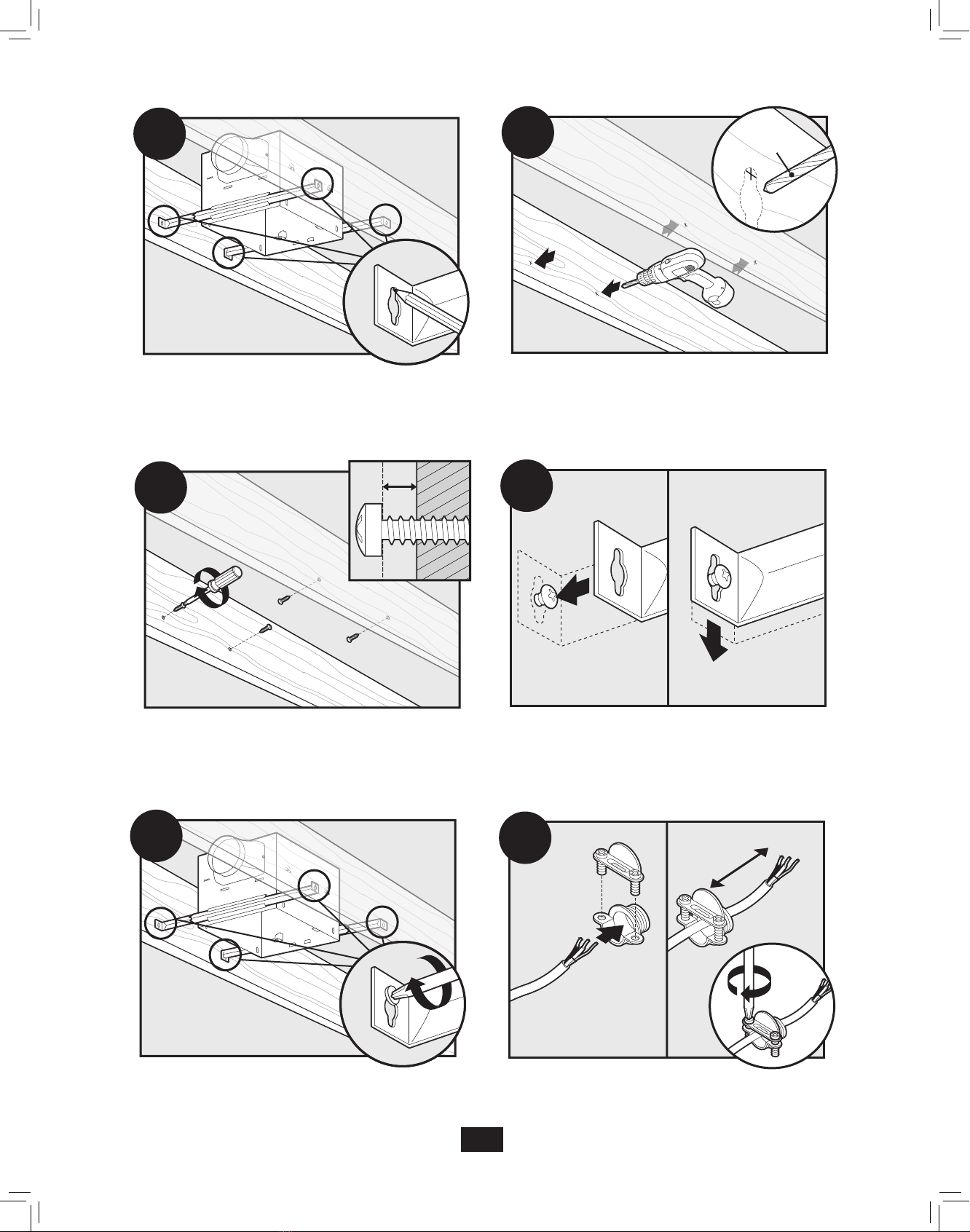

Mark position of screws by using holes as a template. Drill a pilot hole at the TOP of each outline.
B4
1/16” bit
B5
Insert mounting screws, leaving space between the screw
head and the joist. (Screws are supplied.)
Attach the rails onto the screws.
B6 B7
B8
Tighten screws. Run the power supply wire through the strain relief, leaving
3” between the end of the wire and the strain relief. Tighten
the strain relief around the wire.
3”
B9
43045-01 10/15/2009
9
B10
Install the wiring and the strain relief into the wiring access
hole you made earlier.
B11
Connect 6” duct and vent to the outside. Use duct tape to
secure joints. If ducting does not fit securely, an adapter
may need to be purchased.
Vaya a la
sección E –
Instalación Final
en la página 14.
11”
9 5⁄8”
C1
Remove an existing fan and check to make sure the opening
is large enough to accommodate the new fan housing. The
opening needs to be 11” x 9 5/8”.
Section C - Existing Construction – accessible from above
NO EXISTING FAN
OR
43045-01 10/15/2009
10
Slide the mounting rails into brackets.
C3
5/8
1/2
5/8
1/2
C4
Using the depth markings on the housing, position the
bottom edge of the housing so that it will be flush with the
sheetrock.
Pop out a wiring access slug.
C6
C5
Mark position of screws by using holes as a template. Drill a pilot hole at the TOP of each outline, AS SHOWN.
C2
OR
