Hunter 44360 Set & $ave Manuale utente
Programmable ermostat
Set & $ave
Model 44360
installation and
operation manual
42710-01 8-17-06
2
3
Table of Contents
Important Information.................................................. 5
Tools ............................................................................ 6
Uninstalling the Existing Unit ...................................... 7
Installing the Thermostat ........................................... 12
installing the wall plate .................................... 12
connecting the wires ........................................ 16
attaching the thermostat .................................. 18
Settings ...................................................................... 22
Methods of Operation ................................................ 26
manual operation ............................................. 28
default programs .............................................. 32
creating custom programs ................................ 34
Icons and Features ..................................................... 38
Important Features .................................................... 52
Troubleshooting ......................................................... 53
4
Congratulations!
Thank you for choosing a Hunter programmable thermostat.
Your new Hunter thermostat will provide years of reliable service
and year-round energy savings.
Please read this manual before beginning installation and save
this booklet for complete operation instructions.
The Hunter Technical Support Group is available from 7 am to 7 pm CST. They may be
reached toll-free at 1-888-830-1326.
Set & Save
Programmable Thermostat
Model 44360
Set & Save
Programmable Thermostat
Model 44360
5
This thermostat is designed to work on the following
heating and cooling systems:
Gas – Standing Pilot
Gas – Electronic Ignition
Gas – Fired Boilers
Gas – Millivolt Systems
Oil – Fired Boilers
Oil – Fired Furnace
Electric Furnace
Electric Air Conditioning
Single-Stage Heat Pumps
This thermostat is not designed for multi-stage heat pump
systems or 110/220 V baseboard heating systems.
If you are unsure what kind of heating and cooling system you
have, please contact a qualified HVAC Technician for assistance.
IMPORTANT INFORMATION
6
This thermostat includes two #8 slotted screws and two wall
anchors for mounting.
To install your new thermostat, you will need the following
supplies:
Flat-head screwdriver
.............................................................................................
Small Phillips-head screwdriver
.............................................................................................
Hammer
.............................................................................................
Electric drill and 3/16” bit
.............................................................................................
Two 1.5 Volt (AA) size alkaline batteries
.............................................................................................
TOOLS
7
NOTICE! Do not disconnect the wires from
the existing thermostat before reading these
instructions. The wires must be labeled prior
to removal to ensure proper reconnection.
Y
RC
G
W
8
Y
RC
G
W
Y
RC
G
W
9
1. Turn the system power OFF from the existing thermostat. Turn
the power to the HVAC system OFF at the main power panel
or at the furnace.
(Failure to turn off the power to the existing thermostat before removal
could damage your system.)

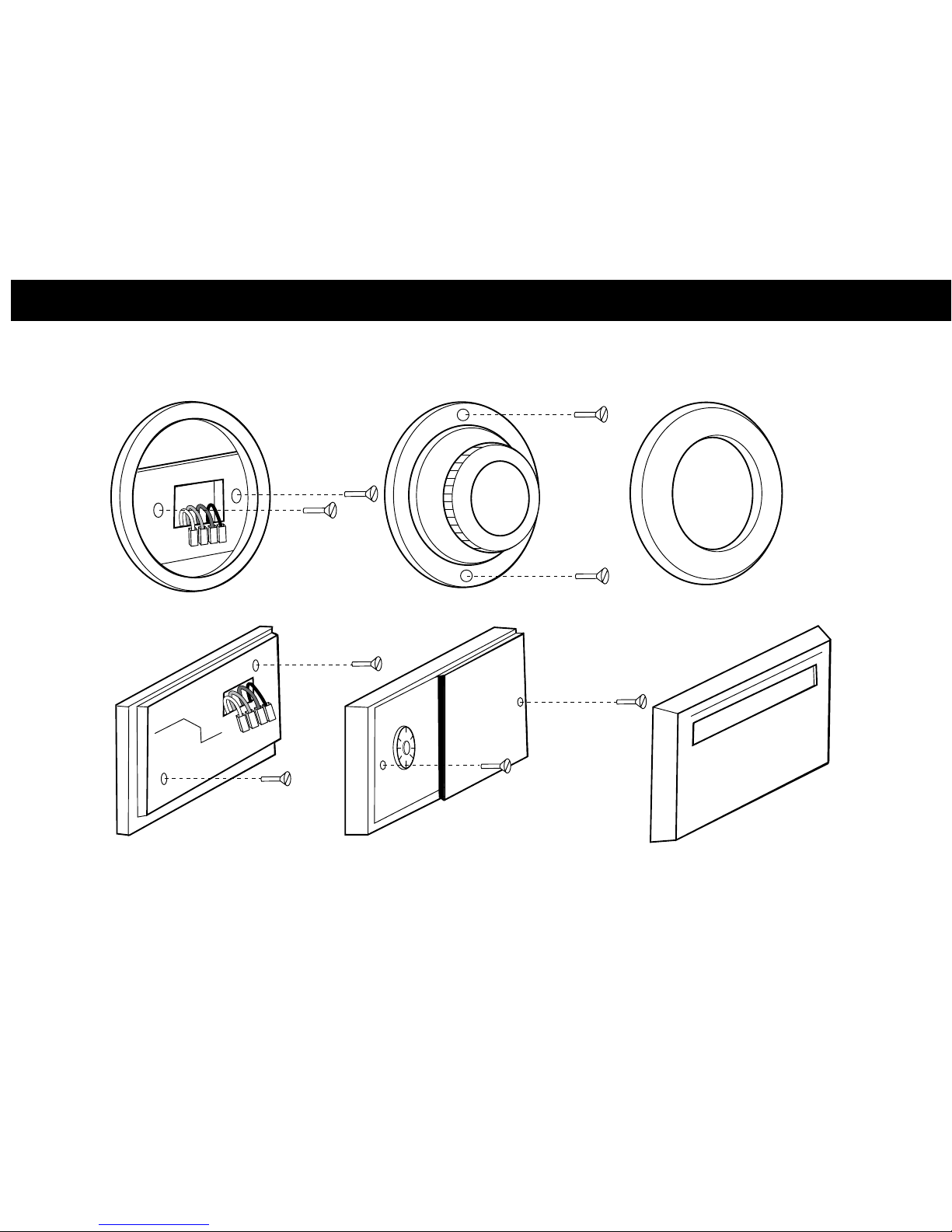

2. Remove the existing thermostat cover to access the wires
from the wall.
(Some thermostats may have multiple covers, screws or other locking
devices that must be removed or disengaged. See page 8 for common
examples.)
3. Locate, but do not disconnect the wires.
(If wires are not visible, they may be connected to the back of the wall
plate. Some models may have doors that open to expose the wires and
mounting screws.)
UNINSTALLING THE EXISTING UNIT
10
G RC RH Y W
if your existing
thermostat is marked...
label the wire
with this sticker:
G / F
G
G
W / H / B
W/B
W/B
Y / C* / M / O
Y/0
Y/0
RC / VC
RC
RC
RH / R / VR / 4
RH
RH
24 Volt
24 Volt cool
air conditioning
compressor
heating
fan
Y1
Y1
Y1
heat pump
compressor

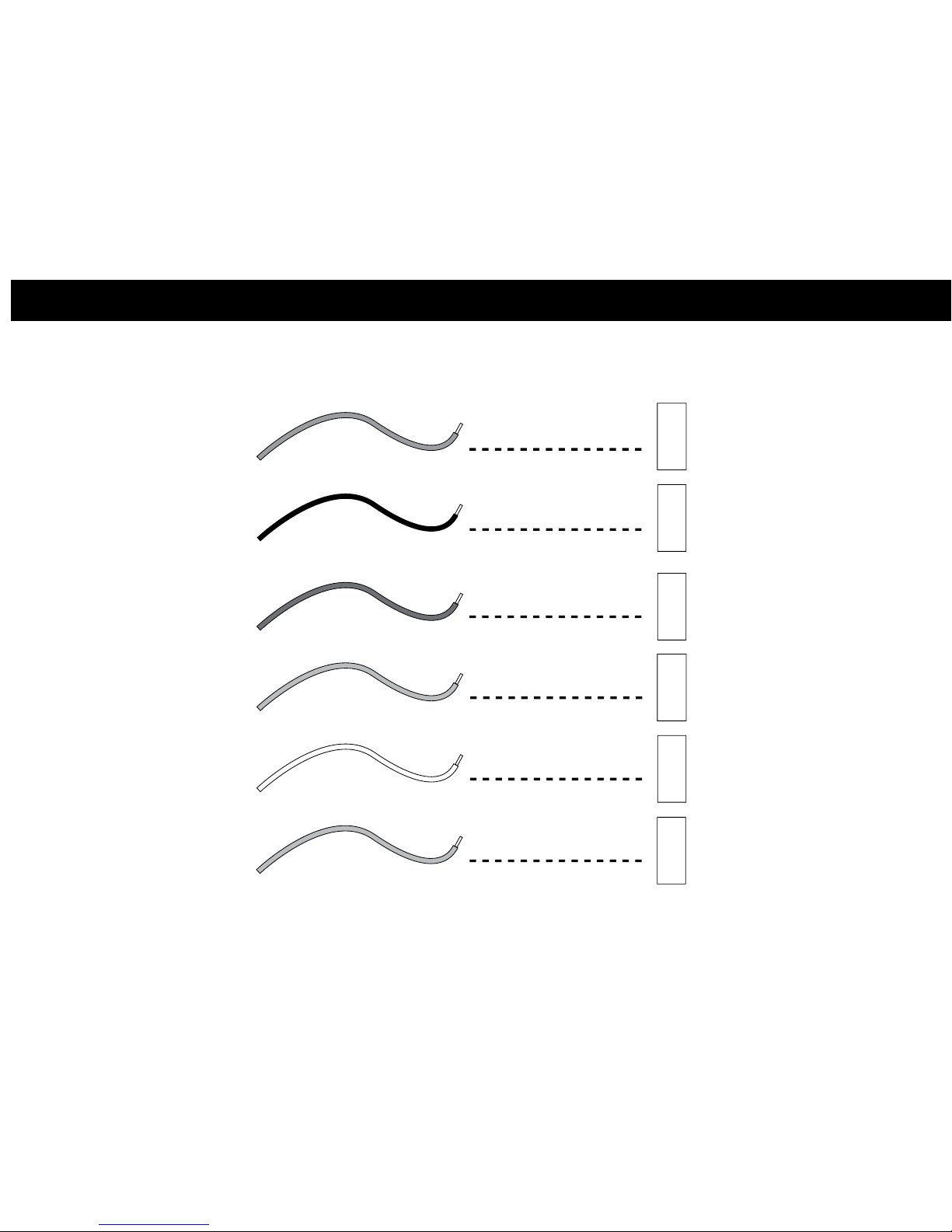

WIRE LABELS
