Installation and

Care Instructions

LiteRise®

Rectangular Shades

Brilliance® pleated shades

THANK YOU for purchasing a Hunter Douglas product. Your

new shade has been custom built for you from the highest

quality materials. Once in your window, it will provide you

with a lifetime of beauty and trouble-free use.

Getting Started

• Remove the shade from the package. Keep the packaging

until the shade operates to your satisfaction.

• Check the diagram to make sure you have the necessary

parts.

Tools needed for installing your LiteRise® shade:

• Carpenter’s Level

• Flat Blade Screwdriver

• Measuring Tape

• Pencil

• Phillips Screwdriver

• Pliers

• Power Drill, 1/4" Hex Driver,

and Drill Bits

Extension Bracket

(Optional)

End Mount

Bracket

(Optional)

Hold-Down

Bracket

(Optional)

Installation Bracket

With 7/8" Spacer Block

Installation Bracket

With 1/2" Spacer Block

Installation

Bracket

Bracket Shim

(Optional)

For assistance, call the

Hunter Douglas

Customer Information Center at

1-888-501-8364

7:00 AM to 4:30 PM MST, Mon.-Fri.

Visit our Web site at hunterdouglas.com

In addition, you will need fasteners designed to work with your

specic mounting surfaces:

Contents of your hardware package may vary depending upon

how the shade was ordered and whether the shade will be

mounted inside or outside the window opening.

Mount the Brackets

Bracket Requirements

Bracket Placement

• Bracket placement is the same for inside and outside mounts.

• Measure 11/4" in from the ends of the

headrail and mark the bracket

locations on the mounting surface.

• Space additional brackets evenly

between the end brackets.

• Adjust the bracket placement to

accommodate obstructions to the

bottom rail, such as window cranks

or handles.

NOTE: Do not mount any brackets over

the top of the clear plastic spool covers.

Inside Mount Applications

The depth required for an inside mount depends upon the

application.

• Center each bracket over a mark on the mounting surface.

• Use a carpenter’s level to check that

the brackets are level and aligned.

If necessary, shim the bracket to

level the headrail. Attach using two

screws.

Outside Mount Applications

The minimum mounting height for outside

mounted shades is 7

/8".

• Center each bracket over a mark on the mounting surface.

• Use a carpenter’s level to check that

the brackets are level and aligned.

Attach using two screws.

Extension Brackets (Optional)

Extension brackets project installation

brackets up to 41

/8" away from the

mounting surface. This allows for

additional clearance for obstructions

such as window cranks or handles.

• For 21/2" to 31/8" clearance, attach

two extension brackets together as

shown.

• For 35/8" to 41/8" clearance, attach

two extension brackets together as

shown.

    

Mounting Surface Fastener



















End Mount Bracket (Optional)

Installation Bracket

18" to 60"

Brackets Required*

97" to 120"

61" to 96"

Extension Bracket (Optional)

Bracket Type

Bracket Shim (Optional)

As needed

Hold-Down Bracket (Optional)

Installation Bracket

With 1/2" Spacer Block

Installation Bracket

With 7/8" Spacer Block

Extension Bracket

(Optional)

End Mount

Bracket

(Optional)

Hold-Down

Bracket

(Optional)

Installation Bracket

With 7/8" Spacer Block

Installation Bracket

With 1/2" Spacer Block

Installation

Bracket

Bracket Shim

(Optional)

Extension Bracket

(Optional)

End Mount

Bracket

(Optional)

Hold-Down

Bracket

(Optional)

Installation Bracket

With 7/8" Spacer Block

Installation Bracket

With 1/2" Spacer Block

Installation

Bracket

Bracket Shim

(Optional)

Space Evenly Space Evenly

Installation Brackets

11/4" 11/4"

Spool

Cover

Headrail

Installation

Bracket

Depth Chart For Bracket Placement

Minimum

Bracket Type Fully Recessed

35/8" - 41/8" Clearance

21/2" - 31/8" Clearance

7/8"

Minimum

/4"





*Two (2) brackets at every mounting point

are required for proper installation

• Use a carpenter’s level to check

that the extension brackets are

level and aligned. Attach using

two screws.

• Attach the installation brackets

to the ends of the extension

brackets using machine screws

and nuts.

NOTE: Attach each installation

bracket to the same holes on each

extension bracket to ensure that the

headrail is level.

End Mount Applications (Optional)

End mount the headrail when conventional mounting

techniques will not work, for example in an arched window

opening.

End mounting is not recommended for shades wider than 48".

The minimum mounting height for end mounted shades is 1".

Bracket Placement

• Lower the shade completely and hold it in the window

opening at the ordered height.

• Keeping the headrail level, mark

where the top of the headrail is

in the opening.

• Be sure that the marks on each

side are at the same height.

Bracket Installation

• Attach the installation bracket

to the end mount bracket using

machine screws and nuts.

• Align the top of each end mount

bracket to a mark on the mounting

surface.

• Use a carpenter’s level to check that

the brackets are level and aligned.

Attach using two screws.

Modify the End Cap

Your LiteRise® shade may come with an extended end cap.

It will need to be modied depending upon which mounting

bracket is used.

• Use the whole end cap when

using the installation bracket

with 7/8" spacer block.

• Using pliers, carefully break

the end cap along the rst

indentation when using the

installation bracket with 1/2"

spacer block.

• Using pliers, carefully break

the end cap along the second

indentation when using the

standard installation bracket.

Break Here When

Using Installation

Brackets with

1/2" Spacer Blocks

Break Here When

Using Standard

Installation Brackets

End Mount Bracket

Installation Bracket

35/8" - 41/8" Clearance

21/2" - 31/8" Clearance

End Mount Bracket

Installation Bracket

Headrail

Bracket

Bottom

Tab

Install the Shade

NOTE: Do not mount any installation brackets over the top of

the clear plastic spool covers.

• With the colored side of the shade

facing you, insert the front edge of

the headrail onto the top of each

installation bracket.

• Starting from the center, push

upward and back until the back

edge of the headrail snaps into

the bottom tab of the installation

bracket.

• Repeat this process for each bracket.

Operate the Shade

For better support and smoother

operation, use the handle when

raising and lowering the shade.

To Raise The Shade

• Slowly and steadily push up on

the bottom rail handle. Allow

the shade to stack evenly.

To Lower The Shade

• Slowly and steadily pull down

on the bottom rail handle.

Adjust the Shade

Verify Shade Length

• To verify the shade length, raise and lower the shade

several times.

• If the length is incorrect or the bottom rail is not level,

use the following steps to correct.

Shade Length Adjustment

Adjust the height and level of the bottom rail by sliding the

ferrule up or down on the cord.

• Locate the ferrule seated in a pocket

on the bottom rail.

• Hold the rail rmly and pull on the

excess cord to remove the ferrule

from the pocket. The cord will be

wrapped once around the ferrule.

• Loosen the cord loop around the

ferrule.

Bottom Rail

Pocket

Pull Cord

To Remove

Ferrule

• Slide the ferrule along the cord to change the length of the

shade and to level the bottom rail.

• After adjusting, lock the ferrule by tightening the cord

around it.

• Place the ferrule back into the pocket and make sure it is

seated fully.

• Check your adjustment by making sure the shade stacks

evenly when completely raised.

• Once you are certain you have made the nal adjustment

and have fully inserted the ferrule into the pocket, trim the

cord ush with the ferrule and bottom rail.

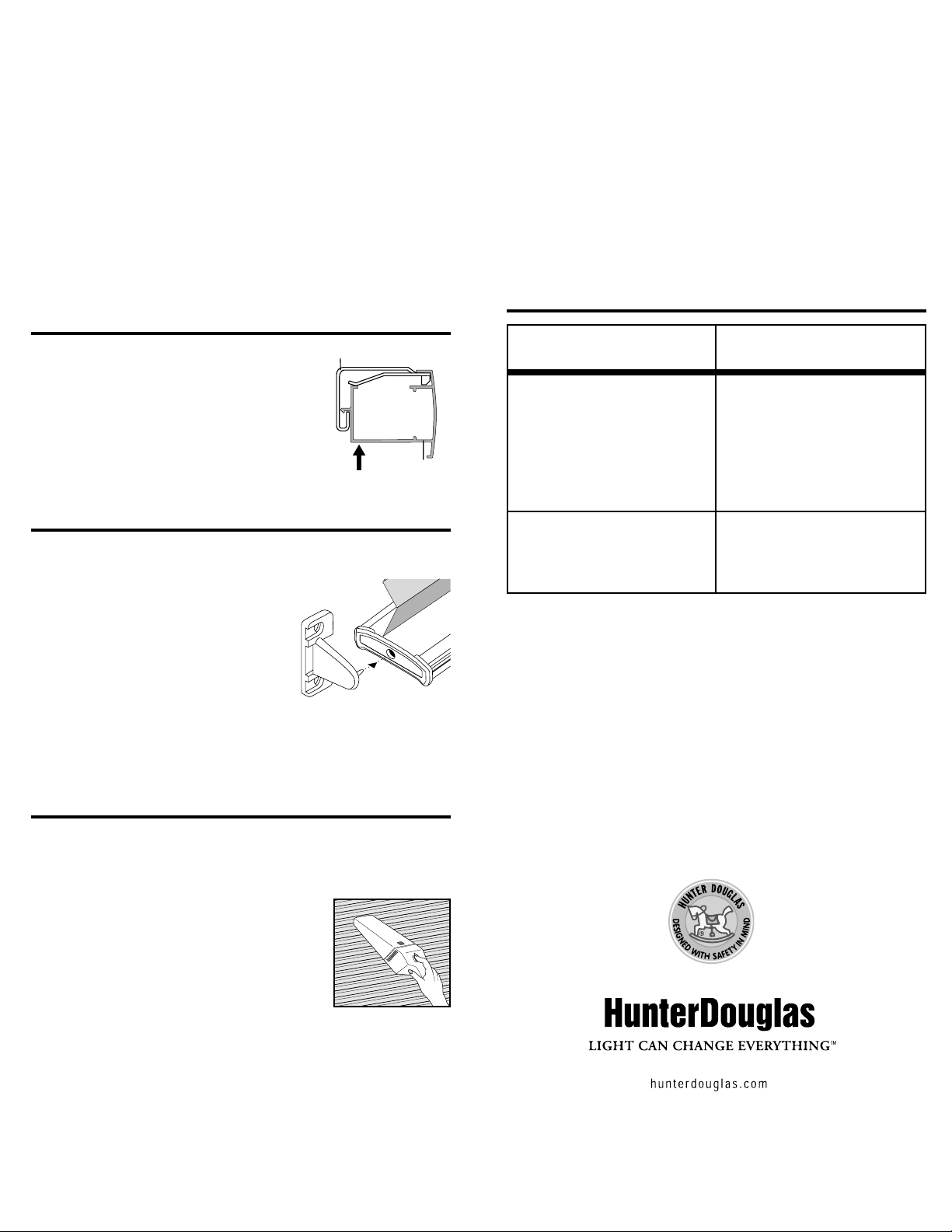

Remove the Shade

• Remove the headrail from each bracket

working from the left to the right.

• Push up on the back edge of the

headrail and pull forward to release the

headrail from the mounting brackets.

Attach Accessories

Hold-Down Brackets (Optional)

• Lower the shade and place the

pins from the hold-down brackets

into the bottom rail end caps.

• Mark the bracket hole locations.

• Check that the brackets are level

and aligned. Attach using two

screws.

Care and Cleaning

LiteRise® rectangular shades are made of an anti-static, dust-

resistant fabric which repels dirt and dust. For most fabrics,

the following options are available if your shade needs cleaning.

Dusting

Regular light dusting with a feather duster

is all the cleaning that is needed in most

circumstances.

Vacuuming

Use a hand-held vacuum with low suction

for more thorough dust removal.

Spot Cleaning

• Prepare a solution of warm water and mild dishwashing

detergent.

• Dampen a clean cloth in the solution and wring it out.

• Dab the spot with the dampened cloth until the spot is

gone. Do not rub the fabric.

• Allow the shade to dry in the completely lowered position. LIT888116 5M-10/02

Headrail

Back Of Bracket

Troubleshooting

PROBLEM SOLUTION

The shade does not raise

and lower evenly.

Adjust the bottom rail by

sliding the ferrules up or

down the cord.

The shade will not raise. If hold-down brackets are

used, make sure they have

been released.

Ultrasonic Cleaning

Ultrasonic cleaning, where the shade is immersed in a tub of

cleaning solution and subjected to high frequency vibrations,

is NOT recommended for LiteRise® shades.

For more comprehensive cleaning instructions, call the

Hunter Douglas Customer Information Center toll free at:

1-888-501-8364

Make sure the mounting

brackets are level and

aligned.

™Trademark of Hunter Douglas Inc. Patented in the U.S. and foreign countries.

U.S. and foreign patents pending.

Altri manuali HunterDouglas Tenda per finestra

HunterDouglas

HunterDouglas LiteRise Manuale utente

HunterDouglas

HunterDouglas ZIP 100 Guida alla manutenzione e all'assistenza

HunterDouglas

HunterDouglas Sonnette Manuale utente

HunterDouglas

HunterDouglas Specialty Motorized Vertical Blinds Manuale elenco delle parti

HunterDouglas

HunterDouglas RB 500 Guida di sicurezza

HunterDouglas

HunterDouglas PowerView M40T Manuale utente

HunterDouglas

HunterDouglas Duette SkyLift Manuale utente

HunterDouglas

HunterDouglas Remembrance Motorized Shade Specifiche tecniche

HunterDouglas

HunterDouglas PowerView Venetian Blind 18VDC Manuale utente

HunterDouglas

HunterDouglas LiteRise Manuale operativo

HunterDouglas

HunterDouglas LiteRise Manuale operativo

HunterDouglas

HunterDouglas Silhouette Nantucket PowerView Gen 3... Manuale elenco delle parti

HunterDouglas

HunterDouglas 2" Horizontal Aluminum Blinds Manuale elenco delle parti

HunterDouglas

HunterDouglas Sonnette Manuale elenco delle parti

HunterDouglas

HunterDouglas Designer Roller Shades Manuale elenco delle parti

HunterDouglas

HunterDouglas VS 100 Guide rail Guida alla manutenzione e all'assistenza

HunterDouglas

HunterDouglas Paramount Manuale del proprietario

HunterDouglas

HunterDouglas WOODMATES Manuale utente

HunterDouglas

HunterDouglas RB 500 Guida di sicurezza

HunterDouglas

HunterDouglas Vignette Modern Roman Shades Manuale elenco delle parti

HunterDouglas

HunterDouglas 5-216 Manuale utente

HunterDouglas

HunterDouglas Pirouette Manuale elenco delle parti

HunterDouglas

HunterDouglas 5-257 Manuale utente

HunterDouglas

HunterDouglas Pirouette PowerView+ Gen 3 Automation Manuale elenco delle parti

Manuali Tenda per finestra popolari di altre marche

Jysk

Jysk ROGEN Manuale utente

SOMFY

SOMFY 1241752 Manuale utente

Rollos

Rollos S-Nanorollo V2 Guida alla pianificazione

Teptron

Teptron Move Manuale utente

Renson

Renson Outdoor Loggia Guida di sicurezza

Project Source

Project Source CDLF2342W Manuale utente

Domondo

Domondo PureNight Manuale di istruzioni per l'installazione

rollease acmeda

rollease acmeda Easy Spring Air Guida all'installazione

IKEA

IKEA KADRILJ Manuale utente

Hallis Hudson

Hallis Hudson Rolls Super glide Manuale utente

Benthin

Benthin P1614 Manuale utente

MV LINE

MV LINE CLARA 015 Manuale di istruzioni

Current

Current E-WAND Guida

weinor

weinor VertiTex ZipR Manuale

Roto

Roto ZAR M R4/R7 Manuale utente

SOMFY

SOMFY Movelite WT Series Manuale utente

Acmeda

Acmeda RF400 Series Manuale utente

Motura

Motura Pli_353/3 Manuale utente
