HunterDouglas PowerView Gen 3 Manuale utente

Installation

•

Operation

•

Care

Duette

and Applause

Honeycomb Shades

PowerView

Gen 3 Automation

CONTENTS

their respective owners.

Questions?

Call Hunter Douglas Consumer Support at (800) 789-0331.

GETTING STARTED...............................................................1

Product View..........................................................................1

Tools and Fasteners Needed .................................................2

INSTALLATION ......................................................................3

Installation Overview.............................................................3

STEP 1: Mount the Installation Brackets..............................3

Mount the Installation Brackets — Inside Mount................4

Mount the Installation Brackets — Outside Mount .............7

Mount the Installation Brackets — End Mount....................9

STEP 2: Mount the Battery Wand (If Applicable)...............10

STEP 3: Install the Shade....................................................12

STEP 4: Connect the Power Source....................................13

Testing the Shade................................................................19

Attach Magnetic Hold-Down Brackets (Optional)...............20

OPERATION..........................................................................22

Operating the PowerView®App and Gen 3 Remote...........22

Resetting the Shade ..........................................................26

Level the Rail(s) ...................................................................27

TROUBLESHOOTING ..........................................................28

CARE......................................................................................34

Removing the Shade............................................................34

Cleaning Procedures............................................................34

DECLARATIONS...................................................................36

CHILD SAFETY.....................................................................37

WARRANTY .........................................................................38

GETTING STARTED

Product View

PowerView

Gen 3

Bottom Up

Control

Button

Installation Brackets

with Spacer Blocks

Duolite®

Top-Down and

Top-Down/Bottom-Up

GETTING STARTED

Thank you for purchasing Hunter Douglas Duette®and Applause®Honeycomb Shades with

PowerView®Gen 3 Automation. With proper installation, operation, and care, your new

shades will provide years of beauty and performance.

Please thoroughly review this instruction booklet and the enclosed packing list before

beginning the installation.

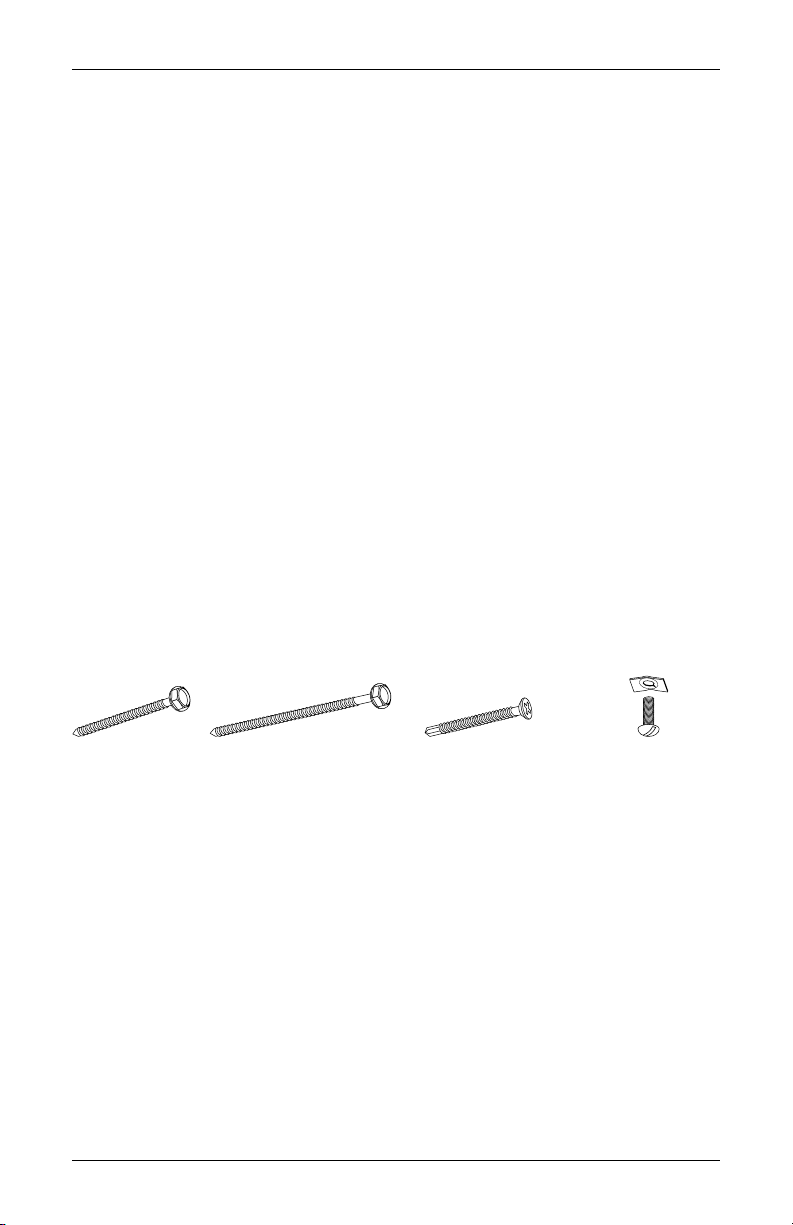

Tools and Fasteners Needed

■

⁄

" Hex, Flat blade, and Phillips screwdrivers

■ Level (laser level is recommended)

■ Measuring tape and pencil

■ Power drill,

⁄

" drill bit, and

⁄

" hex driver

In addition, you will need fasteners designed to work with your specific mounting surface(s).

■ #6 Hex Head Screws (Provided). Two 1

⁄

" screws are provided per installation bracket.

■ Longer #6 Hex Head Screws (Not Provided). If using spacer blocks, use #6 screws

long enough for a secure attachment.

■ #6 Flat Head Screws (Provided). If end mounting the shade, use two 1

⁄

" screws per

installation bracket.

■ Speed Nuts and Screws (Provided). Extension brackets come with speed nuts and

screws.

■ Drywall Anchor (Not Provided). Use drywall anchors when mounting into drywall.

#6 x 1

∕

Hex Head Screw

(Provided)

Longer #6 Hex Head Screw

for Use

with Spacer Blocks

(Not Provided)

#6 Flat Head Screw

for Use

with End Mounts

(Provided)

Speed Nut and Screw

(Two Provided

with Each

Extension Bracket)

INSTALLATION

Installation Overview

To install your shade, you will need to perform the following four steps:

STEP 1: Mount the Installation Brackets

STEP 2: Mount the Battery Wand, If Applicable

STEP 3: Install the Shade

STEP 4: Connect the Power Source

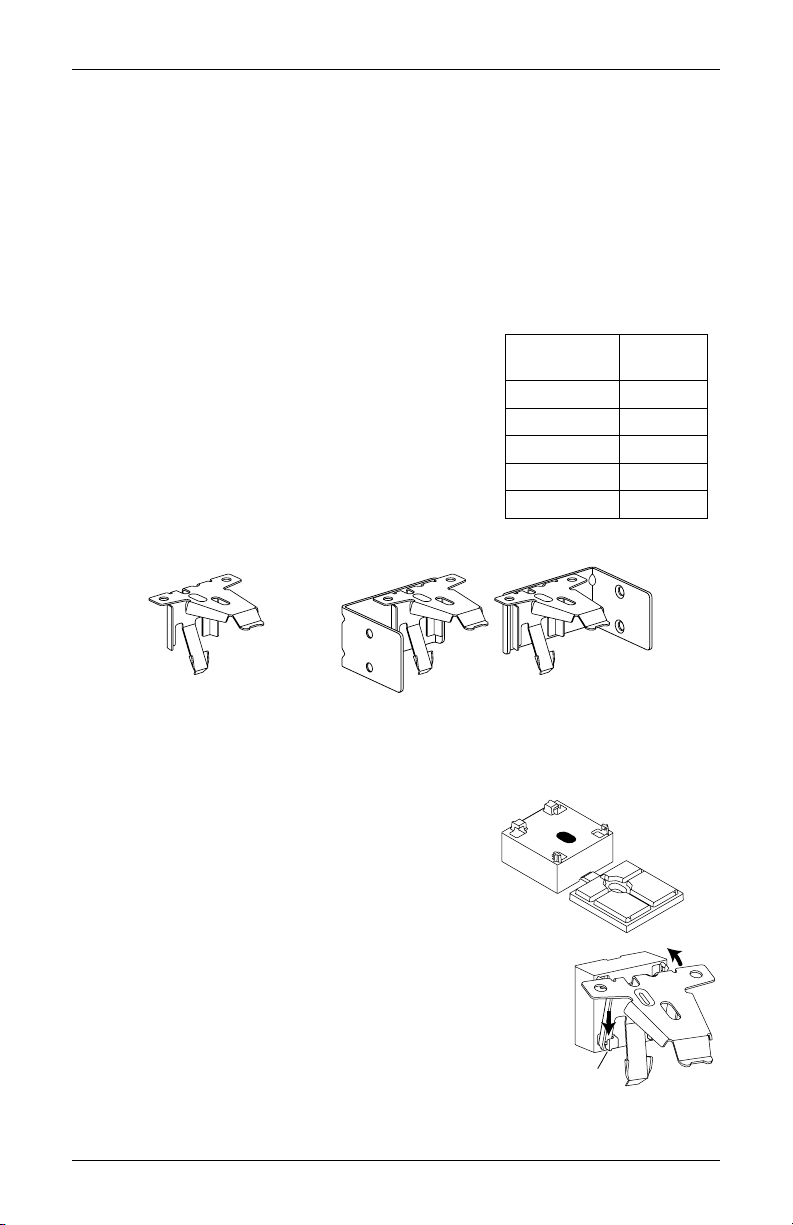

STEP 1: Mount the Installation Brackets

■ Your order will include the correct number of installation

brackets for your shade width, as shown in the table.

➤ There are two sizes of installation brackets, one for

⁄

" and

⁄

" pleat sizes and a larger one for the 1

⁄

pleat size.

➤ For end mounts, two brackets are used up to the

maximum width of 72".

IMPORTANT: A

⁄

" spacer block is required for shades using an attached battery wand;

two

⁄

" spacer blocks are required for shades using a headrail-mounted rechargeable battery

wand. The spacer blocks are pre-attached to the back of the installation bracket.

■ Should the spacer block become detached, reattach it.

➤ Insert the legs of the installation bracket into the tabs

on the spacer block.

➤ Rotate the installation bracket back, as shown, to snap

it in place.

Shade

Width

Brackets

Required

12" – 36" 2

∕

" – 72" 3

∕

" – 108" 4

108

∕

" – 144" 5

144

∕

" – 174" 6

Installation

Bracket

End Mount

Brackets

∕

" Spacer Block

∕

" Shim

INSTALLATION

Mounting Types and Window Terminology

If the installation brackets are mounted correctly, the rest of the installation process follows

easily. To prepare for this important first step, review the mounting types and basic window

terminology illustrated below.

■ Refer to the appropriate page below based on your order:

➤ Inside Mount — below

➤ Outside Mount — Page 7

➤ End Mount — Page 9

Mount the Installation Brackets — Inside Mount

■ Mark 2" in from each jamb for bracket location.

➤ If more than two installation brackets came with your order, space additional bracket(s)

evenly between the two end brackets and mark their location. Allow a minimum of

15" between the brackets on the right-side motor end for the battery wand/

rechargeable battery wand. Mount into wood whenever possible.

Outside Mount

Shade mounts outside

window opening.

Inside Mount

Shade ﬁts within

window opening.

Collectively, the sill and

jambs are called the

“window casement.”

Head Jamb

Sill

Jamb Jamb

2" Space Evenly

Jamb Jamb

Space Evenly 2"

Minimum of 15" for

Battery Wand or

Rechargeable Battery Wand

INSTALLATION

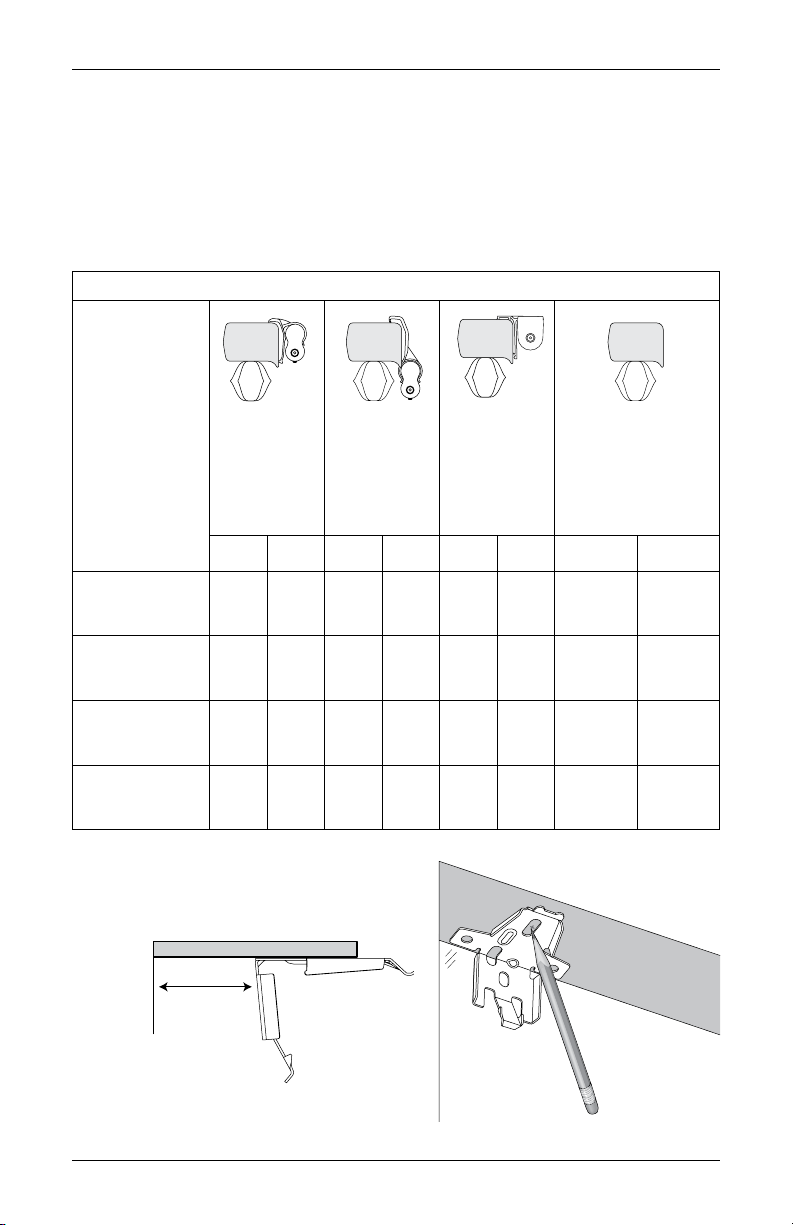

■ Center the brackets on your marks, then mark each of the screw holes.

➤ Mounting depths vary depending on the fabric pleat size. See the following chart for

minimum and fully recessed depth requirements (measured from the front of the sill to

the back of the installation bracket).

➤ Mark both winged screw holes with shallow mounting depths.

➤ Mark the center screw hole when depth permits. The center hole requires 1

⁄

Mounting Depth Requirements

Pleat Size:

Battery Wand

High Mount

Bracket

(Standard)

Battery Wand

Low Mount

Bracket

(Optional)

Headrail-

Mounted

Rechargeable

Battery Wand

(Optional)

Satellite Battery Pack/

Rechargeable Battery

Wand,

C-Size Battery Wand,

18V DC Power Supply,

16 Shade DC Power

Supply

∕

" 1

∕

" 1

∕

" 1

∕

" 1

∕

Minimum casement

depth:

Inside Mount

1" 1" 1" 1" 1

∕

" 1

∕

Minimum casement

depth:

End Mount

∕

" 1

∕

" 1

∕

" 1

∕

" 2" 2" 1

∕

" 1

∕

Minimum casement

depth:

Flush Mount

∕

" 3

∕

" 2

∕

" 3

∕

" 3

∕

" 3

∕

" 2

∕

" 3

∕

Minimum mounting

surface height:

Outside Mount

∕

" 1

∕

" 1

∕

" 1

∕

" 1

∕

" 1

∕

" 1

∕

" 1

∕

Recessed

Depth

Nearest

Obstruction

Jamb

See Depth

Chart

Use Center Hole

When Depth Permits

INSTALLATION

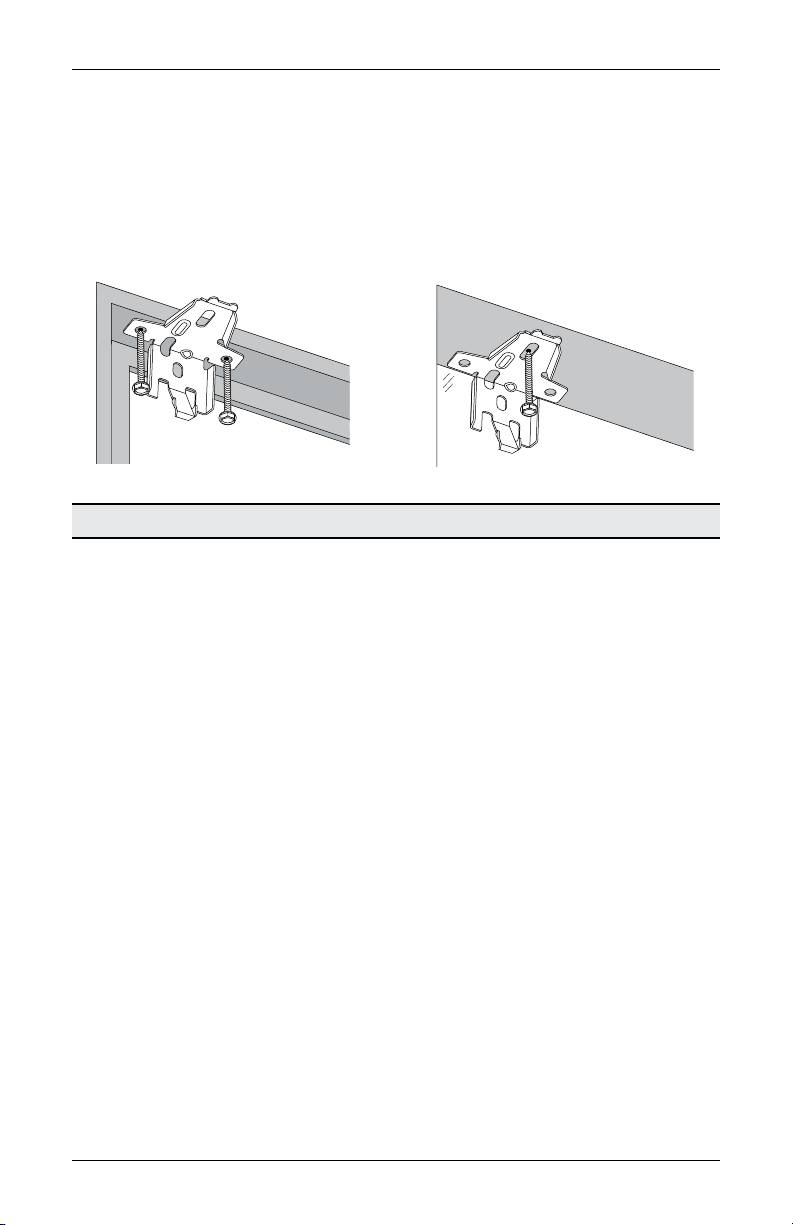

■ Drill the screw holes using a

⁄

" drill bit.

CAUTION: Use drywall anchors when mounting into drywall.

■ Use a level to check that the mounting surface is level. Shim the brackets if necessary.

■ Attach the installation brackets using the screws provided.

IMPORTANT: The front edges of the installation brackets must be level and aligned. If

mounting to a heavily textured surface, shim the brackets, if needed.

Proceed to “STEP 2: Mount the Battery Wand (If Applicable)” on page 10.

INSTALLATION

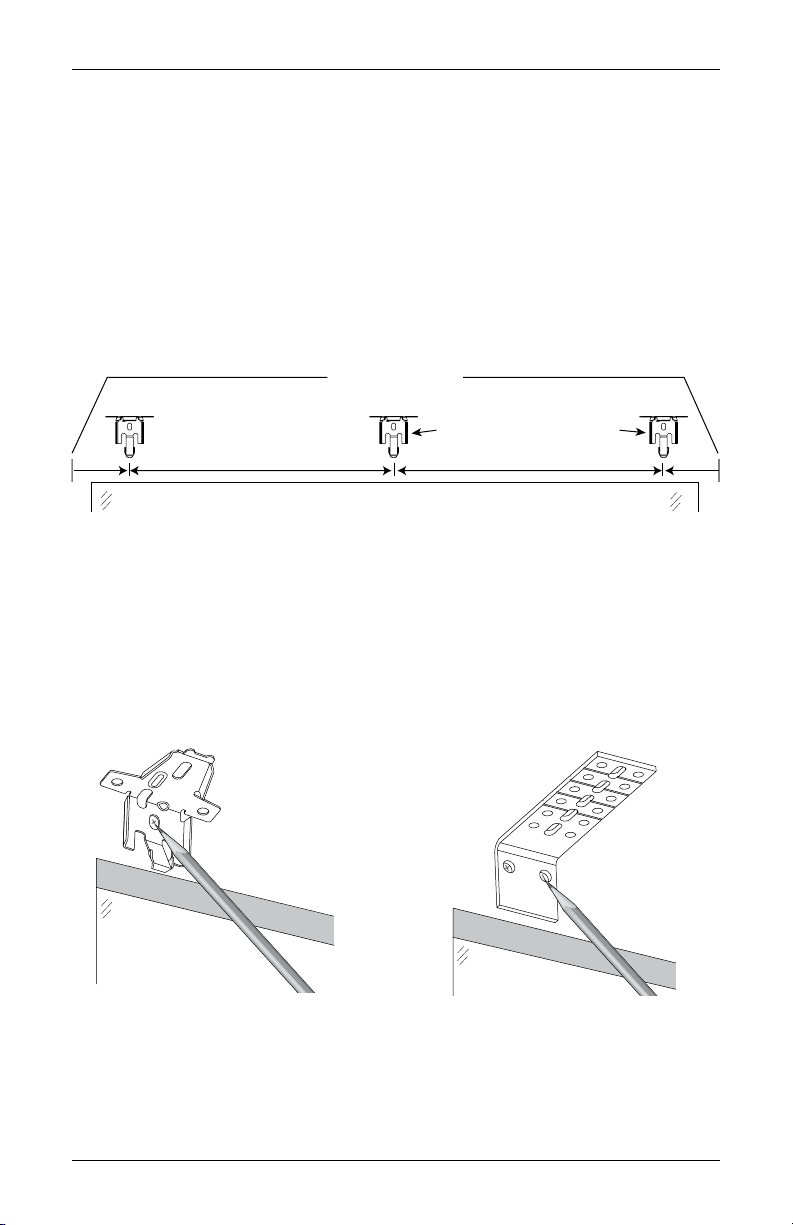

Mount the Installation Brackets — Outside Mount

■ Center the headrail over the window opening at the desired height. Use a pencil to lightly

mark the wall at each end of the headrail.

➤ Alternatively, measure the width of the headrail and use that width to mark the

headrail end points over the window opening.

■ Mark 2" from each end of the headrail.

➤ If more than two installation brackets came with your order, space additional bracket(s)

evenly between the two end brackets and mark their location. Allow a minimum of

15" between the brackets on the right-side motor end for the battery wand/

rechargeable battery wand. Mount into wood whenever possible.

■ Center the brackets on your marks, then mark each of the screw holes.

➤ A minimum of 1

⁄

" flat vertical surface is required to mount the brackets.

➤ The top of the installation brackets or extension brackets should be at the desired

shade height. The brackets should be level and aligned.

➤ When using extension brackets, mark two screw holes per bracket.

CAUTION: The rear of the brackets must be flush against a flat mounting surface. Do not

mount brackets on curved molding.

■ Drill the screw holes using a

⁄

" drill bit.

CAUTION: Use drywall anchors when mounting into drywall.

Minimum of 15" for

Battery Wand or

Rechargeable Battery Wand

Headrail End Marks

Window Opening

2" Space Evenly Space Evenly 2"

INSTALLATION

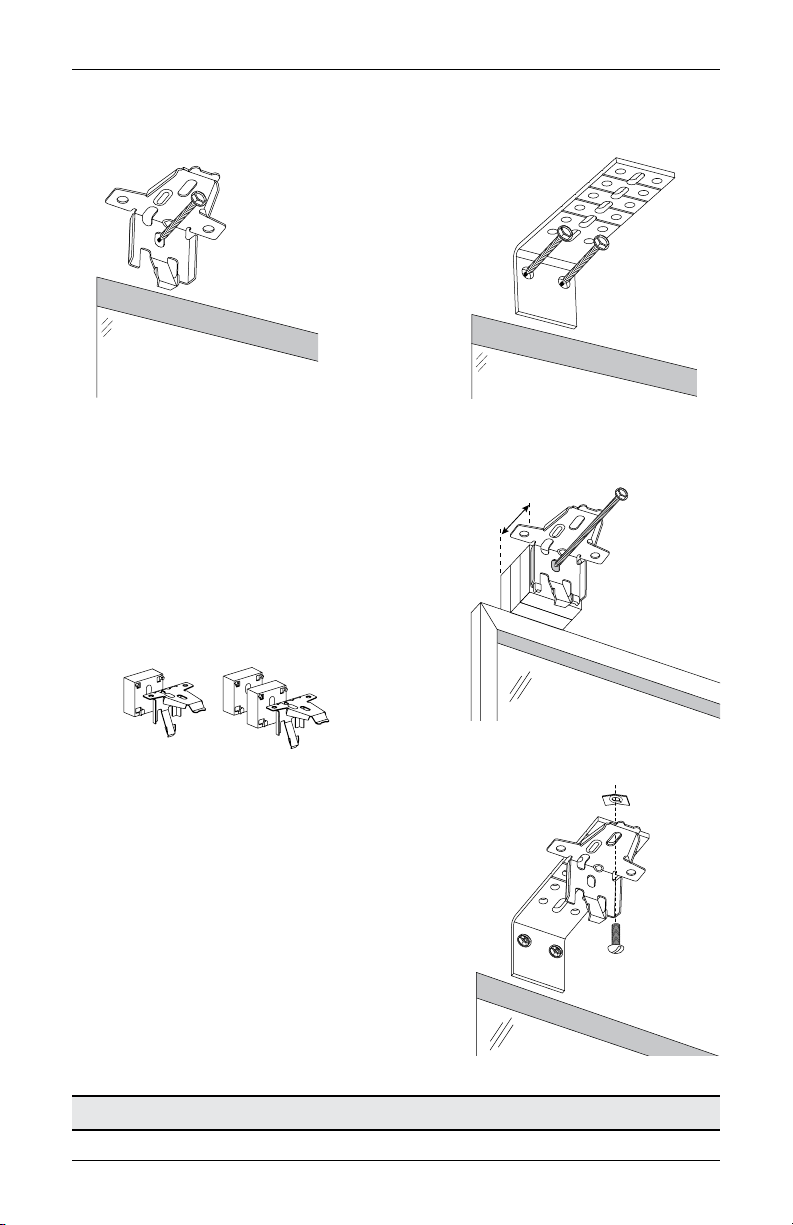

■ Attach the installation or extension brackets using the screws provided.

IMPORTANT: The front edges of the brackets must be level and aligned to each other.

■ If using spacer blocks, attach the spacer block/installation bracket assembly to a flat

vertical mounting surface with a #6 mounting screw long enough for a secure installation.

➤ Use one

⁄

" spacer block per installation

bracket to provide clearance required for

standard battery wand.

➤ Use two

⁄

" spacer blocks per installation

bracket to provide clearance required for

rechargeable battery wand.

➤ A maximum of 1

⁄

" of spacer blocks per installation

bracket is recommended. Spacer blocks and shims

may be stacked.

➤ The top of the spacer blocks should be at

the desired shade height.

CAUTION: Use drywall anchors when mounting

into drywall.

■ If using extension brackets, attach an installation

bracket to the underside of each extension bracket

using the provided screws and speed nuts.

Proceed to “STEP 2: Mount the Battery Wand (If Applicable)” on page 10.

Longer Screw

(Not Provided)

Maximum

∕

Battery

Wand

Rechargeable

Battery Wand

Altri manuali per PowerView Gen 3

Indice

Altri manuali HunterDouglas Tenda per finestra

HunterDouglas

HunterDouglas Alustra Woven Textures Manuale utente

HunterDouglas

HunterDouglas Paramount Manuale del proprietario

HunterDouglas

HunterDouglas Decor Standard Cordlock Manuale del proprietario

HunterDouglas

HunterDouglas Designer Roller Shades Manuale elenco delle parti

HunterDouglas

HunterDouglas Silhouette A Deux Manuale elenco delle parti

HunterDouglas

HunterDouglas EverWood Guida utente

HunterDouglas

HunterDouglas 5-216 Manuale utente

HunterDouglas

HunterDouglas Duette Manuale elenco delle parti

HunterDouglas

HunterDouglas Pirouette PowerView+ Gen 3 Automation Manuale elenco delle parti

HunterDouglas

HunterDouglas Duette Honeycomb Shades Manuale utente

HunterDouglas

HunterDouglas 2" Horizontal Aluminum Blinds Manuale elenco delle parti

HunterDouglas

HunterDouglas Silhouette Halo Duolite Manuale elenco delle parti

HunterDouglas

HunterDouglas Solera EasyRise Manuale elenco delle parti

HunterDouglas

HunterDouglas Blockout Manuale utente

HunterDouglas

HunterDouglas Alustra Woven Textures ST30 Manuale elenco delle parti

HunterDouglas

HunterDouglas LiteRise Manuale operativo

HunterDouglas

HunterDouglas Luminette Privacy Sheers Manuale elenco delle parti

HunterDouglas

HunterDouglas DecoFlex WireFree Telis Istruzioni operative

HunterDouglas

HunterDouglas Country Woods Manuale operativo

HunterDouglas

HunterDouglas PowerView Manuale elenco delle parti

HunterDouglas

HunterDouglas Wood Blinds Manuale utente

HunterDouglas

HunterDouglas Brilliance Manuale operativo

HunterDouglas

HunterDouglas Vignette Traditional Manuale utente

HunterDouglas

HunterDouglas Reveal Manuale elenco delle parti

Manuali Tenda per finestra popolari di altre marche

Jysk

Jysk ROGEN Manuale utente

SOMFY

SOMFY 1241752 Manuale utente

Rollos

Rollos S-Nanorollo V2 Guida alla pianificazione

Teptron

Teptron Move Manuale utente

Renson

Renson Outdoor Loggia Guida di sicurezza

Project Source

Project Source CDLF2342W Manuale utente

Domondo

Domondo PureNight Manuale di istruzioni per l'installazione

rollease acmeda

rollease acmeda Easy Spring Air Guida all'installazione

IKEA

IKEA KADRILJ Manuale utente

Hallis Hudson

Hallis Hudson Rolls Super glide Manuale utente

Benthin

Benthin P1614 Manuale utente

MV LINE

MV LINE CLARA 015 Manuale di istruzioni

Current

Current E-WAND Guida

weinor

weinor VertiTex ZipR Manuale

Roto

Roto ZAR M R4/R7 Manuale utente

SOMFY

SOMFY Movelite WT Series Manuale utente

Acmeda

Acmeda RF400 Series Manuale utente

Motura

Motura Pli_353/3 Manuale utente
