Installation •Operation •Care

Sonnette

™

Cellular Roller Shades

SoftTouch

™

Motorization

CONTENTS

Questions?

Call Hunter Douglas Consumer Support at 1-888-501-8364.

their respective owners.

GETTING STARTED:

Product View.....................................................................................................................1

Tools and Fasteners Needed ............................................................................................2

INSTALLATION:

Installation Overview .......................................................................................................3

STEP 1 — Install the Brackets .........................................................................................3

Mount the Installation Brackets – Inside Mount .........................................................4

Mount the Installation Brackets – Outside Mount ......................................................6

STEP 2 — Install the Shade.............................................................................................8

STEP 3 — Connect the Power Source .............................................................................9

Unpack the Wand and Attach the Activation Arm.........................................................13

OPERATION:

Basic Operation ..............................................................................................................14

Troubleshooting .............................................................................................................15

CARE:

Removing the Shade ......................................................................................................20

Cleaning Procedures ......................................................................................................20

WARRANTY......................................................................................................Back Cover

GETTING STARTED

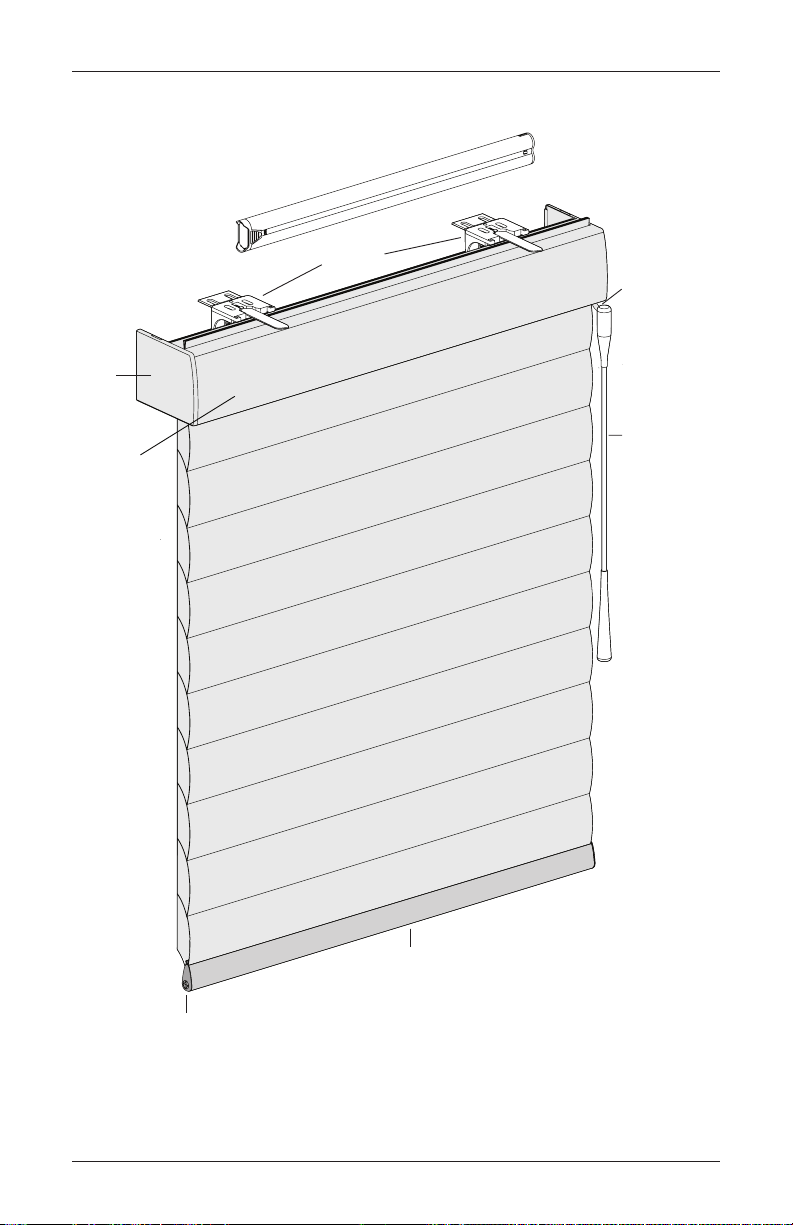

Product View

Installation

Brackets

Bottom Rail

Wand

Bottom Rail

End Cap

End

Cap

18V Battery

Wand

Not Shown:

Satellite Battery Pack, C-Size Satellite Battery Wand,

18V DC Power Supply, and Large DC Power Supply

Activation

Arm

Headrail

GETTING STARTED

Thank you for purchasing Hunter Douglas Sonnette™cellular roller shades with SoftTouch™

Motorization. With proper installation, operation, and care, your new shades will provide

years of beauty and performance.

Please thoroughly review this instruction booklet and the enclosed packing list before

beginning the installation.

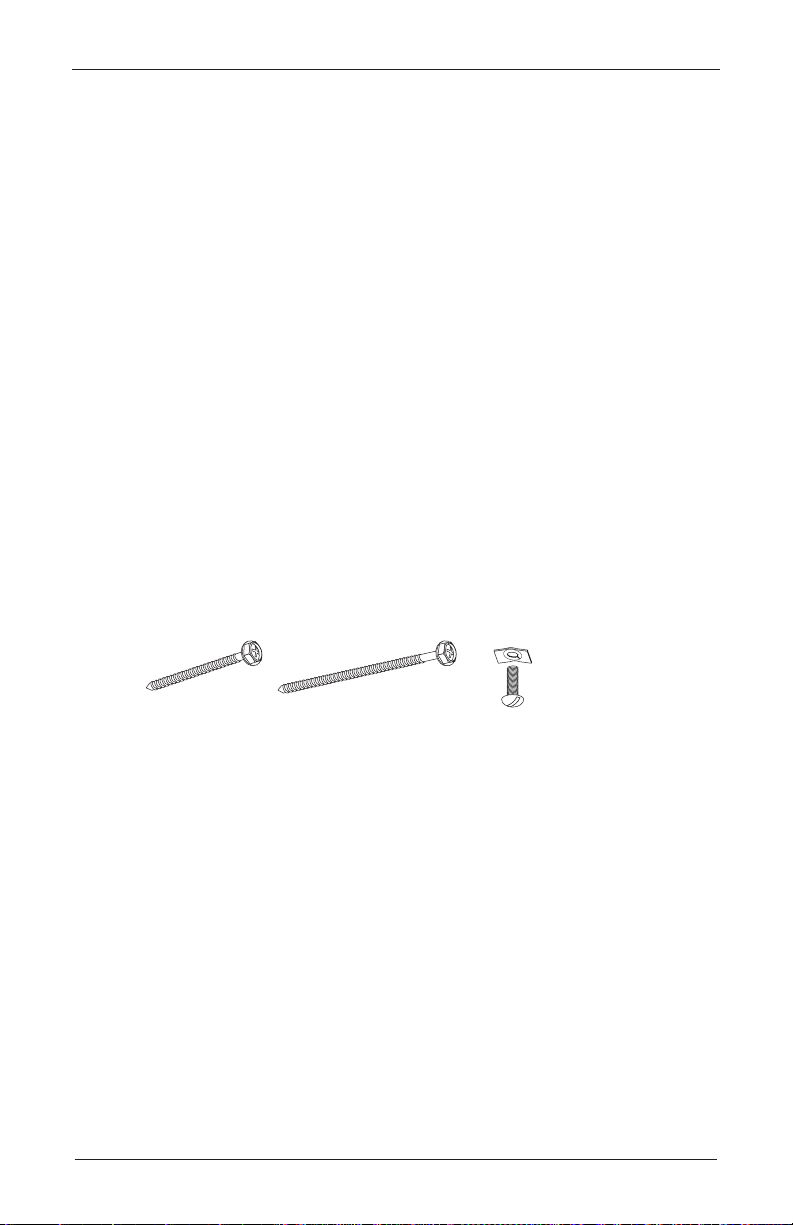

Tools and Fasteners Needed

■ Flat blade and Phillips screwdrivers

■ Level (laser level is recommended)

■ Measuring tape and pencil

■ Power drill,

⁄

" drill bit, and

⁄

" hex driver (or socket wrench with

⁄

" hex socket)

■ Scissors (heavy-duty)

In addition, you will need fasteners designed to work with your specific mounting surface(s).

■ #6 Hex Head Screws (Provided). Two 1

⁄

" screws are provided per installation bracket.

■ Longer #6 Hex Head Screws (Not Provided). If using spacer blocks, use #6 screws

long enough for a secure attachment.

■ Speed Nuts and Screws (Provided). Extension brackets come with screws and

speed nuts.

■ Drywall Anchors (Not Provided). Use drywall anchors when mounting into drywall.

Speed Nut

and Screw

(Two Provided with

Each Extension Bracket)

#6 x 1

∕

Hex Head Screw

(Provided)

Longer #6 Hex Head Screw

for Use with Spacer Blocks

(Not Provided)

INSTALLATION

Installation Overview

To install your shade, you will need to perform the following three steps:

STEP 1: Install the Brackets

STEP 2: Install the Shade

STEP 3: Connect the Power Source

STEP 1 — Install the Brackets

■ Your order will include the correct number of installation brackets for your shade width, as

shown in the table below.

■ Shade orders may also include spacer blocks or extension brackets, if they were specified

for added clearance.

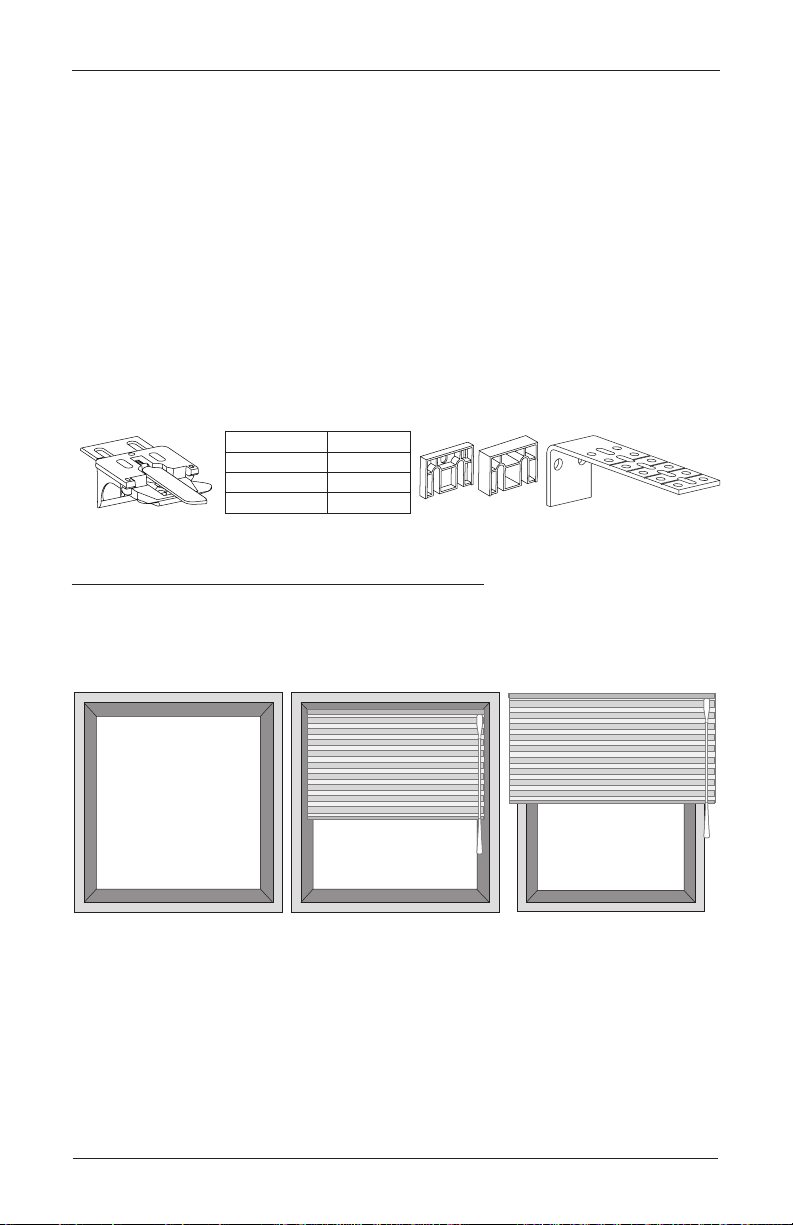

Mounting Types and Window Terminology

If the installation brackets are mounted correctly, the rest of the installation process follows

easily. To prepare for this important first step, review the mounting types and basic window

terminology illustrated below.

■ Refer to the appropriate page below based on your order:

➤ Inside Mount — Page 4

➤ Outside Mount — Page 6

Installation Bracket For Added Clearance

Shade Width Brackets

4Extension

Bracket

∕

" or

∕

Spacer Blocks

15" – 36"

∕

" – 79"

∕

" – 84"

Outside Mount

Shading mounts

outside window

opening.

Inside Mount

Shading ﬁts within

window opening.

Collectively, the sill and

jambs are called the

“window casement.”

Molding

Head Jamb

Sill

Jamb Jamb

INSTALLATION

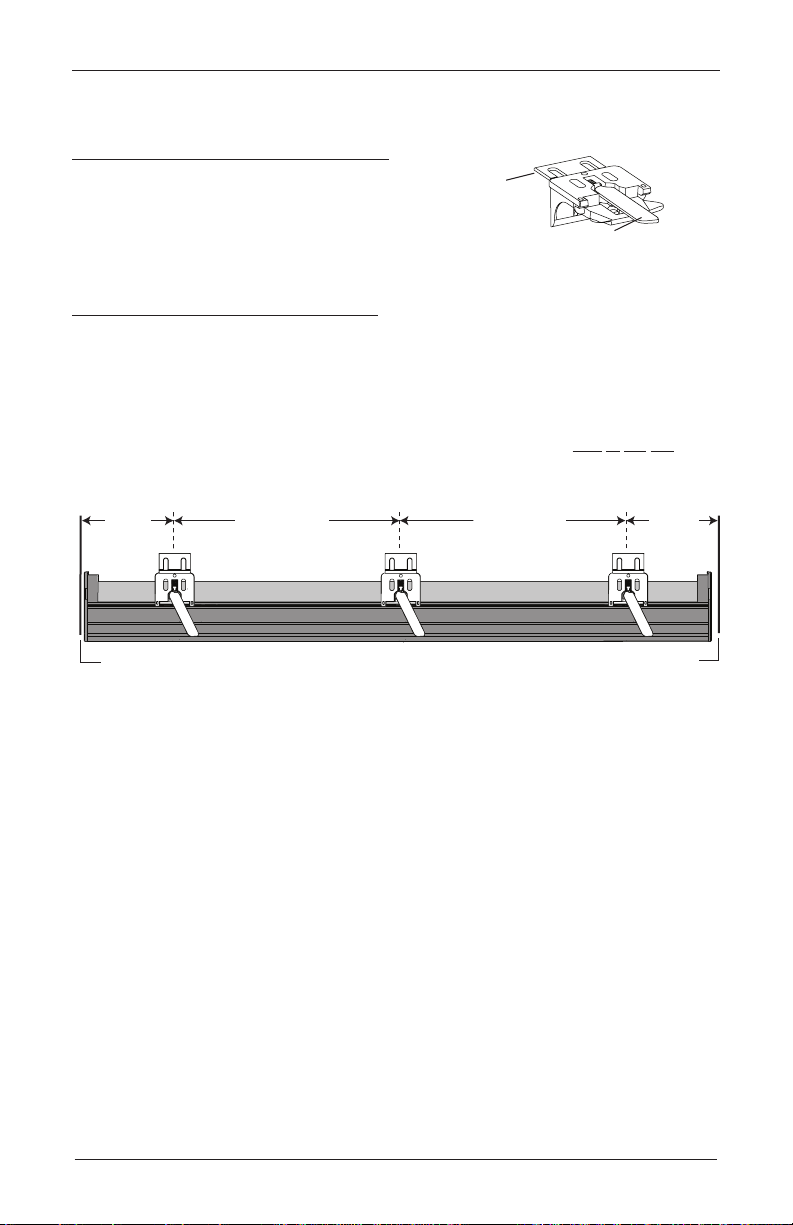

Mount the Installation Brackets — Inside Mount

Prepare the Installation Brackets

■ Use pliers or heavy duty scissors to remove the top

tabs on the installation brackets.

NOTE: Save these tabs once removed. They may be

used as shims, if necessary.

Mount the Installation Brackets

■ Mark 2" to 3" from each jamb for bracket location.

➤ If more than two installation brackets came with your order, space additional bracket(s)

evenly between the two end brackets and mark their location. Mount into wood

whenever possible.

NOTE: Before the headrail is installed the bracket levers need to be fully to the left and

once the headrail is properly in place, levers click to the right.

Tab

Remove Tab

Back Cover Bracket

Bracket Lever

Space Evenly Space Evenly

2" to 3" 2" to 3"

Jamb Jamb

INSTALLATION

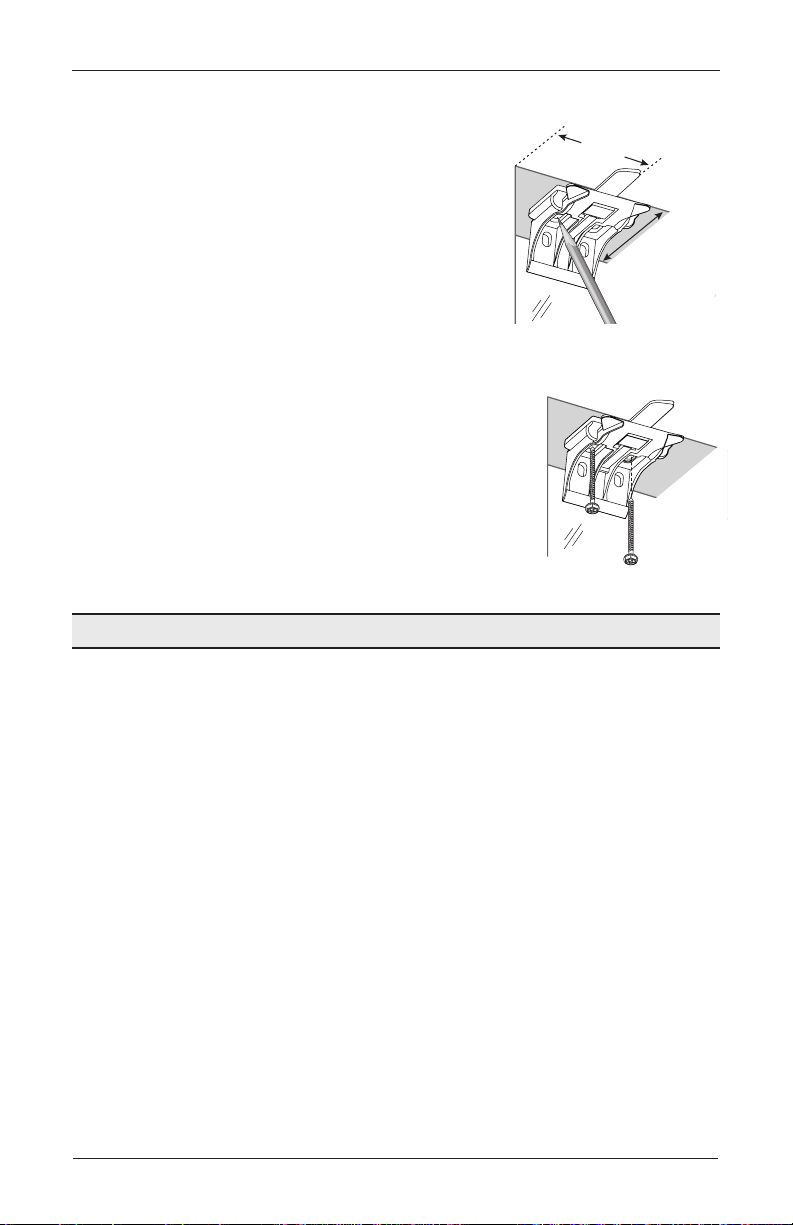

■ Center the brackets on your marks and mark the location of the screw holes.

➤ The minimum casement depth required for

installation brackets is 1".

➤ The minimum casement depth required for a fully

recessed mount is 3

⁄

■ Use a level to check that the mounting surface is level.

Shim the brackets, if necessary (use the top tab that

was removed from the brackets).

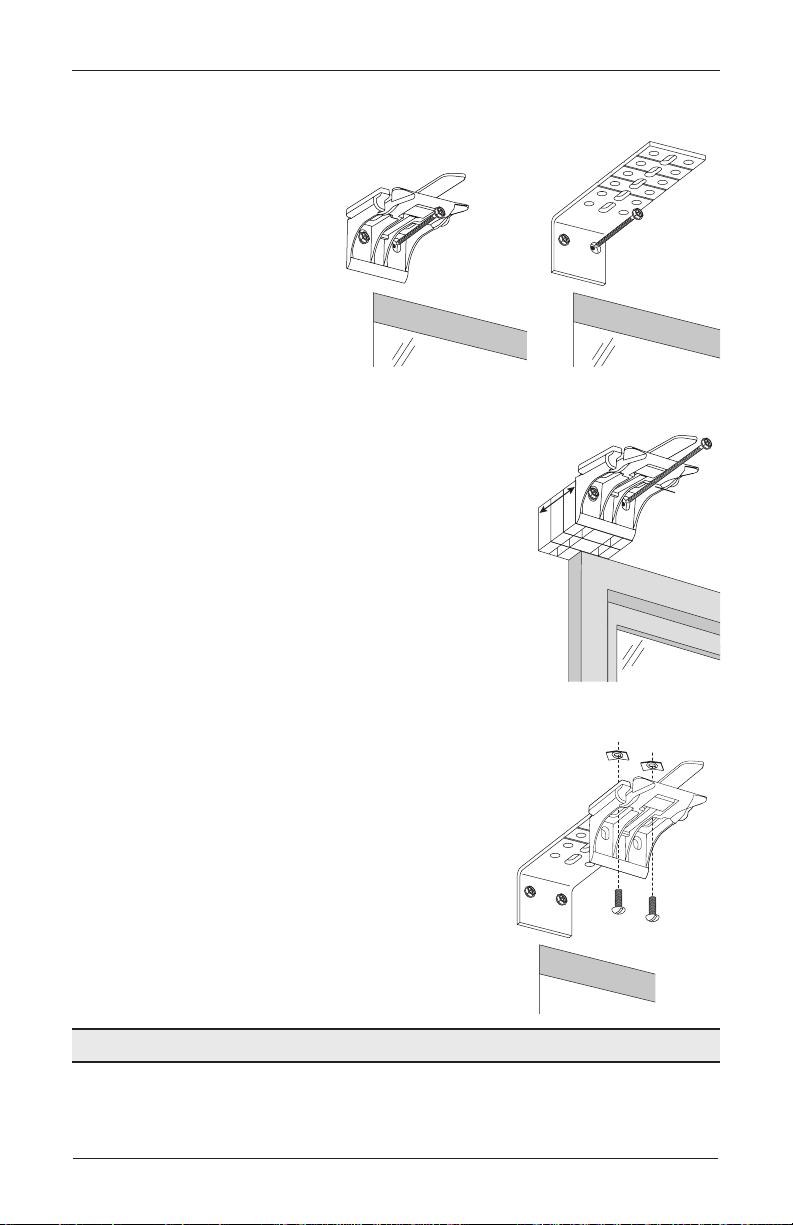

■ Drill the screw holes using a

⁄

" drill bit.

CAUTION: Use drywall anchors when mounting

into drywall.

■ Attach the installation brackets using the screws provided.

IMPORTANT: Do not overtighten the screws. Check to

ensure the bracket lever can be moved easily side to side.

If not, loosen the screws

in one-eighth turn increments until

the lever can be moved easily.

IMPORTANT: The front edges of the installation brackets

must be level and aligned to eachother.

Proceed to “Install the Shade” on page 8.

2" to 3"

Casement

Depth

INSTALLATION

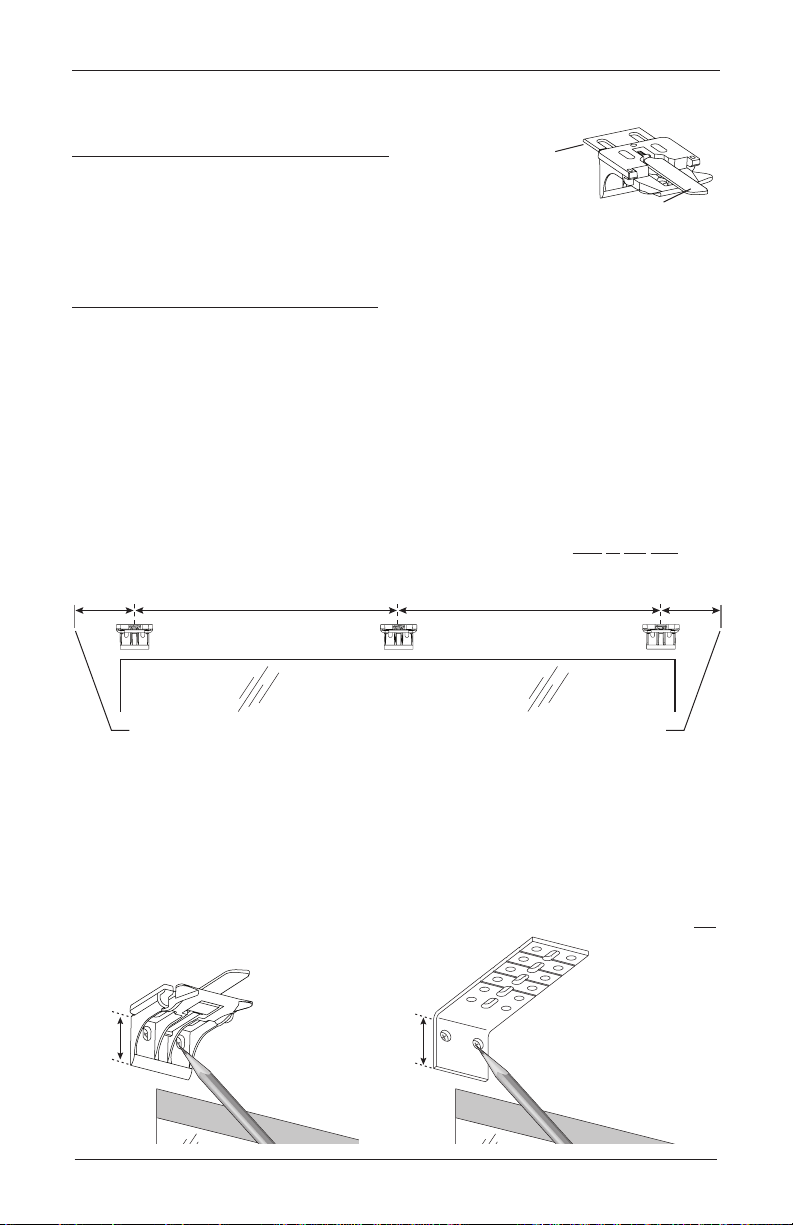

Mount the Installation Brackets — Outside Mount

Prepare the Installation Brackets

■ Use pliers or heavy duty scissors to remove the top tabs on

the installation brackets.

NOTE: Save these tabs once removed. They may be used

as shims, if necessary.

Mount the Installation Brackets

■ Center the headrail over the window opening at the desired height. Use a pencil to lightly

mark the wall at each end of the headrail.

➤ Alternatively, measure the width of the headrail and use that width to mark the

headrail end points over the window opening.

■ Mark 2" to 3" from each end of theheadrail.

➤ If more than two installation brackets came with your order, space additional bracket(s)

evenly between the two end brackets and mark their location. Mount into wood

whenever possible.

NOTE: Before the headrail is installed the bracket levers need to be fully to the left and

once the headrail is properly in place, levers click to the right.

■ Center the installation brackets or extension brackets on your marks and mark where to

drill the screw holes.

➤ A minimum 1

⁄

" flat vertical surface isrequired for the installation brackets. Extension

brackets require 1

⁄

➤ The top of the installation brackets or extension brackets should be at the desired

height. The brackets should be level andaligned to each other.

CAUTION: The rear of the brackets must be flush against a flat mounting surface. Do not

mount brackets oncurved molding.

Tab

Remove Tab

Back Cover Bracket

Bracket Lever

Window Opening

Space Evenly Space Evenly

2" to 3" 2" to 3"

Headrail End Mark Headrail End Mark

∕

"Extension

Bracket

∕

INSTALLATION

■ Drill the screw holes using a

⁄

" drill bit.

CAUTION: Use drywall anchors when mounting into drywall.

■ Attach the installation or extension

brackets using the screws provided.

IMPORTANT: The top of the

installation bracket or extension

brackets must be level with their

front edges aligned.

■ If using spacer blocks for added clearance, attach the

spacer block(s) and installation bracket to a flat vertical

mounting surface with #6screws long enough for a

secure installation.

➤ The top of the spacer blocks should be at the

desired shade height.

IMPORTANT: Do not add more than 1

⁄

" of

clearance using spacer blocks.

IMPORTANT: The top of the installation brackets

must be level with the front edges aligned.

CAUTION: Use drywall anchors when mounting

into drywall.

■ If using extension brackets, attach an installation bracket

to the underside of each extension bracket using thespeed

nuts and screws provided.

Proceed to “Install the Shade” on page 8.

∕

Maximum

Spacer

Blocks

Longer

Screw

Speed Nuts

Screws

INSTALLATION

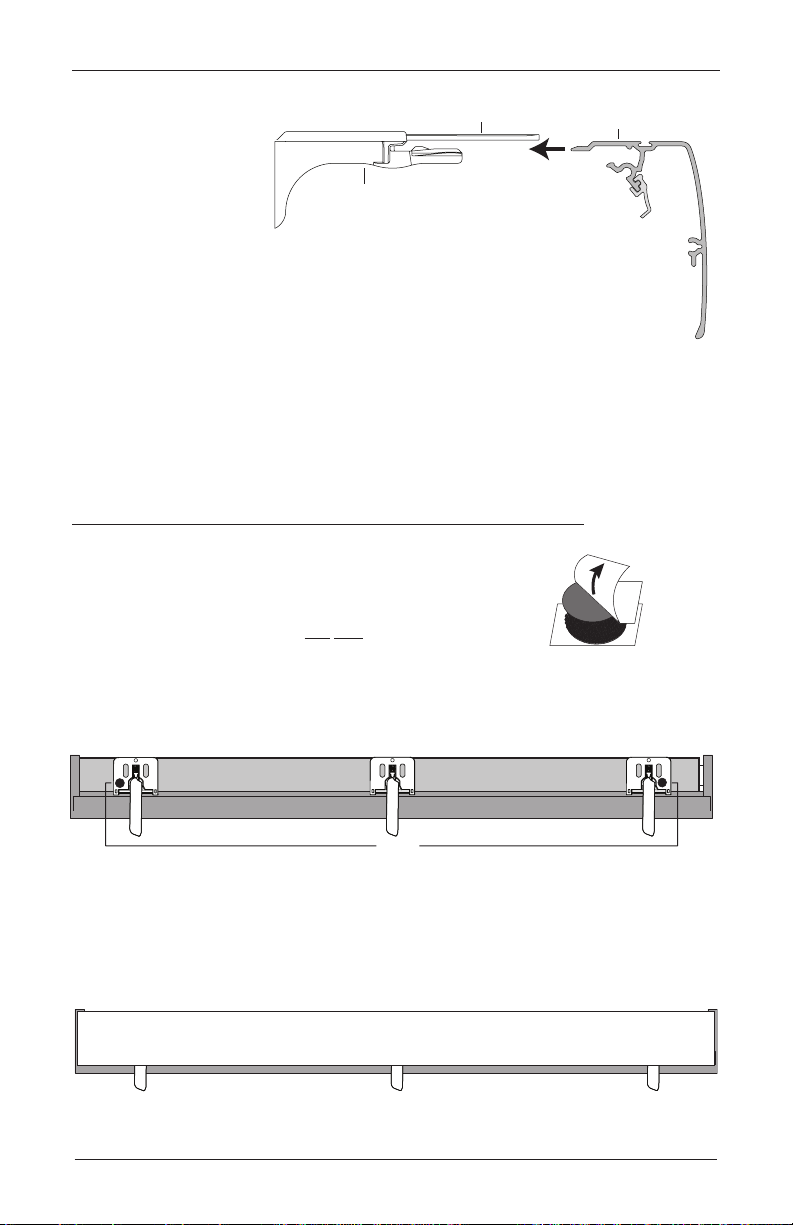

STEP 2 — Install the Shade

■ Ensure that each

lever is pushed to

the left side of the

bracket before

installing the shade.

■ Position the shade

so that the front

faces you.

■ Slide the headrail into the installation brackets so that the headrail is between

the lever and the bracket, asshown.

■ Firmly push the headrail into each bracket until it clicks and the lever snaps to the right

side of the bracket.

IMPORTANT: Carefully pull on the headrail at each bracket to ensure it is

installedsecurely.

Attach the Dust Cover (Optional for Outside Mounts)

The dust cover is used to protect the top of the headrail from exposure on outside mounted

shades.

■ Cut the dust cover to desired width.

■ Remove the paper backing on one side of the hook and loop

fastener dots.

■ Apply the dots to the installation brackets on each end of the shades.

■ Remove the remaining paper backing from the dots.

■ Center the dust cover over the top of the shade, above the dots.

■ Press the dust cover down onto the dots.

Headrail

Installation

Bracket

Lever

Slide the Headrail

Between the Lever

and the Bracket.

Remove

Paper

Backing

Overhead View

No Dust Cover

Dots

Dust Cover Installed

Indice

Altri manuali HunterDouglas Tenda per finestra

HunterDouglas

HunterDouglas Decor Standard Cordlock Manuale del proprietario

HunterDouglas

HunterDouglas Paramount Manuale del proprietario

HunterDouglas

HunterDouglas RB 500 Guida di sicurezza

HunterDouglas

HunterDouglas 2" Horizontal Aluminum Blinds Manuale elenco delle parti

HunterDouglas

HunterDouglas Reveal with MagnaView Manuale operativo

HunterDouglas

HunterDouglas Duette Manuale elenco delle parti

HunterDouglas

HunterDouglas Sonnette Manuale utente

HunterDouglas

HunterDouglas Silhouette Halo Duolite Manuale elenco delle parti

HunterDouglas

HunterDouglas 5-257 Manuale utente

HunterDouglas

HunterDouglas LiteRise Manuale elenco delle parti

HunterDouglas

HunterDouglas Alustra Woven Textures Manuale utente

HunterDouglas

HunterDouglas Cadence Soft Vertical Blinds Manuale elenco delle parti

HunterDouglas

HunterDouglas LiteRise Manuale operativo

HunterDouglas

HunterDouglas RB 500 Guida di sicurezza

HunterDouglas

HunterDouglas Duette Manuale utente

HunterDouglas

HunterDouglas Designer Roller Shades Manuale elenco delle parti

HunterDouglas

HunterDouglas Solera EasyRise Manuale elenco delle parti

HunterDouglas

HunterDouglas PowerView EOS Plisse Manuale utente

HunterDouglas

HunterDouglas Silhouette A Deux Manuale elenco delle parti

HunterDouglas

HunterDouglas Duette SkyLift Manuale utente

HunterDouglas

HunterDouglas Brilliance Manuale operativo

HunterDouglas

HunterDouglas LiteRise Manuale operativo

HunterDouglas

HunterDouglas PowerView Gen 3 Manuale utente

HunterDouglas

HunterDouglas Pirouette Manuale elenco delle parti

Manuali Tenda per finestra popolari di altre marche

Jysk

Jysk ROGEN Manuale utente

SOMFY

SOMFY 1241752 Manuale utente

Rollos

Rollos S-Nanorollo V2 Guida alla pianificazione

Teptron

Teptron Move Manuale utente

Renson

Renson Outdoor Loggia Guida di sicurezza

Project Source

Project Source CDLF2342W Manuale utente

Domondo

Domondo PureNight Manuale di istruzioni per l'installazione

rollease acmeda

rollease acmeda Easy Spring Air Guida all'installazione

IKEA

IKEA KADRILJ Manuale utente

Hallis Hudson

Hallis Hudson Rolls Super glide Manuale utente

Benthin

Benthin P1614 Manuale utente

MV LINE

MV LINE CLARA 015 Manuale di istruzioni

Current

Current E-WAND Guida

weinor

weinor VertiTex ZipR Manuale

Roto

Roto ZAR M R4/R7 Manuale utente

SOMFY

SOMFY Movelite WT Series Manuale utente

Acmeda

Acmeda RF400 Series Manuale utente

Motura

Motura Pli_353/3 Manuale utente
