Hussmann D5XEE Manuale di istruzioni

P/N 0481484_A

D5XELE

& D5XEE

Technical Data Sheet

P/N 0481484_A

NSF®Certified

March 2008

We reserve the right to change or

revise specifications and product

design in connection with any

feature of our products. Such

changes do not entitle the buyer to

corresponding changes, improvements,

additions or replacements for

equipment previously sold or shipped.

Item Part # Description Wiring Item #

FAN ASSEMBLIES

A. 12W Standard Fan Assembly (1)

0047000 Fan Motor, Evaporator

(MO.4410103)

0461805 Fan Blade (FB.4780446)

12W Energy Efficient Fan Assembly (1)

0477655 Fan Motor, Evaporator

(MO.4410546)

0461805 Fan Blade (FB.4780446)

THERMOSTATS

B. 0411744 Standard Non-adjustable (2)

Defrost Thermostat

(CT.0411744)

C. Optional Adjustable Refrigeration Thermostat (3)

Item Part # Description Wiring Item #

LAMPS. BALLASTS, LED FIXTURES AND POWER SUPPLY

D. Ballast, Electronic (4)

0480130 2 lamps (BA.4481676)

0480131 3 lamps (BA.4481654)

0480132 4 lamps (BA.4481677)

E. Fluorescent Lamp (5)

Replace with like fixtures

F. 0501213 Power Supply (EP.4481861) (6)

G. LED Fixture (7)

Replace with like fixtures

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

Note: Revision A changes ballast (Page 1); adds optional LED lighting (Pages 1, 3, 4, 8); adds capacity and weight (Page 5).

D5XELE and D5XEE

General

Case Length . . . . . . . . . . . . . . . . . . . . . 89 1/2(2273)

Maximum O/S dimension of case

back to front (includes bumper) . . . . . . . .42 1/2(1073)

Back of case to front of splashguard . . . 33 1/2(851)

Distance between edges of external legs

and center leg . . . . . . . . . . . . . . . . . . . 28 3/8 (721)

Distance between front legs

and splashguard . . . . . . . . . . . . . . . . . . 2 3/4 (70)

Electrical Service

(Electrical Field Wiring connection point)

RH End of case to center of stubup area 68 3/4 (1476)

Back O/S edge of case to center of

stubup area . . . . . . . . . . . . . . . . . . . . . . . . 24 (612)

Length of

electrical wireway . . . . . . . . . . . . . . . . 26 1/2 (373)

Waste Outlet

Back O/S of case to center of

waste outlet . . . . . . . . . . . . . . . . . . . . 31 5/8 (803)

RH End of case to center of

LH waste outlet . . . . . . . . . . . . . . . . . 73 1/2 (1869)

RH End of case to center of

RH waste outlet . . . . . . . . . . . . . . . . . . . . 16 (406)

Schedule 40 PVC drip pipe . . . . . . . . . . . 1 1/4 (32)

Refrigeration Outlet

Back of case to center of

refrigeration outlet . . . . . . . . . . . . . . . 31 5/8 (803)

LH end of case to center of

refrigeration outlet . . . . . . . . . . . . . . . 71 1/2 (1816)

2 of 9 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. D5XELE / D5XEE Technical Data Sheet

28 3/8

(721)

(406)

28 3/8

(721)

11 7/8

(302)

11 7/8

(302)

89 1/2 (2273)

3(76)

42 1/4

(1073)

33 1/2

(851)

26 1/4

(667)

31 5/8

(803)

4 3/4 (120)

(406)

20 3/4

(527)

18 1/2

(470)

Splashguard

NOTE: Case-to-Case

Electrical Connections

are made IN FRONT OF

SPLASHGUARD.

Electrical

Stub Up Area

6 x 6

(152x152)

Waste Outlet

FRONT

Electrical

Field

Connection

(612)

Waste Outlet

Refrigeration

Outlet

26 1/2

(373)

3(76) 3(76)

Wireway

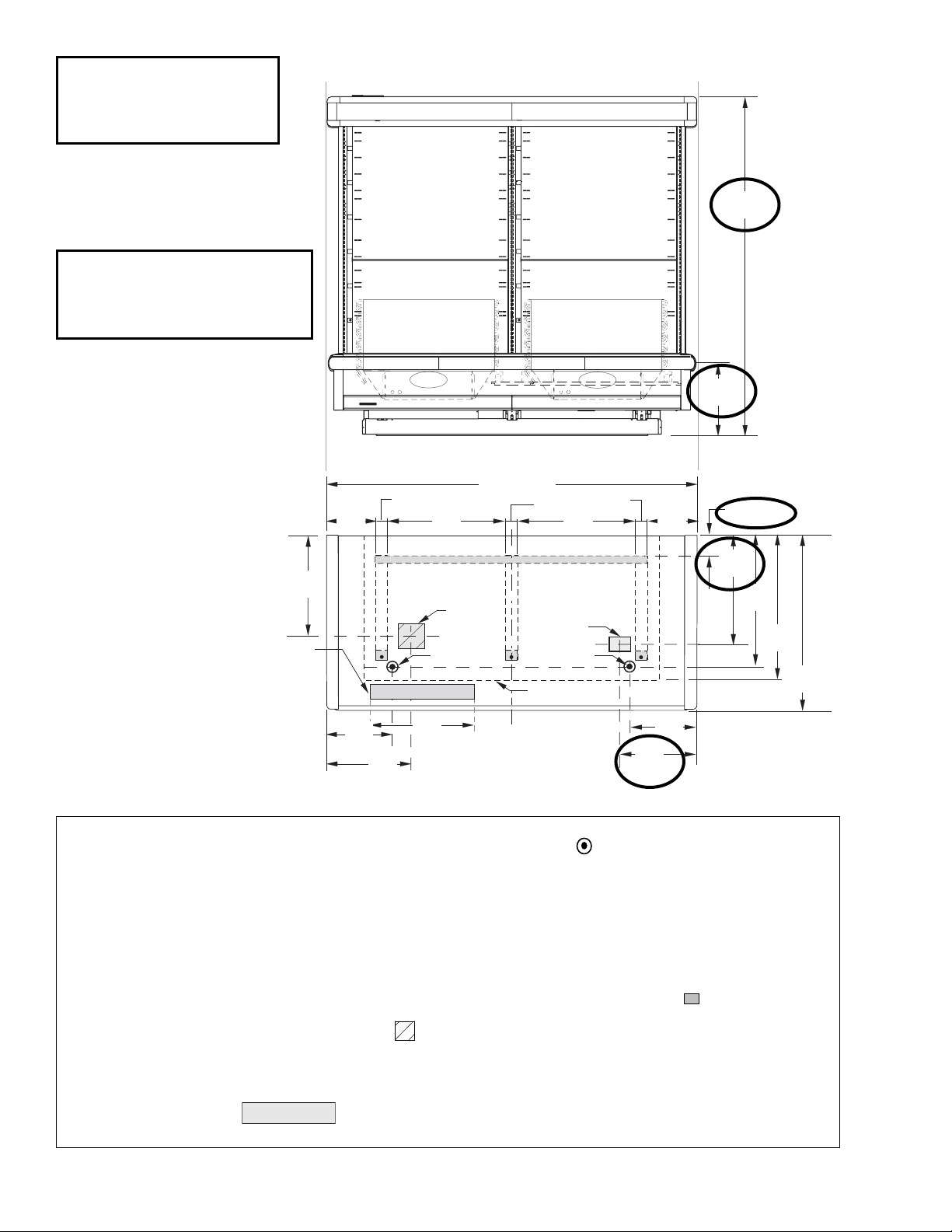

Front View

17 1/4

(438)

81 3/4

(2077)

Dimensions shown as in. and (mm).

Engineering

Plan Views

Multi-deck Dairy &

Delicatessen

End Case

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/4

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 7/8

Wireway

REFRIGERATION DATA

Note: This data is based on store temperature and

humidity that does not exceed 75°F and 55% R.H.

D5XELE D5XEE

Discharge Air (°F) 32 32

Evaporator (°F) 24 24

Unit Sizing (°F) 22 22

Btu/hr/case — Unlit Shelves

D5XELE‡‡ Parallel Conventional

UNLIT 10,700 11,400

‡‡ Add 10 Btu/hr/ft per shelf row for LED fixtures.

Add 20 Btu/hr/ft per shelf row for fluorescent lamps.

Btu/hr/case — Unlit Shelves

D5XEE‡‡ Parallel Conventional

UNLIT 10,170 10,830

‡‡ Add 10 Btu/hr/ft per shelf row for LED fixtures.

Add 20 Btu/hr/ft per shelf row for fluorescent lamps.

DEFROST DATA

D5XELE D5XEE

Frequency (hr) 66

Defrost Water (lb/ft/day) 10.5 10.5

(± 15% based on case configuration and

product loading).

OFFTIME D5XELE D5XEE

Temp Term (Deg. F) 48 48

Failsafe (minutes) 35 35

GAS OR ELECTRIC Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F — open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

D5XELE D5XEE

CI/CO (Temp Deg. F)*17/ 7 17/ 7

Indoor Unit Only, Pressure Defrost

Termination (Temp °F)*

Not Recommended

*Use a Temperature Pressure Chart to

determine PSIG conversions.

Estimated Charge (lb)**

D5XELE 2.4

D5XEE 2.4

**This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

3 of 9

P/N 0481484_A HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

31 5/8 (804)

4 3/4 (120)

30 1/4 (768)

42 (1064)

33 1/2 (851)

30 1/4

(768)

(1549)

(1064)

54 7/8

(1393)

FAN

D5XELE

17 1/4

(438)

81 3/4

(2077)

7 1/4 (183)

19 5/8

(499) 3 5/8

(92)

26 1/4 (665)

Refrigeration

Outlet

4 7/8

(123)

Electrical

Case to Case

Connections

17 1/8

(436)

Impact

Excel

D5XELE / D5XEE

Dairy & Delicatessen

Dimensions shown as in. and (mm).

End Case, Multi-deck, 5 Display Levels

D5XEE

21 1/4

(540)

23 5/8

(600)

50 7/8

(1292)

NSF Certification

This merchandiser model is manufactured to meet ANSI/NSF

(National Sanitation Foundation) Standard #7 requirements for

construction, materials & cleanability.

4 of 9 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. D5XELE / D5XEE Technical Data Sheet

Impact

Excel

D5XELE / D5XEE

Dairy & Delicatessen

Electrical Data

D5XELE D5XEE

Number of Fans—12W 2 2

Amperes Watts

D5XELE D5XEE D5XELE D5XEE

Evaporator Fan

120V 60Hz Standard 1.30 1.30 100 100

120V 50Hz Standard 1.50 1.50 114 114

230V 60Hz Export 0.66 0.66 100 100

230V 50Hz Export 0.76 0.76 114 114

120V 60Hz Energy Efficient 0.60 0.60 36 36

230V 60Hz Energy Efficient 0.30 0.30 36 36

Minimum Circuit Ampacity

120V 60Hz Standard 1.50 1.50

120V 50Hz Standard 1.70 1.70

230V 60Hz Export 0.86 0.86

230V 50Hz Export 0.96 0.96

120V 60Hz Energy Efficient 0.80 0.80

230V 60Hz Energy Efficient 0.50 0.50

Maximum Over Current Protection 120V 20 20

Maximum Over Current Protection 230V 15 15

Standard Lighting (T-8 fluorescent)

1 Row Canopy 0.51 0.77 59 59

Optional Lighting (T-8 fluorescent)

Additional 1 Row Canopy 0.51 0.51 59 59

1 Row Rail Light 0.51 0.51 59 59

Optional Shelf Lighting (T-8 fluorescent)

1 Row of Shelves 0.51 0.51 59 59

2 Rows of Shelves 1.02 1.02 118 118

3 Rows of Shelves 1.53 1.53 177 177

4 Rows of Shelves 2.04 2.04 236 236

5 Rows of Shelves 2.55 2.55 295 295

Optional Always*Bright LED Lighting

1 Row of Shelves 0.15 0.26 18 31

2 Rows of Shelves 0.26 0.47 31 56

3 Rows of Shelves 0.38 0.74 45 89

4 Rows of Shelves 0.47 0.93 56 112

5 Rows of Shelves 0.57 1.13 68 136

120V Lighting Circuit Total = Standard Lighting + Total Optional Lighting + Optional Shelf Lighting

230V Lighting Circuit Total = Multiply 120V Lighting Circuit Total by 0.52

ESTIMATED SHIPPING WEIGHT 5

Case Solid End

4 ft 6 ft 8 ft 12 ft (each)

lb (kg) 800 (363) 1000 (454) 1200 (544) 1400 (635) 100 (45)

5Actual weights will vary according to optional kits included.

5 of 9P/N 0481484_A HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Impact

Excel

D5XELE / D5XEE

Dairy & Delicatessen

Product Data

ARI Refrigerated Volume 1 (Cu Ft/Ft) 11.71 ft3/ft (1.09 m3/m)

Recommended Usable Cube 2 (Cu Ft/Ft) 7.42 ft3 /ft (0.69 m3 /m)

ARI Total Display Area 3 (Sq Ft/Ft) 4.86 ft2/ft (1.48 m2 /m)

Shelf Area 4(Sq Ft/Ft) 7.81 ft2/ft (2.38 m2 /m)

1Computed using ARI 1200 standard methodology: Refrigerated Volume, ft3[m3]/Unit of Length, ft [m]

2ARI Refrigerated Volume less shelving and other unusable space: Refrigerated Volume/Unit of Length, ft3/ft [m3/m]

3Computed using ARI 1200 standard methodology: Total Display Area, ft2[m2]/Unit of Length, ft [m]

4Shelf surface area is composed of bottom deck plus standard shelf complement, as shown in the Hussmann Product

Reference Guide. The standard shelf complement for this model is (4) rows of 16-inch shelves.eparately from fans.

Optional

Two Row

Canopy

Connector

BL BL

Orange or Tan Band

Standard Lighting 1 Row Canopy

Optional Lighting 2 Row Canopy

455

Connector

Optional Lighting 1 Row Rail

Defrost

Termination

Thermostat Refrigeration

Thermostat

Dark Blue To

Condensing

Unit

}

Light Blue

2 Fans

BROWN BAND

120V

POWER

Fans 1

BROWN BAND

120V

NEUTRAL

Fan Wiring

Offtime Defrost

Light Circuits

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND = Case GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

6 of 9 D5XELE / D5XEE Technical Data Sheet

7 of 9P/N 0481484_A HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Optional Shelf Harness and Light Circuits for

Five Rows of Shelves in End Case

Connector

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND = Case GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

Optional Shelf Lighting

Fluorescent Fixtures

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

8 of 9 D5XELE / D5XEE Technical Data Sheet

4 ft case

6 ft or 8 ft case

12 ft case

BL 7

RBL

Connector

BL 7

RBL

(TYP)

Shelf Light

Plug & Receptacle

R = Red G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

Optional Shelf Harness and LED Light Circuits for

Two Rows of Shelves

Optional Shelf Lighting

LED Fixtures

9 of 9P/N 0481484_A HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Optional Shelf Lighting

LED Fixtures

BL 7

RBL

4 ft case

6 ft or 8 ft case

12 ft case

(TYP)

Shelf Light

Plug & Receptacle

Connector

BL 7

RBL

BL 7

RBL

R = Red G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

Connector

Optional Shelf Harness and LED Light Circuits for

3, 4, 5, 6 & 7 Rows of Shelves

Altri manuali per D5XEE

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Hussmann Merchandiser

Hussmann

Hussmann NEBCH Manuale utente

Hussmann

Hussmann Impact Excel M5X-GEP Manuale di istruzioni

Hussmann

Hussmann SMBV Manuale utente

Hussmann

Hussmann RGD Istruzioni operative

Hussmann

Hussmann impact Excel C2X-XLEP Manuale di istruzioni

Hussmann

Hussmann EcoVision II Plus Door Upgrade Supplemento

Hussmann

Hussmann ARL Manuale utente

Hussmann

Hussmann D5X-LE Manuale di istruzioni

Hussmann

Hussmann IMPACT Excel C2-X Manuale utente

Hussmann

Hussmann DMA Manuale utente

Hussmann

Hussmann FHM Manuale utente

Hussmann

Hussmann RCA Manuale utente

Hussmann

Hussmann D5X-EP Manuale di istruzioni

Hussmann

Hussmann FWEG Manuale di istruzioni

Hussmann

Hussmann MicroSC ISMGG2DA-A Manuale utente

Hussmann

Hussmann IMPACT D5LR Manuale utente

Hussmann

Hussmann Impact Excel C2X-LGEP Manuale di istruzioni

Hussmann

Hussmann Impact Excel C2X-LGEP Manuale di istruzioni

Hussmann

Hussmann IMPACT D5H Manuale utente

Hussmann

Hussmann IMPACT Excel D5XLRE Manuale di istruzioni

Hussmann

Hussmann RI4-E Manuale di istruzioni

Hussmann

Hussmann NEGDF Manuale utente

Hussmann

Hussmann Q1-DC Wedge Manuale di istruzioni

Hussmann

Hussmann Specialty Products CR3HTO-HTB Manuale di istruzioni

Manuali Merchandiser popolari di altre marche

FRIGOGLASS

FRIGOGLASS Flex 20 HC Manuale utente

EPTA

EPTA COSTAN RHINO MULTI Manuale utente

CASCO

CASCO Nano Cube Manuale utente

True

True GDIM-26 Manuale utente

Structural Concepts

Structural Concepts Oasis Mobile Series Istruzioni per l'installazione

Haussmann

Haussmann RL Manuale utente

Howard McCray

Howard McCray R-CDS32E-4 Manuale utente

EPTA

EPTA iarp Cool Emotions Delight Lite Manuale utente

VALERA

VALERA BC 85 Manuale utente

HL Display

HL Display 3eBin Manuale utente

Dixie Narco

Dixie Narco DNCB 501E Manuale utente

APW Wyott

APW Wyott Racer DMXD-30H Manuale utente

Hoshizaki

Hoshizaki KD-90C Manuale utente

Summit

Summit SCR1006 Manuale utente

Delfield

Delfield Shelleyspeed SPM-28E Manuale utente

EPTA

EPTA iarp Cool Emotions GLEE 40 Manuale utente

Kysor/Warren

Kysor/Warren GranBering KW Guida

Crane

Crane BevMAX Refresh 6 Media Manuale utente
