Hussmann RI3-N Manuale di istruzioni

Serial Plate

P/N 0503950_A

RI3N

Technical Data Sheet

P/N 0503950_A

NSF®Certified

March 2008

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

8 Ft, 10 Ft, 12 Ft,14 Ft & 16 Ft

A. 12W Standard Fan Assembly (1)

0047000 Fan Motor, Evaporator

(MO.4410103)

0407532 Fan Blade (FB.4780619)

embossing toward motor

12W Energy Efficient Fan Assembly (1)

0477655 Fan Motor, Evaporator

(MO.4410546)

0407532 Fan Blade (FB.4780619)

B. Optional Adjustable Refrigeration Thermostat (2)

0448347 (CT.4481631)

Item Part # Description Wiring Item #

HEATERS

C. Anti-Sweat Heater (3)

0487118 8 & 10 ft (HE.4850668)

0487119 12 ft (HE.4850834)

0487120 14 ft (HE.4850835)

0487121 16 ft (HE.4850836)

LAMPS AND BALLASTS

D. Ballast, Electronic (4)

0355398 (BA.4480118)

0355716 (BA.0355716)

0447740 (BA.4481278)

0459491 (BA.4481566)

E. Fluorescent Lamp (5)

Replace with like fixtures

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

2 of 6 RI3N Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

RI3N Island

Electrical Service

Drains

Refrigeration

& Coil Stubout

(686)

(178)

(1245)

32 1

(826)

11 1

(292)

(241) 22

(559)

(1829)

31 1

(794)

20 3

(518)

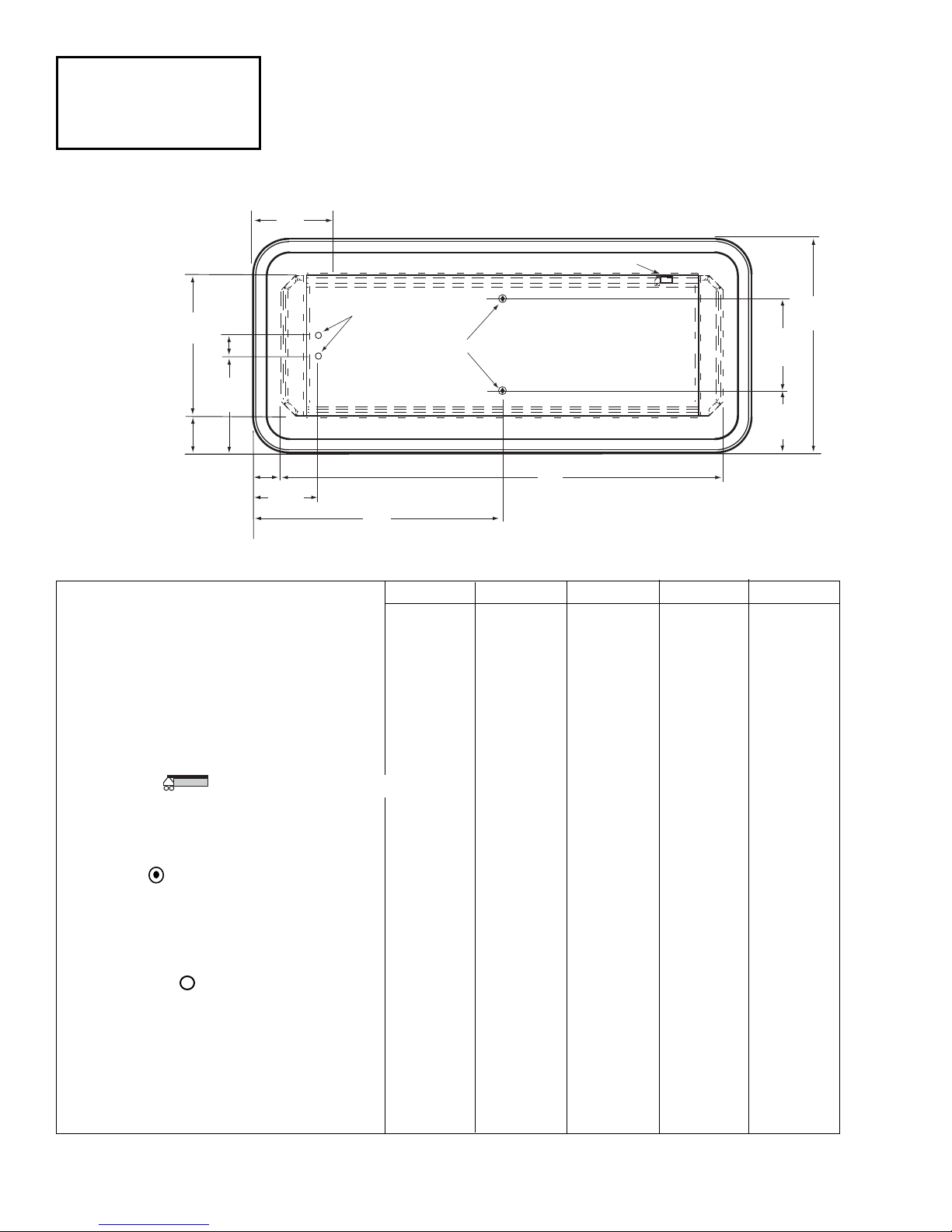

Engineering

Plan Views

06-2003

Front

8 ft 10 ft 12 ft 14 ft 16 ft

General

(A) Base Length 77 (1956) 101 7/8 (2588) 125 7/8 (3198) 149 1/2 (3798) 173 (4396)

Overall Case Length 96 (2438) 120 (3048) 144 (3658) 168 (4267) 192 (4876)

Maximum O/S dimension of case back to front

(includes bumper) 60 (1524) 60 (1524) 60 (1524) 60 (1524) 60 (1524)

Front of splashguard to O/S edge of front base rail 1 5/8 (41) 1 5/8 (41) 1 5/8 (41) 1 5/8 (41) 1 5/8 (41)

Front of case to O/S edge of front base rail 13 1/8 (333) 13 1/8 (333) 13 1/8 (333) 13 1/8 (333) 13 1/8 (333)

Back of case to O/S edge of front base rail 58 7/8 (1495) 58 7/8 (1495) 58 7/8 (1495) 58 7/8 (1495) 58 7/8 (1495)

Width of base rail 1 7/8 (48) 1 7/8 (48) 1 7/8 (48) 1 7/8 (48) 1 7/8 (48)

Electrical Service (Electrical Field Wiring connection point)

Center of Electrical service to O/S edge of front base rail 46 1/2 (1181) 46 1/2 (1181) 46 1/2 (1181) 46 1/2 (1181) 46 1/2 (1181)

Right end of case to center of knockout 27 (686) 27 (686) 27 (686) 27 (686) 27 (686)

Left end of case to center of knockout 69 (1753) 93 (2362) 117 (2972) 141 (3581) 165 (4191)

Waste Outlets

(B) LH End of case to the center of waste outlet 48 (1219) 78 (1981) 102 (2591) 84 (2134) 96 (2439)

Center of front waste outlet to outside of front base rail 8 (203) 8 (203) 8 (203) 8 (203) 8 (203)

Center of back waste outlet to outside of front base rail 39 1/4 (997) 39 1/4 (997) 39 1/4 (997) 39 1/4 (997) 39 1/4 (997)

Schedule 40 PVC drip pipe 1 1/4 (32) 1 1/4 (32) 1 1/4 (32) 1 1/4 (32) 1 1/4 (32)

Refrigeration Outlet

LH end of case to center of refrigeration outlet 22 (559) 22 (559) 22 (559) 22 (559) 22 (559)

RH end of case to center of refrigeration outlet 74 (1880) 98 (2489) 122 (3098) 146 (3708) 170 (4318)

Serial Plate

End

REFRIGERATION DATA

Note: This data is based on store temperature and

humidity that does not exceed 75°F and 55% R.H.

RI3N

Discharge Air (°F) 27

Evaporator (°F) 20

Unit Sizing (°F) 18

Btu/hr/ft

LIT &U

NLIT SHELVES RI3N

Parallel 1820

Conventional 1985

DEFROST DATA

RI3N

Frequency (hr) 4

Defrost Water (lb/ft/day) 12

(± 15% based on case configuration and

product loading).

OFFTIME RI3N

Time Terminated (minutes) 20

ELECTRIC OR GAS Not Recommended

CONVENTIONAL CONTROLS

Low Pressure Backup Control

CI/CO*RI3N

14°F / 4°F

Indoor Unit Only, Pressure Defrost

Termination* 48°F

*Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/2

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 5/8

Estimated Charge (lb)**

8 ft 1.7

10 ft 2.1

12 ft 2.5

14 ft 3.1

16 ft 3.7

**This is an average for all refrigerant types.

Actual refrigerant charge may vary

by approximately half a pound.

3 of 6P/N 0503950_A HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

18 1/8

(460)

51 3/4

(1315)

97/8

(251)

6(152)

14 1/8

(359)

51/2

(140)

(1245)

(1524)

51/2

(140)

10 7/8

(276)

3 1/4 (83)

57/8

(149)

3 (76)

27 (686)

(203)

(305)

(406)

Dimensions shown as in. and (mm).

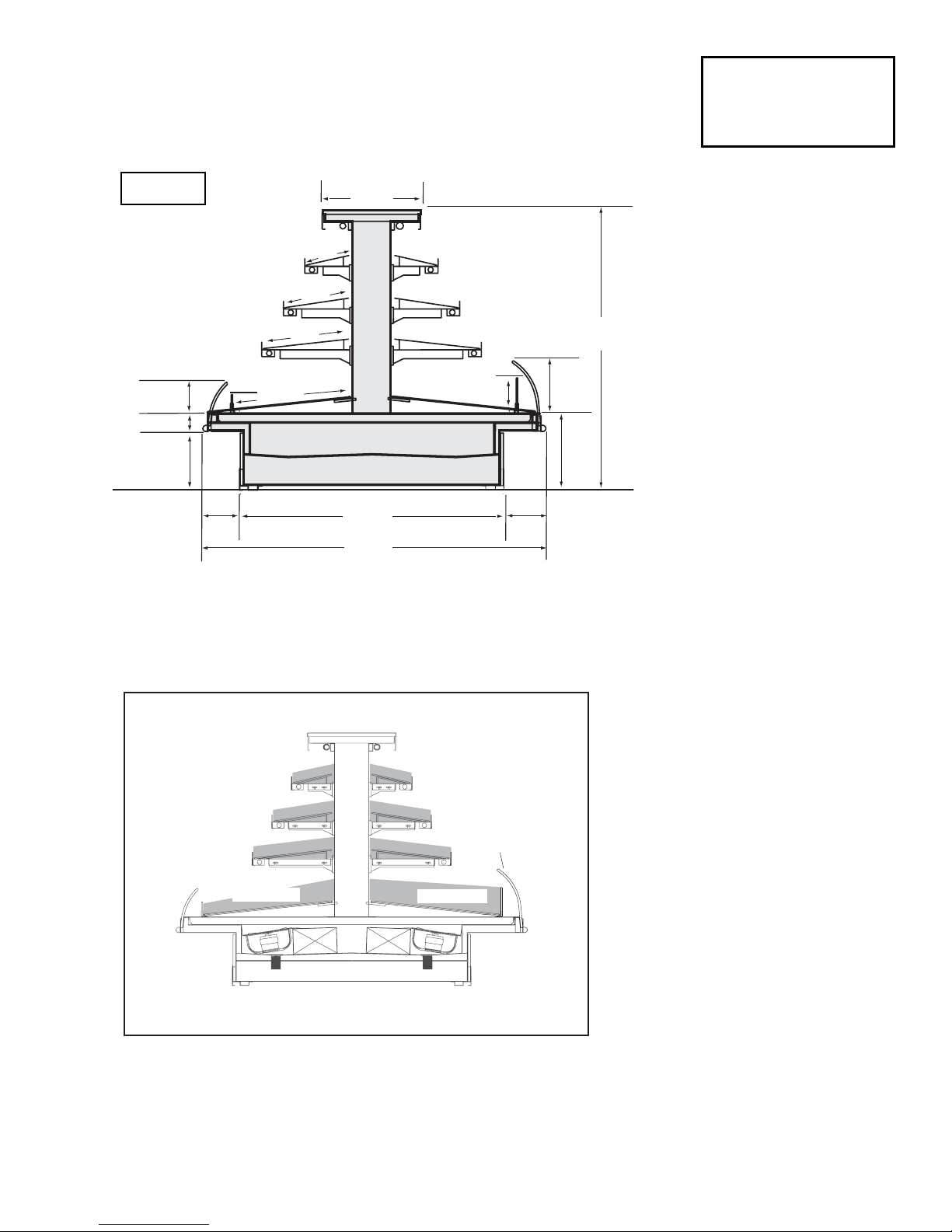

Multi-deck Island, 4 Display Level, Narrow Footprint

RI3N

Multi-deck Island

Load Limit

RI3N

Optional High Plex

with 6 in. (152 mm)

Product Depth

Optional Shelves

Load Limit Profile

Air flow between the shelves, from the CAD to the return, must be maintained at all times

for optimum operating efficiency and to prolong product shelf life. At no time should

merchandisers be stocked beyond the load limits indicated.

Cases may not function properly if they are loaded above load limits.

NSF Certification

This merchandiser model is manufactured to meet ANSI/NSF

(National Sanitation Foundation) Standard #7 requirements for con-

struction, materials & cleanability.

Electrical Data

8 ft 10 ft 12 ft 14 ft 16 ft

Number of Fans – 12W 6 8 10 14 16

Amperes Watts

8 ft 10 ft 12 ft 14 ft 16 ft 8 ft 10 ft 12 ft 14 ft 16 ft

Evaporator Fan

120V 60Hz Standard 3.90 5.20 6.50 9.10 10.40 300 400 500 700 800

120V 50Hz Standard 4.50 6.00 7.50 10.50 12.00 342 456 570 798 912

230V 60Hz Export NA NA NA NA NA NA NA NA NA NA

230V 50Hz Export NA NA NA NA NA NA NA NA NA NA

120V 60Hz Energy Efficient 1.80 2.40 3.00 4.20 4.80 108 144 180 252 288

230V 60Hz Energy Efficient NA NA NA NA NA NA NA NA NA NA

Anti-sweat Heaters †

120V 60Hz Standard 0.70 0.70 0.90 1.10 1.30 84 84 108 132 156

230V 50Hz Export 0.37 0.37 0.47 0.57 0.68 84 84 108 132 156

Minimum Circuit Ampacity (MCA) †

120V 60Hz Standard 5.27 6.57 8.20 11.13 12.77

120V 50Hz Standard 5.31 6.81 8.48 11.66 13.33

230V 60Hz Export NA NA NA NA NA

230V 50Hz Export NA NA NA NA NA

120V 60Hz Energy Efficient 2.61 3.21 3.98 5.36 6.13

230V 60Hz Energy Efficient NA NA NA NA NA

Maximum Over Current Protection 120V 20 20 20 20 20

Maximum Over Current Protection 230V 15 15 15 15 15

Standard Lighting

1 Row Canopy 0.53 0.53 0.83 1.07 1.37 64 64 100 128 164

Optional Lighting

1 Row of Ledge 1.67 2.00 2.33 2.67 3.00 200 240 280 320 360

Shelf Lighting

1 Row of Shelves 0.81 0.81 1.11 1.34 1.64 97 97 133 161 197

2 Rows of Shelves 1.62 1.62 2.22 2.68 3.28 194 194 266 322 394

3 Rows of Shelves 2.42 2.42 3.32 4.02 4.92 290 290 398 482 590

120V Lighting Circuit Total = Standard Lighting + Total Optional Lighting + Optional Shelf Lighting

230V Lighting Circuit Total = Multiply 120V Lighting Circuit Total by 0.52does not

4 of 6 RI3N Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

RI3N

Multi-deck Island

Preliminary

5 of 6P/N 0503950_A

Light Blue

Condensing Unit

}

Refrigeration Thermostat

Anti-sweat Heaters

BROWN BAND

Fans

BROWN BAND

120V POWER

BROWN BAND

120V NEUTRAL

8 ft

10 ft

12 ft

14 ft

16 ft

6, 8, 10, 14 & 16 Fans

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

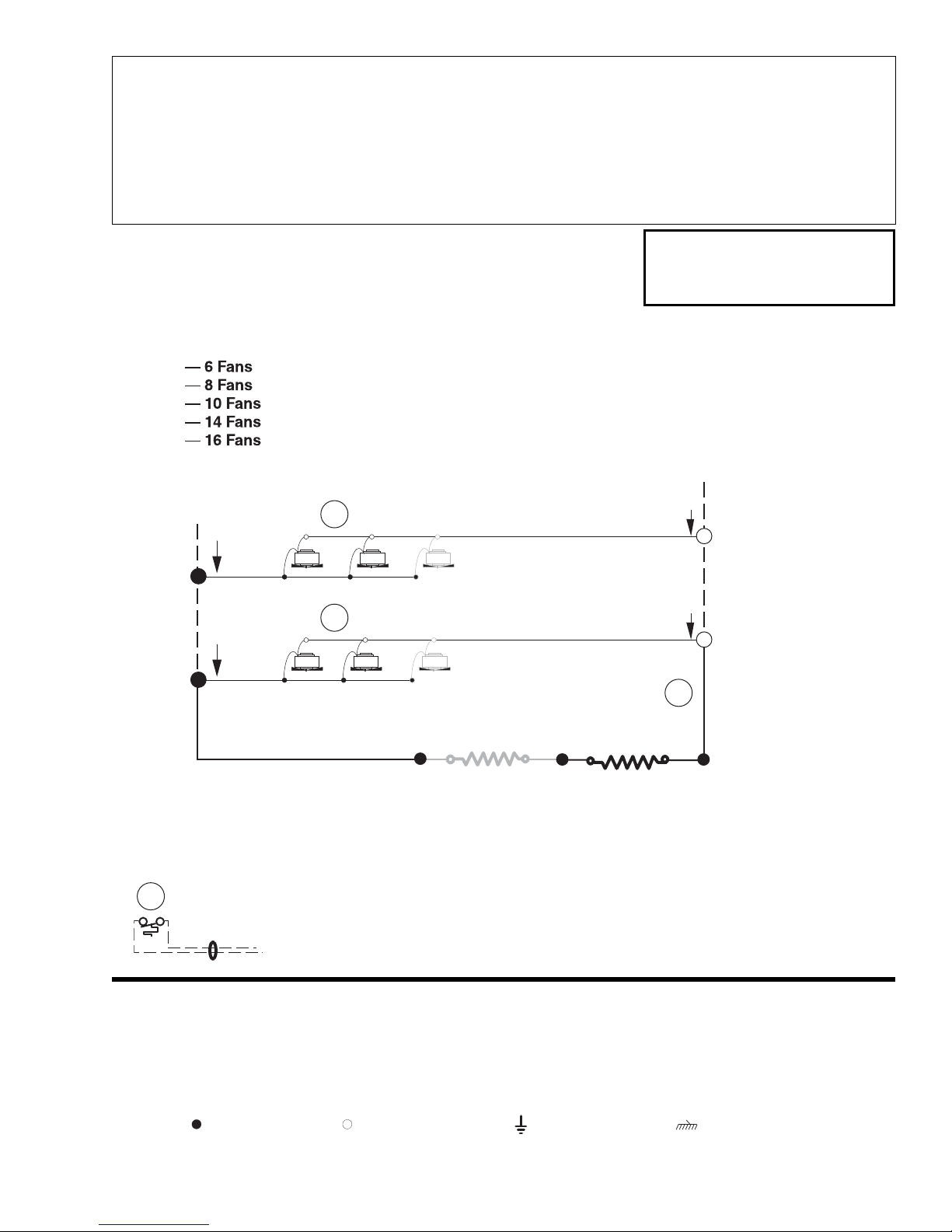

Fan Wiring

Offtime Defrost

ESTIMATED SHIPPING WEIGHT 5

Case Solid End

8 ft 10 ft 12 ft 14 ft 16 ft (each)

lb (kg) 1100 (499) 1300 (590) 1600 (726) 1800 (816) 2100 (953) NA (NA)

5Actual weights will vary according to optional kits included.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

6 of 6 RI3N Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

GGG

120V N

EUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

RANGE

AND

GGG

55 5

Optional Ledge Light Circuit

Typical Shelf Ballast Wiring

Maximum lamps per ballast is four (4).

Different shelf configurations and different

case lengths will have more shelf ballasts.

Lighted Shelf Wiring

Preliminary

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

Light Circuits
