Hussmann IMPACT CW2-EXGE Manuale di istruzioni

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

P/N 0406610B

Merchandisers

Note: Changed items have been underlined.

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. 9W End Compartment Fan Assembly (1)

0441749 Fan Motor, Standard

0377253 Fan Blade

embossing away from motor

B. 0398558 Standard Non-Adjustable (2)

Defrost Thermostat

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

C. 0135966 Ballast, Electronic (3)

1 lamp

D. 0039764 Lamp Starter (4)

E. Fluorescent Lamp (5)

Replace with like fixtures

CW2-EXGE

Technical Data Sheet

P/N 0406610B

NSF®Certified

April 2006

CW2-EXGE

General

Maximum O/S dimension of case back to front (includes bumper) 40 3/4 (1035)

Total width of case 8 1/2 (216)

Width at front of case 28 (711)

O/S edge of front splashguard to O/S edge of front base rail 8 1/2 (216)

Front of case to O/S edge of front base rail 12 3/8 (314)

Back of case to O/S edge of front base rail 28 3/8 (721)

RH edge of case to O/S edge of LH base rail 69 1/2 (1765)

LH edge of case to O/S edge of LH base rail 12 (305)

Rear to front of canopy 10 3/4 (273)

Width of canopy 25 1/2 (648)

Width of base rail 2 1/8 (54)

Access area between front base rail and splashguard 8 1/8 (206)

Electrical Service (Electrical Field Wiring connection point)

Center of Electrical service to O/S edge of front base rail 7 (178)

RH edge of case to center of knockout 46 7/8(1191)

Length of electrical raceway 21 3/8 (543)

Waste Outlet

Front RH edge of case to the center of waste outlet 11 7/8 (301)

Center of waste outlet to outside of front base rail 3 7/8 (98)

Water Seal

Center of case to center of pipe connection 32 (813)

Outside diameter of the drip pipe 1 1/4 (23)

Water seal outlet must clear front skid rail.

CW2-EXGE Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

2 of 6

Front of

Case

Access Area

CW2-EXGE

(711)

11 7/8

(301)

81 1/2

(2070)

69 1/2

(1765)

25 1/2

(648)

(305)

(813)

Waste Outlet

& Water Seal

46 7/8

(1191)

10 3/4

(273) 28 3/8

(721)

40 3/4

(1035)

8 1/2

(216)

3 7/8

(98)

12 3/8

(314)

(178)

28 1/2

(724)

29 1/2

(749)

Wide Island End

05-2003

Engineering

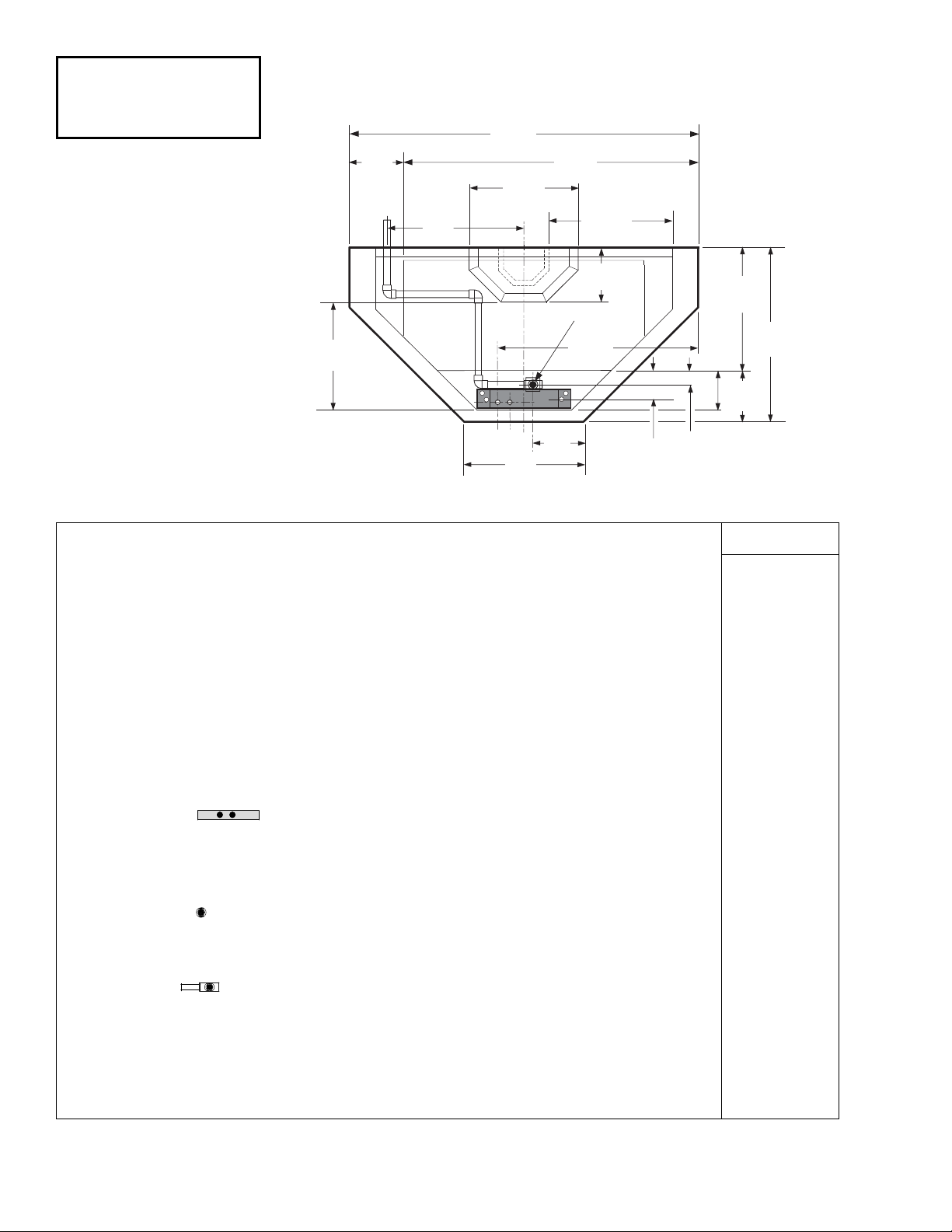

Plan Views Dimensions shown as inches and (mm).

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and

55% R.H.

CW2EXGE

Discharge Air (°F) 28

Evaporator (°F) 21

Unit Sizing (°F) 19

Btu/hr/case* CW2EXGE

Parallel 4800

Conventional 5300\

*For all refrigeration equipment other than

Hussmann, use conventional Btu values.

DEFROST DATA

CW2EXGE

Frequency (hr) 6

Defrost Water (lb/ft/day) 8

(± 15% based on case configuration and

product loading).

OFFTIME CW2EXGE

Temp Term (°F) 48°

Failsafe (minutes) 45

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F — open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

CW2EXGE

CI/CO (Temp °F)** 17°/ 7°

Indoor Unit Only, Pressure Defrost

Termination (Temp °F)** 48°

**Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Merchandiser

Drip Pipe (in.) 1 1/4

Liquid Line (in.) 3/8

Suction Line (in.) 7/8

Estimated Charge (lb)*** CW2EXGE

1.7

***This is an average for all refrigerant

types. Actual refrigerant charge may vary by

approximately half a pound.

Length Added to Lineup by:

Each End/Partition (in.) 1 1/2

3 of 6P/N 0406610B HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

18 in. Shelf

16 in. Shelf

12 in. Shelf

10 3/4

(273)

30 1/8(765)

(813)

6 3/8(162)

FAN

COIL

(1372)

7 (178)

3 7/8(98)

8 1/2(216)

28 3/8

(721)

40 3/4

(1035)

Front

Case

(127)

(660)

5 (127)

(533)

9 (229)

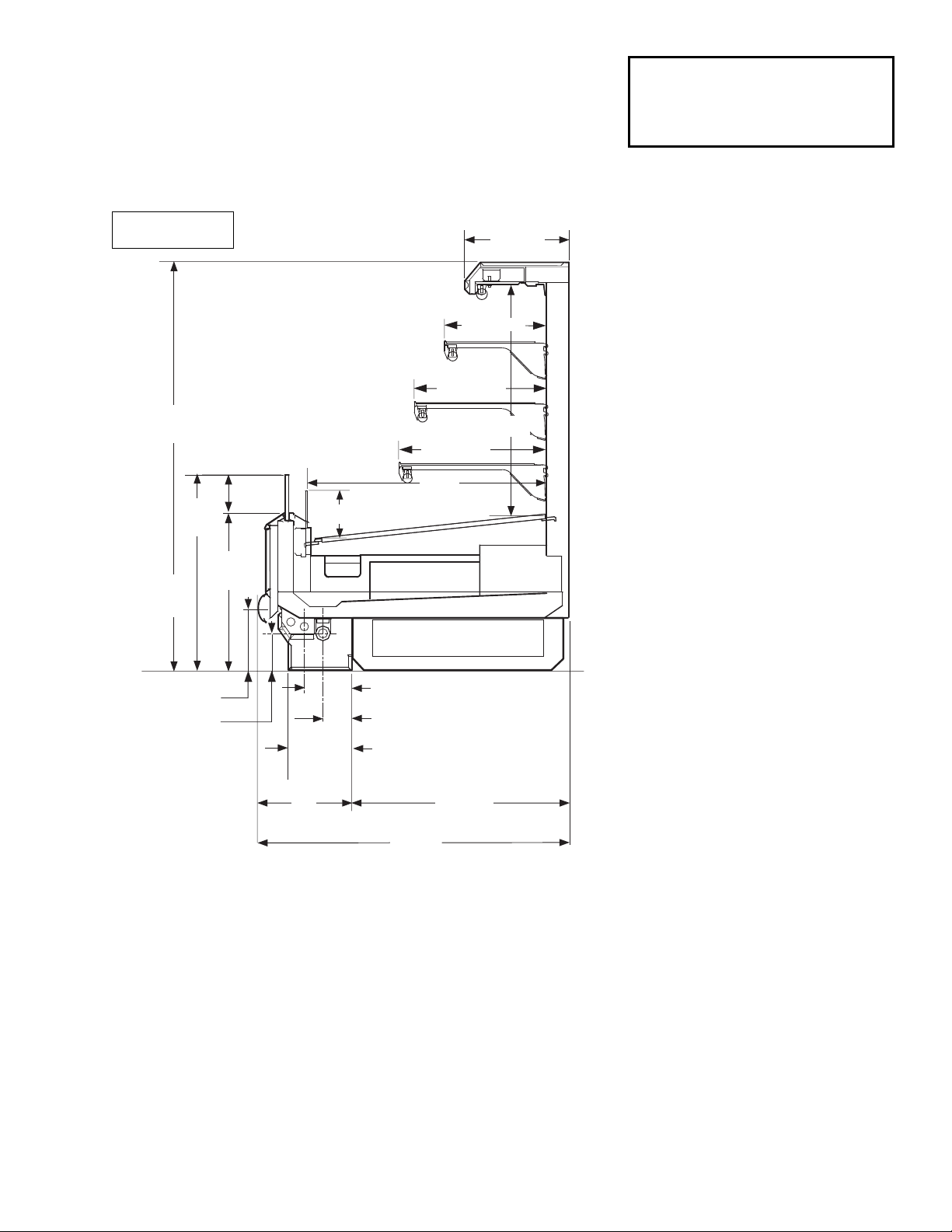

Dimensions shown as inches and (mm).

Wide Island End, 1 Display Level

NSF Certification

These merchandisers are manufactured to meet ANSI /National

Sanitation Foundation (NSF ®) Standard #7 requirements.

Impact CW2EGE

Convertible Island End

CW2EGE

CW2-EXGE Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

4 of 6

Electrical Data

Number of Fans CW2EGE

Refrigeration – 9W 2

Merchandiser Amperes Watts

Fans (Refrigeration)

Standard (120V 60Hz) 0.76 50

Energy Efficient (120V 60Hz) (See note 1 below) (See note 1 below)

Export (230V 50Hz) NA NA

Cycling Anti-sweat Heaters NA NA

Minimum Circuit Ampacity

With Standard Fans (120V 60Hz) 0.96 NA

With Energy Efficient Fans (120V 60Hz) (See note 1 below) NA

With Export Fans (230V 50Hz) NA NA

Maximum Over Current Protection 120V 20

Export (230V 50Hz) NA

Electric Defrost Heaters (208V 1F)NA NA

Standard Lighting

1 Row Canopy 0.80 40

Optional Lighting

2 Rows Canopy (See note 2 below) NA

Optional Shelf Lighting

1 Row of Shelves 0.80 40

2 Rows of Shelves 1.60 80

3 Rows of Shelves 2.40 1.20

Note 1: All CW2 end compartments are equipped with energy efficient fan motors as standard.

Note 2: CW2 end compartments are not available with 2 row canopy lighting due to space constraints.

Impact C2WEXGE

Convertible Island End

5 of 6P/N 0406610B HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

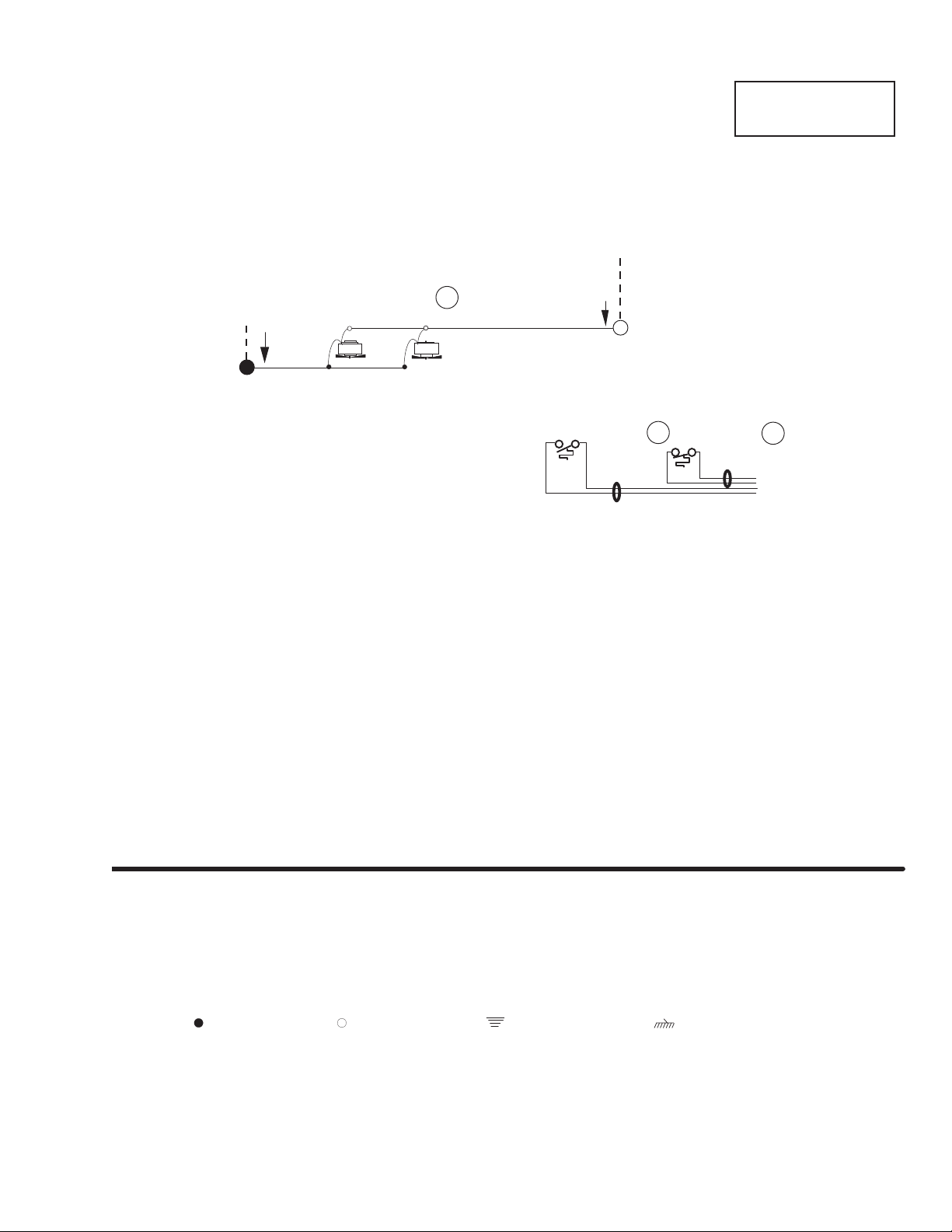

Fan Wiring

Offtime Defrost

= Case GROUND

Defrost

Termination

Thermostat

Refrigeration

Thermostat

Dark Blue To

Condensing

Unit

}

Light Blue

2 Fans 120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

CW2-EXGE Technical Data

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

6 of 6

BALLAST MOUNTING PANEL

BACK SHELF HARNESS

SHELF #3

(54 in. MODELS ONLY)

Ballast

Lamp

Starter

Ballast

BBallast

Ballast

BACK SHELF HARNESS

SHELF #2

BACK SHELF HARNESS

SHELF #1

CANOPY LIGHT HARNESS

Ballast

BALLAST FEED HARNESS

(TO CASE RACEWAY)

120V

–

SHELF LIGHT HARNESS

Lamp

Starter

SHELF LIGHT HARNESS

Lamp

Starter

Switch

Lamp 1

Starter

Lamp

Starter

SHELF LIGHT HARNESS

Lamp

Starter

SHELF LIGHT HARNESS

Lamp

Starter

Lamp 2

CANOPY LIGHT CHANNEL

Light Circuits

(Standard canopy lighting and optional shelf lighting are shown)

CW2EXGE End Compartment

Lighting Schematic

= 120V POWER = 120V NEUTRAL

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

Grayed components in 12 ft models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS
