Hussmann Impact Excel M4X-EP Manuale di istruzioni

P/N 0463877_C

M4X-EP

Technical Data Sheet

P/N 0463877_C

NSF®Certified

March 2008

Item Part # Description Wiring Item #

FAN ASSEMBLIES

A. 7W Standard Fan Assembly (1)

0058698 Fan Motor, Evaporator

(MO.4410102)

0142780 Fan Blade (FB.0142780)

7W Energy Efficient Fan Assembly (1)

0477654 Fan Motor, Evaporator

(MO.4410545)

0142780 Fan Blade (FB.0142780)

6 Ft Only

A. 4W Standard Fan Assembly (1)

0392457 Fan Motor, Evaporator

(MO.4410101)

0382383 Fan Blade (FB.4780617)

4W Energy Efficient Fan Assembly (1)

0477653 Fan Motor, Evaporator

(MO.4410544)

0382383 Fan Blade (FB.4780617)

Item Part # Description Wiring Item #

THERMOSTATS

B. Optional Adjustable Refrigeration Thermostat (2)

LAMPS. BALLASTS, LED FIXTURES AND POWER SUPPLY

C. Ballast, Electronic (3)

0480130 2 lamps (BA.4481676)

0480131 3 lamps (BA.4481654)

0480132 4 lamps (BA.4481677)

D. Fluorescent Lamp (4)

Replace with like fixtures

E. 0501213 Power Supply (EP.4481861) (5)

F. LED Fixture (6)

Replace with like fixtures

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

Note: Revision C changes ballast (Page 1); adds optional LED lighting (Pages 1, 3, 4, 8); adds capacity and weight (Page 5).

2 of 8 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. M4X-EP Technical Data Sheet

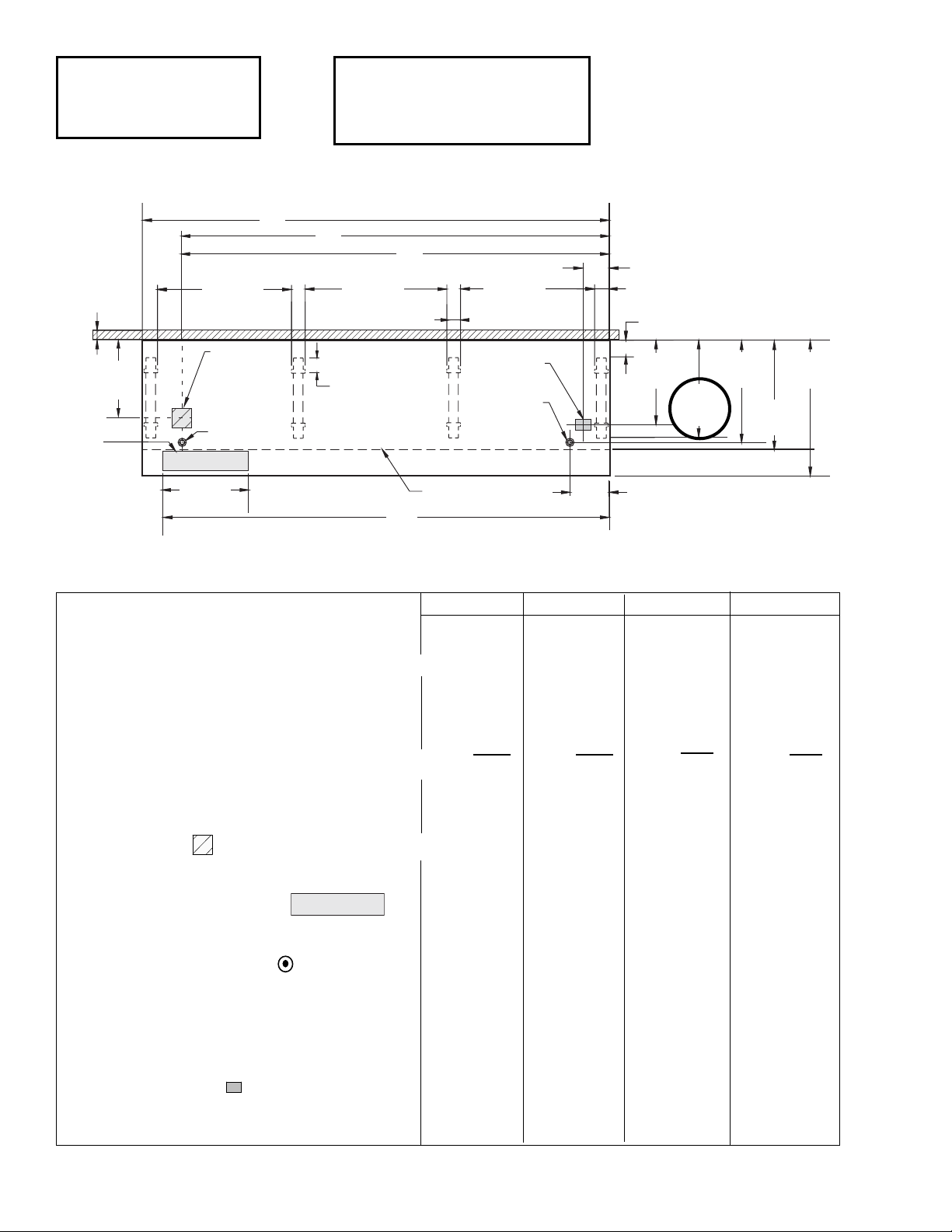

Engineering

Plan Views

Dimensions shown as inches and (mm).

Meat and Produce

10-2004

NOTE: Case-to-Case Electrical Connections

are made IN FRONT OF SPLASHGUARD.

4 3/4 (120)

Splashguard

31 5/8

(804)

(1064)

41 1/2

(1054)

3 In.

(77 mm)

Required

Air Gap

Refrigeration

Outlet

Electrical

Stub Up Area

6 x 6

(152x152) Waste Outlet

Waste Outlet

FRONT

26 1/4

(665)

8(203)

4 1/2 (115)

12 1/8 (307)

41 1/2

(1054)

43 7/8

(1114)

Wireway

4 3/4 (120)

26 1/2

(673)

4 1/4 (108)

(612)

33 1/2

(851)

Electrical

Field

Connection

30 1/4

(768)

M4X

4 ft 6 ft 8 ft 12 ft

General

(A) Case Length (without ends or partitions) 48 3/8(1229) 72 3/8(1838) 96 3/8(2448) 144 1/2(3670)

(Each end and insulated partition adds 1 1/2 in. (38 mm) to case line up.)

Maximum O/S dimension of case back to front

(includes bumper) 42 (1064) 42 (1064) 42 (1064) 42 (1064)

Back of case to front of splashguard 33 1/2 (851) 33 1/2 (851) 33 1/2 (851) 33 1/2 (851)

Back of case to O/S edge of front leg 30 1/4 (768) 30 1/4 (768) 30 1/4 (768) 30 1/4 (768)

Distance between edges of external legs and center legs NA 29 1/2 (750) 41 1/2 (1054) 41 1/2 (1054)

Distance between edges of center legs NA NA NA 43 7/8 (1114)

Distance between front legs and splashguard 2 3/4(70) 2 3/4(70) 2 3/4(70) 2 3/4(70)

Electrical Service (Electrical Field Wiring connection point)

(B) RH End of case to center of stub up area 36 1/4 (921) 60 1/4 (1530) 84 1/4 (2140) 132 3/8 (3363)

Back of case to center of stub up area 24 (612) 24 (612) 24 (612) 24 (612)

Length of electrical wireway 26 1/2 (673) 26 1/2 (673) 26 1/2 (673) 26 1/2 (673)

Waste Outlets (One each end)

(D) RH End of case to the center of LH waste outlet 36 1/4 (921) 60 1/4 (1530) 84 1/4 (2140) 132 3/8 (3363)

RH End of case to the center of RH waste outlet 12 1/8 (307) 12 1/8 (307) 12 1/8 (307) 12 1/8 (307)

Back O/S of case to center of waste outlets 31 5/8 (804) 31 5/8 (804) 31 5/8 (804) 31 5/8 (804)

Schedule 40 PVC drip pipe 1 1/4 (32) 1 1/4 (32) 1 1/4 (32) 1 1/4 (32)

Refrigeration Outlet

Back of case to center of refrigeration outlet 26 1/4 (665) 26 1/4 (665) 26 1/4 (665) 26 1/4 (665)

RH end of case to center of refrigeration outlet 8 (203) 8 (203) 8 (203) 8 (203)

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/4

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 7/8

Wireway

3 of 8P/N 0463877_C HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

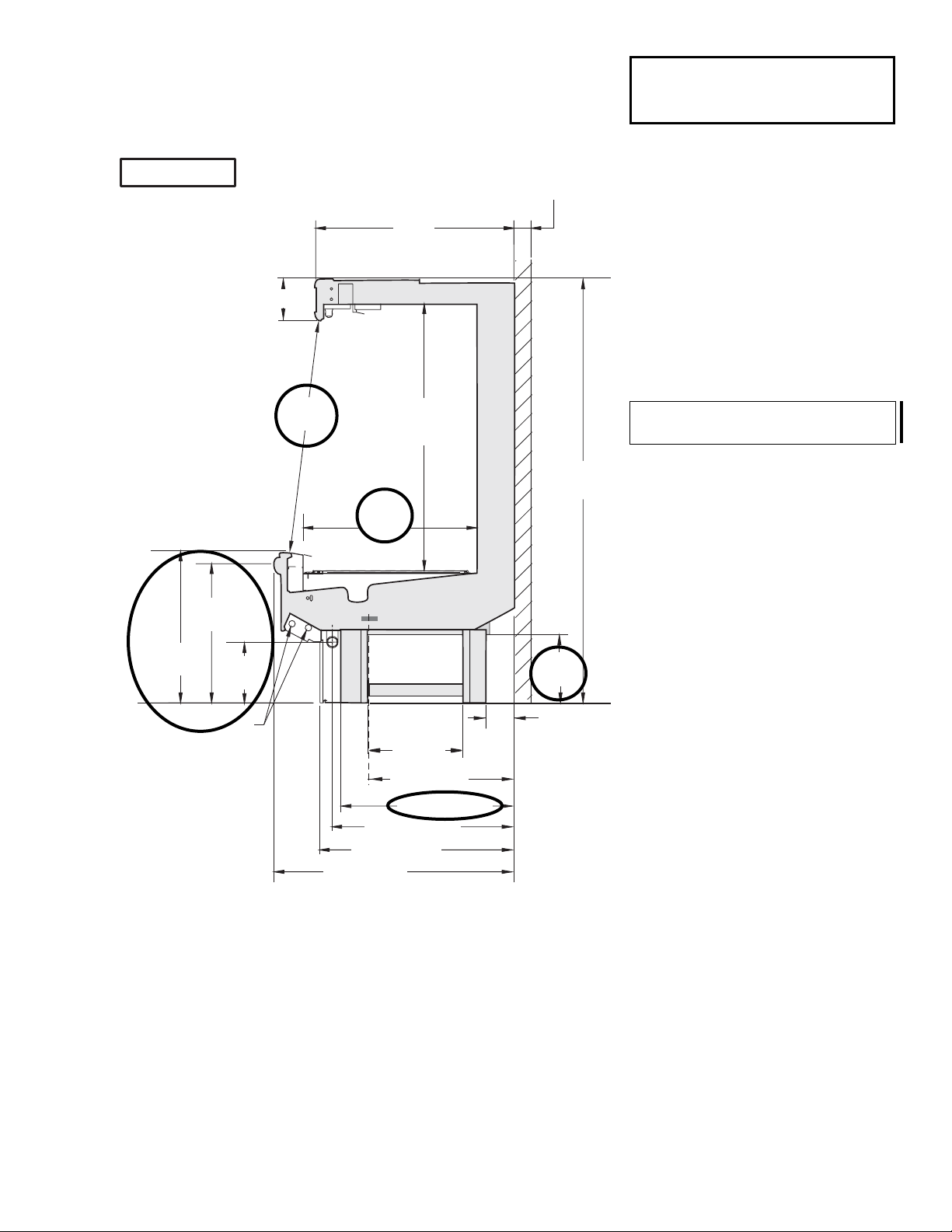

74 3/8

(1890)

31 5/8 (804)

30 1/4 (768)

42 (1064)

33 1/2 (851)

26 1/4 (665)

30 1/4

(768)

46 1/2

(1181)

34 5/8

(878)

40 3/8

(1025)

FAN

24 5/8

(625)

3 In. (77 mm)

Required

Air Gap

7 1/4 (183)

(686) 11

(279)

Refrigeration

Outlet

4 3/4

(120)

Electrical

Case to Case

Connections 17 1/8

(436)

12 1/4

(311)

Impact

Excel

M4X-EP

Meat and Delicatessen

Multi-deck, 4 Display Levels

Dimensions shown as inches and (mm).

REFRIGERATION DATA

Note: This data is based on store temperature and

humidity that does not exceed 75°F and 55% R.H.

M4X-EP UNLIT LIT

Discharge Air °F 31 29

Evaporator °F 28 26

Unit Sizing °F 26 24

Btu/hr/ft — Unlit Shelves

M4X-EP‡‡ Parallel Conventional

UNLIT 1095 1190

‡‡ Add 10 Btu/hr/ft per shelf row for LED fixtures.

Add 20 Btu/hr/ft per shelf row for fluorescent lamps.

DEFROST DATA

Frequency Hrs 6

Defrost Water (lb/ft/day) 8

(± 15% based on case configuration and

product loading).

OFFTIME M4X-EP

Time (minutes) 30

ELECTRIC OR GAS Not Recommended

CONVENTIONAL CONTROLS

Low Pressure Backup Control

CI/CO*M4X-EP

19°F / 9°F

Indoor Unit Only, Pressure Defrost

Termination* 48°F

*Use a Temperature Pressure Chart to

determine PSIG conversions.

Estimated Charge (lb)** M4X-EP

4 ft 1.6

6 ft 2.2

8 ft 3.1

12 ft 4.5

**This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

M4X-EP

NSF Certification

This merchandiser model is manufactured to meet ANSI/NSF

(National Sanitation Foundation) Standard #7 requirements for

construction, materials & cleanability.

4 of 8 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. M4X-EP Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Impact

Excel

M4X-EP

Meat and Delicatessen

Electrical Data

4 ft 6 ft 8 ft 12 ft

Number of Fans—7W 2 — 4 6

Number of Fans—4W — 4 — —

Amperes Watts

4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft

Evaporator Fan

120V 60Hz Standard 1.00 1.24 2.00 3.00 78 96 156 234

120V 50Hz Standard 1.10 1.52 2.20 3.30 84 108 168 252

230V 60Hz Export 0.50 0.60 1.00 1.50 78 96 156 234

230V 50Hz Export 0.56 0.72 1.12 1.68 84 108 168 252

120V 60Hz Energy Efficient 0.38 0.48 0.76 1.14 28 32 56 84

230V 60Hz Energy Efficient 0.20 0.24 0.40 0.60 28 32 56 84

Minimum Circuit Ampacity

120V 60Hz Standard 1.20 1.44 2.20 3.20

120V 50Hz Standard 1.30 1.72 2.40 3.50

230V 60Hz Export 0.70 0.80 1.20 1.70

230V 50Hz Export 0.76 0.92 1.32 1.88

120V 60Hz Energy Efficient 0.58 0.68 0.96 1.34

230V 60Hz Energy Efficient 0.40 0.44 0.60 0.80

Maximum Over Current Protection 120V 20 20 20 20

Maximum Over Current Protection 230V 15 15 15 15

Standard Lighting (T-8 fluorescent)

1 Row Canopy 0.26 0.51 0.51 0.77 30 59 59 85

Optional Lighting (T-8 fluorescent)

Additional 1 Row Canopy 0.26 0.51 0.51 0.77 30 59 59 85

Additional 2 Row Canopy 0.51 1.02 1.02 1.54 59 118 118 170

Additional 3 Row Canopy 0.77 1.53 1.53 2.31 89 177 177 255

1 Row Rail Light 0.26 0.51 0.51 0.77 30 59 59 85

Optional Shelf Lighting (T-8 fluorescent)

3 Rows of Shelves 0.77 1.53 1.53 2.31 59 177 177 255

4 Rows of Shelves 1.02 2.04 2.04 3.08 118 236 236 340

Optional Always*Bright LED Lighting

3 Row of Shelves 0.38 0.53 0.74 1.11 45 63 89 133

4 Rows of Shelves 0.47 0.68 0.93 1.40 56 82 112 168

120V Lighting Circuit Total = Standard Lighting + Total Optional Lighting + Optional Shelf Lighting

230V Lighting Circuit Total = Multiply 120V Lighting Circuit Total by 0.52

5 of 8P/N 0463877_C HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Impact

Excel

M4X-EP

Meat and Delicatessen

ESTIMATED SHIPPING WEIGHT 5

Case Solid End

4 ft 6 ft 8 ft 12 ft (each)

lb (kg) 700 (318) 900 (408) 1000 (454) 1400 (635) 100 (45)

5Actual weights will vary according to optional kits included.

Product Data

ARI Refrigerated Volume 1 (Cu Ft/Ft) 7.63 ft3/ft (0.71 m3/m)

Recommended Usable Cube 2 (Cu Ft/Ft) 6.08 ft3 /ft (0.56 m3 /m)

ARI Total Display Area 3 (Sq Ft/Ft) 3.80 ft2/ft (1.16 m2 /m)

Shelf Area 4(Sq Ft/Ft) 6.71 ft2/ft (2.05 m2 /m)

1Computed using ARI 1200 standard methodology: Refrigerated Volume, ft3[m3]/Unit of Length, ft [m]

2ARI Refrigerated Volume less shelving and other unusable space: Refrigerated Volume/Unit of Length, ft3/ft [m3/m]

3Computed using ARI 1200 standard methodology: Total Display Area, ft2[m2]/Unit of Length, ft [m]

4Shelf surface area is composed of bottom deck plus standard shelf complement, as shown in the Hussmann

Product Reference Guide. The standard shelf complement for this model is (2) rows of 16-inch shelves and (1) row of

18-inch shelf.eparately from fans.

6 of 8 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. M4X-EP Technical Data Sheet

Optional

Two Row

Canopy

Optional

Three Row

Canopy

Connector

BL BL

Orange or Tan Band

Standard Lighting 1 Row Canopy

Optional Lighting 2 Row Canopy

3 Row Canopy

344

Connector

Optional Lighting 1 Row Rail

4 ft 6 ft or 8 ft 12 ft

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

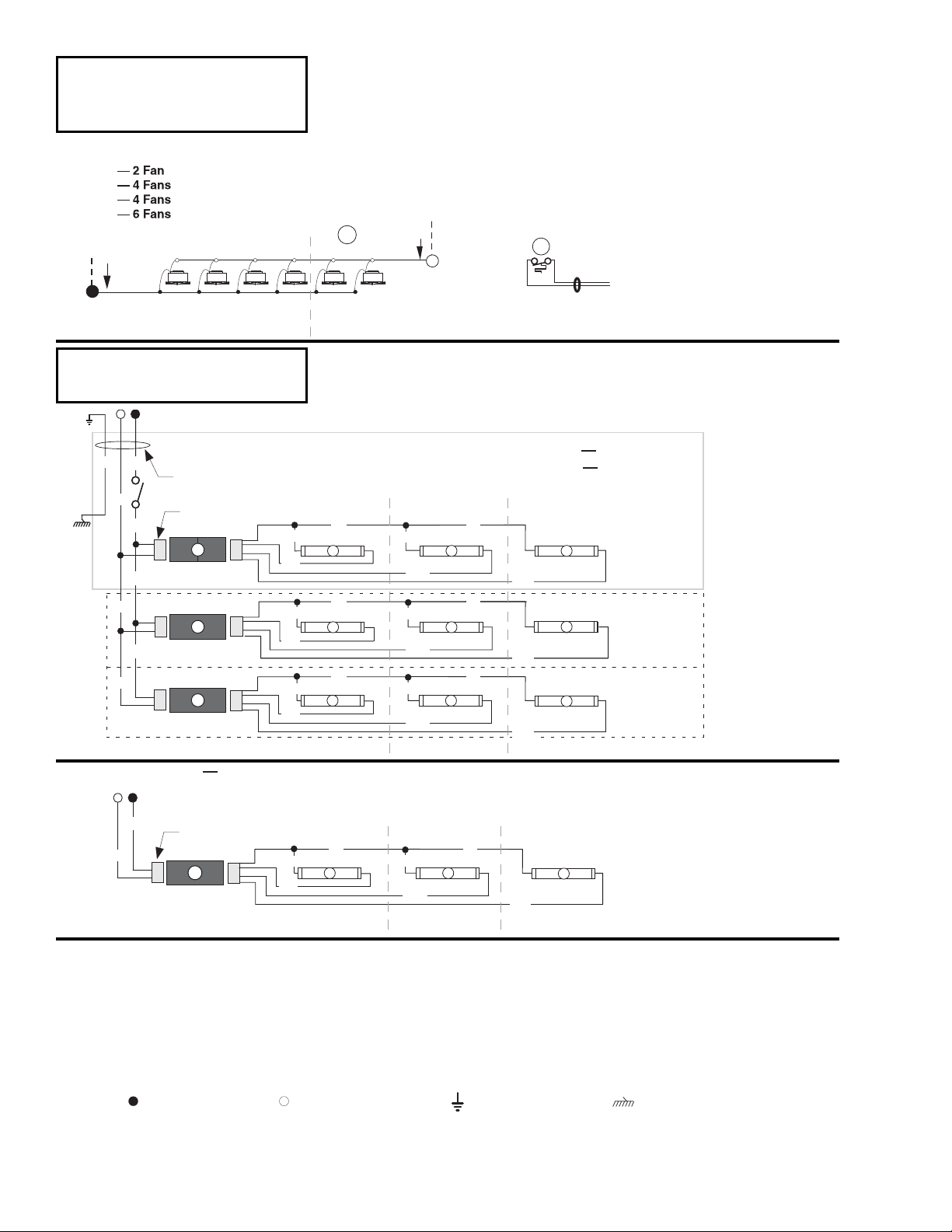

Refrigeration

Thermostat

Condensing

Unit

}

Light Blue

2, 4 & 6 Fans

120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

4 ft

6 ft

8 ft

12 ft

Fan Wiring

Offtime Defrost

Light Circuits

7 of 8P/N 0463877_C HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

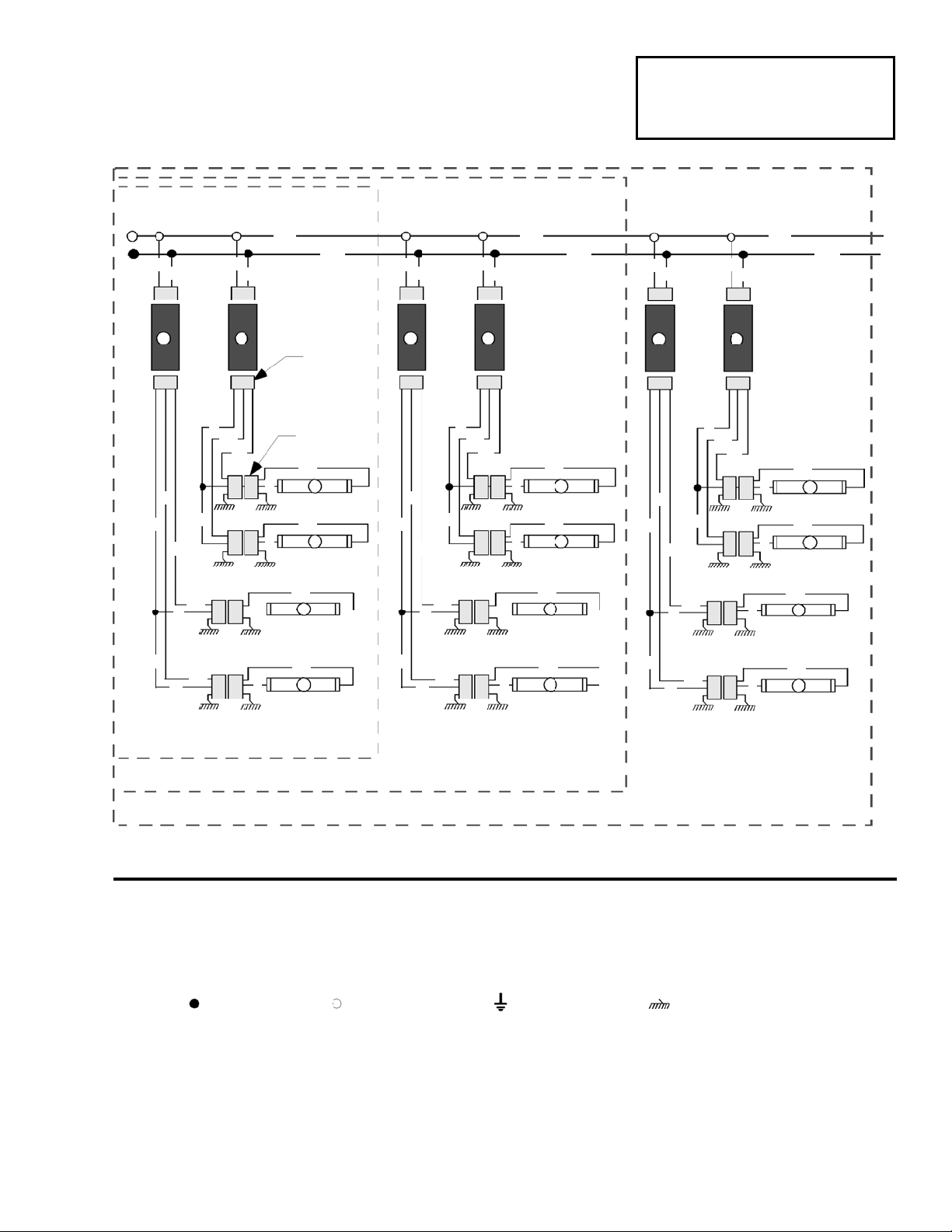

Optional Shelf Harness and Light Circuits for

Four Rows of Shelves

4 ft case

Connector

6 ft or 8 ft case

12 ft case

Optional Shelf Lighting

Fluorescent Fixtures

8 of 8 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. M4X-EP Technical Data Sheet

BL 6

RBL

4 ft case

6 ft or 8 ft case

12 ft case

(TYP)

Shelf Light

Plug & Receptacle

Connector

BL 6

RBL

BL 6

RBL

R = Red G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

Connector

Optional Shelf Harness and LED Light Circuits for

3, 4, 5, 6 & 7 Rows of Shelves

Optional Shelf Lighting

LED Fixtures

Indice

Altri manuali Hussmann Merchandiser

Hussmann

Hussmann Scroll Plus Fibertronic 401789 Manuale

Hussmann

Hussmann FMA Manuale utente

Hussmann

Hussmann M4NX-GEP Manuale di istruzioni

Hussmann

Hussmann P2NX-E Manuale di istruzioni

Hussmann

Hussmann RI2N Manuale di istruzioni

Hussmann

Hussmann M62 Manuale utente

Hussmann

Hussmann VGD Istruzioni operative

Hussmann

Hussmann Impact Excel C2X-E Manuale di istruzioni

Hussmann

Hussmann ENTYCE TY3 Manuale utente

Hussmann

Hussmann Impact F2XLG Manuale utente

Hussmann

Hussmann DSF Manuale di istruzioni

Hussmann

Hussmann Impact Excel M4X-E Manuale di istruzioni

Hussmann

Hussmann C2XEC-E Manuale di istruzioni

Hussmann

Hussmann IMPACT LWU Manuale di istruzioni

Hussmann

Hussmann IMPACT M5NE Manuale utente

Hussmann

Hussmann P2XRO-E Manuale di istruzioni

Hussmann

Hussmann ESGMVS Manuale di istruzioni

Hussmann

Hussmann C6-EP Manuale utente

Hussmann

Hussmann impact Excel C2X-XLEP Manuale di istruzioni

Hussmann

Hussmann M5NX-E Manuale di istruzioni

Hussmann

Hussmann microSC SHM-A Series Manuale utente

Hussmann

Hussmann IMPACT D5HR Manuale utente

Hussmann

Hussmann Impact Excel P1X-E Manuale di istruzioni

Hussmann

Hussmann IMPACT Elite E5 Manuale utente

Manuali Merchandiser popolari di altre marche

FRIGOGLASS

FRIGOGLASS Flex 20 HC Manuale utente

EPTA

EPTA COSTAN RHINO MULTI Manuale utente

CASCO

CASCO Nano Cube Manuale utente

True

True GDIM-26 Manuale utente

Structural Concepts

Structural Concepts Oasis Mobile Series Istruzioni per l'installazione

Haussmann

Haussmann RL Manuale utente

Howard McCray

Howard McCray R-CDS32E-4 Manuale utente

EPTA

EPTA iarp Cool Emotions Delight Lite Manuale utente

VALERA

VALERA BC 85 Manuale utente

HL Display

HL Display 3eBin Manuale utente

Dixie Narco

Dixie Narco DNCB 501E Manuale utente

APW Wyott

APW Wyott Racer DMXD-30H Manuale utente

Hoshizaki

Hoshizaki KD-90C Manuale utente

Summit

Summit SCR1006 Manuale utente

Delfield

Delfield Shelleyspeed SPM-28E Manuale utente

EPTA

EPTA iarp Cool Emotions GLEE 40 Manuale utente

Kysor/Warren

Kysor/Warren GranBering KW Guida

Crane

Crane BevMAX Refresh 6 Media Manuale utente
