Hussmann IMPACT D5RRI Guida rapida

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.

P/N 0435047

January, 2003

D5RRI and D5RRIS

Rear Roll-in Dairy

Joining Instruction

Merchandisers

PARTS LIST

Item Quantity Description

D5RRI D5RRIS

1. 1 1 Gasket 1/2x 1/2x 60 (1524 mm)

2. 1 1 Gasket 1/2x 15/8x 120 (3048 mm)

3. 9 5 Cap Screw 5/16 -18 x 11/4

4. 9 5 Lock Washer 5/16

5. 9 5 Flat Washer 5/16

6. 1 1 Threaded Rod 1/2-16 x 12 (305 mm)

7. 2 2 Flat Washer 1/2

8. 2 2 Hex Nut 1/2-16

9. 1 1 Silicone Sealer

Note: Nut retainers are factory installed in the left end, and alignment pins are factory installed in

the right end of each merchandiser.

NOTES:

• Be sure merchandisers have been

leveled according to the installation

instructions.

• Be sure factory-installed nut

retainers and alignment pins are in

place.

• Install optional shelf kits after all

merchandisers have been joined.

1Remove front air grille and

honeycomb from the right end

as shown in Figure 1.

Right Front

Air Grille

Right Front

Honeycomb

Figure 1. Remove Air Grille and Honeycomb

D5RRI

D5RRIS

2Verify that nut retainers and

alignment pins are installed in

the right-hand end of the left

case in the locations shown in

Figure 2.

P/N 0435047

Merchandisers

2HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.

Alignment Pins

Figure 2. Verify Nut Retainer and Alignment Pin Installation

3Apply Gasket – 1 along the

center of the lower assembly.

Apply Gasket – 2 to cover

foam-to-metal gap at rear and

across top as shown in Figure 3.

Lap gaskets at lower corners.

Check that there are no gaps

between gasket and case.

• Do not stretch gasket,

especially around corners.

• Do not butt gaskets; always lap

joints.

• Remove paper backing after

gasket is applied.

Joining Instruction for D5RRI and D5RRIS

Rear Roll-in Dairy Merchandisers P/N 0435047

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.

Optional

Low Front

Standard

Note: Case To Be

Sealed And

Gasketed As Shown

11/2in. x 1/2x 60

1/2in. x 15/8x 120

Figure 3. Apply Gaskets

Optional

Low Front Standard Front

D5RRI

D5RRIS

4Move second merchandiser

against first, mating alignment

pins with corresponding holes.

5Fasten fronts together using

Cap Screw – 3,

Flat Washers – 4, and

LockWashers – 5 as shown in

Figure 4. Tighten only until front

panels touch. Do not tighten

fully.

6Use Cap Screws – 3 with

Flat Washers – 4 and

Lock Washers – 5 to draw

merchandisers together at rear.

Start at the bottom, then middle,

then top; tighten until gaskets are

compressed.

P/N 0435047

Merchandisers

4HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.

Alignment

Pins

Nut Retainer

9 Places for D5RRI and

5 Places for D5RRIS

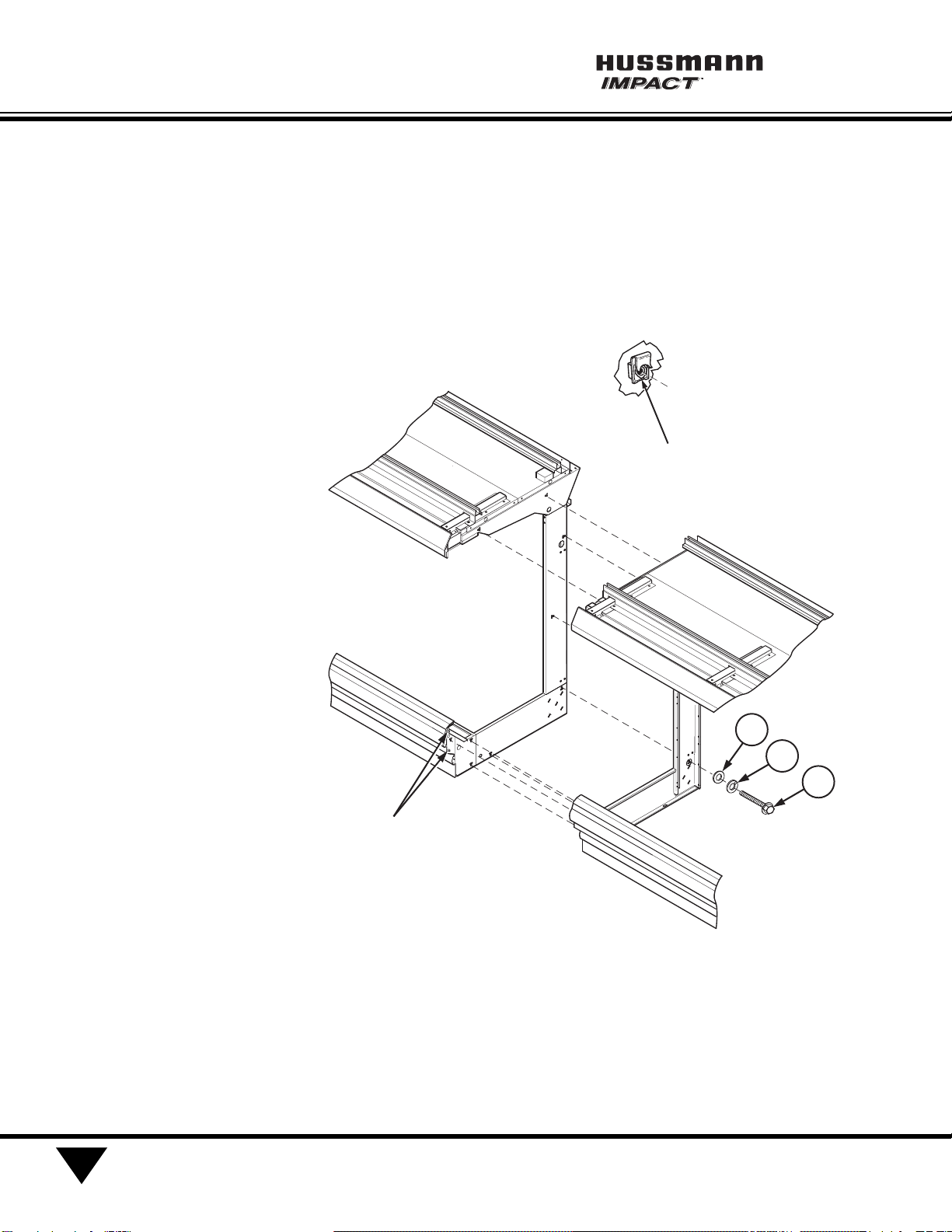

Figure 4. Joining Ends

7Draw canopies together using

Rod – 6 through top shoe, and

Washers – 7, and Nuts – 8

on each end of rod as illustrated

in Figure 5. Stop when canopies

touch.

8Apply a bead of Silicone – 9

to the joined merchandisers as

shown in Figure 6. When dry,

replace honeycomb.

Joining Instruction for D5RRI and D5RRIS

Rear Roll-in Dairy Merchandisers P/N 0435047

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.

876

Silicone Gun

Silicone Gun Apply Silicone Bead

Apply Silicone Bead

D5RRI

D5RRIS

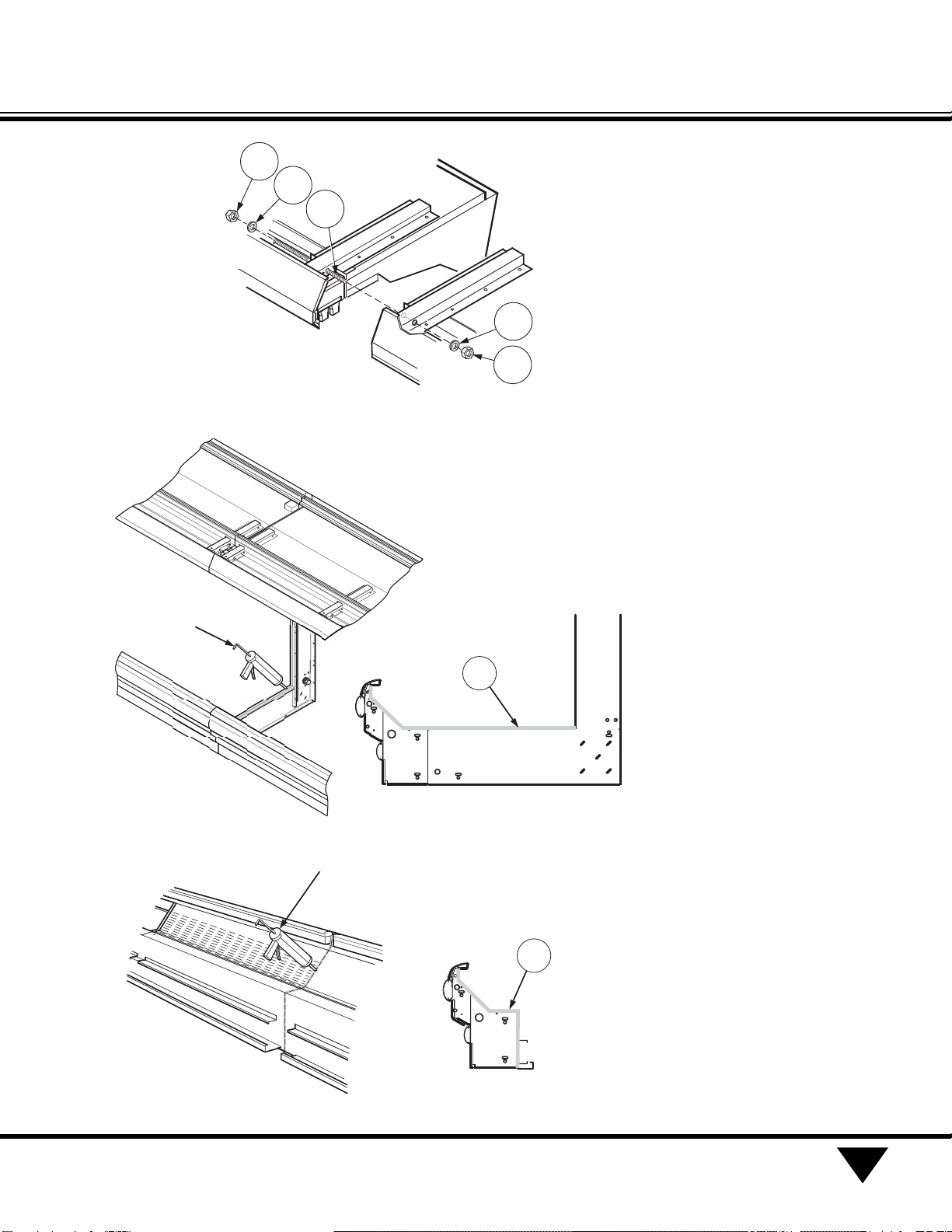

Figure 5. Canopy Joining

Figure 6. Applying Silicone
