P/N 0480109_C

C5NX-LE

Technical Data Sheet

P/N 0480109_C

NSF®Certified

March 2008

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

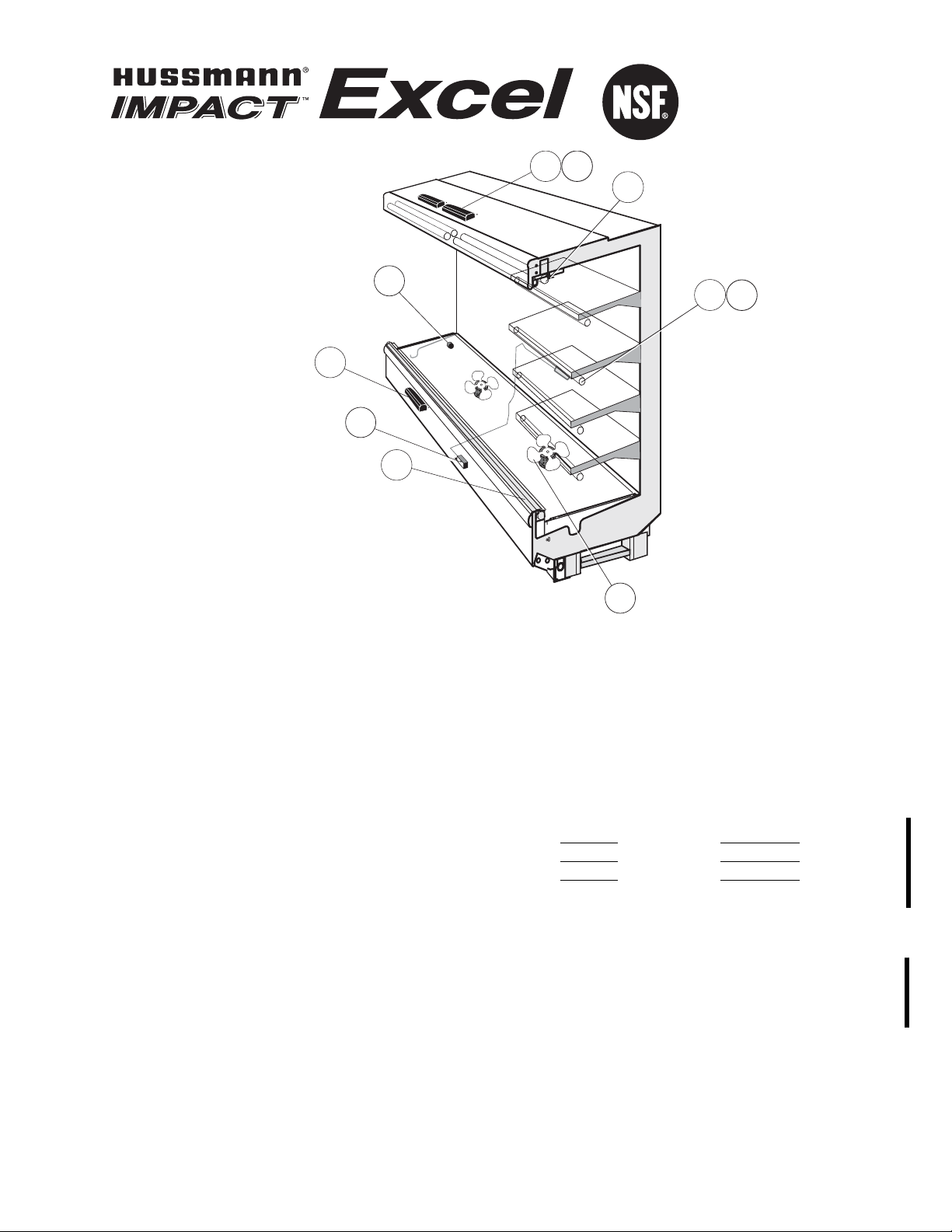

Item Part # Description Wiring Item #

FAN ASSEMBLIES

4 Ft, 8 Ft & 12 Ft

A. 7W Standard Fan Assembly (1)

0058698 Fan Motor, Evaporator

(MO.4410102)

0142780 Fan Blade (FB.0142780)

7W Energy Efficient Fan Assembly (1)

0477654 Fan Motor, Evaporator

(MO.4410545)

0142780 Fan Blade (FB.0142780)

6 Ft Only

A. 4W Standard Fan Assembly (1)

0392457 Fan Motor, Evaporator

(MO.4410101)

0382383 Fan Blade (FB.4780617)

4W Energy Efficient Fan Assembly (1)

0477653 Fan Motor, Evaporator

(MO.4410544)

0382383 Fan Blade (FB.4780617)

Item Part # Description Wiring Item #

B. 0411744 Standard Non-adjustable (2)

Defrost Thermostat

(CT.0411744)

C. Optional Adjustable Refrigeration Thermostat (3)

LAMPS. BALLASTS, LED FIXTURES AND POWER SUPPLY

D. Ballast, Electronic (4)

0480130 2 lamps (BA.4481676)

0480131 3 lamps (BA.4481654)

0480132 4 lamps (BA.4481677)

E. Fluorescent Lamp (5)

Replace with like fixtures

F. 0501213 Power Supply (EP.4481861) (6)

G. LED Fixture (7)

Replace with like fixtures

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

Note: Revision C changes ballast (Page 1); adds optional LED lighting (Pages 1, 3, 4, 8); adds capacity and weight (Page 5).

2 of 8 C5NX-LE Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Engineering

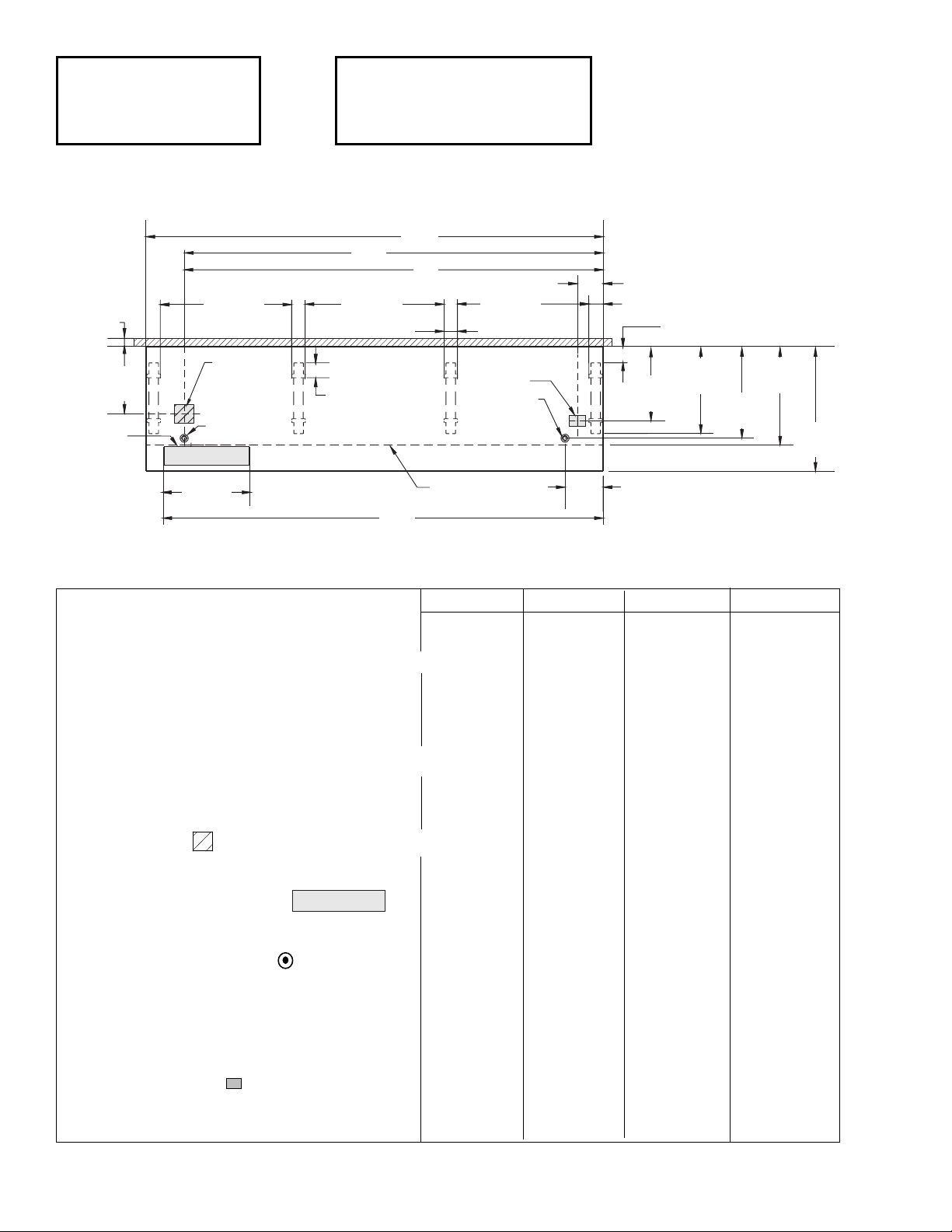

Plan Views

Dimensions shown as in. and (mm).

Convertible

09-2005

Wireway

Splashguard

26 3/4

(680)

25 1/4

(641)

(940)

41 1/2

(1054)

28 1/2

(724)

3 In.

(77 mm)

Required

Air Gap

Refrigeration

Outlet

Waste Outlet

FRONT

4 3/4 (120)

21 1/4

(540)

8(203)

12 1/8 (307)

4 1/4 (108)

41 1/2

(1054)

43 7/8

(1114)

(483)

NOTE: Case-to-Case Electrical Connections

are made IN FRONT OF SPLASHGUARD.

Electrical

Stub Up Area

6 x 6

(152x152)

Electrical

Field

Connection

26 1/2

(673)

4 3/4 (120)

4 1/2 (115)

C5NX

4 ft 6 ft 8 ft 12 ft

General

(A) Case Length (without ends or partitions) 48 3/8(1229) 72 3/8(1838) 96 3/8(2448) 144 1/2(3670)

(Each end and insulated partition adds 1 1/2 in. (38 mm) to case line up.)

Maximum O/S dimension of case back to front

(includes bumper) 37 (940) 37 (940) 37 (940) 37 (940)

Back of case to front of splashguard 28 1/2 (724) 28 1/2 (724) 28 1/2 (724) 28 1/2 (724)

Back of case to O/S edge of front leg 25 1/4 (641) 25 1/4 (641) 25 1/4 (641) 25 1/4 (641)

Distance between edges of external legs and center legs NA 29 1/2 (750) 41 1/2 (1054) 41 1/2 (1054)

Distance between edges of center legs NA NA NA 43 7/8 (1114)

Distance between front legs and splashguard 2 3/4(70) 2 3/4(70) 2 3/4(70) 2 3/4(70)

Electrical Service (Electrical Field Wiring connection point)

(B) RH End of case to center of stub up area 36 1/4 (921) 60 1/4 (1530) 84 1/4 (2140) 132 3/8 (3363)

Back of case to center of stub up area 19 (483) 19 (483) 19 (483) 19 (483)

Length of electrical wireway 26 1/2 (673) 26 1/2 (673) 26 1/2 (673) 26 1/2 (673)

Waste Outlets (One each end)

(D) RH End of case to the center of LH waste outlet 36 1/4 (921) 60 1/4 (1530) 84 1/4 (2140) 132 3/8 (3363)

RH End of case to the center of RH waste outlet 12 1/8 (307) 12 1/8 (307) 12 1/8 (307) 12 1/8 (307)

Back O/S of case to center of waste outlets 26 3/4 (680) 26 3/4 (680) 26 3/4 (680) 26 3/4 (680)

Schedule 40 PVC drip pipe 1 1/4 (32) 1 1/4 (32) 1 1/4 (32) 1 1/4 (32)

Refrigeration Outlet

Back of case to center of refrigeration outlet 21 1/4 (540) 21 1/4 (540) 21 1/4 (540) 21 1/4 (540)

RH end of case to center of refrigeration outlet 8 (203) 8 (203) 8 (203) 8 (203)

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/4

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 7/8

Wireway

REFRIGERATION DATA

Note: This data is based on store temperature and

humidity that does not exceed 75°F and 55% R.H.

C5NX-LE Deli Dairy

Discharge Air °F 29 31

Evaporator °F 21 24

Unit Sizing °F 19 22

Btu/hr/ft — Unlit Shelves

C5NX-LE‡‡ Parallel Conventional

DELI 1715 1820

DAIRY 1420 1555

‡‡ Add 10 Btu/hr/ft per shelf row for LED fixtures.

Add 20 Btu/hr/ft per shelf row for fluorescent lamps.

DEFROST DATA

C5NX-LE

Frequency Hrs 6

Defrost Water (lb/ft/day) 10.50

(± 15% based on case configuration and product

loading).

OFFTIME C5NX-LE

Temp Term °F 48

Failsafe Minutes 35

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F — open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

CI/CO*C5NX-LE

Deli Dairy

14°F / 4°F 17°F / 7°F

Indoor Unit Only, Pressure Defrost

Termination* 48°F

*Use a Temperature Pressure Chart to determine

PSIG conversions.

Estimated Charge (lb)** C5NX-LE

4 ft 1.6

6 ft 2.3

8 ft 3.2

12 ft 4.5

**This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

3 of 8

P/N 0480109_C HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

26 3/4 (680)

25 1/4 (641)

37 (940)

28 1/2 (724)

25 1/4

(641)

(1549)

34 5/8

(878)

FAN

17 1/4

(438)

3 In. (77 mm)

Required

Air Gap

7 1/4 (183)

19 5/8

(499) 3 5/8

(92)

21 1/4 (540)

Refrigeration

Outlet

4 7/8

(123)

54 7/8

(1393)

4 3/4 (120)

Electrical

Case to Case

Connections

12 1/4

(311)

81 3/4

(2077)

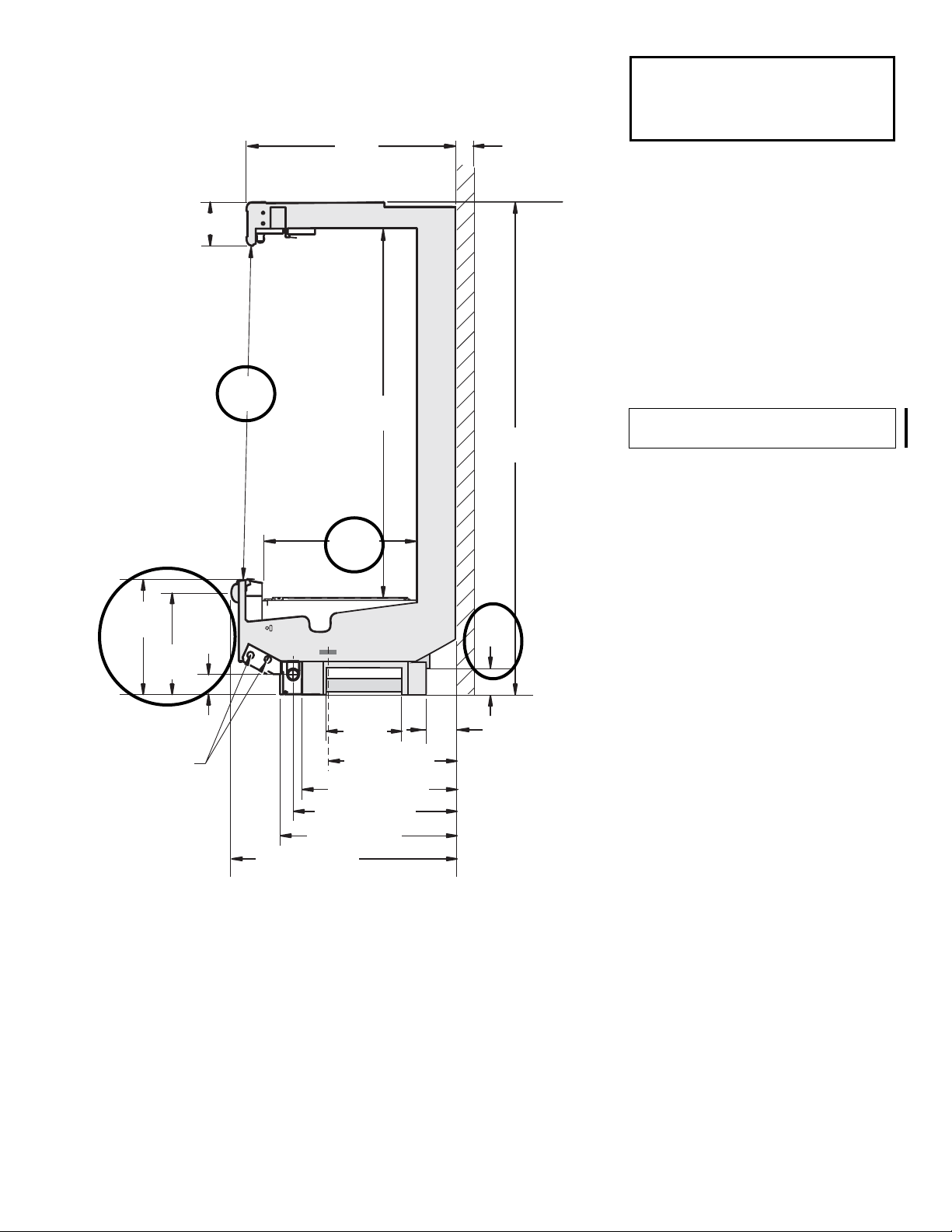

Impact

Excel

C5NX-LE

Dairy & Delicatessen

Dimensions shown as in. and (mm).

Multi-deck, 5 Display Levels, Low Front

C5NX-LE

NSF Certification

This merchandiser model is manufactured to meet ANSI/NSF

(National Sanitation Foundation) Standard #7 requirements for

construction, materials & cleanability.

4 of 8 C5NX-LE Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Impact

Excel

C5NX-LE

Dairy & Delicatessen

Electrical Data

4 ft 6 ft 8 ft 12 ft

Number of Fans—7W 2 — 4 6

Number of Fans—4W — 4 — —

Amperes Watts

4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft

Evaporator Fan

120V 60Hz Standard 1.00 1.24 2.00 3.00 78 96 156 234

120V 50Hz Standard 1.10 1.52 2.20 3.30 84 108 168 252

230V 60Hz Export 0.50 0.60 1.00 1.50 78 96 156 234

230V 50Hz Export 0.56 0.72 1.12 1.68 84 108 168 252

120V 60Hz Energy Efficient 0.38 0.48 0.76 1.14 28 32 56 84

230V 60Hz Energy Efficient 0.20 0.24 0.40 0.60 28 32 56 84

Minimum Circuit Ampacity

120V 60Hz Standard 1.20 1.44 2.20 3.20

120V 50Hz Standard 1.30 1.72 2.40 3.50

230V 60Hz Export 0.70 0.80 1.20 1.70

230V 50Hz Export 0.76 0.92 1.32 1.88

120V 60Hz Energy Efficient 0.58 0.68 0.96 1.34

230V 60Hz Energy Efficient 0.40 0.44 0.60 0.80

Maximum Over Current Protection 120V 20 20 20 20

Maximum Over Current Protection 230V 15 15 15 15

Standard Lighting (T-8 Fluorescent)

1 Row Canopy 0.26 0.51 0.51 0.77 30 59 59 85

Optional Lighting (T-8 Fluorescent)

Additional 1 Row Canopy 0.26 0.51 0.51 0.77 30 59 59 85

Additional 2 Row Canopy 0.51 1.02 1.02 1.54 59 118 118 170

Additional 3 Row Canopy 0.77 1.53 1.53 2.31 89 177 177 255

1 Row Rail Light 0.26 0.51 0.51 0.77 30 59 59 85

Optional Shelf Lighting (T-8 Fluorescent)

1 Row of Shelves 0.26 0.51 0.51 0.77 30 59 59 85

4 Rows of Shelves 1.02 2.04 2.04 3.08 118 236 236 340

5 Rows of Shelves 1.28 2.55 2.55 3.85 148 295 295 425

6 Rows of Shelves 1.53 3.06 3.06 4.62 177 354 354 510

Optional Always*Bright LED Lighting

1 Row of Shelves 0.15 0.19 0.26 0.38 18 23 31 45

4 Rows of Shelves 0.47 0.68 0.93 1.40 56 82 112 168

5 Rows of Shelves 0.57 0.83 1.13 1.69 68 99 136 203

6 Rows of Shelves 0.67 0.96 1.33 2.00 80 115 160 240

120V Lighting Circuit Total = Standard Lighting + Total Optional Lighting + Optional Shelf Lighting

230V Lighting Circuit Total = Multiply 120V Lighting Circuit Total by 0.52

ESTIMATED SHIPPING WEIGHT 5

Case Solid End

4 ft 6 ft 8 ft 12 ft (each)

lb (kg) 800 (363) 1000 (454) 1200 (544) 1400 (635) 100 (45)

5Actual weights will vary according to optional kits included.

5 of 8P/N 0480109_C HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Impact

Excel

C5NX-LE

Dairy & Delicatessen

Product Data

ARI Refrigerated Volume 1 (Cu Ft/Ft) 9.13 ft3/ft (0.85 m3/m)

Recommended Usable Cube 2 (Cu Ft/Ft) 7.10 ft3 /ft (0.66 m3 /m)

ARI Total Display Area 3 (Sq Ft/Ft) 4.77 ft2/ft (1.45 m2 /m)

Shelf Area 4(Sq Ft/Ft) 7.47 ft2/ft (2.28 m2 /m)

1Computed using ARI 1200 standard methodology: Refrigerated Volume, ft3[m3]/Unit of Length, ft [m]

2ARI Refrigerated Volume less shelving and other unusable space: Refrigerated Volume/Unit of Length, ft3/ft [m3/m]

3Computed using ARI 1200 standard methodology: Total Display Area, ft2[m2]/Unit of Length, ft [m]

4Shelf surface area is composed of bottom deck plus standard shelf complement, as shown in the Hussmann

Product Reference Guide. The standard shelf complement for this model is (4) rows of 16-inch shelves.eparately from

fans.

C5NX-LE Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

6 of 8

Defrost

Termination

Thermostat

Refrigeration

Thermostat

Dark Blue

Condensing

Unit

}

Light Blue

2, 4 & 6 Fans

120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

2 Fan

4 Fans

6 Fans

4 ft

6 ft

8 ft

12 ft

Optional

Two Row

Canopy

Optional

Three Row

Canopy

Connector

BL BL

Orange or Tan Band

Standard Lighting 1 Row Canopy

Optional Lighting 2 Row Canopy

3 Row Canopy

455

Connector

Optional Lighting 1 Row Rail

4 ft 6 ft or 8 ft 12 ft

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

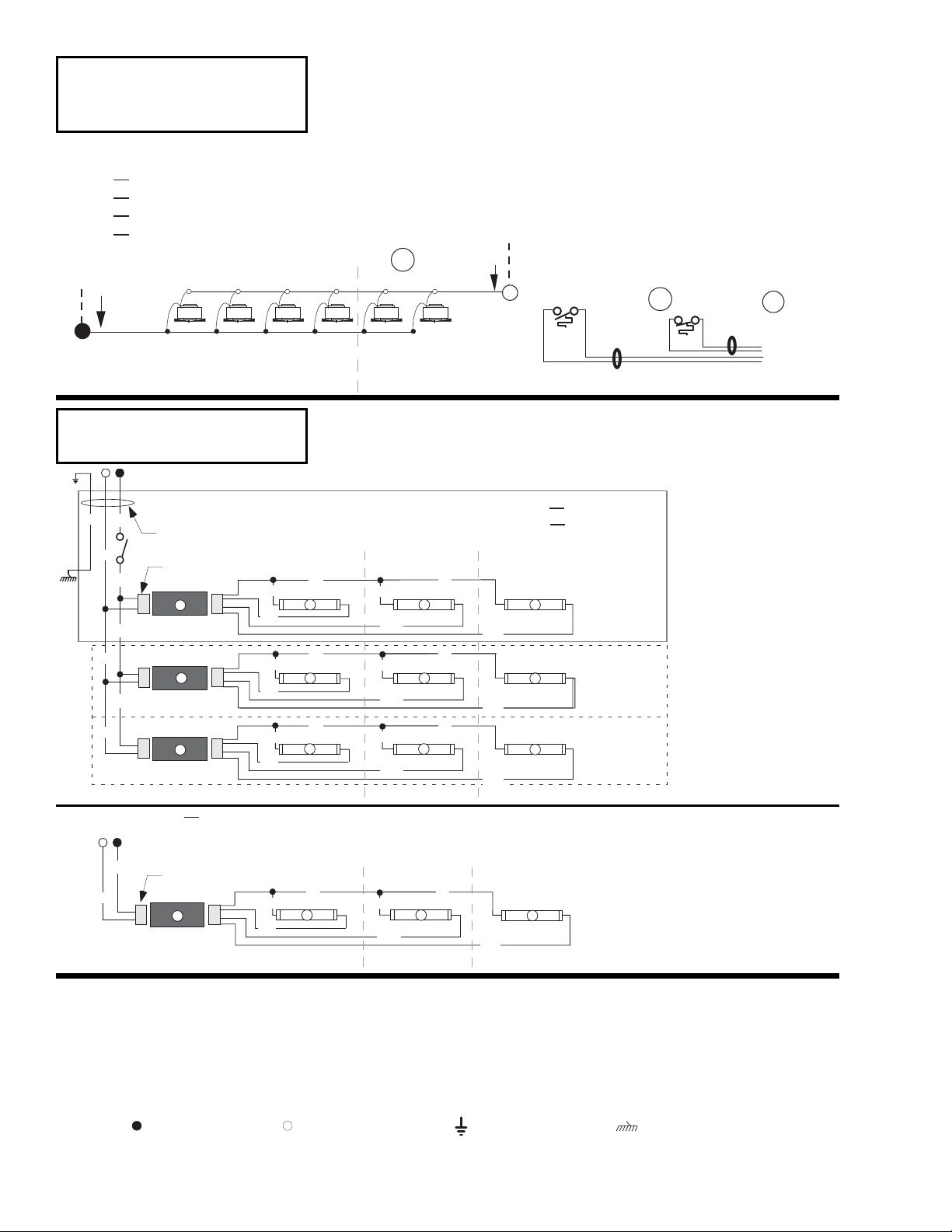

Fan Wiring

Offtime Defrost

Light Circuits

7 of 8P/N 0480109_C HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

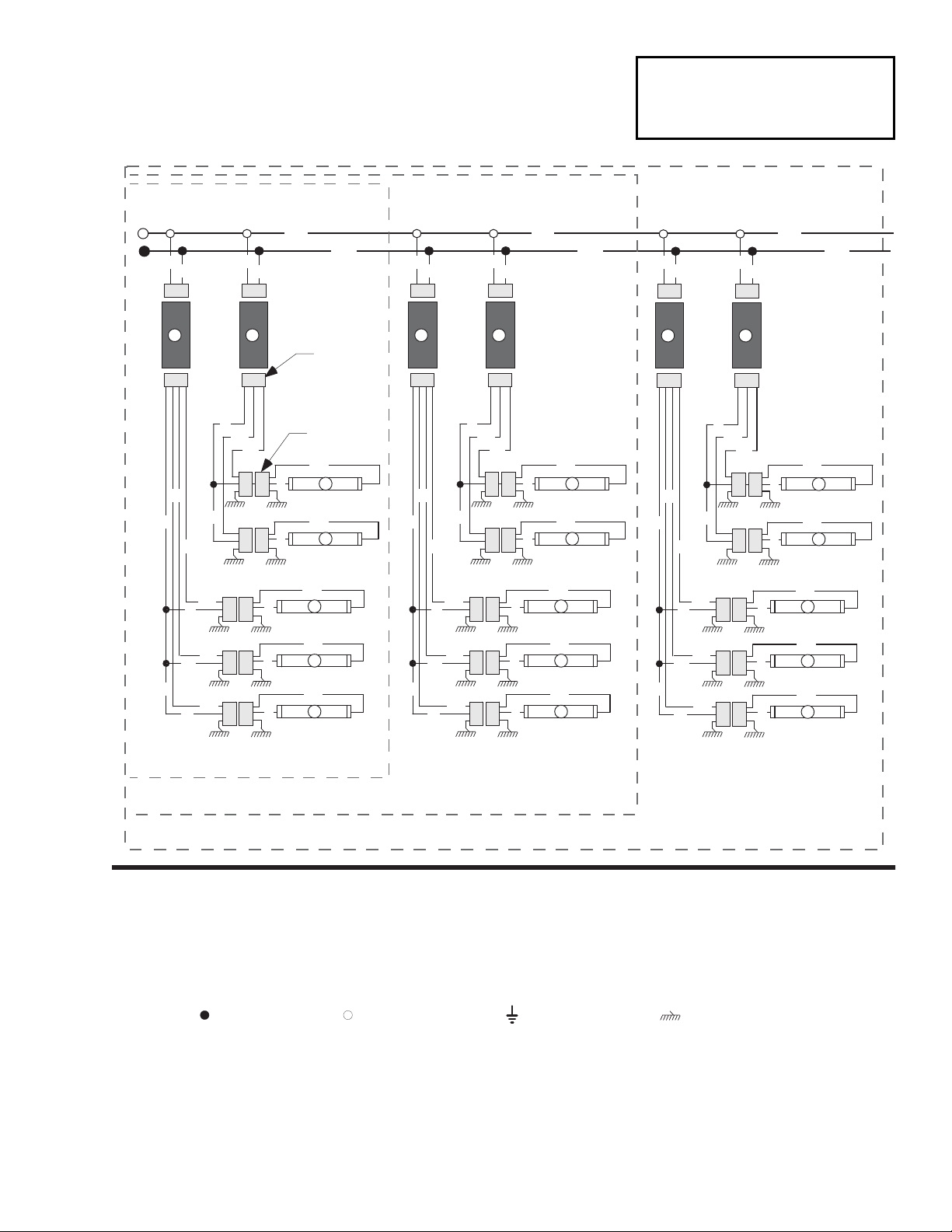

Optional Shelf Harness and Light Circuits for

Five Rows of Shelves

4 ft case

Connector

6 ft or 8 ft case

12 ft case

Optional Shelf Lighting

Fluorescent Fixtures

C5NX-LE Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

8 of 8

BL 7

RBL

4 ft case

6 ft or 8 ft case

12 ft case

(TYP)

Shelf Light

Plug & Receptacle

Connector

BL 7

RBL

BL 7

RBL

R = Red G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

Connector

Optional Shelf Harness and LED Light Circuits for

3, 4, 5, 6 & 7 Rows of Shelves

Optional Shelf Lighting

LED Fixtures

Indice

Altri manuali Hussmann Merchandiser

Hussmann

Hussmann BCH Manuale utente

Hussmann

Hussmann impact Excel C2X-LGE Manuale di istruzioni

Hussmann

Hussmann ESC Istruzioni operative

Hussmann

Hussmann PWW Manuale utente

Hussmann

Hussmann ENTYCE TY3 Manuale utente

Hussmann

Hussmann Scroll Plus Fibertronic 401789 Manuale

Hussmann

Hussmann SPECIALTY TY3-3X4.5E-R Manuale utente

Hussmann

Hussmann LG Manuale utente

Hussmann

Hussmann D5X-LE Manuale di istruzioni

Hussmann

Hussmann IMPACT D5RRI Manuale operativo

Hussmann

Hussmann RHR-HEX Istruzioni operative

Hussmann

Hussmann Specialty Products CR3HTO-HTB Istruzioni operative

Hussmann

Hussmann IMPACT RL Manuale utente

Hussmann

Hussmann Impact Excel C6X-LRE Manuale di istruzioni

Hussmann

Hussmann CR3-F Istruzioni operative

Hussmann

Hussmann IMPACT D5RRI Guida rapida

Hussmann

Hussmann SMG8B Manuale utente

Hussmann

Hussmann Q3 Manuale utente

Hussmann

Hussmann Impact C6HE Manuale utente

Hussmann

Hussmann IMPACT M2E Manuale utente

Hussmann

Hussmann Chino RDI-20 Istruzioni operative

Hussmann

Hussmann IMPACT RL Manuale utente

Hussmann

Hussmann ESBDS Manuale di istruzioni

Hussmann

Hussmann Impact P1X49-MOB-B Manuale utente

Manuali Merchandiser popolari di altre marche

FRIGOGLASS

FRIGOGLASS Flex 20 HC Manuale utente

EPTA

EPTA COSTAN RHINO MULTI Manuale utente

CASCO

CASCO Nano Cube Manuale utente

True

True GDIM-26 Manuale utente

Structural Concepts

Structural Concepts Oasis Mobile Series Istruzioni per l'installazione

Haussmann

Haussmann RL Manuale utente

Howard McCray

Howard McCray R-CDS32E-4 Manuale utente

EPTA

EPTA iarp Cool Emotions Delight Lite Manuale utente

VALERA

VALERA BC 85 Manuale utente

HL Display

HL Display 3eBin Manuale utente

Dixie Narco

Dixie Narco DNCB 501E Manuale utente

APW Wyott

APW Wyott Racer DMXD-30H Manuale utente

Hoshizaki

Hoshizaki KD-90C Manuale utente

Summit

Summit SCR1006 Manuale utente

Delfield

Delfield Shelleyspeed SPM-28E Manuale utente

EPTA

EPTA iarp Cool Emotions GLEE 40 Manuale utente

Kysor/Warren

Kysor/Warren GranBering KW Guida

Crane

Crane BevMAX Refresh 6 Media Manuale utente

Hussmann impact Excel C5NX-LE Manuale di istruzioni

Manuali Merchandiser popolari di altre marche
