Hussmann LG Manuale utente

Merchandisers

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Print d in U.S.A.)

NOTE: Be sure merchandisers

have been leveled according to the

installation instructions. Carefully

unpack and inspect the Wall/

Island Joint Kit, making sure there

is no

breakage or damage. Be

sure factory-

installed nut retainers

and alignment pins are in place.

SSTTEEPPSS

1Apply Gaskets ——1and 2

as shown in Figure 1.

• Remove paper backing as

gasket is applied.

•Lap gaskets at lower corners.

•Check that there are no gaps

between gasket and merchan-

diser.

• Do not stretch gasket,

especially around corners.

• Do not butt gaskets; always

overlap joints.

A.Remove Honeycomb at

end to be joined by lifting up

atbottom andpullingfor-

ward.

B. Lift out Rear Panel.

C. Remove Front Panel.

PARTS LIST

Item No. Quantity Description

LLG LN LNG LI LIG

1. 1 11111Gasket 1/2x 1/2x 120

2. 1 11111Donut Gasket

3. 6 56464Cap Screw5/16-18 x 1

4. 6 56464Lock Washer Split Steel 5/16

5. 6 56464Flat Washer5/16

6. 6 56464Hex Nut 5/16 - 18

7. – 1–2–2Glass Post Joint Extrusion

8. – 1–1–1Glass Post End Cover

9. 4 44444Screw Phillips Sheet Metal 8 x 1/2

10. 1 – 2 1 2 1 Nosing Joint Trim

11. 1 1– – – – Joint Trim

Wall/Island Merchandiser

(Solid and Glass Front) Joining Instruction

L, LG, LN, LNG, LI, LIG

Splashguard Brackets

MUST BE INSTALLED

Before Piping Case.

For Low Te perature Merchandisers

Figure 1. Installing Gasket for Solid and Glass

See Figures 1, 2 and 3 for gasket, hole and fastener locations for all models.

NOTE: APPLY GASKET TOONE CASE ONLY.

NOTE: Refer to the

Installation Manual to

install splashguard

Detail A

March, 1998

P/N 403099A

JOINT

JOINT KIT

KIT

LN LNG

LI LIG

1/2X1/2X180

Foam Tape Gasket Donut Gasket

2Move the cases to be joined

together (see Figure 2).

BE SURE TO TIGHTEN THE

BOTTOM BOLTS FIRST.

3Install 1 inch Cap Screw — 33

Lock Washer — 4,

Flat washer — 5 and

Hex Nut — 6 at the bottom

locations first. (see Figures 1, 2

and Detail A).

2HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Print d in U.S.A.)

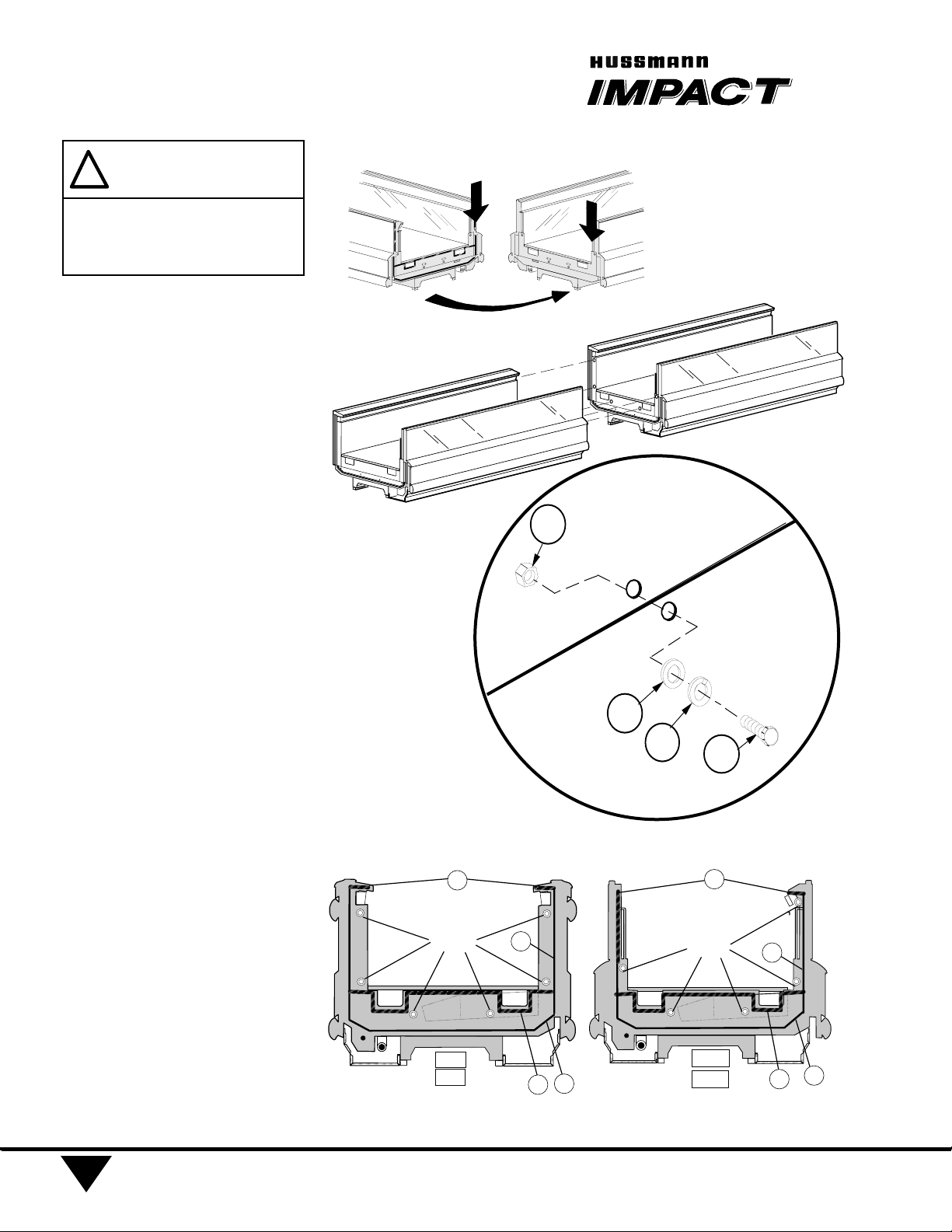

Figure 3. Installing Joining Bolts and Joining Cases

Figure 2. Aligning and Joining Cases

Detail A

LNG

LIG

Detail A

P/N 403099A

Cases should be pushed tightly

together, guided by align ent pins.

DO NOT PULL together by bolts.

CAUTION

L-8G Glass

Alignment Pin

Locations

Case 1

Case 2

Detail A

IFINSTALLING GLASS CASES

4Insert the Glass Post Joint

Extrusion — 7 to align

glass at case joints.

5Install the Glass Post End

Cover — 8, using

Screws — 9.

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Print d in U.S.A.)

Gasket

Figure 5. Installing Glass Post End Cover

L, LG, LN, LNG, LI, LIG Joining Instruction

Gasket

Glass

End Post

Top View

Gasket

Glass Glass

Glass

End Post

P/N 403999A

Figure 4. Installing Glass Post Joint Extrusion

BE SURE TO USE A RUBBER MALLET

WHEN INSTALLING GLASS POST

JOINT EXTRUSION.

CAUTION

P/N 403099A

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Print d in U.S.A.)

Review the chart and illustra-

tions in Figures 6 and 7.

Begin installing the Trims by

centering them over the case

joints.

6Fasten the

Nosing Joint Trims — 10

and Joint Trim s— 11, using

Screws — 9 at the

locations shown in Figure 7.

7Install Plastic Rails. Make

sure to offset Joints from case

joints, (see Figure 8).

8Reverse Step 1- A, B and C

and rinstall the Front Panel ,

Rear Panels and Honeycomb.

Glass Case

Plastic Rails

L1 1 —

LG 1 — 1

LN — 2 —

LNG — 1 1

LI — 2 —

LIG — 1 1

Figure 6. Identifying Cases with Joint Trim

Figure 8. Installing

Plastic Rails

L-G Glass

L-8G Glass

L Solid

L-8 Solid

Figure 7. Locating Trims

11 8
