M5X-GE

Technical Data Sheet

P/N 0463868_B

NSF®Certified

March 2008

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

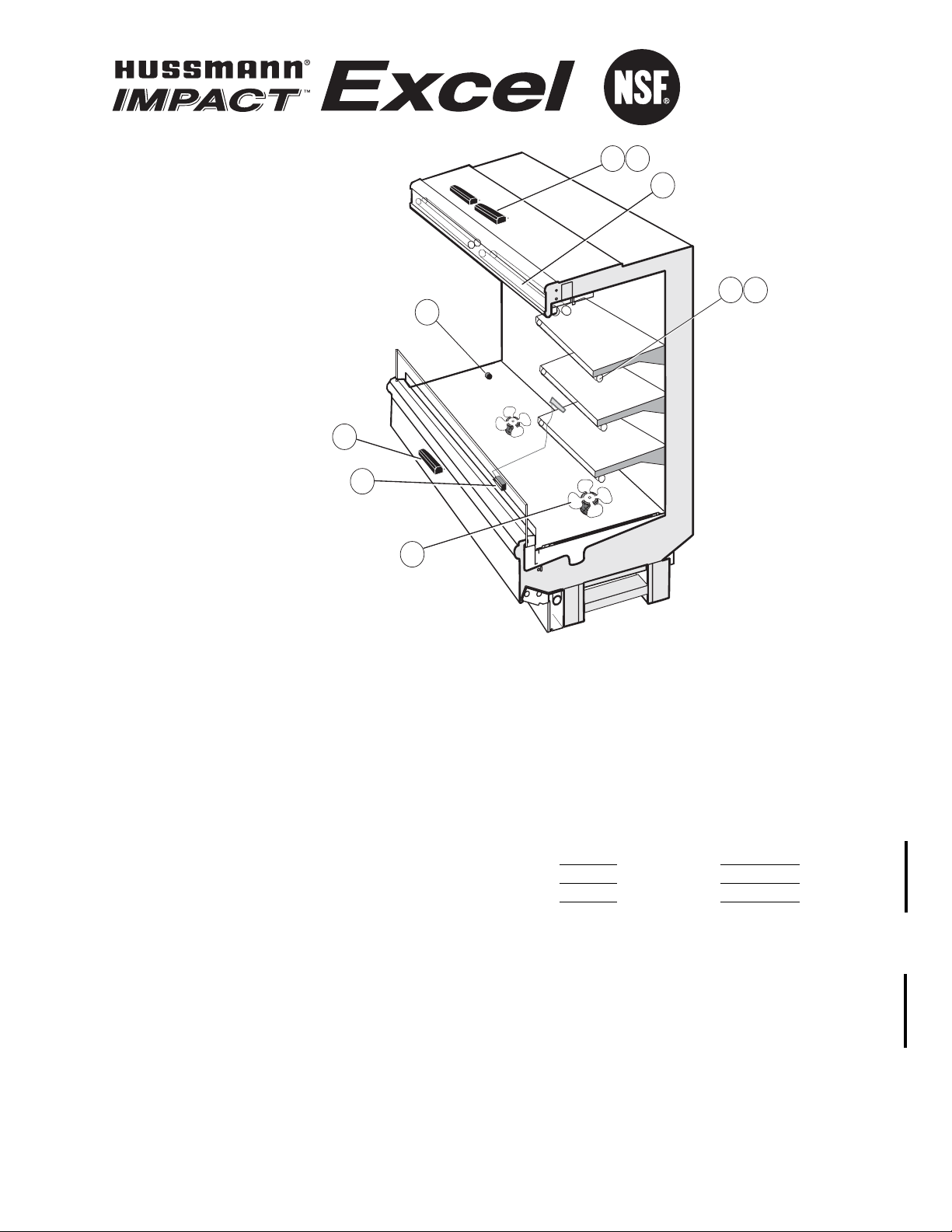

Item Part # Description Wiring Item #

FAN ASSEMBLIES

4 Ft, 8 Ft & 12 Ft

A. 12W Standard Fan Assembly (1)

0047000 Fan Motor, Evaporator

(MO.4410103)

0461805 Fan Blade (FB.4780446)

12W Energy Efficient Fan Assembly (1)

0477655 Fan Motor, Evaporator

(MO.4410546)

0461805 Fan Blade (FB.4780446)

6 Ft Only

A. 7W Standard Fan Assembly (1)

0058698 Fan Motor, Evaporator

(MO.4410102)

0142780 Fan Blade (FB.0142780)

7W Energy Efficient Fan Assembly (1)

0477654 Fan Motor, Evaporator

(MO.4410545)

0142780 Fan Blade (FB.0142780)

Item Part # Description Wiring Item #

THERMOSTATS

B. 0411744 Standard Non-adjustable (2)

Defrost Thermostat

(CT.0411744)

C. Optional Adjustable Refrigeration Thermostat (3)

LAMPS. BALLASTS, LED FIXTURES AND POWER SUPPLY

D. Ballast, Electronic (4)

0480130 2 lamps (BA.4481676)

0480131 3 lamps (BA.4481654)

0480132 4 lamps (BA.4481677)

E. Fluorescent Lamp (5)

Replace with like fixtures

F. 0501213 Power Supply (EP.4481861) (6)

G. LED Fixture (7)

Replace with like fixtures

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

Note: Revision B changes ballast (Page 1); adds optional LED lighting (Pages 1, 3, 4, 8); adds capacity and weight (Page 5).

M5X-GE Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

2 of 8

Engineering

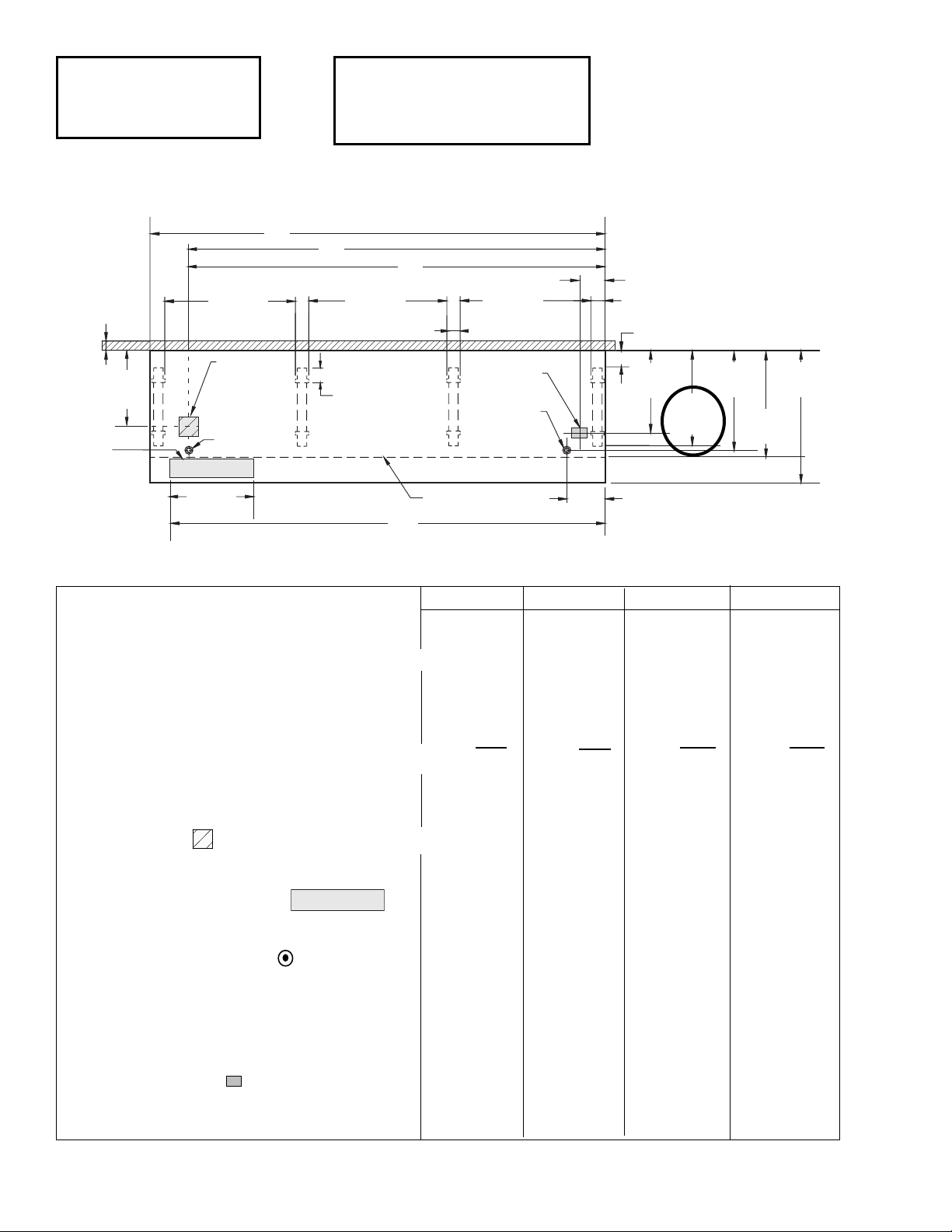

Plan Views

Dimensions shown as inches and (mm).

Meat and Produce

10-2004

NOTE: Case-to-Case Electrical Connections

are made IN FRONT OF SPLASHGUARD.

4 3/4 (120)

Splashguard

31 5/8

(804)

(1064)

41 1/2

(1054)

3 In.

(77 mm)

Required

Air Gap

Refrigeration

Outlet

Electrical

Stub Up Area

6 x 6

(152x152) Waste Outlet

Waste Outlet

FRONT

26 1/4

(665)

8(203)

4 1/2 (115)

12 1/8 (307)

41 1/2

(1054)

43 7/8

(1114)

Wireway

4 3/4 (120)

26 1/2

(673)

4 1/4 (108)

(612)

33 1/2

(851)

Electrical

Field

Connection

30 1/4

(768)

M5X

4 ft 6 ft 8 ft 12 ft

General

(A) Case Length (without ends or partitions) 48 3/8(1229) 72 3/8(1838) 96 3/8(2448) 144 1/2(3670)

(Each end and insulated partition adds 1 1/2 in. (38 mm) to case line up.)

Maximum O/S dimension of case back to front

(includes bumper) 42 (1064) 42 (1064) 42 (1064) 42 (1064)

Back of case to front of splashguard 33 1/2 (851) 33 1/2 (851) 33 1/2 (851) 33 1/2 (851)

Back of case to O/S edge of front leg 30 1/4 (768) 30 1/4 (768) 30 1/4 (768) 30 1/4 (768)

Distance between edges of external legs and center legs NA 29 1/2 (750) 41 1/2 (1054) 41 1/2 (1054)

Distance between edges of center legs NA NA NA 43 7/8 (1114)

Distance between front legs and splashguard 2 3/4(70) 2 3/4(70) 2 3/4(70) 2 3/4(70)

Electrical Service (Electrical Field Wiring connection point)

(B) RH End of case to center of stub up area 36 1/4 (921) 60 1/4 (1530) 84 1/4 (2140) 132 3/8 (3363)

Back of case to center of stub up area 24 (612) 24 (612) 24 (612) 24 (612)

Length of electrical wireway 26 1/2 (673) 26 1/2 (673) 26 1/2 (673) 26 1/2 (673)

Waste Outlets (One each end)

(D) RH End of case to the center of LH waste outlet 36 1/4 (921) 60 1/4 (1530) 84 1/4 (2140) 132 3/8 (3363)

RH End of case to the center of RH waste outlet 12 1/8 (307) 12 1/8 (307) 12 1/8 (307) 12 1/8 (307)

Back O/S of case to center of waste outlets 31 5/8 (804) 31 5/8 (804) 31 5/8 (804) 31 5/8 (804)

Schedule 40 PVC drip pipe 1 1/4(32) 1 1/4(32) 1 1/4(32) 1 1/4(32)

Refrigeration Outlet

Back of case to center of refrigeration outlet 26 1/4 (665) 26 1/4 (665) 26 1/4 (665) 26 1/4 (665)

RH end of case to center of refrigeration outlet 8 (203) 8 (203) 8 (203) 8 (203)

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/4

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 7/8

Wireway

REFRIGERATION DATA

Note: This data is based on store temperature and

humidity that does not exceed 75°F and 55% R.H.

M5X-GE

Discharge Air °F 28

Evaporator °F 21

Unit Sizing °F 19

Btu/hr/ft — Unlit Shelves

M5X-GE‡‡ Parallel Conventional

UNLIT 1320 1440

‡‡ Add 10 Btu/hr/ft per shelf row for LED fixtures.

Add 20 Btu/hr/ft per shelf row for fluorescent lamps.

DEFROST DATA

Frequency Hrs 6

Defrost Water (lb/ft/day) 9

(± 15% based on case configuration and

product loading).

OFFTIME M5X-GE

Temp Term °F 48

Failsafe Minutes 35

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F — open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

CI/CO*M5X-GE

14°F / 4°F

Indoor Unit Only, Pressure Defrost

Termination* 48°F

*Use a Temperature Pressure Chart to

determine PSIG conversions.

Estimated Charge (lb)**

M5X-GE

4 ft 1.6

6 ft 2.3

8 ft 3.2

12 ft 4.5

**This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

3 of 8P/N 0463868_B HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

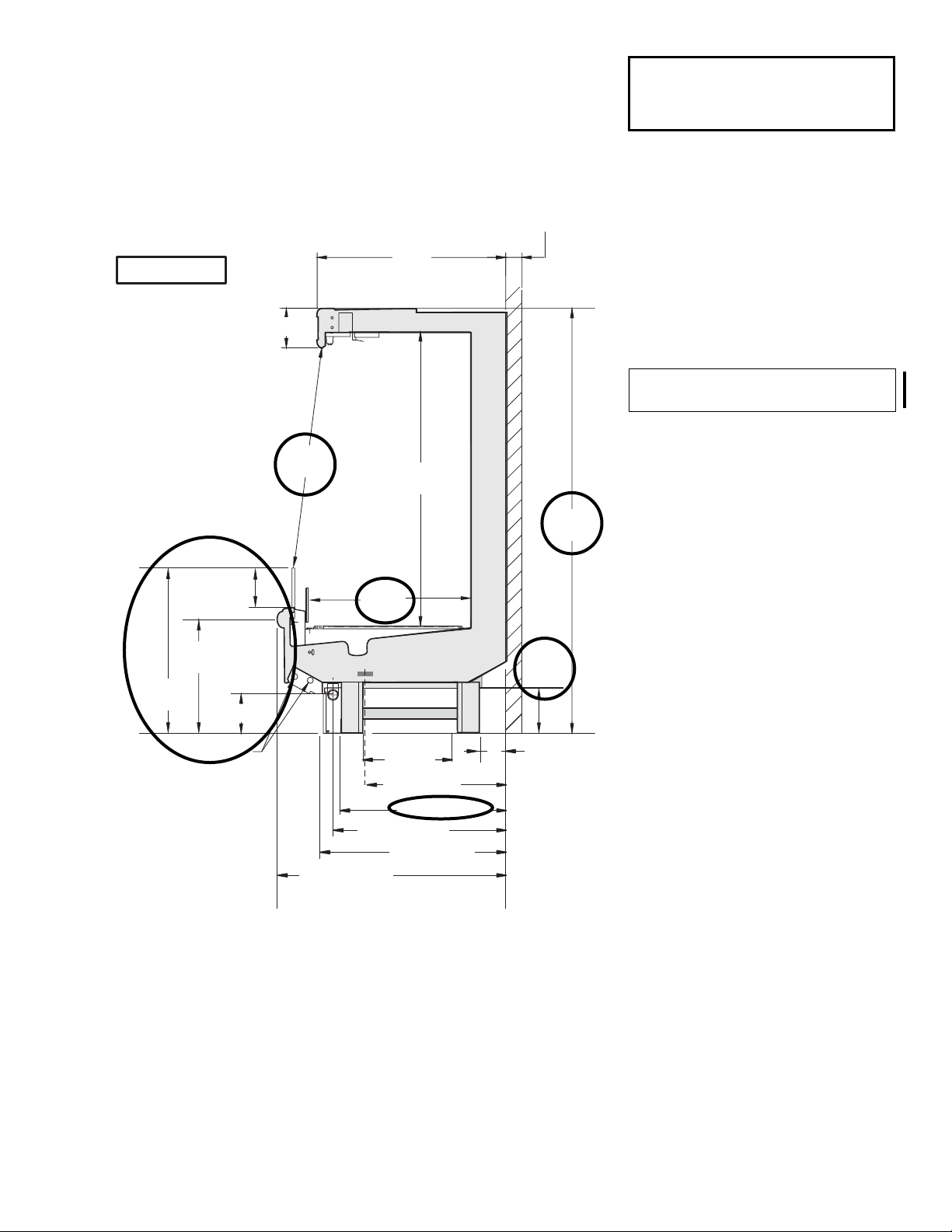

(762)

21 1/4

(540)

30 7/8

(785)

78 3/8

(1991)

31 5/8 (804)

30 1/4 (768)

42 (1064)

33 1/2 (851)

26 1/4 (665)

Refrigeration

Outlet

53 7/8

(1369)

34 5/8

(878)

FAN

M5X-GE

3 In. (77 mm)

Required

Air Gap

7 1/4 (183)

7 5/8 (194)

8 7/8

(225)

4 3/4

(120)

17 1/8

(436)

Electrical

Case to Case

Connections

40 5/8

(1032)

7 1/4

(184)

Impact

Excel

M5X-GE

Meat & Delicatessen

Dimensions shown as inches and (mm).

Multi-deck, 5 Display Levels, and Front Glass

NSF Certification

This merchandiser model is manufactured to meet ANSI/NSF

(National Sanitation Foundation) Standard #7 requirements for con-

struction, materials & cleanability.

M5X-GE Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

4 of 8

Impact

Excel

M5X-GE

Meat & Delicatessen

Electrical Data

4 ft 6 ft 8 ft 12 ft

Number of Fans—12W 2 — 4 6

Number of Fans—7W — 4 — —

Amperes Watts

4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft

Evaporator Fan

120V 60Hz Standard 1.30 2.00 2.60 3.90 100 156 200 300

120V 50Hz Standard 1.50 2.20 3.00 4.50 114 168 228 342

230V 60Hz Export 0.66 1.00 1.32 1.98 100 156 200 300

230V 50Hz Export 0.76 1.12 1.52 2.28 114 168 228 342

120V 60Hz Energy Efficient 0.60 0.76 1.20 1.80 36 56 72 108

230V 60Hz Energy Efficient 0.30 0.40 0.60 0.90 36 56 72 108

Minimum Circuit Ampacity

120V 60Hz Standard 1.50 2.20 2.80 4.10

120V 50Hz Standard 1.70 2.40 3.20 4.70

230V 60Hz Export 0.86 1.20 1.52 2.18

230V 50Hz Export 0.96 1.32 1.72 2.48

120V 60Hz Energy Efficient 0.80 0.96 1.40 2.00

230V 60Hz Energy Efficient 0.50 0.60 0.80 1.10

Maximum Over Current Protection 120V 20 20 20 20

Maximum Over Current Protection 230V 15 15 15 15

Standard Lighting (T-8 fluorescent)

1 Row Canopy 0.26 0.51 0.51 0.77 30 59 59 85

Optional Lighting (T-8 fluorescent)

Additional 1 Row Canopy 0.26 0.51 0.51 0.77 30 59 59 85

Additional 2 Row Canopy 0.51 1.02 1.02 1.54 59 118 118 170

Additional 3 Row Canopy 0.77 1.53 1.53 2.31 89 177 177 255

1 Row Rail Light NA — Glass front does not accept rail light

Optional Shelf Lighting (T-8 fluorescent)

4 Rows of Shelves 1.02 2.04 2.04 3.08 118 236 236 340

5 Rows of Shelves 1.28 2.55 2.55 3.85 148 295 295 425

Optional Always*Bright LED Lighting

4 Rows of Shelves 0.47 0.68 0.93 1.40 56 82 112 168

5 Rows of Shelves 0.57 0.83 1.13 1.69 68 99 136 203

120V Lighting Circuit Total = Standard Lighting + Total Optional Lighting + Optional Shelf Lighting

230V Lighting Circuit Total = Multiply 120V Lighting Circuit Total by 0.52

ESTIMATED SHIPPING WEIGHT 5

Case Solid End

4 ft 6 ft 8 ft 12 ft (each)

lb (kg) 800 (363) 1000 (454) 1100 (499) 1500 (680) 100 (45)

5Actual weights will vary according to optional kits included.

5 of 8P/N 0463868_B HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Impact

Excel

M5X-GE

Meat & Delicatessen

Product Data

ARI Refrigerated Volume 1 (Cu Ft/Ft) 8.83 ft3/ft (0.82 m3/m)

Recommended Usable Cube 2 (Cu Ft/Ft) 6.95 ft3 /ft (0.65 m3 /m)

ARI Total Display Area 3 (Sq Ft/Ft) 4.40 ft2/ft (1.34 m2 /m)

Shelf Area 4(Sq Ft/Ft) 8.36 ft2/ft (2.55 m2 /m)

1Computed using ARI 1200 standard methodology: Refrigerated Volume, ft3[m3]/Unit of Length, ft [m]

2ARI Refrigerated Volume less shelving and other unusable space: Refrigerated Volume/Unit of Length, ft3/ft [m3/m]

3Computed using ARI 1200 standard methodology: Total Display Area, ft2[m2]/Unit of Length, ft [m]

4Shelf surface area is composed of bottom deck plus standard shelf complement, as shown in the Hussmann

Product Reference Guide. The standard shelf complement for this model is (2) rows of 16-inch shelves and (2) rows of

18-inch shelves.eparately from fans.

M5X-GE Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

6 of 8

Defrost

Termination

Thermostat

Refrigeration

Thermostat

Dark Blue

Condensing

Unit

}

Light Blue

2, 4 & 6 Fans

120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

4 ft

6 ft

8 ft

12 ft

Optional

Two Row

Canopy

Optional

Three Row

Canopy

Connector

BL BL

Orange or Tan Band

Standard Lighting 1 Row Canopy

Optional Lighting 2 Row Canopy

3 Row Canopy

4 ft 6 ft or 8 ft 12 ft

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

Fan Wiring

Offtime Defrost

Light Circuits

7 of 8P/N 0463868_B HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

Optional Shelf Harness and Light Circuits for

Five Rows of Shelves

4 ft case

Connector

6 ft or 8 ft case

12 ft case

Optional Shelf Lighting

Fluorescent Fixtures

M5X-GE Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

8 of 8

BL 7

RBL

4 ft case

6 ft or 8 ft case

12 ft case

(TYP)

Shelf Light

Plug & Receptacle

Connector

BL 7

RBL

BL 7

RBL

R = Red G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

Connector

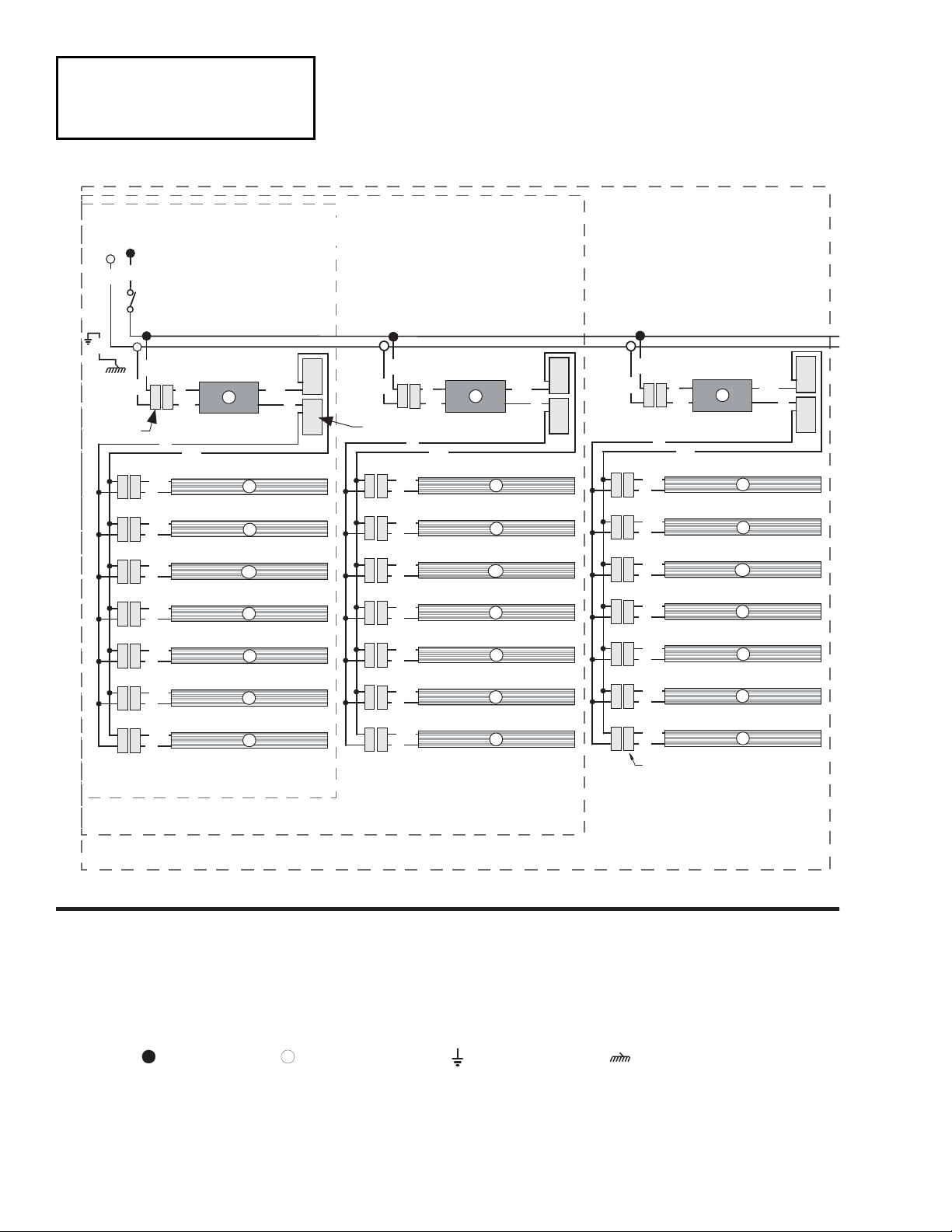

Optional Shelf Harness and LED Light Circuits for

3, 4, 5, 6 & 7 Rows of Shelves

Optional Shelf Lighting

LED Fixtures

Indice

Altri manuali Hussmann Merchandiser

Hussmann

Hussmann DSF Manuale di istruzioni

Hussmann

Hussmann Impact M3 Manuale utente

Hussmann

Hussmann MWGE Manuale utente

Hussmann

Hussmann Impact Excel M4X-E Manuale di istruzioni

Hussmann

Hussmann LGH Manuale di istruzioni

Hussmann

Hussmann IMPACT Elite E3 Manuale utente

Hussmann

Hussmann ASC-L Istruzioni operative

Hussmann

Hussmann microSC SHM-A Series Manuale utente

Hussmann

Hussmann ESBDHV Manuale di istruzioni

Hussmann

Hussmann ENTYCE TY3 Manuale utente

Hussmann

Hussmann RCA Manuale utente

Hussmann

Hussmann C4XRO-E Manuale di istruzioni

Hussmann

Hussmann IMPACT RLNI Manuale di istruzioni

Hussmann

Hussmann SI1N Manuale di istruzioni

Hussmann

Hussmann CID Manuale di istruzioni

Hussmann

Hussmann impact Excel C2X-LEP Manuale di istruzioni

Hussmann

Hussmann Impact C2EC-XLGE Manuale di istruzioni

Hussmann

Hussmann MPCETNM6S Manuale utente

Hussmann

Hussmann SCSS Manuale di istruzioni

Hussmann

Hussmann IMPACT ED1 Manuale utente

Hussmann

Hussmann Impact Excel C2X-LGEP Manuale di istruzioni

Hussmann

Hussmann impact Excel C5X-LE Manuale di istruzioni

Hussmann

Hussmann MAXI- Manuale utente

Hussmann

Hussmann MWG Manuale utente

Manuali Merchandiser popolari di altre marche

FRIGOGLASS

FRIGOGLASS Flex 20 HC Manuale utente

EPTA

EPTA COSTAN RHINO MULTI Manuale utente

CASCO

CASCO Nano Cube Manuale utente

True

True GDIM-26 Manuale utente

Structural Concepts

Structural Concepts Oasis Mobile Series Istruzioni per l'installazione

Haussmann

Haussmann RL Manuale utente

Howard McCray

Howard McCray R-CDS32E-4 Manuale utente

EPTA

EPTA iarp Cool Emotions Delight Lite Manuale utente

VALERA

VALERA BC 85 Manuale utente

HL Display

HL Display 3eBin Manuale utente

Dixie Narco

Dixie Narco DNCB 501E Manuale utente

APW Wyott

APW Wyott Racer DMXD-30H Manuale utente

Hoshizaki

Hoshizaki KD-90C Manuale utente

Summit

Summit SCR1006 Manuale utente

Delfield

Delfield Shelleyspeed SPM-28E Manuale utente

EPTA

EPTA iarp Cool Emotions GLEE 40 Manuale utente

Kysor/Warren

Kysor/Warren GranBering KW Guida

Crane

Crane BevMAX Refresh 6 Media Manuale utente
