Hyundai P240W Manuale utente

24" WIDE LCD MONITOR

Model : P240W

24" WIDE LCD MONITOR

Model : P240W

User Instructions

The Federal Communications Commission Radio Frequency Interference Statement includes the

following warning :

NOTE : This equipment has been tested and found to comply with the limits for a Class B digital

device pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in are

sidential installation. This equipment generates, uses, and can radiate radio frequency energy and,

if not installed and used in accordance with the instructions, may cause harmful interference to

radiocommunications. However, there is no guarantee that interference will not occur in

a particularinstallation.

If this equipment does cause harmful interference to radio or television receptions, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures :

· Reorient or relocate the receiving antenna.

· Increase the separation between the equipment and receiver.

· Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

· Consult the dealer or an experienced radio/TV technician for assistance.

User Information

Changes or modifications not expressly approved by the party responsible for compliance could

void the user's authority to operate the equipment.Connecting of peripherals requires the use of

grounded shielded signal cables.

FCC Information

Correct placement and adjustment of the monitor can reduce eye, shoulder, and neck fatigue.

Check the following when you position the monitor.

Keep the top of the monitor screen slightly below eye level. Your eyes should

look slightly downward when viewing the middle of the screen.

Correct posture for efective use of the LCD monitor.

Placement

Components

Position your monitor no closer than 16 inches no further away than 30

inches from your eyes. The optimal distance is 25 inches.

※ Contact the sales outlet if you wish to purchase optional extras.

Actual components may look different from the pictures below.

Index

This device has passed the electromagnetic wave test and may be used in any

place including residential areas.

Prior to use

Connection & Installation

OSD(On Screen Display)screen select & control

Additional Information

Safety Precautions

Component Name & Introduction

FCC Information

Component Name & Introduction

Connecting the Monitor to a Camputer

Install the Monitor Driver

Adjusting the Monitor Screen

OSD adjusting

MISC

Recommendations

Self-Diagnosis Function

Troubleshooting

Product Specification

Supported mode table

Power Save Mode

4-6

9 - 10

※ Limited Warranty

※ Regulatory Information

Sound

Screen adjusting

Color adjusting

Provide sufficient space between the monitor and the

wall for ventilation (cooling).

Overheating may lead to fire.

Make sure that the ventilation holes are not covered by

fabrics, curlains, other clothes like material, etc.

Do not connect more than one plug

to a single wall outlet. Doing so may

lead to fire.

Do not bend the power cord

excessively or allow the cord to be

compressed under a heavy object.

Doing so may cause electric shock

or fire.

Insert the power plug securely into

the outlet.

Insecure and unstable electrical

contact may lead to fire.

Connect the power plug to grounded

power outlets only. Failure to do so

may cause electric shock or injury.

Do not pull the power cord when

unplugging the power, and do not

touch the power plug with wet

hands. Doing so may cause

electric shock or fire.

Do not use a danaged power

cord or plug, or connect to a loose

power outlet. Doing so may cause

electric shock or fire.

Cautions are categorized into two types, "Warning" and "Caution" depending on

their level of importance.

: May lead to accidents causing serious human injury

: May lead to minor accidents and damage

Ignoring the safety precautions may lead to accidents causing injury or fatality and

structural damage.

The contents of this section are intended to protect the user from danger and

prevent physical accidents. Please read through the contents for proper use.

Safety Precautions

Do not place candles, lighted cigarettes, or other

heat-radiating objects on the monitor or near the

monitor.

Doing so may lead to fire.

Place the monitor on a firm flat surface and be

careful when handling the monitor.

Disconnect the power when

cleaning the product.

Falure to do so may cause electric

shock or fire.

Set the PC to match the resolution and frequency of the monitor.

24" Types - 1920 X 1200 @ 60Hz

Do not use flammable sprays or

substances near the product.

Doing so may lead to explosion or

fire.

Do not place the product in a

place where the ventilation is poor

(eg. inside a cabinet).

Doing so may lead to fire.

Mishandling the product may cause short circuits

and damage the product or cause injury.

The contents of this section are intended to protect the user from danger and

prevent physical accidents. Please read the contents for proper use.

Safety Precautions

Set the PC to activate power save mode (DPMS) when the monitor is not used for a while. Set the

screen saver function and select a type that maintains motion in the whole screen.

Do not insert metallic objects into the

ventilation holes. They may cause

electric shock or fire.

Unplug the monitor when not using for a long period of

time.

Dust build-up on the product (near the vents) may

cause overheating and lead to fire. Use a dry soft cloth

for cleaning purposes.

Use a soft dry cloth to clean the monitor, and unplug

it before cleaning.

Do not use any chemical solutions on the monitor for

cleaning purposes. Do not use a wet cloth on the

monitor.

Do not install the monitor where water (rain) drops

can enter the enclosure, or where there is oil or

humidity.

It may cause electrical faults, fire, or lead to damage

to the monilor.

Clean any dirt, dust or water from the power

plug contacts.

They may cause electrical faults or fire.

Do not spray water directly onto the product.

It may cause electrical faults or fire.

Carefully unplug the monitor if you see any signs

of smoke or smell odor of burning.

Contact the manufacturer for further information.

Do not allow children to climb onto

the product or hang on it. The

product may fall over and cause

serious injury.

Do not attempt to dismantle, repair, or

modify the product yourself. This may

cause fire or electrical fail ures.

Normal(ON)

OFF

Energy saving

Cable not Connected

Indicates OSD menu / Cancels selected menu.Menu

▲,▼ Move with in the OSD menu or adjust values(UP, DOWN)

Turns the power ON/OFF

Power Input Connector

Stereo In/Out Connectors

DVI Input Connector

◀,▶

P240W

Component Name & Introduction

Select - Select highlighted function.

Move with in the OSD menu or adjust values(RIGHT, LEFT)

Select

GREEN

RED and Amber is alternately blinking

VGA Input Connector

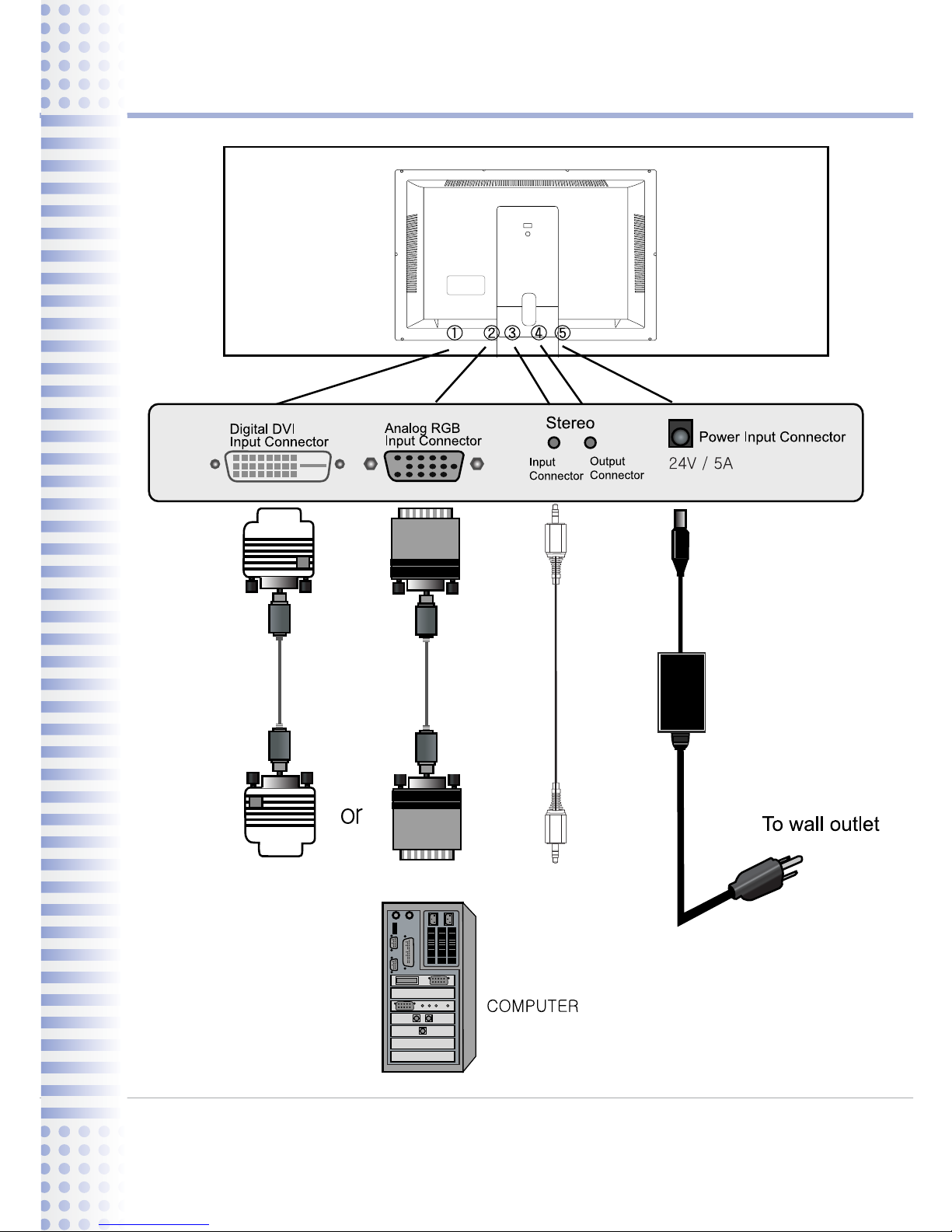

Connecting the Monitor to a Computer

Tilt the monitor back and connect the jack

Install the Monitor Driver

1.Insert the Installation CD into CD-ROM drive. In a few seconds, the installation

screen will be displayed.

2.Click on “Driver Installation” If you want to install the monitor driver.

Follow installation guide on page 11

3.You can open the manual file in PDF format once you click “Monitor Manual”.

"P240W"
