IBASE Technology MI889 Manuale utente

MI889

Intel®Pineview-M/ Pineview-D +ICH8M

Luna-Pier / Luna-Pier Refresh Platform

MiniITX Motherboard

USER’S MANUAL

Version 1.0

MI889 User’s Manual

Acknowledgments

AMI BIOS is a trademark of American Megatrends Inc.

PS/2 is a trademark of International Business Machines

Corporation.

Intel and Atom are registered trademarks of Intel Corporation.

Microsoft Windows is a registered trademark of Microsoft

Corporation.

Winbond is a registered trademark of Winbond Electronics

Corporation.

All other product names or trademarks are properties of their

respective owners.

MI889 User’s Manual iii

Table of Contents

Introduction .......................................................1

Checklist..............................................................................2

MI889 Specifications ..........................................................3

Board Dimensions...............................................................4

Installations .......................................................5

Installing the Memory.........................................................6

Setting the Jumpers .............................................................7

Connectors on MI889........................................................11

BIOS SETUP ....................................................21

Drivers Installation ......................................41

Intel Chipset Software Installation Utility.........................42

Intel Pineview Chipset Family Graphics Driver Installation44

Realtek High Definition Codec Audio Driver Installation46

Realtek RTL8111DL LAN Drivers Installation................47

Appendix ...........................................................49

A. I/O Port Address Map...................................................49

B. Interrupt Request Lines (IRQ)......................................52

C. Watchdog Timer Configuration....................................53

D. Digital I/O Sample Code..............................................58

MI889 User’s Manual

This page is intentionally left blank.

INSTALLATIONS

Introduction

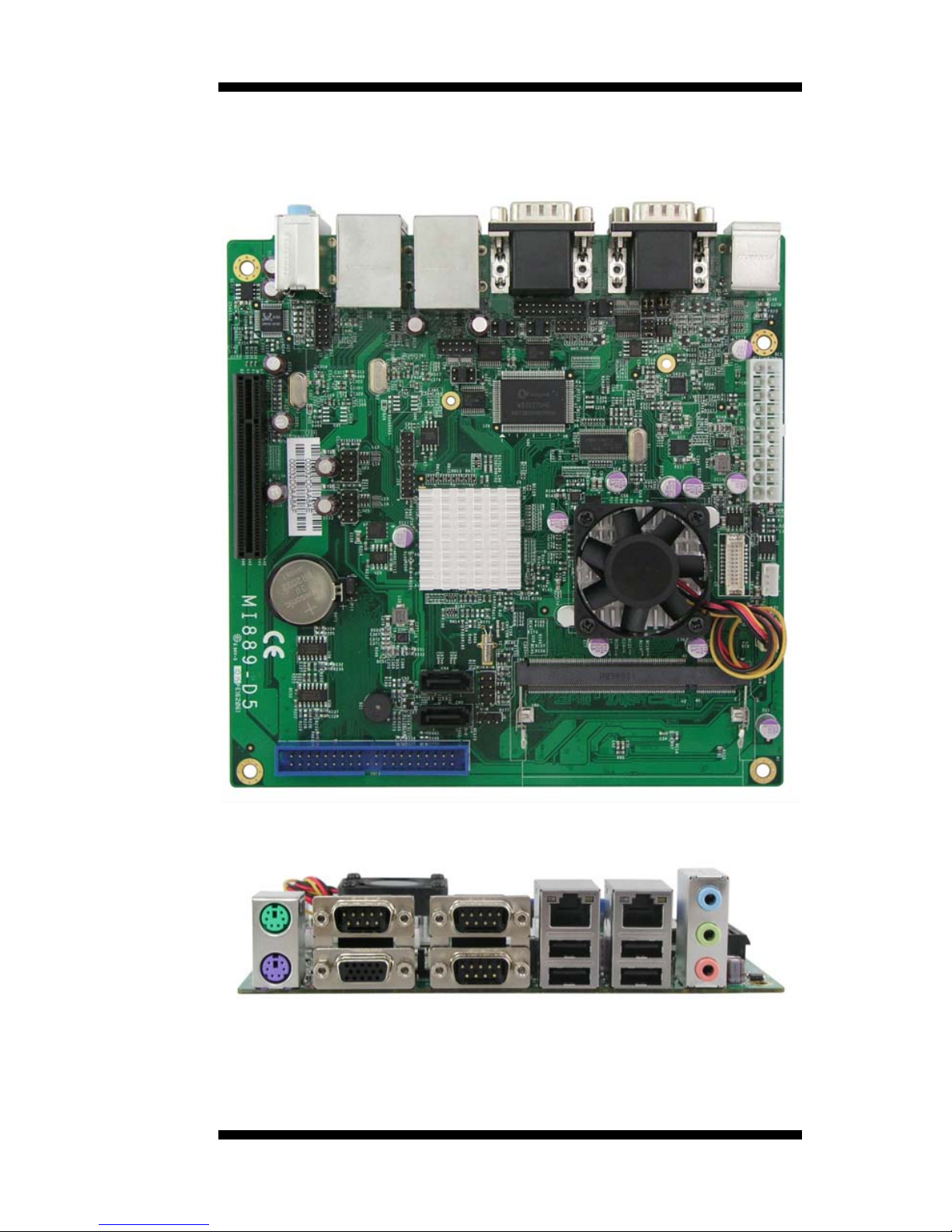

MI889 MINI ITX MOTHERBOARD

MI889 EDGE CONNECTORS

MI889 User’s Manual 1

INSTALLATIONS

MI889 User’s Manual

Checklist

Your MI889 package should include the items listed below.

•The MI889 Intel®Atom Mini-ITX motherboard

•This User’s Manual

•1 CD containing chipset drivers and flash memory utility

•Cables (IDE cable, Serial ATA cable)

INSTALLATIONS

MI889 User’s Manual 3

MI889 Specifications

Product Name MI889-D5 (main item) / MI889

Form Factor MiniITX

CPU Type Intel® Pineview-M SC / Pineview-D DC Processor

CPU Speed Intel® Atom

Single Core N450 / 1.66GHz/ 512 KB L2

cache(5.5W) [MI889]

Intel® AtomTM Dual Core D510 / 1.66GHz/ 1MB L2

cache(13W) [MI889-D5]

BIOS AMI BIOS, support ACPI Function

Chipset ICH8M: 31mm x 31mm, 676-pin T-PBGA (2.4W)

Memory DDR2 667MHz

SO-DIMM x 1 (w/o ECC), Max. 2GB , Single channel

VGA Intel® Integrated Graphics Controller (GMA3150)

Luna Pier supports DirectX 9 Graphic (200MHz)

Luna Pier Refresh supports DirectX 9 Graphic (400MHz)

OpenGL 1.4

LVDS 18-bit one channels LVDS interface w/DF13 socket x1

LAN Realtek 8111DL x 2

USB ICH8M built-in USB 2.0 host controller, support 8 ports

Serial ATA Ports ICH8M built-in SATA controller, supports 2 ports

Parallel IDE ICH8M built-in one channel Ultra DMA 33/66/100, for IDE x 1

Audio Intel ICH8M built-in audio controller w/ Realtek ALC662

Codec

Supports 5.1 CH audio (Line-out, Line-in & MIC )

LPC I/O Winbond W83627UHG :

COM1 (RS232/422/485), COM2~4 (RS232 only)

Hardware monitor (2 thermal inputs, 4 voltage monitor inputs,

VID0-4 & 1 x Fan Header)

Digital IO 4 in & 4 out

Keyboard/Mouse

Connector

Yes

Expansion Slots PCI-Express (x8) slot x1 [(x4) Link]

Edge Connector PS/2 KBMS connector x 1

DB15 + DB9 Stack connector x1 for VGA+COM 1

Dual DB9 Stack connector x 1 for COM2,3

RJ45 + Dual USB stack connector x 1 for LAN 1 + USB 1, 2

RJ45 + Dual USB stack connector x 1 for LAN 1 + USB 3, 4

Audio 3-port connector x 1 (Line-out, Line-in, MIC)

Onboard Header/

Connector

8-pin header x2 for 4 USB ports

DF13 connector x1 for LVDS

DF11 10-pin connector x 1 for COM4

12-pin box header x1 for front audio

40-pin box header x1 for IDE

10-pin header x1 for Digital I/O

10-pin header x1 for LPC [debug purpose]

Watchdog Timer Yes (256 segments, 0, 1, 2…255 sec/min)

Power Connector ATX (20-pins)

Board Size 170mm x 170mm

INSTALLATIONS

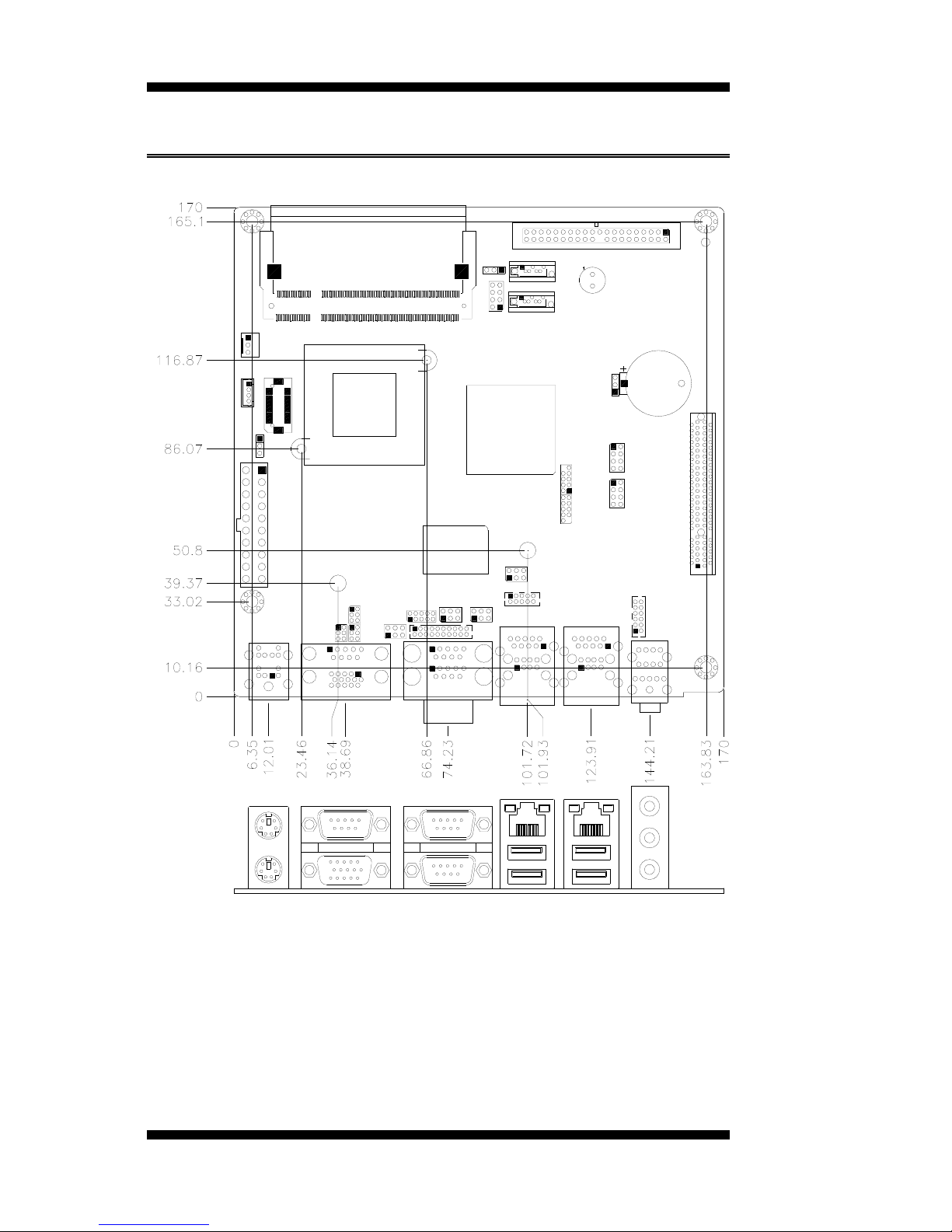

Board Dimensions

MI889 User’s Manual

INSTALLATIONS

MI889 User’s Manual 5

Installations

This section provides information on how to use the jumpers and

connectors on the MI889 in order to set up a workable system. The

topics covered are:

Installing the Memory ........................................................................... 6

Setting the Jumpers................................................................................ 7

Connectors on MI889.......................................................................... 11

INSTALLATIONS

Installing the Memory

The MI889 board supports one DDR667 DDR2 memory.

Remarks:

N450 supports SO-DIMM x 1 (w/o ECC), Max. 1GB , Single channel

D510 supports SO-DIMM x 1 (w/o ECC), Max. 2GB , Single channel

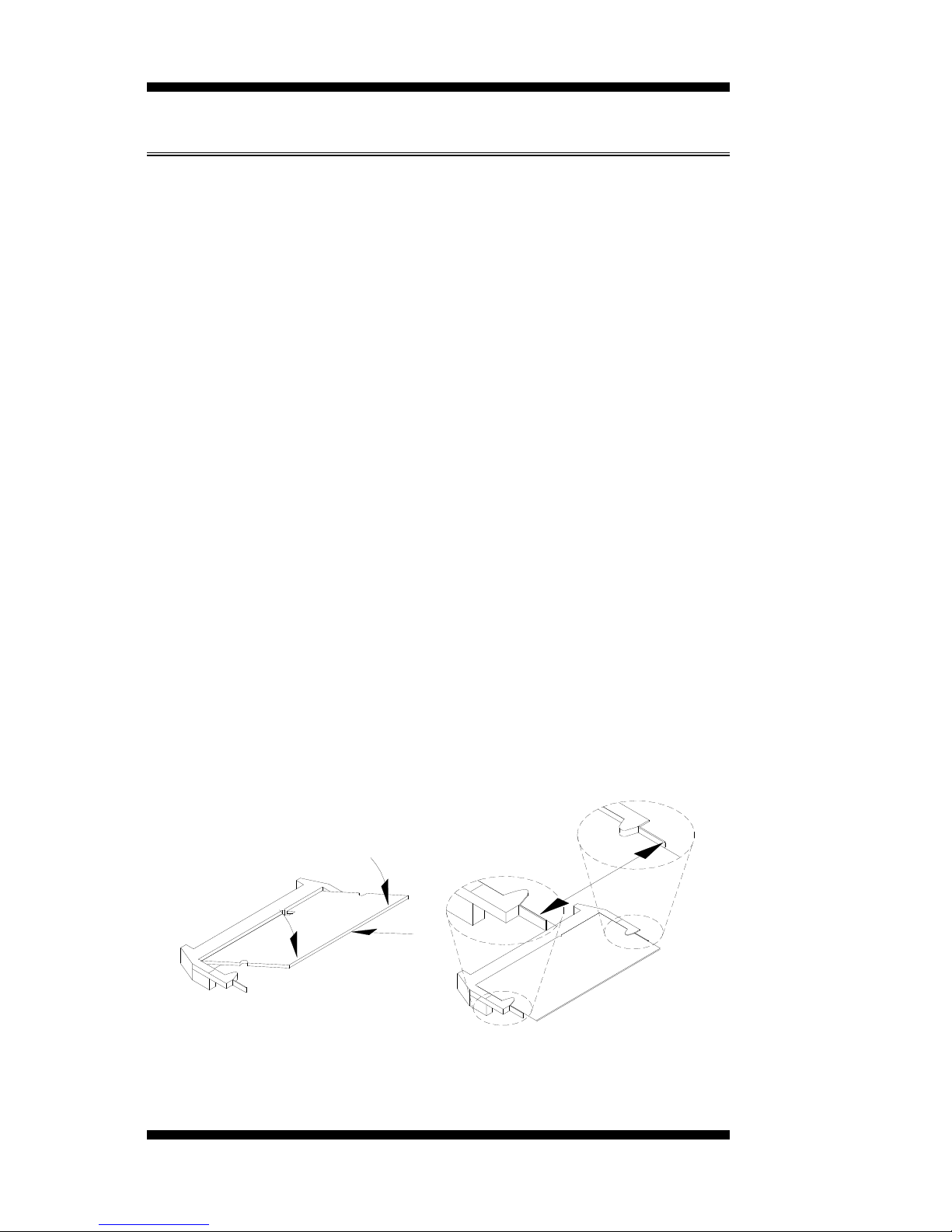

Installing and Removing Memory Modules

To install the DDR2 modules, locate the memory slot on the board and

perform the following steps:

1. Hold the DDR2 module so that the key of the DDR2 module aligns

with that on the memory slot. Insert the module into the socket at a

slight angle (approximately 30 degrees). Note that the socket and

module are both keyed, which means that the module can be installed

only in one direction.

2. To seat the memory module into the socket, apply firm and even

pressure to each end of the module until you feel it slip down into the

socket.

3. With the module properly seated in the socket, rotate the module

downward. Continue pressing downward until the clips at each end

lock into position.

4. To remove the DDR2 module, press the clips with both hands.

MI889 User’s Manual
