ICP Electronics NOVA-7895 Manuale utente

NOVA-7895

Celeron TM (Tualatin), Pentium®III Processor

Multimedia & Dual Ethernet, IEEE1394

Embedded Board

PCB Version 1.0

Manual Revision 1.1

Sep 01, 2002.

The information in this document is subject to change without prior notice in

order to improve reliability, design and function and does not represent a

commitment on the part of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special,

incidental, or consequential damages arising out of the use or inability to

use the product or documentation, even if advised of the possibility of such

damages.

This document contains proprietary information protected by copyright. All

rights are reserved. No part of this manual may be reproduced by any

mechanical, electronic, or other means in any form without prior written

permission of the manufacturer.

Trademarks

NOVA-7895 is a registered trademark of ICP Electronics Inc. IBM PC is a

registered trademark of International Business Machines Corporation. Intel

is a registered trademark of Intel Corporation. AWARD is a registered

trademark of Award Software International, Inc. Other product names

mentioned herein are used for identification purposes only and may be

trademarks and/or registered trademarks of their respective companies.

NOVA-7895 Socket 370 Celeron TM & Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board 1

Contents

1.Introduction........................................................ 4

1.1 Specifications:................................................................................. 5

1.2 Package Contents........................................................................... 8

2.Installation.......................................................... 9

2.1 NOVA-7895 Layout............................................................................. 9

2.1 NOVA-7895 Layout.......................................................................... 10

2.2 NOVA-7895 Dimensions ( Unit : mm ) .............................................. 11

2.3 Unpacking Precautions..................................................................... 12

2.4 Clear CMOS Setup ........................................................................... 12

2.5 COM2 RS-232/422,485 Selection..................................................... 13

2.6 COM Port RI and Voltage Selection ................................................. 13

2.8 LCD Panel power Setup ................................................................... 15

2.9 LCD Panel Type Selection................................................................ 15

2.10 CompactFlash™ Disk Setting ......................................................... 16

2.11 AT or ATX POWER Setting .......................................................... 16

2.12 PC104 PLUS VIO power Setup ..................................................... 17

3.Connection ....................................................... 18

3.1 Floppy Disk Drive Connector ........................................................ 18

3.2 PCI E-IDE Disk Drive Connector................................................... 19

3.3 Parallel Port .................................................................................. 20

3.4 Serial Ports ................................................................................... 21

NOVA-7895 Socket 370 Celeron TM & Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

3.5 Keyboard/Mouse Connector ........................................................ 23

3.6 External Switches and Indicators .................................................. 23

3.7 USB Port Connector ...................................................................... 24

3.8 IrDA Infrared Interface Port............................................................ 25

3.9 VGA/TV-OUT Connector (CN1/CN38/CN37) ................................ 25

3.10 LAN RJ45 Connector..................................................................... 26

3.11 Fan Connector ............................................................................... 27

3.12 Temperature Sensor Connector .................................................... 27

3.13 Audio CD IN................................................................................... 28

3.14 Audio Speaker OUT ( Reserved ) ................................................. 28

3.15 Audio Panel ................................................................................... 28

3.16 CompactFlash Storage Card Socket............................................. 29

3.17 Power Connector .......................................................................... 30

3.18 IEEE1394 Connector .................................................................... 30

3.19 Digital Input / Output ..................................................................... 30

3.20 LCD Panel Connector................................................................... 31

3.21 PCI 104 PLUS Connector............................................................. 32

4. AWARD BIOS Setup ....................................... 33

4.1 Introduction ................................................................................... 33

4.2 Starting Setup ............................................................................... 33

4.3 Using Setup .................................................................................. 34

4.4 Getting Help.................................................................................. 35

4.5 Main Menu .................................................................................... 35

4.6 Standard CMOS Setup ................................................................. 38

NOVA-7895 Socket 370 Celeron TM & Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board 3

4.7 Advanced BIOS Features Setup ................................................... 42

4.8 Advanced Chipset Features Setup ............................................... 46

4.9 Integrated Peripherals Setup ........................................................ 53

4.10 Power Management Setup ........................................................... 55

4.11 PnP/PCI Configuration Setup........................................................ 58

4.12 PC Health Status Setup…………….. ............................................ 61

4.13 Frequency / Voltage Control Setup …………….. .......................... 62

4.14 Defaults Menu Setup …………….................................................. 63

4.15 Change Supervisor/User Password…………….. .......................... 64

4.16 Exit Selection …………….. ........................................................... 65

Appendix A. Watch-Dog Timer ........................................ 67

Appendix B. POST Messages......................................... 69

Appendix C.

DMA, IRQ and 1st MB Memory and I/O Address Map .... 75

Appendix D........................................................................ 77

How to Upgrade a New BIOS ........................................... 77

Appendix E. Digital Input / Output.................................. 80

Appendix F. Flat Panel Connection Module ...............81

Appendix G. Dual View Setup......................................... 84

NOVA-7895 Socket 370 Celeron TM & Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

Introduction

Thank you for purchasing the NOVA-7895 Socket 370 Celeron®,

Pentium III®(FC-PGA) with two 10/100Mbps Ethernet ports,

VGA, IEEE1394 and Audio Board. It is equipped with a high

performance Intel®Celeron up to 1.4GHz, Pentium III (FC-PGA)

1 GHz (or above) Processor and an advanced high performance

multi-mode I/O, designed for system manufacturers, integrators,

or VARs looking to combine excellent performance, reliability

and quality at a reasonable price.

This board has a built-in IDE Interface CompactFlash™ Disk

(Type II) for embedded applications. The CompactFlash™ Disk

is 100% compatible with all hard drives. Users can use any DOS

command without installing any extra software utility. The Flash

Disk is currently available from 128MB to 1GB.

Two advanced high performance LPC super I/O chips – ITE

(IT8705F) and NS (NS87366) are used in the NOVA-7895 board.

The on-chip UARTs are compatible with NS16C550. The parallel

port and FDD interface are compatible with IBM PC/AT

architecture.

NOVA-7895 uses the advanced SIS SIS630STT Chipset which

is a 100% PCI compatible chipset (PCI 2.1 standard). In addition,

this board provides one 168-pin socket for on-board DRAM.

Each DIMM module is 3.3V SDRAM with max. 512MB.

The VGA chip (On chip SIS300) used on NOVA-7895 supports

dual view functions which can display simultaneously on two

monitors under WINDOWS 9X/ME. In general, this function is

achieved by two VGA chips.

NOVA-7895 Socket 370 Celeron TM & Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board 5

1.1 Specifications:

•CPU: support Intel Celeron®up to 566MHz(or above) , Pentium III

(FC-PGA) 500-1000Hz (or above), Tualatin 1.26GHz,1.4GHz (or

above), processors. Supports 66MHz, 100MHz and 133 MHz FSB.

•Expansion Bus: PCI & PC104 Plus bus, expansion to support PCI

bus signal

•DMA channels: 7

•Interrupt levels: 15

•Chipset: SIS630STT 66/100/133MHz CPU / DRAM Clock

•

DRAM: One 168-pin DIMM socket, supports SDRAM RAM module,

up to 512MB.

•AGP VGA Controller:On chip SIS300 3D (Share memory up to

64MB RAM)

AGP bus speed: 66MHz

VESA Compatible Resolution Graphic Mode up to:

1600 x 1200 256/32K colors 100 Hz

1280 x 1024 256/32K/64K/16M colors 120 Hz

1024 x 768 256/32K/64K/16M colors 120 Hz

800 x 600 16/256/32K/64K/16M colors 120 Hz

640 x 480 16/256/32K/64K/16M colors 120 Hz

•Support 3.3V & 5V Flat Panel.

•Support 24bit TFT wide range flat panel.

•Optional (LVDS-01) One Channel LVDS module.

NOVA-7895 Socket 370 Celeron TM & Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

•TV-OUT: On board SiS 301(optional), supports both NTSC and PAL.

Display mode support:

Two CRT output (Dual View & Dual Display)

One CRT & One TV-OUT output (Dual View & Dual Display)

One CRT & One LCD output (Dual View)

•10/100Mbps Ethernet Controller: Two Ethernet - Realtek 8100 or

Intel 82559, Auto-sensing interface to 10/100Mbps Network, RJ45

connector for 10BASE-T and 100BASE-TX, Full Duplex capability,

Full Software driver support

•Ultra DMA/66/100 (Enhanced PCI IDE Interface): Supports two PCI

Enhanced IDE hard drives. The Ultra DMA/66/100 IDE can handle

data transfer up to 66,100MB/s. Best of all, this new technology is

compatible with existing ATA-2 IDE specifications so there is no need

to make any changes to customer’s current accessory.

•Multi-I/O Chip: IT8705F, NS87366, all I/O setup by BIOS

Three 16C550 RS-232C Ports, One RS-232 or RS-422/485 Port,One

EPP/ECP Parallel Port, Floppy Port. The RS485 features auto-

direction control, ensuring that no additional direction control is

needed.

•Floppy disk drive interface: Two 2.88 MB, 1.44MB, 1.2MB, 720KB,

or 360KB floppy disk drives.

•Four high-speed Serial ports: NS16C550 compatible UARTs

•Bi-directional Parallel Port: One parallel port support, IEEE 1284

compatible.

•IrDA port: Supports Infrared and Amplitude Shift Keyed IR (ASKIR)

interface.

•USB port: Supports Four USB ports for future expansion. USB V1.2

compatible.

•Watchdog timer: Supports resolution of 1 sec and period of 1-255

secs. Reset is generated when CPU does not periodically trigger the

timer. IO port – 443H can be used to control the watch-dog .

•CompactFlash Disk – Type II CompactFlash™Disk . The Flash Disk

provides 100% compatibility with IDE hard disk.

•Digital I/O : Isolated 4 Digital Input and 4 Digital Output channels

NOVA-7895 Socket 370 Celeron TM & Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board 7

•

SIS7018 PCI Audio Chipset: Sound Blaster and Roland MPU401

compatible ( AC97 )

•Supports ATX Power function

•Dual View Function

•Mouse & Keyboard Connector : PS/2 Mouse Port Expansion

Keyboard.

•TI TSB43AB22 IEEE1394 Controller: The TSB43AB22 offers digital

and analog transceiver functions to implement a two-port node in a

cable-based IEEE 1394. It also provides two P1394a fully compliant

cable ports at 100/200/400 megabits per second (Mbits/s).

•Power Consumption : +5V : 7.5A (Celeron 1.4GHz, 256MB

SDRAM ) +12V : 0.3A

•Operating Humidity : 5 ~ 95 % , non-condensing

•Operating Temperature : -10°~ 60°C (CPU needs Cooler)

NOVA-7895 Socket 370 Celeron TM & Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

1.2 Package Contents

In addition to this User's Manual, the NOVA-7895 package

includes the following items:

•NOVA-7895 Socket 370 Celeron®, Pentium III & Dual Ethernet ,

IEEE1394 ,VGA , Audio Board

•FDD/HDD ( 1x2.54mm and 1x2.54mm Support DMA66)Cable

( 32200-000017 / 32200-000052 )

•Keyboard / Mouse Adapter Mini Dim Cable x1

( 32000-000075 / 32000-000153 )

•Printer / Serial Port ( 1x RS232 ) Cable x1

( 32000-000004 / 322000-000015 )

•Serial Port ( 14Pin 1xRS232/RS422,RS485 / 20Pin 2xRS232 )

Cable x1

( 32200-000063 / 32200-000003 )

•Audio Cable x1

( 32000-000035 )

•VGA Cable x1

( 32000-033800 )

If any of these items are missing or damaged, please contact the

dealer from whom you purchased this product. Be sure to save

the shipping materials and carton in case you want to ship or store

the product in the future.

NOVA-7895 Socket 370 Celeron TM & Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board 9

Installation

This chapter describes how to install the NOVA-7895. The layout

of the NOVA-7895 is shown on the next page and the Unpacking

Precautions are described on the following one. Also included is

the setting for the jumpers and switches on this board’s

configuration, such as CPU type selection, system clock setting

and Watchdog timer.

2.1 NOVA-7895 Layout

< please, refer to the next page >

NOVA-7895 Socket 370 Celeron TM & Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

2.1 NOVA-7895 Layout

NOVA-7895 Socket 370 Celeron TM & Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board 11

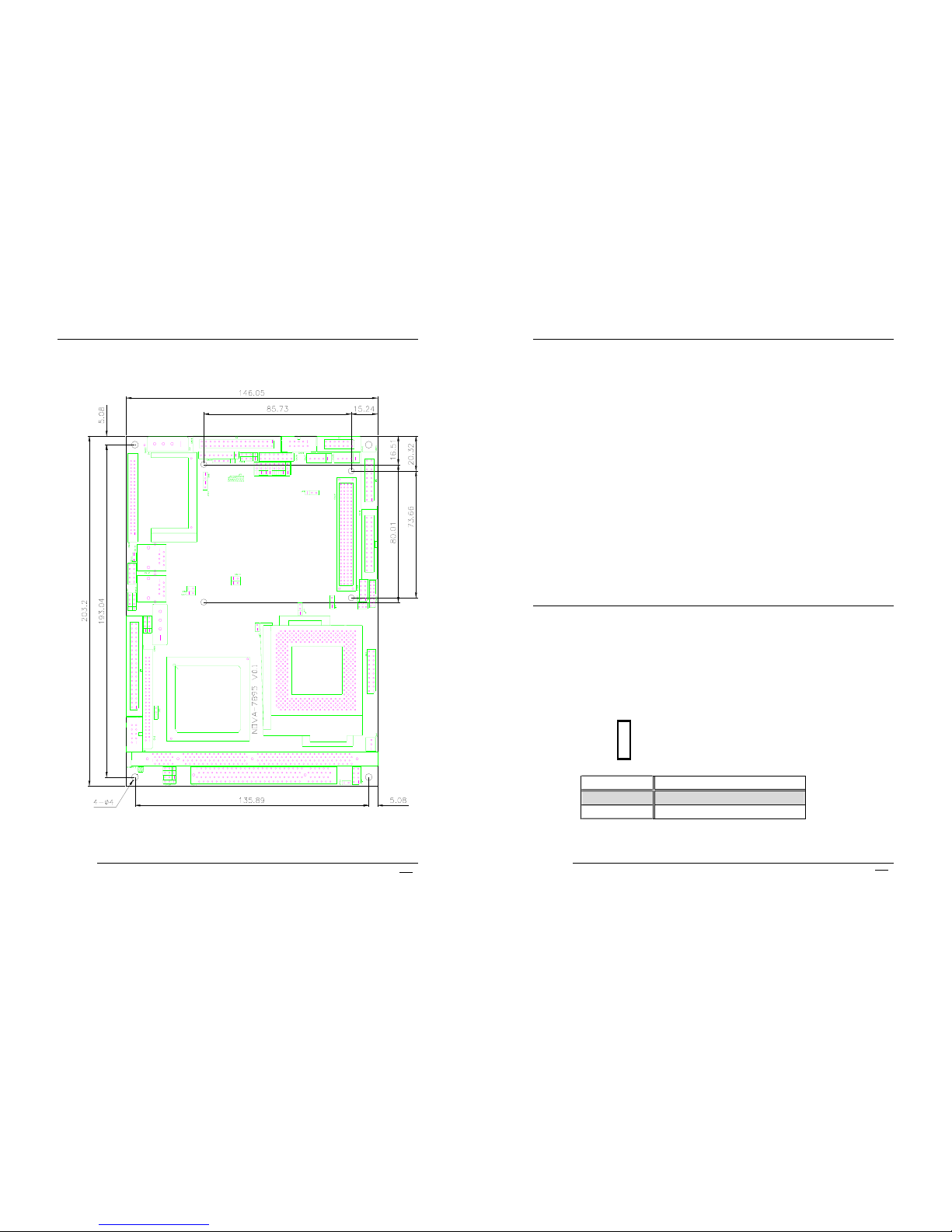

2.2 NOVA-7895 Dimensions ( Unit : mm )

NOVA-7895 Socket 370 Celeron TM & Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

2.3 Unpacking Precautions

Some of the components on the NOVA-7895 are very sensitive to

static electric charges and can be damaged by a sudden rush of

power. To protect them from accidental damage, please be sure to

follow these precautions:

 Ground yourself to remove any static charge before touching your

NOVA-7895. You can do it by using a grounded wrist strap at all

times or by frequently touching any conducting materials that are

connected to the ground.

 Handle your NOVA-7895 at the edges. Don’t touch IC chips, leads

or circuitry if not necessary.

 Do not plug in any connector or jumper while the power is on.

 Do not put your NOVA-7895 unprotected on a flat surface as it has

sensitive components on both sides.

2.4 Clear CMOS Setup

If you forget the CMOS password, you can clear or reset it by

closing the JP6. After JP6 (1-2) is closed, turn on the power for

about 3 seconds then turn it off and re-open the JP6 (1-2). Now,

the password has been cleared from your CMOS.

•JP6 : Clear CMOS Setup

PIN NO. DESCRIPTION

2-3 Normal Operation

1-2 Clear CMOS Setup



NOVA-7895 Socket 370 Celeron TM & Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board 13

2.5 COM2 RS-232/422,485 Selection

•JP8 : COM2 Mode Selection

JP8 DESCRIPTION

1-2 RS232

2-3 RS422/RS485

** 2-3 RS422 / RS485 ( Optional )

2.6 COM Port RI and Voltage Selection

•JP16, JP15: Set pin 9 of COM1 as signal RI or voltage

source

JP16 DESCRIPTION

2-3 COM1 RI Pin Use RI

1-2 COM1 RI Pin Use Voltage

JP15 DESCRIPTION

2-3 COM1 RI Pin Use Voltage +12V

1-2 COM1 RI Pin Use Voltage +5V

* If JP16 uses ( 2-3 ) then JP15 does not need any specific

setting.

•JP14, JP13: Set pin 9 of COM2 as signal RI or voltage

source



NOVA-7895 Socket 370 Celeron TM & Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

JP14 DESCRIPTION

2-3 COM2 RI Pin Use RI

1-2 COM2 RI Pin Use Voltage

JP13 DESCRIPTION

2-3 COM2 RI Pin Use Voltage +12V

1-2 COM2 RI Pin Use Voltage +5V

* If JP14 uses ( 2-3 ) then JP13 does not need any specific

setting.

•JP11, JP12:Set pin 9 of COM3 as signal RI or voltage

source

JP11 DESCRIPTION

2-3 COM3 RI Pin Use RI

1-2 COM3RI Pin Use Voltage

JP12 DESCRIPTION

2-3 COM3 RI Pin Use Voltage +12V

1-2 COM3RI Pin Use Voltage +5V

* If JP11 uses ( 2-3 ) then JP12 does not need any specific

setting.

•JP9, JP10: Set pin 9 of COM4 as signal RI or voltage

source



NOVA-7895 Socket 370 Celeron TM & Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board 15

JP9 DESCRIPTION

2-3 COM4 RI Pin Use RI

1-2 COM4RI Pin Use Voltage

JP10 DESCRIPTION

2-3 COM4 RI Pin Use Voltage +12V

1-2 COM4RI Pin Use Voltage +5V

* If JP9 uses ( 2-3 ) then JP10 does not need any specific

setting.

2.7 LCD Panel power Setup

To set the operating voltage for the LCD Panel.

•JP5 : LCD Power Setting

JP5 DESCRIPTION

2-3 +3.3V

1-2 +5V

* Set to +5V is NOT standard

2.8 LCD Panel Type Selection

NOVA-7895 can support up to 24 bit LCD.

•JP17,18,19,20 : LCD Panel Type Selection ( H/W )



NOVA-7895 Socket 370 Celeron TM & Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

Now support LCD Type:

1. IMES M121-SOHR ( 800x600 TFT)

2. LG LM151X2 ( 1024x768 TFT )

3. SAMSUNG LT121S1-153 ( 800x600 TFT )

4. SAMSUNG LT121S1-106 ( 800x600 TFT )



3 2 1

JP17 JP18 JP19 JP20 DESCRIPTION

2-3 2-3 1-2 2-3 1024X768 TFT

2-3 2-3 2-3 2-3 800X600 TFT

2.9 CompactFlash™ Disk Setting

The CompactFlash™ Disk is 100% compatible to IDE hard disk

and because it is “plug and play”, it is also easy and reliable.

The CompactFlash™ Disk is available from 128MB to 1GB.

Additionally, it can accept type II IBM Micro Driver .

•JP21: CompactFlash™Disk IDE Master & Slave Setting

1 * CompactFlash™Disk Use Secondary

2 IDE Channel

PIN NO. DESCRIPTION

Open Slave

Short Master

2.10 AT or ATX POWER Setting

•JP22: POWER AT or ATX Setting



NOVA-7895 Socket 370 Celeron TM & Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board 17

PIN NO. DESCRIPTION

Open ATX

Short AT

2.11 PC104 PLUS VIO power Setup

To set the operating voltage for the PC104 Plus interface Vio.

•JP30 : PC104 PLUS VIO Power Setting

JP30 DESCRIPTION

1-2 +3.3V

2-3 +5V

NOVA-7895 Socket 370 Celeron TM & Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

Connection

This chapter describes how to connect peripherals, switches and

indicators to the NOVA-7895 board.

3.1 Floppy Disk Drive Connector

NOVA-7895 board is equipped with a 34-pin daisy-chain driver

connector cable.

•CN26 : FDD CONNECTOR

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GROUND 2 REDUCE WRITE

3 GROUND 4 N/C

5 GROUND 6 N/C

7 GROUND 8 INDEX#

9 GROUND 10 MOTOR ENABLE A#

11 GROUND 12 DRIVE SELECT B#

13 GROUND 14 DRIVE SELECT A#

15 GROUND 16 MOTOR ENABLE B#

17 GROUND 18 D4IRECTION#

19 GROUND 20 STEP#

21 GROUND 22 WRITE DATA#

23 GROUND 24 WRITE GATE#

25 GROUND 26 TRACK 0#

27 GROUND 28 WRITE PROTECT#

29 GROUND 30 READ DATA#

31 GROUND 32 SIDE 1 SELECT#

33 GROUND 34 DISK CHANGE#

Indice

Altri manuali ICP Electronics Scheda madre

ICP Electronics

ICP Electronics JUKI- 745E Manuale utente

ICP Electronics

ICP Electronics NOVA-7896 Manuale utente

ICP Electronics

ICP Electronics ROCKY-772EV Manuale utente

ICP Electronics

ICP Electronics ROCKY-P258BX Manuale utente

ICP Electronics

ICP Electronics IEI ROCKY- 4784EVG Series Manuale utente

ICP Electronics

ICP Electronics ROCKY-P248SV Manuale utente

ICP Electronics

ICP Electronics JUKI-6752 Manuale utente

ICP Electronics

ICP Electronics ROCKY-3732EVS Manuale utente

ICP Electronics

ICP Electronics ROCKY - 058HV Manuale utente

ICP Electronics

ICP Electronics WAFER-5823 Manuale utente

ICP Electronics

ICP Electronics ROCKY-3705EV-R2 Manuale utente

ICP Electronics

ICP Electronics WAFER-5825 Manuale utente

ICP Electronics

ICP Electronics ROCKY-3786EV Manuale utente

ICP Electronics

ICP Electronics PSB Form Factor Board SAGP-845EV Manuale utente

ICP Electronics

ICP Electronics iEi ROCKY-4782E2V Manuale utente

ICP Electronics

ICP Electronics WAFER-7850 Manuale utente

ICP Electronics

ICP Electronics ROCKY-3742EVFG Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
