IEI Technology IMBA-BDE Manuale utente

ATX motherboard supports 14nm Intel® Xeon® D1500 family, DDR4,

VGA, dual Intel® GbE/dual Intel® 10GbE, four USB 3.0,

six SATA 6Gb/s, RoHS

IMBA-BDE

Quick Installation Guide

Version 1.0

Apr 28, 2017

Package List

IMBA-BDE package includes the following items:

1 x IMBA-BDE single board computer

1 x I/O shielding

2 x SATA cable

1 x Utility CD

1 x QIG

1 x One Key Recovery CD

All manuals and user guides at all-guides.com

all-guides.com

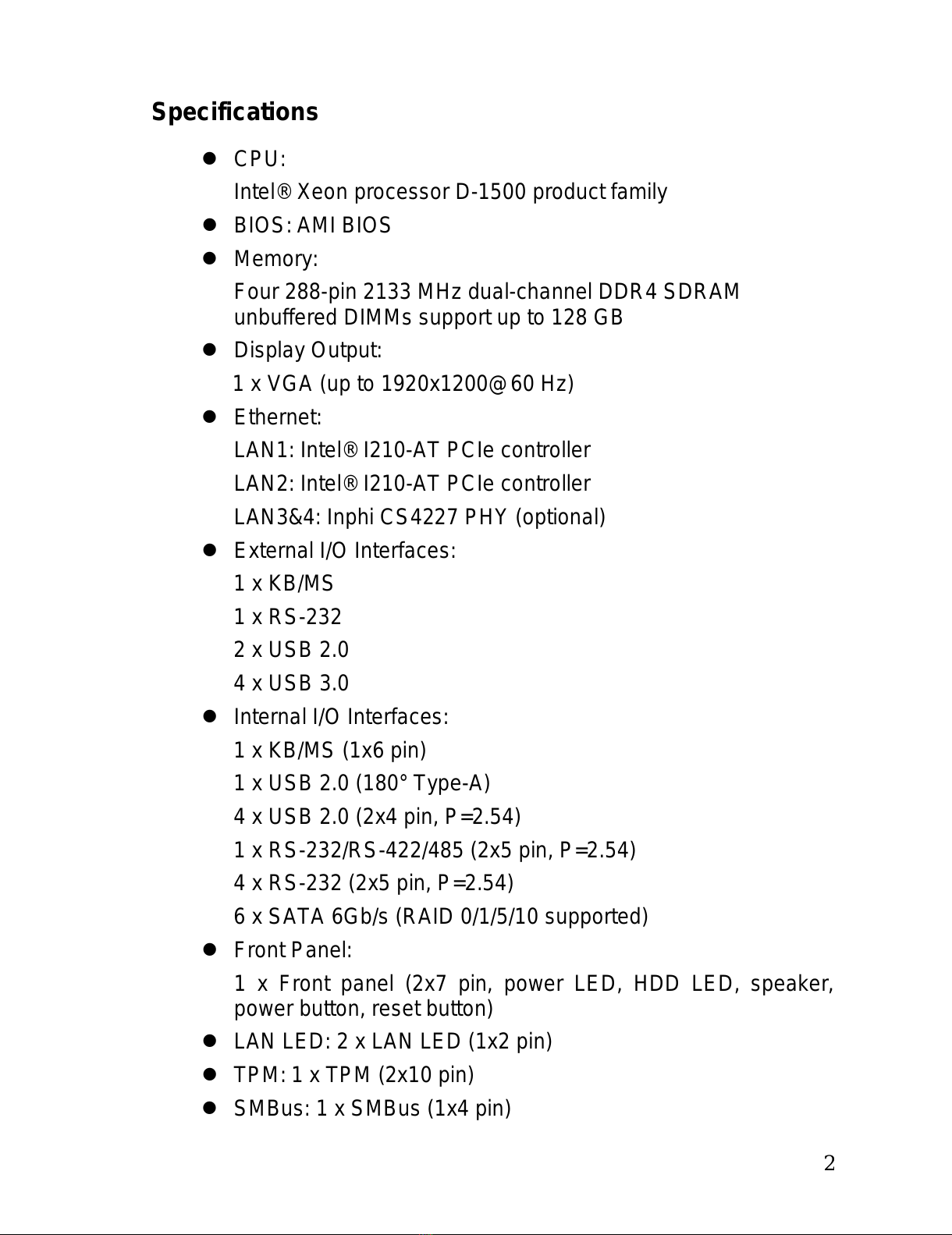

Specifications

CPU:

Intel® Xeon processor D-1500 product family

BIOS:AMI BIOS

Memory:

Four 288-pin 2133 MHz dual-channel DDR4 SDRAM

unbuffered DIMMs support up to 128 GB

Display Output:

1 x VGA (up to 1920x1200@60 Hz)

Ethernet:

LAN1: Intel® I210-AT PCIe controller

LAN2: Intel® I210-AT PCIe controller

LAN3&4: Inphi CS4227 PHY (optional)

External I/O Interfaces:

1 x KB/MS

1 x RS-232

2 x USB 2.0

4 x USB 3.0

Internal I/O Interfaces:

1 x KB/MS (1x6 pin)

1 x USB 2.0 (180° Type-A)

4 x USB 2.0 (2x4 pin, P=2.54)

1 x RS-232/RS-422/485 (2x5 pin, P=2.54)

4 x RS-232 (2x5 pin, P=2.54)

6 x SATA 6Gb/s (RAID 0/1/5/10 supported)

Front Panel:

1 x Front panel (2x7 pin, power LED, HDD LED, speaker,

power button, reset button)

LAN LED: 2 x LAN LED (1x2 pin)

TPM:1 x TPM (2x10 pin)

SMBus: 1 x SMBus (1x4 pin)

All manuals and user guides at all-guides.com

I²C: 1 x I²C (1x4 pin)

Digital I/O: 8-bit digital I/O (2x5 pin)

Expansion :

1 x 10GbE LAN card slot (white PCIe x 8 slot)

1 x M.2 connector (M key, 2242~2280, SATA & PCIe x2

signal)

1 x PCIe x4 Gen 2 (PCIE2x4_1)

5 x PCIe x4 Gen 3

Watchdog Timer:

Software programmable supports 1~255 sec. system reset

Fan Connector:

1 x CPU smart fan (1x4 pin)

1 x System smart fan (1x4 pin)

Power supply:

ATX power supply, ATX/AT mode support

Power Consumption:3.3V@0.11A, 5V@2.83A, 12V@3.97A

(Intel® Xeon D-1548 2.0GHz CPU with 32GB (four 4 GB)

2133MHz DDR4 memory)

Operating Temperature: 0°C ~ 60°C

Storage Temperature: -10°C ~ 70°C

Operation Humidity: 5% ~ 95%, non-condensing

Dimensions: 244mm x 305mm

Weight: GW: 1200g / NW: 700g

All manuals and user guides at all-guides.com

Ordering Information

ATX motherboard supports 14nm Intel® Xeon® D-1548, DDR4,

IMBA-BDE-1548-R10:

VGA, dual Intel® GbE/dual 10GbE, four USB 3.0, six SATA 6Gb/s,

RoHS

ATX motherboard supports 14nm Intel® Xeon® D-1518, DDR4,

IMBA-BDE-1518-R10:

VGA, dual Intel® GbE/dual 10GbE, four USB 3.0, six SATA 6Gb/s,

RoHS

10 GbE LAN card, dual port support, RoHS

LAN-10G2F-PHY-CS4227:

19800-000049-RS:

LPT flat cable, 240mm, P=2.54

19800-000075-RS:

PS/2 KB/MS cable with bracket, 220mm, P=2.0

Dual port USB cable with bracket, 300mm, P=2.54

19800-003100-100-RS:

RS-232 cable with bracket, Dual 10-pin to dual DB-9, 230mm,

19800-020100-100-RS:

P=2.54

SATA power cable, MOLEX 5264-4P to SATA15P

32102-000100-200-RS:

32205-003800-300-RS:

RS-422/485 cable, 200mm, P=2.0

20-pin Infineon TPM module, software management tool, firmware

TPM-IN01-R20:

v3.17

All manuals and user guides at all-guides.com

Jumpers setting and connectors

LABEL FUNCTION

J_ATX_AT1 AT/ATX Mode Select Switch

JP2, JP3 Clear CMOS Button

CN4 CPU Fan Connector

12V_ATX1 +12V Power Connector

ATX1 ATX Power Connector

JDIMM1, JDIMM2,

JDIMM3, JDIMM4

DDR4 DIMM slots

DIO1 Digital Input / Output Connector

CN7 EC Debug Port Connector

JSPI1 SPI Programming Connector For System BIOS

JSPI2 SPI Programming Connector For EC

JSPI3 SPI Programming Connector For BMC

F_PANEL1 External Switches and Indicators Panel

COM3-6 Internal RS-232 Serial Port Connectors

COM2 Internal RS-422/485 Serial Port Connector

SATA0, SATA1, SATA2

SATA3, SATA4, SATA5

Serial ATA 3.0 Connectors

CN13 SMBUS Connector

J2 EC SMBUS Debug Connector

CN5 System Fan Connector

TPM1 For BIOS Bebug Only

USB1, USB2

Internal USB 2.0 Connectors

USB3

90 Degree USB 2.0 Connector

J1 8 Pin CPLD Flash Connector

COM1 External RS-232 Serial Port Connector

LAN1_USB1

RJ45 LAN and USB 3.0 Connectors

LAN2_USB2

RJ45 LAN and USB 2.0 Connectors

LAN3_USB3

USB 2.0 Connector

KBMS1

PS/2 Keyboard and Mouse Connector

VGA1 VGA Connectors

All manuals and user guides at all-guides.com

LAN1_USB1: Ethernet and USB 3.0 connectors

LAN1: RJ45 LAN connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 MD0+ 2 MD0-

3 MD1+ 4 MD1-

5 MD2+ 6 MD2-

7 MD3+ 8 MD3-

9 VCC 10 GND

11 LINK_ACT+ 12 LINK_ACT-

13 100- 14 1000-

15 GND

USB1: External USB 3.0 connectors

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 VBUS 2 D1-

3 D1+ 4 GND1

5 STDA_SSRX1_N 6 STDA_SSRX1_P

7 GND_DRAIN 8 STDA_STX1_N

9 STDA_STX1_P

J_ATX_AT1: AT/ATX Power Mode Setting

PIN NO.

DESCRIPTION

Short A-B

ATX Power Mode (default)

Short B-C

AT Power Mode

JP2, JP3: Clear CMOS Setup

PIN NO.

DESCRIPTION

Short 1-2 (default)

Keep CMOS Setup

(Normal Operation)

Short 2-3 Clear CMOS Setup

All manuals and user guides at all-guides.com

all-guides.com

KBMS1: PS/2 Keyboard and mouse connector

KBMS1 (Purple): 6-pin Mini-DIN keyboard connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 Keyboard Data 2 NC

3 GND 4 VCC

5 Keyboard Clock 6 NC

KBMS1 (Green): 6-pin Mini-DIN Mouse Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 Mouse Data 2 NC

3 GND 4 VCC

5 Mouse Clock 6 NC

LAN3_USB3: USB 2.0 Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 VBUS 2 D1-

3 D1+ 4 GND1

LAN2_USB2: RJ45 LAN and USB 2.0 Connector

LAN2: RJ45 LAN connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 MD0+ 2 MD0-

3 MD1+ 4 MD1-

5 MD2+ 6 MD2-

7 MD3+ 8 MD3-

9 VCC 10 GND

11 LINK_ACT+ 12 LINK_ACT-

13 100- 14 1000-

15 GND

USB2: External USB 2.0 connectors

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 VBUS 2 D1-

3 D1+ 4 GND1

All manuals and user guides at all-guides.com

VGA1: VGA connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 RED 2 GREEN

3 BLUE 4 NC

5 GND 6 CRT_PLUG#

GND

9 VCC 10 GND

11 NC 12 DDCDAT

HSYNC

VSYNC

15 DDCCLK

COM1: External RS-232 serial port connector

PIN NO.

DESCRIPTION

DATA CARRIER DETECT

(DCD1)

RECEIVE DATA

(RXD1)

TRANSMIT DATA

(TXD1)

DATA TERMINAL READY

(DTR1)

GND

(GND1)

DATA SET READY

(DSR1)

REQUEST TO SEND

(RTS1)

CLEAR TO SEND

(CTS1)

RING INDICATOR

(RI1)

All manuals and user guides at all-guides.com

COM3-6: Internal RS-232 serial port connectors

Function PIN DESCRIPTION PIN DESCRIPTION

COM3

1 DCD 2 DSR

3 RXD 4 RST

TXD

CTS

7 DTR 8 RI

GND

COM4

DCD

DSR

RXD

RST

TXD

CTS

DTR

GND

COM5

DCD

DSR

RXD

RST

TXD

CTS

DTR

GND

COM6

DCD

DSR

RXD

RST

TXD

CTS

37 DTR 38 RI

39 GND 40 GND

COM2: Internal RS422/485 Connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

RXD485#

RXD485+

TXD485+

TXD485#

All manuals and user guides at all-guides.com

CN4&5:CPU & System Fan Connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

GND

+V12S

Rotation Signal

PWM Control Signal

JSPI3: SPI Programming Connector For BMC

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

+V3.3M_SPI_CON

SPI_CS

SPI_SO_SW

SPI_CLK_SW

SPI_SI_SW

GND

JSPI2: SPI Programming Connector For EC

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 +V3.3M_SPI_CON 2 SPI_CS

SPI_SO_SW

SPI_CLK_SW

SPI_SI_SW

GND

JSPI1: SPI Programming Connector For System BIOS

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

+V3.3M_SPI_CON

SPI_CS

SPI_SO_SW

SPI_CLK_SW

SPI_SI_SW

GND

SATA0~5: Serial ATA 3.0 connectors

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

GND

RX-

TX+

RX+

TX-

GND

N/C
