IHP F1762 Manuale utente

FM100 FLOOR MEDIA KIT

[FOR USE WITH APPLIANCE MODELS BLAZE&GLOW18/24, MAGNIFLAME24/30, MULTISIDED27, DUAL-FLAME EOS18, MONTEBELLO18/24, SHERIDAN18/24, MNF24/30/36

LMF24/30/36, GLOWRAMP LBG18/24/30/36, MULTI-SIDED FVFM27, VF18/24, DUAL-BURNER VD1824, SINGLE-BURNER VS1824, SOMERSET27 FVFM27]

FM100 FLOOR MEDIA KIT

P/N 115579-01

Rev. B, 04/2017

HEARTH PRODUCTS

KITS AND ACCESSORIES

Cat. No. Model Description

F1762 FM100 Floor Media Kit

REQUIRED TOOLS AND SUPPLIES

None

GENERAL INFORMATION

The ﬂoor media kit is used to give a more natural appearance to the

ﬁreplace ﬂoor where the gas log set is installed.

READ ALL THE STEPS BEFORE STARTING THE INSTALLATION

THE APPLIANCE MUST BE OFF AND COLD BEFORE BEGINNING.

ALL WARNINGS, PRECAUTIONS AND INSTRUCTIONS IN THE

INSTALLATION AND OPERATION MANUAL PROVIDED WITH THE

APPLIANCE APPLY TO THESE INSTRUCTIONS.

If you encounter any problems, need clariﬁcation of these instructions

or are not qualiﬁed to properly install this kit, contact you local

distributor or dealer.

If any of these parts are missing or damaged, contact your dealer or

IHP.us.com for referral information.

KIT CONTENTS

9 ea. Fiber Log Pieces

1 ea. Volcanic Stone

1 ea. Ember Material

1 ea. Instruction Sheet

WARNING

•Make sure the unit is turned off and cool before

adding ﬂoor media material to ﬁreplace ﬂoor.

•Do not add extra logs or ornaments such as pine

cones, vermiculite or glowing embers (rockwool).

Using these added items can cause sooting. Use

only the material included in this kit.

•Do not place volcanic stone, embers or ﬁber log

pieces on logs or burners. This may cause sooting.

Placeﬂoormediamaterialonlyontheﬁreplaceﬂoor.

Figure 1 - FM100 Floor Media Kit

Figure 2 - Placing Volcanic Stone

IHP.us.com 1

INSTALLING FLOOR MEDIA KIT

1. Place decorative log pieces randomly as desired on ﬁreplace hearth.

Place volcanic stone around base of unit making sure the burner

ports and valve access are not blocked (see Figure 2). Retain a

small amount of volcanic stone to be used in step 4.

fire-parts.com

2IHP.us.com

Printed in U.S.A. © 2004 Innovative Hearth Products

P/N 115579-01 Rev. B 04/2017

IHP reserves the right to make changes at any time, without notice, in design, materials, speciﬁca-

tions, prices and also to discontinue colors, styles and products. Consult your local distributor

for ﬁreplace code information.

IHP

1508 Elm Hill Pike, Suite 108 • Nashville, TN 37210

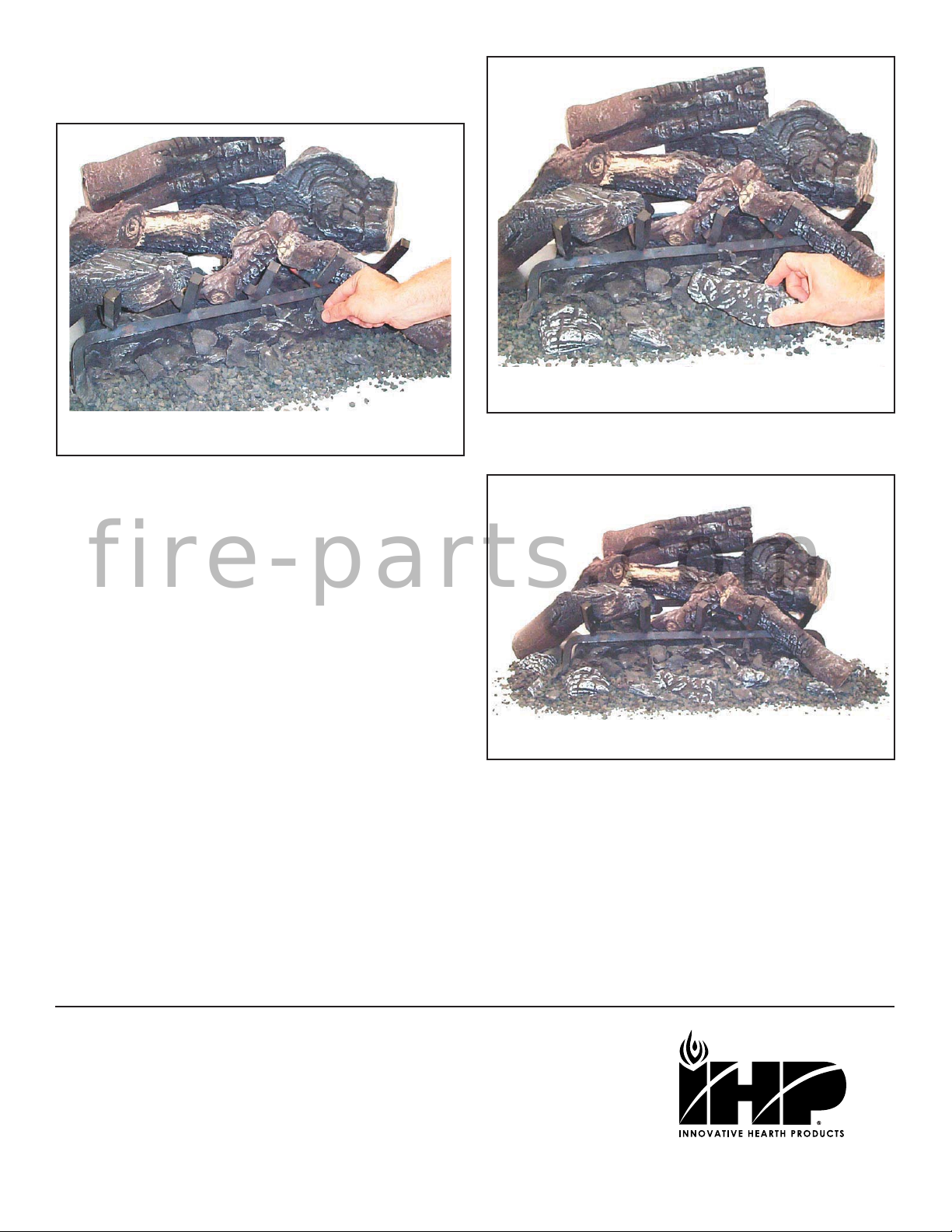

Figure 5 - Floor Media Kit Installed

Figure 3 - Placing Ember Material

Figure 4 - Placing Fiber Log Pieces

3. Place ﬁber log pieces randomly on volcanic stone and ember mate-

rial around unit (see Figure 4).

2. Place ember material around front and sides of unit close to (but

NOT on) he burner (see Figure 3). Embers will "glow" when heated

to enhance the realistic look of your log set.

4. Use remaining volcanic stone to blend the ﬂoor media together.

Your ﬁnished effect should resemble Figure 5.
