1

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

CONTEMPORARY FACADE KITS

GENERAL INFORMATION

The Contemporary Facade Kit is composed of two separate elements

(one base kit and one panel kit with trim) that are purchased separately.

Refer to Table 1.

NOTE: To complete one Facade a selection of one Base and one Panel

kit must be made.

The Panel must be installed on a properly positioned Gemini CD or

DRC3000 ﬁreplace. Refer to Installation and Operation manual for detailed

instructions. Refer to Table 2 for facade signiﬁcant dimensions.

INSTALLATION INSTRUCTIONS FOR CONTEMPORARY FACADE KITS

FOR USE WITH GEMINI CD AND DRC3000 FIREPLACES

HEARTH PRODUCTS

KITS AND ACCESSORIES

P/N 506020-32

Rev. A, 08/2016

A

B

D

C

E

F

Contemporary Facade Units

35” Models 40” Models

Description Cat. No. Model No. Cat. No. Model No.

Choose One Base Kit

Facade Base Black F2460 FBBK35CD F2462 FBBK40CD

Facade Base

Stainless F2461 FBSS35CD F2463 FBSS40CD

And Choose One Panel Kit

Facade Panel Black * F2464 FPBK35CD F2466 FPBK40CD

Facade Panel

Stainless * F2465 FPSS35CD F2467 FPSS40CD

Table 1

Facade Dimensions

ABCDEF

35” Model 44-1/2

(1130)

32-7/8

(835)

35-1/2

(902)

23-7/8

(606)

29

(737)

16

(406)

40” Models 49-1/2

(1257)

37-7/8

(962)

40-1/2

(1029)

28-7/8

(733)

34

(864)

21

(533)

Table 2

Figure 1

Start by locating the ﬁreplace face brackets indicated by the arrows

at the top Figure 1 and the ﬁreplace face foot slots indicated by the

arrows at the bottom of Figure 1. Proceed with the steps on Page 2.

INSTRUCTIONS

Base

Trim

Frame

Panel

* The panel kits include trim.

fire-parts.com

2

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

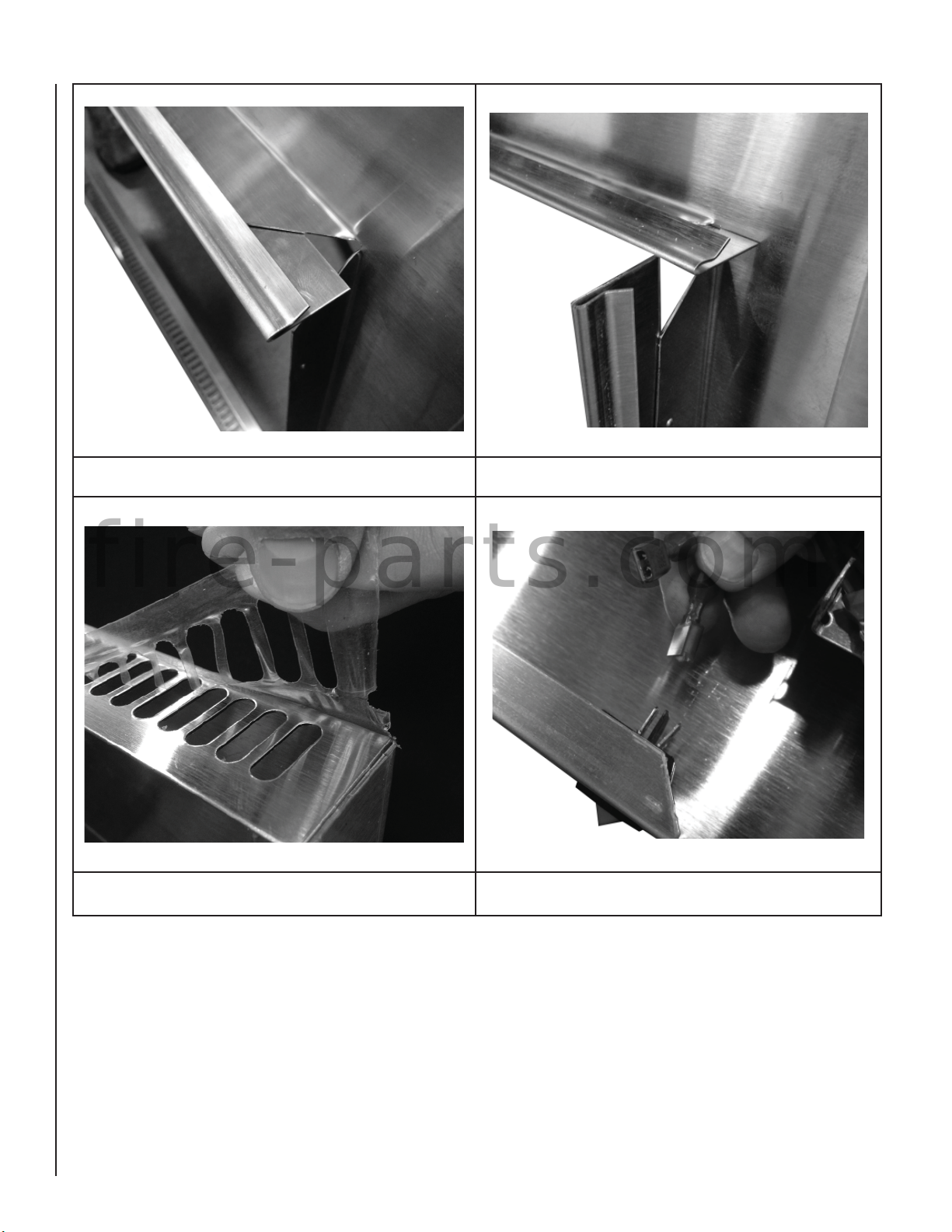

Step 1. Slide top trim pieces over ﬂange of panel until seated squarely. Step 2. Slide side trim pieces into place (top will overlap slightly).

Repeat Step 1 and Step 2 for bottom and opposite side trim for panel.

NOTE: Remove protective ﬂim from all stainless components

before installation.

Step 3. Plug lead wires into the IPI Switch on right side of

facade base.

fire-parts.com

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

3

Step 4a. Slide the foot tabs of the facade base into the slots (see Figure

1)on both sides near the bottom of the ﬁreplace opening.

Step 4b. Tilting the facade base up on its foot tabs, secure the top by

engaging the three brackets (see Figure 1)on the face of the ﬁreplace

with the three cut outs on the back top of the facade base.

(Black Base and Stainless Panel shown)

Step 5. Slide the tabs on the back of both sides of the facade panel

into the slots on the base.

Fireplace

Face

Bracket

Facade

Base

Cutouts

fire-parts.com

4

Printed in U.S.A. © 2015 Innovative Hearth Products

P/N 506020-32 Rev. A 08/2016

IHP reserves the right to make changes at any time, without notice, in design, materials,

speciﬁcations, prices and also to discontinue colors, styles and products. Consult your local

distributor for ﬁreplace code information.

1508 Elm Hill Pike, Suite 108 • Nashville, TN 37210
