LAGAN

HGA4K

ENGLISH 4

Contents

Safety information 4

Safety Instructions 5

Product description 8

Daily use 9

Hints and tips 10

Care and cleaning 10

Troubleshooting 11

Technical information 12

Installation 14

Subject to change without notice.

Safety information

Before the installation and use of the appliance, carefully read

the supplied instructions. The manufacturer is not responsible if

an incorrect installation and use causes injuries and damages.

Always keep the instructions with the appliance for future

reference.

Children and vulnerable people safety

•This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the

hazards involved.

•Do not let children play with the appliance.

•Keep all packaging away from children.

•Keep children and pets away from the appliance when it

operates or when it cools down. Accessible parts are hot.

•If the appliance has a child safety device, we recommend you

activate it.

•Cleaning and user maintenance shall not be made by

children without supervision.

•Children of less than 3 years should be kept away unless

continuously supervised.

ENGLISH 4

General Safety

•The appliance and its accessible parts become hot during

use. Do not touch the heating elements.

•Do not operate the appliance by means of an external timer

or separate remote-control system.

•Unattended cooking on a hob with fat or oil can be

dangerous and may result in fire.

•Never try to extinguish a fire with water, but switch off the

appliance and then cover flame e.g. with a lid or a fire

blanket.

•Do not store items on the cooking surfaces.

•Metallic objects such as knives, forks, spoons and lids should

not be placed on the hob surface since they can get hot.

•Do not use a steam cleaner to clean the appliance.

•If the supply cord is damaged, it must be replaced by the

manufacturer, an authorized Service or similarly qualified

persons in order to avoid a hazard.

•Where the appliance is directly connected to the power

supply, an all-pole isolating switch with a contact gap is

required. Complete disconnection in compliance with the

conditions specified in overvoltage category III must be

guaranteed. The earth cable is excluded from this.

•When you route the mains cable, make sure that the cable

doesn't come into direct contact (for example using insulating

sleeving) with parts that can reach temperatures of more than

50°C above room temperature.

Safety Instructions

Installation

Warning! Only a qualified

person must install this

appliance.

• Remove all the packaging.

• Do not install or use a damaged

appliance.

• Obey the installation instruction supplied

with the appliance.

• Keep the minimum distance from the

other appliances and units.

ENGLISH 5

• Always be careful when you move the

appliance because it is heavy. Always

wear safety gloves.

• Seal the cut surfaces with a sealant to

prevent moisture to cause swelling.

• Protect the bottom of the appliance from

steam and moisture.

• Do not install the appliance adjacent to

a door or under a window. This prevents

hot cookware to fall from the appliance

when the door or the window is opened.

• If the appliance is installed above

drawers make sure that the space,

between the bottom of the appliance

and the upper drawer, is sufficient for air

circulation.

• The bottom of the appliance can get hot.

Make sure to install a non-combustile

separation panel under the appliance to

prevent access to the bottom.

Refer to the Assembly Instructions.

Electrical Connection

Warning! Risk of fire and

electrical shock.

• All electrical connections should be made

by a qualified electrician.

• The appliance must be earthed.

• Before carrying out any operation make

sure that the appliance is disconnected

from the power supply.

• Make sure that the electrical information

on the rating plate agrees with the

power supply. If not contact an

electrician.

• Make sure the appliance is installed

correctly. Loose and incorrect electricity

mains cable or plug (if applicable) can

make the terminal become too hot.

• Use the correct electricity mains cable.

• Do not let the electricity mains cable

tangle.

• Make sure that a shock protection is

installed.

• Use the strain relief clamp on the cable.

• Make sure the mains cable or plug (if

applicable) does not touch the hot

appliance or hot cookware, when you

connect the appliance to the near

sockets

• Do not use multi-plug adapters and

extension cables.

• Make sure not to cause damage to the

mains plug (if applicable) or to the mains

cable. Contact an Authorised Service

Centre or an electrician to change a

damaged mains cable.

• The shock protection of live and

insulated parts must be fastened in such

a way that it cannot be removed without

tools.

• Connect the mains plug to the mains

socket only at the end of the installation.

Make sure that there is access to the

mains plug after the installation.

• If the mains socket is loose, do not

connect the mains plug.

• Do not pull the mains cable to disconnect

the appliance. Always pull the mains

plug.

• Use only correct isolation devices: line

protecting cut-outs, fuses (screw type

fuses removed from the holder), earth

leakage trips and contactors.

• The electrical installation must have an

isolation device which lets you disconnect

the appliance from the mains at all poles.

The isolation device must have a contact

opening width of minimum 3 mm.

Gas connection

• All gas connections should be made by a

qualified person.

• Before installation, make sure that the

local distribution conditions (nature of the

gas and gas pressure) and the

adjustment of the appliance are

compatible.

• Make sure that there is air circulation

around the appliance.

• The information about the gas supply is

on the rating plate.

• This appliance is not connected to a

device, which evacuates the products of

combustion. Make sure to connect the

ENGLISH 6

appliance according to current

installation regulations. Pay attention to

requirements regarding adequate

ventilation.

Use

Warning! Risk of injury, burns

and electrical shock.

• Remove all the packaging, labelling and

protective film (if applicable) before first

use.

• Use this appliance in a household

environment.

• Do not change the specification of this

appliance.

• Make sure that the ventilation openings

are not blocked.

• Do not let the appliance stay unattended

during operation.

• Set the cooking zone to “off” after each

use.

• Do not put cutlery or saucepan lids on

the cooking zones. They can become hot.

• Do not operate the appliance with wet

hands or when it has contact with water.

• Do not use the appliance as a work

surface or as a storage surface.

• When you place food into hot oil, it may

splash.

Warning! Risk of fire and

explosion

• Fats and oil when heated can release

flammable vapours. Keep flames or

heated objects away from fats and oils

when you cook with them.

• The vapours that very hot oil releases

can cause spontaneous combustion.

• Used oil, that can contain food remnants,

can cause fire at a lower temperature

than oil used for the first time.

• Do not put flammable products or items

that are wet with flammable products in,

near or on the appliance.

Warning! Risk of damage to the

appliance.

• Do not keep hot cookware on the control

panel.

• Do not let cookware to boil dry.

• Be careful not to let objects or cookware

fall on the appliance. The surface can be

damaged.

• Do not activate the cooking zones with

empty cookware or without cookware.

• Do not put aluminium foil on the

appliance.

• Use only stable cookware with the

correct shape and diameter larger than

the dimensions of the burners.

• Make sure the flame does not go out

when you quickly turn the knob from the

maximum to the minimum position.

• Use only the accessories supplied with

the appliance.

• Do not install a flame diffuser on the

burner.

• The use of a gas cooking appliance

results in the production of heat and

moisture. Provide good ventilation in the

room where the appliance is installed.

• Prolonged intensive use of the appliance

may call for additional ventilation, for

example opening of a window, or more

effective ventilation, for example

increasing the level of mechanical

ventilation where present.

• This appliance is for cooking purposes

only. It must not be used for other

purposes, for example room heating.

• Do not let acid liquids, for example

vinegar, lemon juice or limescale

remover, touch the hob. This can cause

matt patches.

Care and cleaning

• Clean regularly the appliance to prevent

the deterioration of the surface material.

• Deactivate the appliance and let it cool

down before you clean it.

• Disconnect the appliance from the

electrical supply before maintenance.

• Do not use water spray and steam to

clean the appliance.

ENGLISH 7

• Clean the appliance with a moist soft

cloth. Only use neutral detergents. Do

not use abrasive products, abrasive

cleaning pads, solvents or metal objects.

• Do not clean the burners in the

dishwasher.

Disposal

Warning! Risk of injury or

suffocation.

• Contact your municipal authority for

information on how to discard the

appliance correctly.

• Disconnect the appliance from the mains

supply.

• Cut off the mains cable and discard it.

• Flat the external gas pipes.

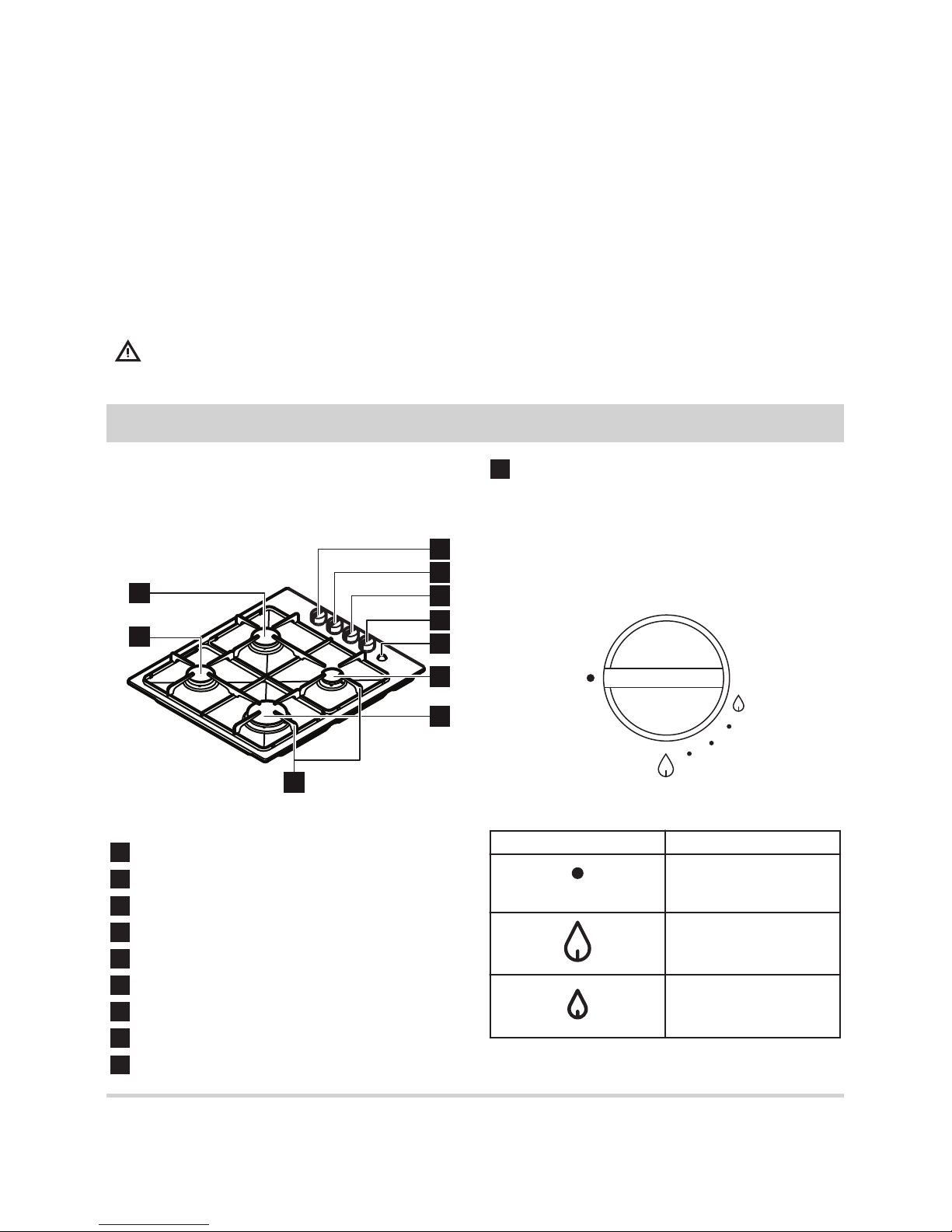

Product description

Cooking surface layout

1Auxiliary burner

2Rapid burner

3Semi Rapid burner

4Semi Rapid burner

5Semi Rapid burner control knob

6Semi Rapid burner control knob

7Rapid burner control knob

8Auxiliary burner control knob

9Ignition button

10 Removable pan supports

Control knob

The burner control knobs are situated on

the right side of the hob.

Symbol Description

there is no gas sup-

ply/off position

there is maximum

gas supply

there is minimum

gas supply

ENGLISH 8

Daily use

Warning! Refer to Safety

chapters.

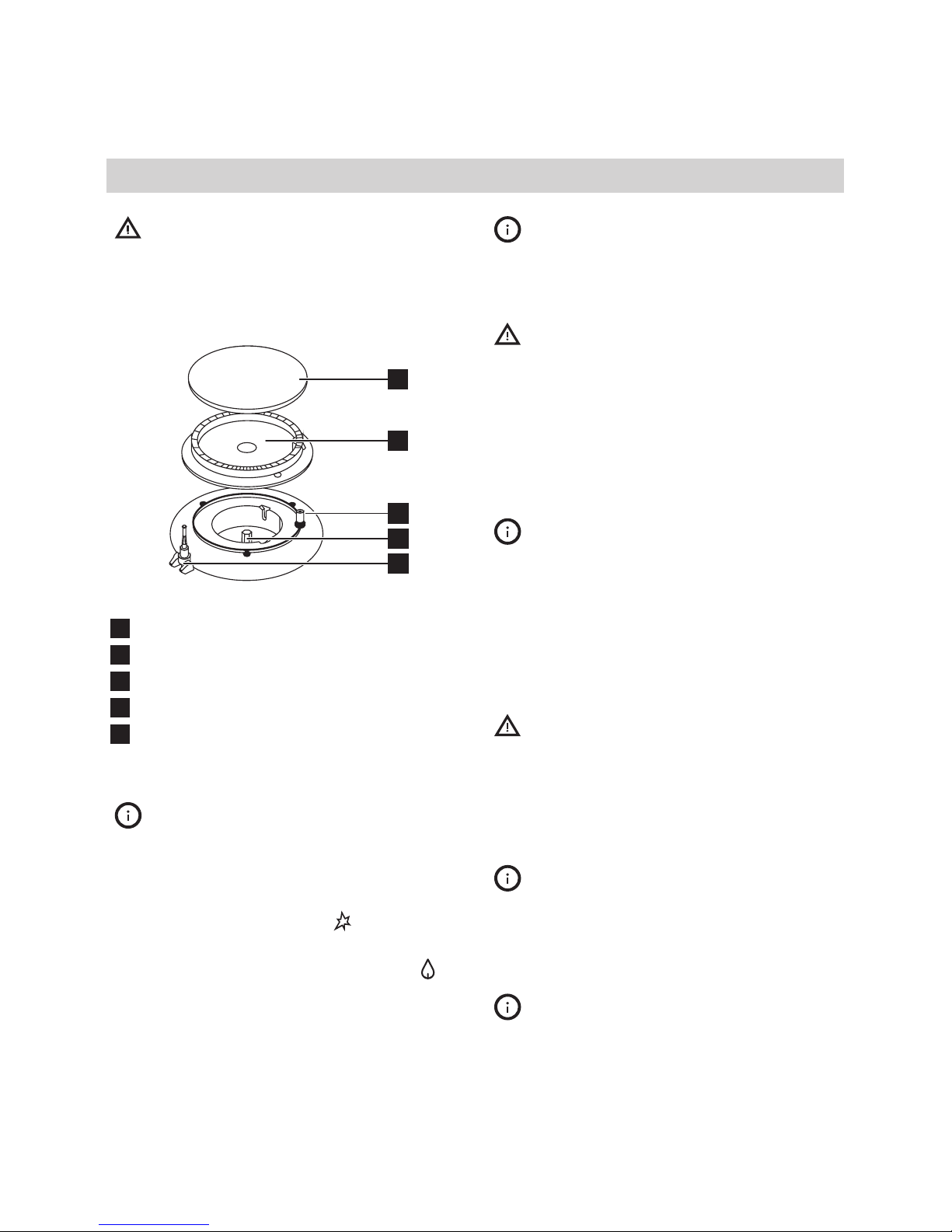

Burner overview

1Burner cap

2Burner crown

3Ignition candle

4Injector

5Thermocouple

Ignition of the burner

Always ignite the burner before

positioning pots or pans

To ignite the burner:

1. Push the electric ignition button witch is

marked by a little spark , at the same

time turn the relevant control knob

anticlockwise to maximum position .

2. Keep the knob pushed for about 5 sec;

this will allow thermocouple to heat up,

and the safety device to switch off,

otherwise the gas supply would be

interrupted.

3. After the flame is regular, adjust it as

preferred.

If after a few attempts the burner

does not ignite, check that the

crown and its cap are in correct

positions.

Warning! Do not keep control

knob pressed for more than 15

seconds. If the burner does not

light after 15 seconds, release

the control knob, turn it into off

position and wait for at least 1

minute before trying to light the

burner again.

In the absence of electricity you

can ignite the burner without

electrical device; in this case

approach the burner with a

flame, push the relevant knob

down and turn it counter-

clockwise to maximum gas

release position.

Warning! Maintain extreme

caution while operating with

open fire in kitchen environment.

Manufacturer declines any

responsibility in case of misuse of

flame.

If the burner accidentally goes

out, turn the control knob to the

off position and wait for at least

1 minute before trying to light it

again.

When switching on the mains,

after installation or a power cut,

it is quite normal for the spark

generator to be activated

automatically.

ENGLISH 9

Turning the burners off

To put the flame out, turn the relevant

control knob to the symbol .

Warning! Always turn the flame

down or switch it off before

removing the pans of the burner.

Hints and tips

Warning! Refer to Safety

chapters.

Energy savings

• If possible, always place lids on the pans.

• As soon as liquid starts boiling, turn

down the flame to barely keep the liquid

simmering.

Diameter of cookware

Use pots and pans with bottom fitting the

size of burner used.

Burner minimum

diameter of

pots and

pans (mm)

maximum

diameter

pots and

pans (mm)

Front left (Rap-

id)

180 260

Burner minimum

diameter of

pots and

pans (mm)

maximum

diameter

pots and

pans (mm)

Front right (Aux-

iliary)

80 180

Back left (Semi-

rapid)

120 220

Back right

(Semi-rapid)

120 220

The bottom of the cookware should be as

thick and flat as possible.

Care and cleaning

Warning! Refer to Safety

chapters.

General information

Warning! Switch the appliance

off and let it cool down before

you clean it.

Warning! For safety reasons, do

not clean the appliance with

steam blasters or high-pressure

cleaners.

Warning! Do not use abrasive

cleaners, steel wool pads or

acids, they will damage the

appliance.

To remove any food remains wash the

enamelled elements, caps and crowns, with

warm soapy water.

Wash stainless steel elements with water,

and then dry with a soft cloth.

This model is equipped with electrical

ignition, it is obtained through ceramic

"candle" with electrode. Keep them well

clean to avoid difficult lightning.

ENGLISH 10

Altri manuali per Lagan HGA4K

Indice

Manuali Piano cottura popolari di altre marche

Siemens

Siemens EX875KYV1E Scheda tecnica

AEG

AEG CERAMIC HOB 6010 K Manuale utente

VALERA

VALERA CT 70A Manuale utente

Zanussi

Zanussi ZGF 6420 Manuale utente

Gaggenau

Gaggenau CI 273 Manuale utente

G3 Ferrari

G3 Ferrari Energy Manuale utente

Pkm

Pkm IN4B Manuale utente

Award

Award H903BG Manuale utente

Zanussi

Zanussi VCH 5005 RZ Manuale utente

Miele

Miele KM 523 Manuale utente

Hotpoint

Hotpoint IS67V8CCXT/E Manuale utente

AEG

AEG HK854870XB Manuale utente

Cookology

Cookology SEP600BK Manuale utente

Bauknecht

Bauknecht Hob Manuale utente

Zanussi

Zanussi ZGM 782 Manuale utente

dipo INDUCTION

dipo INDUCTION DIBK218S Manuale utente

Miele

Miele KM 5987 Manuale utente

Miele

Miele KM 360 G Manuale utente
