IKEA KÖLDGRADER Manuale utente

KÖLDGRADER GB

ENGLISH

Please refer to the last page of this manual for the full list of

IKEA appointed After Sales Service Provider and relative

national phone numbers.

ENGLISH 4

Contents

Safety information 4

Safety instructions 6

Installation 8

Product description 13

Control panel 14

First use 17

Daily use 18

Hints and tips 22

Care and cleaning 24

Troubleshooting 25

Noises 29

Technical data 29

Information for test institutes 31

Environmental concerns 31

IKEA guarantee 31

Subject to change without notice.

Safety information

Before the installation and use of the appliance, carefully read

the supplied instructions. The manufacturer is not responsible

for any injuries or damage that are the result of incorrect

installation or usage. Always keep the instructions in a safe

and accessible location for future reference.

Children and vulnerable people safety

•This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning

the use of the appliance in a safe way and understand the

hazards involved.

•Children aged from 3 to 8 years are allowed to load and

unload the appliance provided that they have been properly

instructed.

•This appliance may be used by persons with very extensive

and complex disabilities provided that they have been

properly instructed.

•Children of less than 3 years of age should be kept away

from the appliance unless continuously supervised.

ENGLISH 4

•Children should be supervised to ensure that they do not

play with the appliance.

•Children shall not carry out cleaning and user maintenance

of the appliance without supervision.

•Keep all packaging away from children and dispose of it

appropriately.

General Safety

•This appliance is for storing food and baverages only.

•This appliance is designed for single household domestic

use in an indoor environment.

•This appliance may be used in, oces, hotel guest rooms,

bed & breakfast guest rooms, farm guest houses and other

similar accommodation where such use does not exceed

(average) domestic usage levels.

•To avoid contamination of food respect the following

instructions:

–do not open the door for long periods;

–clean regularly surfaces that can come in contact with

food and accessible drainage systems;

–store raw meat and sh in suitable containers in the

refrigerator, so that it is not in contact with or drip onto

other food.

•WARNING: Keep ventilation openings, in the appliance

enclosure or in the built-in structure, clear of obstruction.

•WARNING: Do not use mechanical devices or other means to

accelerate the defrosting process, other than those

recommended by the manufacturer.

•WARNING: Do not damage the refrigerant circuit.

•WARNING: Do not use electrical appliances inside the food

storage compartments of the appliance, unless they are of

the type recommended by the manufacturer.

•Do not use water spray and steam to clean the appliance.

ENGLISH 5

•Clean the appliance with a moist soft cloth. Only use neutral

detergents. Do not use abrasive products, abrasive cleaning

pads, solvents or metal objects.

•When the appliance is empty for long period, switch it o,

defrost, clean, dry and leave the door open to prevent

mould from developing within the appliance.

•Do not store explosive substances such as aerosol cans with

a ammable propellant in this appliance.

•If the supply cord is damaged, it must be replaced by the

manufacturer, its Authorised Service Centre or similarly

qualied persons in order to avoid a hazard.

Safety instructions

Installation

Warning! Only a qualied person

must install this appliance.

• Remove all the packaging.

• Do not install or use a damaged

appliance.

• Do not use the appliance before installing

it in the built-in structure due to safety

manner.

• Follow the installation instructions

supplied with the appliance.

• Always take care when moving the

appliance as it is heavy. Always use safety

gloves and enclosed footwear.

• Make sure the air can circulate around

the appliance.

• At rst installation or after reversing the

door wait at least 4 hours before

connecting the appliance to the power

supply. This is to allow the oil to ow back

in the compressor.

• Before carrying out any operations on the

appliance (e.g. reversing the door),

remove the plug from the power socket.

• Do not install the appliance close to

radiators or cookers, ovens or hobs.

• Do not expose the appliance to the rain.

• Do not install the appliance where there is

direct sunlight.

• Do not install this appliance in areas that

are too humid or too cold.

• When you move the appliance, lift it by

the front edge to avoid scratching the

oor.

• The appliance contains a bag of

desiccant. This is not a toy. This is not

food. Please dispose of it immediately.

Electrical connection

Warning! Risk of re and electric

shock.

Warning! When positioning the

appliance, ensure the supply cord

is not trapped or damaged.

Warning! Do not use multi-plug

adapters and extension cables.

• The appliance must be earthed.

• Make sure that the parameters on the

rating plate are compatible with the

electrical ratings of the mains power

supply.

• Always use a correctly installed

shockproof socket.

• Make sure not to cause damage to the

electrical components (e.g. mains plug,

mains cable, compressor). Contact the

ENGLISH 6

Authorised Service Centre or an

electrician to change the electrical

components.

• The mains cable must stay below the level

of the mains plug.

• Connect the mains plug to the mains

socket only at the end of the installation.

Make sure that there is access to the

mains plug after the installation.

• Do not pull the mains cable to disconnect

the appliance. Always pull the mains plug.

Use

Warning! Risk of injury, burns,

electric shock or re.

The appliance contains ammable

gas, isobutane (R600a), a natural gas with a

high level of environmental compatibility. Be

careful not to cause damage to the

refrigerant circuit containing isobutane.

• Do not change the specication of this

appliance.

• Any use of the built-in product as free-

standing is strictly prohibited.

• Do not put electrical appliances (e.g. ice

cream makers) in the appliance unless

they are stated applicable by the

manufacturer.

• If damage occurs to the refrigerant

circuit, make sure that there are no

ames and sources of ignition in the

room. Ventilate the room.

• Do not let hot items to touch the plastic

parts of the appliance.

• Do not put soft drinks in the freezer

compartment. This will create pressure on

the drink container.

• Do not store ammable gas and liquid in

the appliance.

• Do not put ammable products or items

that are wet with ammable products in,

near or on the appliance.

• Do not touch the compressor or the

condenser. They are hot.

• Do not remove or touch items from the

freezer compartment if your hands are

wet or damp.

• Do not freeze again food that has been

thawed.

• Follow the storage instructions on the

packaging of frozen food.

• Wrap the food in any food contact

material before putting it in the freezer

compartment.

Internal lighting

Warning! Risk of electric shock.

• This product contains one or more light

sources of energy eciency class F.

• Concerning the lamp(s) inside this

product and spare part lamps sold

separately: These lamps are intended to

withstand extreme physical conditions in

household appliances, such as

temperature, vibration, humidity, or are

intended to signal information about the

operational status of the appliance. They

are not intended to be used in other

applications and are not suitable for

household room illumination.

Care and cleaning

Warning! Risk of injury or

damage to the appliance.

• Before maintenance, deactivate the

appliance and disconnect the mains plug

from the mains socket.

• This appliance contains hydrocarbons in

the cooling unit. Only a qualied person

must do the maintenance and the

recharging of the unit.

• Regularly examine the drain of the

appliance and if necessary, clean it. If the

drain is blocked, defrosted water collects

in the bottom of the appliance.

Service

• To repair the appliance contact the

Authorised Service Centre. Use original

spare parts only.

• Please note that self-repair or non-

professional repair can have safety

consequences and might void the

guarantee.

ENGLISH 7

• The following spare parts will be available

for 7 years after the model has been

discontinued: thermostats, temperature

sensors, printed circuit boards, light

sources, door handles, door hinges, trays

and baskets. Please note that some of

these spare parts are only available to

professional repairers, and that not all

spare parts are relevant for all models.

• Door gaskets will be available for 10 years

after the model has been discontinued.

Disposal

Warning! Risk of injury or

suocation.

• Disconnect the appliance from the mains

supply.

• Cut o the mains cable and discard it.

• Remove the door to prevent children and

pets to be closed inside of the appliance.

• The refrigerant circuit and the insulation

materials of this appliance are ozone-

friendly.

• The insulation foam contains ammable

gas. Contact your municipal authority for

information on how to discard the

appliance correctly.

• Do not cause damage to the part of the

cooling unit that is near the heat

exchanger.

Installation

Warning! Refer to Safety

chapters.

Warning! Refer to installation

instruction document to install

your appliance.

Warning! Fix the appliance in

accordance with installation

instruction document to avoid a

risk of instability of the appliance.

Inspection checklist

Please follow the inspection checklist before using your appliance. If any answer

is "NO", follow the relevant action. Remember to write down the product serial

number and article number as required and attach your receipt to this page.

Product serial number (Ser. No.):

.....................................

Product article number (Art. No.):

.....................................

Purchasing date:

.....................................

GROSS CAPACITY

BRUTTO INHALT

CLASS

KLASSE

REFRIGERATOR NET CAPACITY

KUEHLSCHRANK NUTZINHALT

XXX l

TYPE-TYP

XXXXXXXXXX

230-240V

REFRIGERANT

KAELTEMITTEL

FREEZER NET CAPACITY

GEFRIERSCHRANK NUTZINHALT

XX l

FREEZING CAPACITY

GEFRIERVERMOEGEN

X kg/24h

DEFROST HEATER

ABTAUWIDERSTAND

XXX W

XXXXXXXXX

1.0 A50 Hz

MODEL

XXXXXXXXXXXX

PNC

XXXXXXXXX XX

SER.N.

XXXXXXXX

XX/X/XX/X

Made in Hungary

@ Inter IKEA System s B.V. 1999

XXXXXXXXX

PQM

xxxx

xxxxx

IKEA of Sweden AB

SE 343 81 Älmhult

TYPE I

RISING TIME

LAGERZEIT BEI STORUNG

XX h

Art. No.

Ser. No.

ENGLISH 8

To check If the answer is YES If the answer is NO

Make sure gasket seals all

around the door when the

door is closed.

No action Refer to the assembly instruction -

door alignment.

Check if there is no collision

between parts/furniture while

opening and closing the door.

No action Refer to the assembly instruction -

door alignment.

Install the appliance in the

built-in structure.

No action Follow the assembly instruction for

the proper installation.

Make sure that at rst installa‐

tion or after reversing the

door the appliance stands in

vertical position for at least 4

hours before it is connected to

the power supply.

No action Wait 4 hours before connecting the

appliance to the power supply.

ENGLISH 9

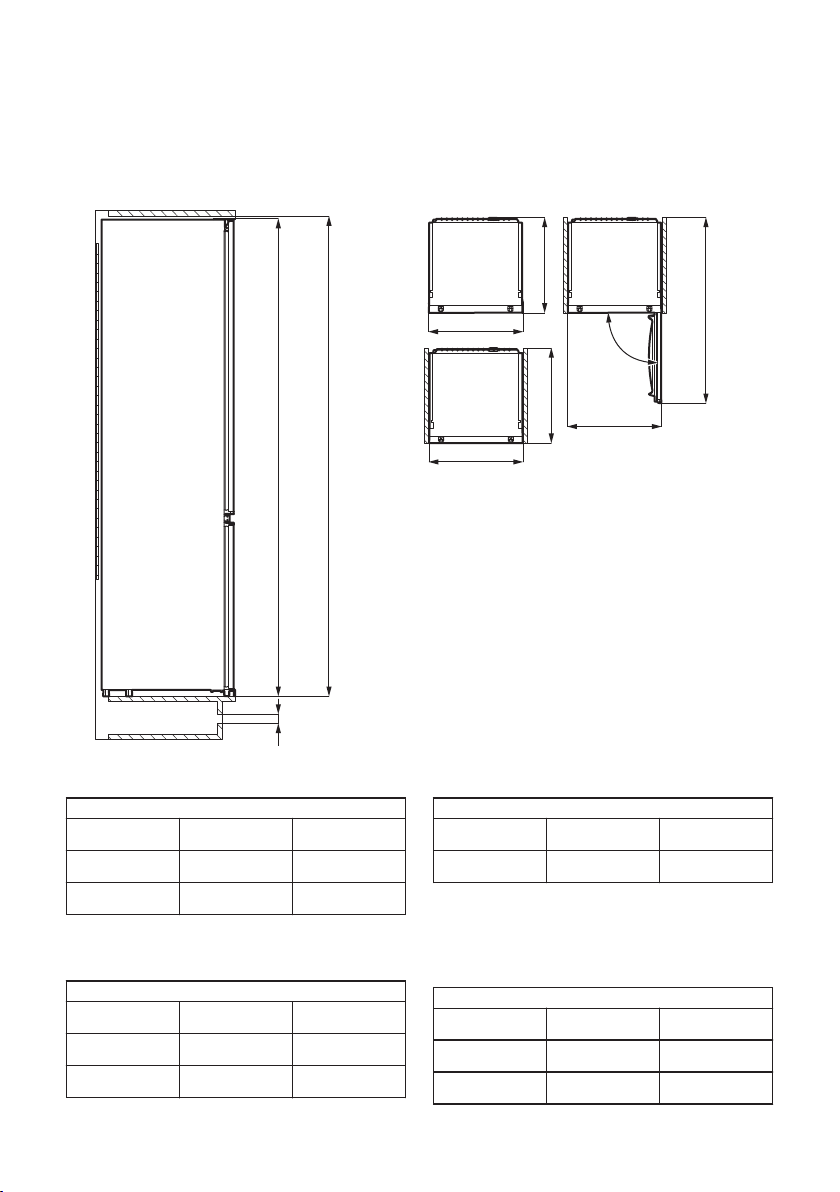

Dimensions

90°

Overall dimensions ¹

H1 mm 1884

W1 mm 546

D1 mm 549

¹ the height, width and depth of the

appliance without the handle

Space required in use ²

H2 (A+B) mm 1936

W2 mm 546

D2 mm 551

Space required in use ²

A mm 1894

B mm 36

² the height, width and depth of the

appliance including the handle, plus the

space necessary for free circulation of the

cooling air

Overall space required in use ³

H3 (A+B) mm 1936

W3 mm 546

D3 mm 1068

ENGLISH 10

Altri manuali per KÖLDGRADER

Indice

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente

Teledyne

Teledyne 6712FR and Istruzioni operative
