Infineon TLE986 Evalboard Series Manuale utente

User Manual Please read the Important Notice and Warnings at the end of this document Rev. 1.0

www.infineon.com page 1 of 20 2019-04-04

TLE986x EvalBoard User Manual

About this document

Scope and purpose

This user manual is intented to help users using the TLE986x Evalboard. This Evalboard is designed to evaluate

hardware and software functionalities of the TLE986x device family.

This manual provides additional information about the board’s layout, jumper settings, interface and debug

options. It introduces the evaluation platform as well as how to write software and download it to the TLE986x.

Intended audience

This document is for everyone who works with the TLE986x Evalboard.

User Manual 2 of 20 Rev. 1.0

2019-04-04

TLE986x EvalBoard User Manual

About this document

Abbreviations and definitions

Table 1 Abbreviations

Abbreviation

Definition

BLDC

Brushless direct current

BSL

Bootstrap loader

GH 1, 2

Gate high-side MOSFET for phases 1, 2

GL 1, 2

Gate low-side MOSFET for phase 1, 2

GPIO

General purpose input / output

ISP

In-system programmer

LIN

Local interconnect network

MON

Monitor

n.c.

Not connected

n/u

Not used

OP1

Negative operational amplifier input

OP2

Positive operational amplifier input

RST

Reset

Source low-side MOSFETs

SWD

Arm® serial wire debug

TMS

Test mode select

UART

Universal asynchronous receiver transmitter

VAREF

Reference voltage

VBAT

Battery voltage supply

VCOM

Virtual COM-port

VCP

Voltage charge pump

VDDC

Core supply

VDDEXT

External voltage supply output

VDDP

I/O port supply

VDH

Voltage drain high-side MOSFET

Battery supply input

VSD

Battery supply input for MOSFET driver

User Manual 3 of 20 Rev. 1.0

2019-04-04

TLE986x EvalBoard User Manual

Table of contents

About this document....................................................................................................................... 1

Table of contents............................................................................................................................ 3

1Concept ................................................................................................................................ 4

2Interconnects ........................................................................................................................ 5

3Test points and LEDs............................................................................................................... 7

4Jumper settings..................................................................................................................... 8

5Communication interfaces .....................................................................................................10

5.1 LIN (via banana jack and uIO BSL)........................................................................................................10

5.2 UART ......................................................................................................................................................10

5.3 Debugging..............................................................................................................................................10

6Software toolchain................................................................................................................11

6.1 Keil µVision 5 .........................................................................................................................................11

6.2 Infineon ConfigWizard...........................................................................................................................11

6.3 TLE986x SDK..........................................................................................................................................11

6.4 Debug connection setup.......................................................................................................................11

7Technical data ......................................................................................................................13

8Optional additional placements..............................................................................................14

9Schematics and layout...........................................................................................................15

9.1 Schematic..............................................................................................................................................15

9.2 Layout....................................................................................................................................................18

User Manual 4 of 20 Rev. 1.0

2019-04-04

TLE986x EvalBoard User Manual

Concept

1Concept

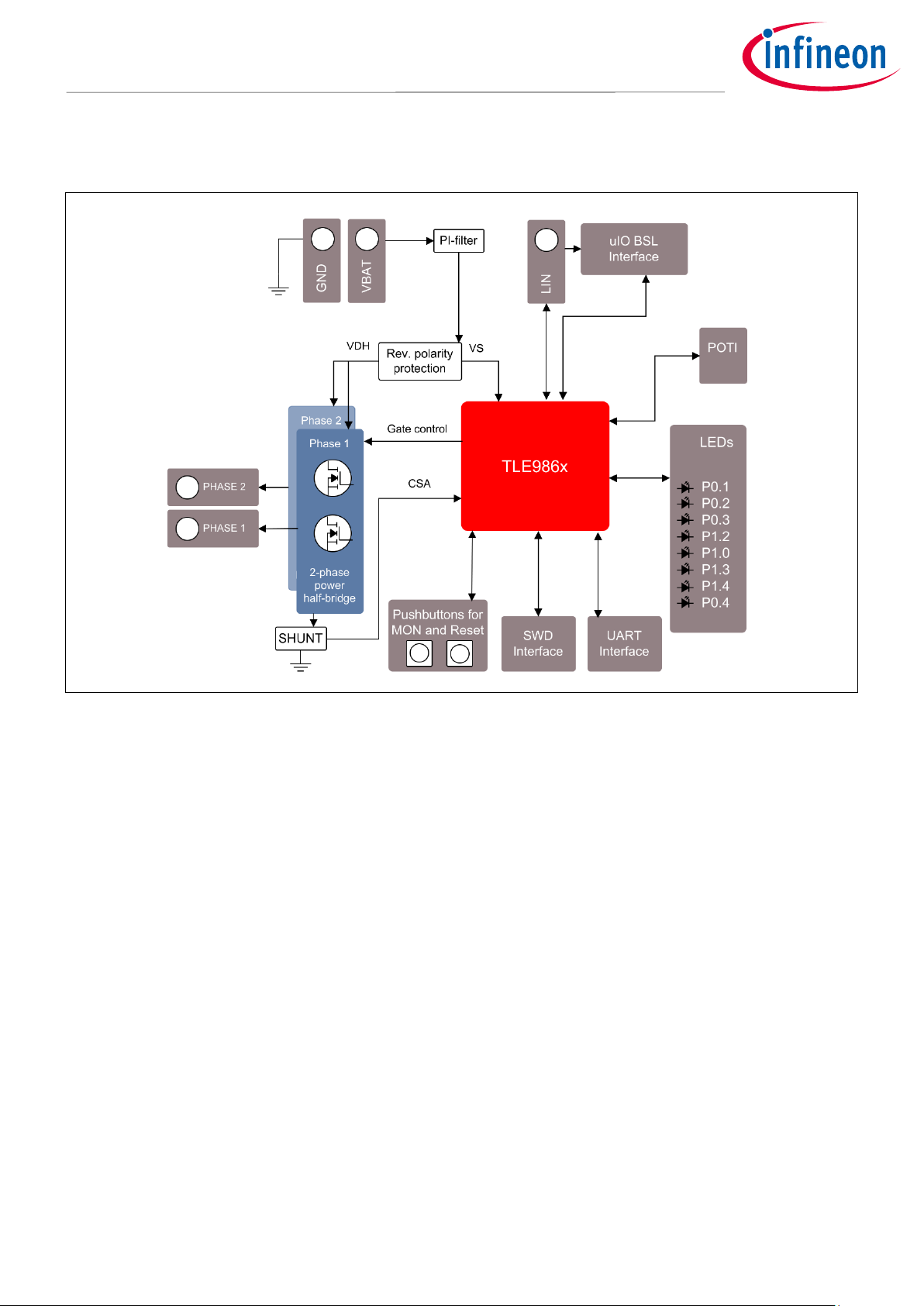

Figure 1 Board concept

This board is designed to provide a simple, easy-to-use tool for getting familiar with Infineon’s Embedded

Power IC TLE986x devices. A socket provides the possibility to test and evaluate all ICs of the TLE986x family.

Every pin of the IC is connectable via rows of pin headers. The board is protected against reverse polarity of

input voltage supply.

Two MOSFET half bridges are assembled on the board to drive a DC motor. The board is ready to be connected

to a car supply or similar and offers a SWD port to connect an external debugger.

The evaluation board can be operated by standard laboratory equipment as power supply and LIN

communication are working via banana jacks.

There is a battery LED that indicates that the board is connected to supply in the correct way. Otherwise

reverse polarity protection secures the board from damage by cross connection.

User Manual 5 of 20 Rev. 1.0

2019-04-04

TLE986x EvalBoard User Manual

Interconnects

2Interconnects

Figure 2 Interconnects

Banana jacks for ground, supply and LIN

There are jacks in different colors for ground, supply (max. 28 V) and LIN communication via banana jack. The

following jacks are available: GND (marked purple), VBAT (marked red), motor phase 1 & 2 (marked red) and LIN

(marked green).

Banana jacks for motor connection (marked red)

The two jacks Phase1 and Phase2 provide access to the two half bridges and are intended to connect a motor.

uIO Stick connector (marked green)

This uIO bootstrap loader is a 16-pin header (2 x 8) with 2.54 mm pitch.

It is intended to connect additional hardware for bootstrap loading. This interface can be used to program the

TLE986x via LIN (see www.infineon.com/uio or www.hitex.com/uio).

GND

Phase 2

Phase 1

SWD

UART-Serial

VBAT

LIN

uIO-

Stick

VBAT

User Manual 6 of 20 Rev. 1.0

2019-04-04

TLE986x EvalBoard User Manual

Interconnects

Figure 3 Pin configuration uIO BSL

Pin header for SWD (marked blue)

There is a 10 pin header (2 x 5) with 1.27 mm pitch on the evaluation board. This interface is meant to be used

for debugging.

Figure 4 Pin configuration SWD interface

5 V 1 2

3 4

5 6

7 8

GND

n.c.

SWDIO (TMS)

SWCLK (P0.0)

n.c.

910DBPRE RESET

LIN

RESET

GND

TXD1

RXD1

VDD5

GPIO3

GPIO2

GPIO1

SCS

SCLK

MISO

MOSI

AD0

GPIO0

User Manual 7 of 20 Rev. 1.0

2019-04-04

TLE986x EvalBoard User Manual

Test points and LEDs

3Test points and LEDs

Figure 5 Test points

Several ground test points are provided.

Test point LIN_INT is used to measure the LIN voltage.

Test point VDH is used to measure the voltage on the VDH pin.

Tests points Motor 1 and Motor 2 can be used to measure the voltage at phase 1 and 2 of the motor.

There are 11 LEDs for visual validations on the board:

LED 1 to 8 can be connected to GPIOs (see Table 3).

LED 9 (Vbat LED) indicates power supply.

LED 10 (Motor Status 1) lights up if the motor is running forward.

LED 11 (Motor Status 2) lights up if the motor is running backward.

Motor

Status 1

Motor

Status 2

GND

Motor 2

VDH

Motor 1

Vbat LED

GND

LIN_INT

LEDs 1-8

User Manual 8 of 20 Rev. 1.0

2019-04-04

TLE986x EvalBoard User Manual

Jumper settings

4Jumper settings

Figure 6 Jumpers

Table 2 Jumpers

JP7

Close this jumper to connect MON button to MON input. Open it to disconnect MON

button from MON input.

JP8 / JP11

Open or close these jumpers to enable or disable the measurement shunt of the current

sense amplifier.

JP9

Close this jumper to connect RESET button to RESET input. Open it to disconnect RESET

button from RESET input.

JP10

Close this jumper to connect an additional 1 kΩ pull-up resistor. This is intended for LIN

master communication. Open the jumper to use the TLE986x as slave in a LIN network.

Software for LIN low level driver can be found at the homepage of IHR (www.ihr.de).

JP12

Close this jumper to enable UART communication.

JP13

This jumper is closed by default. If this jumper is left open the device is not supplied. It is

intended to open the VSD line in order to measure the current flowing into the TLE986x

device.

JP14

Open or close these jumpers to connect or disconnect the LEDs (see Table 3).

JP15

Close this jumper to enable UART communication.

+5V_AUX_SEL

JP18

JP15

JP12

JP14

JP7JP9

JP17

JP11

JP8

JP13

JP16

JP10

User Manual 9 of 20 Rev. 1.0

2019-04-04

TLE986x EvalBoard User Manual

Jumper settings

JP16

This jumper is closed by default. If this jumper is left open the device is not supplied. It is

intended to open the VS line in order to measure the current flowing into the TLE986x

device.

JP17

Close this jumper to connect the motor status LEDs. Open it to disconnect the LEDs.

JP18

Close this Jumper to connect the potentiometer to P2.4. Open this jumper to disconnect

the potentiometer.

+5V_AUX_SEL

Open this jumper to disable the board’s voltage regulator.

Table 3 GPIOs’ function

P0.1

LED 1

P0.2

LED 2

P0.3

LED 3

P0.4

LED 8

P1.0

LED 5

P1.1

UART

P1.2

LED 4 / UART

P1.3

LED 6

P1.4

LED 7

User Manual 10 of 20 Rev. 1.0

2019-04-04

TLE986x EvalBoard User Manual

Communication interfaces

5Communication interfaces

5.1 LIN (via banana jack and uIO BSL)

The device integrated LIN transceiver is connected to a banana jack and additionally to the uIO BSL interface.

To integrate the device in a LIN network it is sufficient to use the single wire banana interface. The BSL interface

is intended to program the device via LIN. For further information about the uIO interface see

www.infineon.com/uio or www.hitex.com/uio.

5.2 UART

A RS232 connector on the board enables a serial communication.

5.3 Debugging

Debugging is possible via the SWD interface; the signals are routed through the 10 pin header SWD interface

(see Figure 4).
