Infinite Peripherals LineaPro 5 Istruzioni operative

Choose 2Rent

Phone 1 (800) 622-6484

Fax 1 (866) 937-8254

info@choose2rent.com

www.choose2rent.com

page 1 of 4

Dual Purpose Scan Button

The Linea Pro 5 uses a single dual-purpose scan button to power on the

unit as well as scanning barcodes. When the Linea Pro 5 is left idling

for an extended period, the power is automatically turned off to

preserve the charge in the internal battery pack.

Power On

When the Linea Pro 5 is in the off mode, pressing the scan button

momentarily turns on the unit. A single beep indicates the Linea Pro 5

is now ready for use.

Pressing the scan button a second time will activate the scanner for

normal bar code scanning.

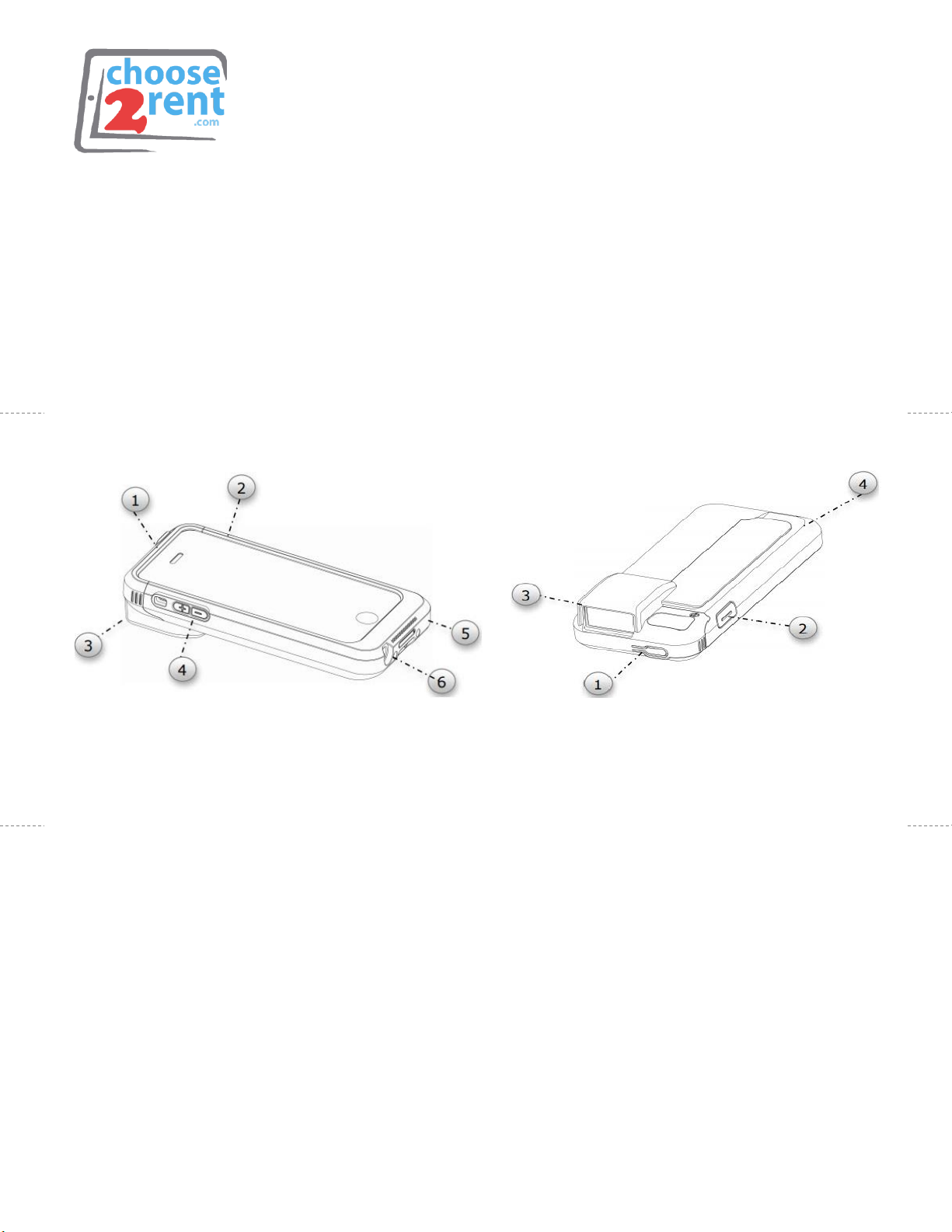

How to Use LineaPro 5 Scanner

Top Side

1. iPod/iPhone On/Off Button

2. Linea Pro 5 Scan Button and On Button

3. Scanner

4. Volume Controls

5. USB Sync/Charge Port

6. Audio Connector

Bottom Side

1. iPod/iPhone On/Off Button

2. Linea Pro 5 Scan Button and On Button

3. Scanner

4. Magnetic Stripe Reader

page 2 of 4

How to Scan

To scan a barcode, first activate the Linea Pro 5 by pressing the scan

button. Then position the scan head as close to the barcode label as

possible so that the scan line crosses both the ends of the barcode (or)

is within the width of the red illuminated box. Slowly pull back away

until the barcode has been read by the scanner as shown in the figure

below.

How to Swipe Magnetic Card Reader

First activate the Linea Pro 5 by pressing the scan button. When

placing the card into the reader, the magnetic strip must face UP as

shown in the figure below. Keep the edge of the card flat on the inner

edge of the reader to ensure that the magnetic strip passes over the

read head evenly.

page 3 of 4

How to Read RFID Cards

First activate the Linea Pro 5 by pressing the scan button. Place the

RFID tag/card over the receiver/transmitter. Keep the face of the

tag/card flat with the receiver/transmitter as close as possible.

Please Note: Depending on the type of RFID tags/cards being used, it may

be necessary for tags/cards to make direct contact with the surface where

the RFID receiver/transmitter is located for proper reading/writing.

How to Charge Linea Pro 5

1. Connect mini USB charger cable as shown.

page 4 of 4

2. Determine the charge state by viewing the status

LEDs.

LED Lighting Indications

Result from charging, active/online status, or because of low battery.

1. ALL LED is OFF

•Linea Pro 5 is in sleep or ready mode

2. One LED is FLASHING

•Lina Pro 5 is charging and syncing

3. Multiple LEDs are ON

•Linea Pro 5 is displaying battery level status.

Please call our support team if you need assistance

setting up your rental devices

1(800) 622-6484

Status LED Charge State

1LED = 25% of full charge

2LED = 50% of full charge

3LED = 75% of full charge

4LED = 100% of full charge
