Infiniton FGC-863BL Manuale utente
USER'S MANUAL
MANUAL DE USUARIO
MANUAL DE USUÁRIO
FGC-863BL
FGC-866NG
FGC-881GR
Structure illustration
Transport and handing
Installation
First use
Troubleshooting
TABLE OF CONTENTS
Important safety instructions
-39-
-40-
-40-
-41-
-48-
-34-
Cleaning and care
Helpful hints and tips
-52-
-53-
Storage of food
-46-
Door reverse
-55-
-58-
Display controls -42-
Technical specifications
Coldest zone in the refrigerator
-61-
THIS PRODUCT IS FOR HOUSEHOLD USE
ONLY!
Please read these instructions carefully
before the first use of this product and
save this manual for your future reference.
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic
precautions should always be followed,
including the following:
1. This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and
understand the hazards involved. Children
shall not play with the appliance. Cleaning
and user maintenance shall not be made
by children without supervision.
2. Do not use if supply cord is damaged. If
damaged, it must be replaced by the
manufacturer or a similarly qualified person
in order to avoid hazard.
3. In order to save power consumption,
keep the air circulation around the
appliance and dispose of food packages
before placing them in the appliance as
soon as possible.
-34-
4. Ensure the refrigerator is unplugged
before cleaning or if the product is not in
use.
5. To clean the appliance use only mild
detergents or glass cleaning products.
Never use harsh detergents or solvents.
6. It is not recommended to use this
refrigerator with an extension cord or power
board. Please ensure that the appliance is
plugged directly into the electrical outlet.
7. Do not place hot food or drink into the
refrigerator before it cools down to room
temperature.
8. Close the door immediately after
putting in any items so the inside
temperature will not rise dramatically.
9. Keep appliance away from any heat
source or direct sunlight.
10. To fix stably, the appliance must be
placed on a flat and solid surface. It should
not be laid on any soft material.
11. Do not place any other appliance on
top of the refrigerator, and do not wet it.
12. Do not store something like ether,
methanol, gasoline etc., which is easy to
evaporate burn or explode.
13. To avoid injury or death from electrical
shock do not operate the appliance with
wet hands, while standing on a wet surface
or while standing in water.
14. Do not use outdoors or in wet
conditions.
-35-
15. Never pull the cord to disconnect it
from the outlet. Grasp the plug and pull it
from the outlet.
16. Keep the cord away from heated
surfaces.
17. Do not move the appliance when it is
well filled of foods to avoid any tipping
over.
18. Check that the voltage of the power
supply in your home is the same as the
voltage shown on the rating label of this
product.
19. Connect your refrigerator to an
independent electrical socket and use a
safe ground wire.
20. When the frost in freezer is removed, or
when there is no electricity or when
refrigerator ceases to be used, it should be
cleaned in order to prevent it from smelling.
21. Defrost the freezer at least once a
month because too much frost may affect
refrigeration.
22. Do not touch the appliance with wet
hands or with naked feet on a wet floor.
23. Do not store explosive substances such
as aerosol cans with a flammable
propellant in this appliance.
24. Turn on electricity only 5 minutes later
after electricity goes off. Otherwise, the
compressor may be damaged.
25. Children should be supervised to
ensure that they do not play with the
appliance.
-36-
26. The appliance is not intended to be
operated by means of an external timer or
a separate remote –control system.
27. This appliance has been incorporated
with a grounded plug. Please ensure the
wall outlet in your house is well earthed.
28. It is recommended to check regularly
the supply cord for any sign of possible
deterioration, and the appliance should
not be used if the cable is damaged.
29. WARNING: Keep ventilation opening, in
the appliance enclosure or in the built-in
structure, clear of obstruction.
30. WARNING: Do not use mechanical
devices or other means to accelerate the
defrosting process, other than those
recommended by the manufacturer.
31. WARNING: Do not use electrical
appliances inside the food storage
compartments of the appliance, unless
they are of the type recommended by the
manufacturer.
32. WARNING: Do not damage the
refrigerant circuit.
33. This appliance is intended to be used in
household and similar applications such as:
- staff kitchen areas in shops, offices and
other working environments;
- farm houses;
- by clients in hotels, motels and other
residential type environments;
- bed and breakfast type environments.
-37-
35. Regarding the information for
replacing of the lamps of the appliance,
thanks to refer to the below paragraph of
the manual.
36. Regarding the information pertaining
to the installation, handing, maintenance,
servicing and disposal of the appliance,
thanks to refer to the below paragraph of
the manual.
-38-
1. Cabinet
2. LED light
3. Glass shelf
4. Chiller box cover
5. Chiller box
6. Vegetable box cover
7. Vegetable box
8. Upper freeze drawer
9. Middle freeze drawer
10. Lower freeze drawer
11. Leg front(left)
12. Gasket refrigerator
13. Upper rack
14. Lower rack
15. Door refrigerator
16. Gasket freezer
17. Door Freezer
18. Leg front(right)
STRUCTURE ILLUSTRATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
-39-
When transportation, hold the base and lift the
refrigerator carefully with an angle inferior at
45 degree. Never hold the door handle as
support. Never place it upside down nor
horizontally. Push refrigerator on its basis and
place it thanks to its roller feet.
To fix stably, the appliance must be placed on
a flat and solid surface. It should not be laid on
any soft material.
Choose a location where there is no heat
source. Keep the refrigerator away from direct
sunlight or other appliance producing heat.
Choose a dry and well-ventilated place where
there is no corrosive air.

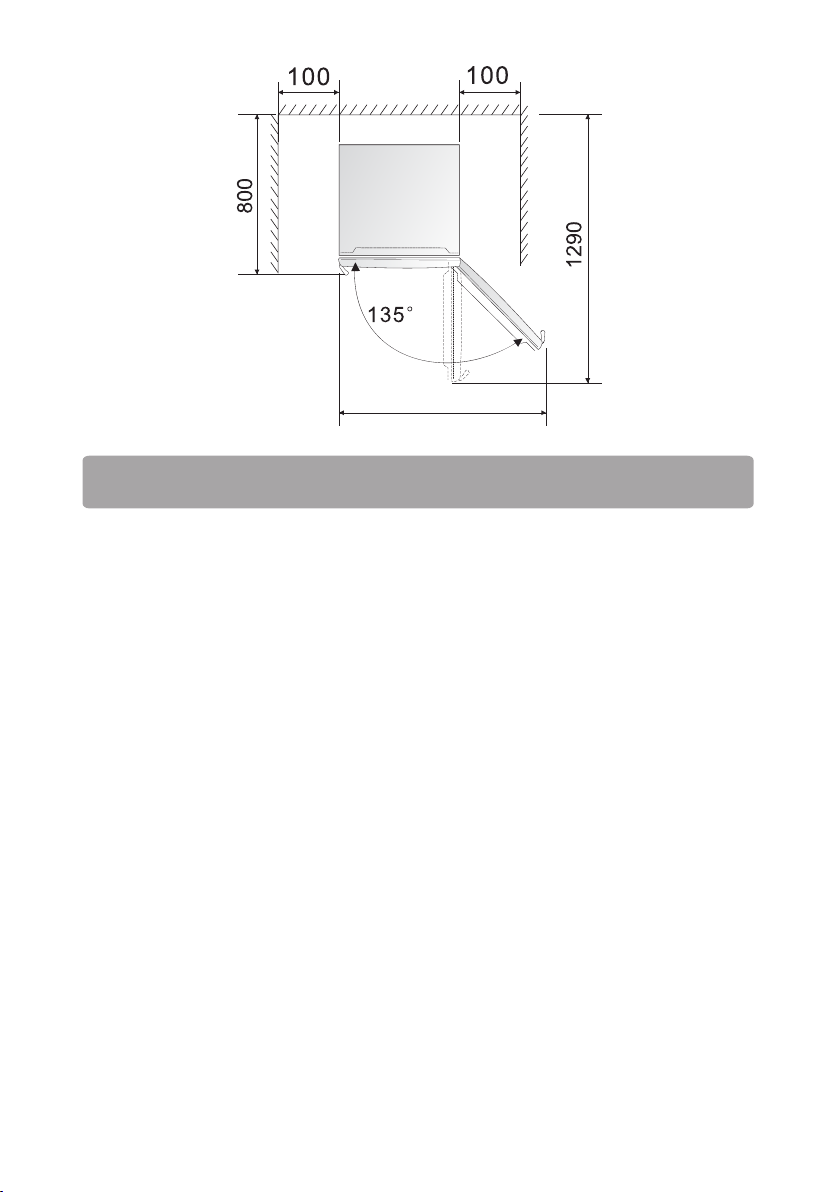

In order to improve efficiency of the cooling
system and save energy, it is necessary to
maintain good ventilation around the
appliance for the dissipation of heat. For this
reason, sufficient clear space should be
available around the refrigerator. Suggest: It is
advisable for there to be at least 75mm of
space from the back to the wall, at least
100mm from its top, at last 100mm from its side
to the wall and a clear space in front to allow
the doors to open 135°. As shown in following
diagrams.
TRANSPORT AND HANDING
INSTALLATION
-40-
FIRST USE
Before the use of the refrigerator, remove all the
packages, including bottom cushion and foam
pads and rubber belts in the refrigerator.
Adjust the feet and clear the outside and inside of
the refrigerator with warm cloth.
Do not start the refrigerator immediately after
vertical placement. Only start it after 2-6 hours
standing to ensure its proper operation.
To prevent damage to the power cord and any
consequence incidents, the power cord should
be not covered by the refrigerator or other
objects. Before switching on the refrigerator,
please check the voltage range of refrigerator
carefully if the same as that of the power supply.
When the refrigerator is first installed, allow it
stabilize at normal operating temperatures for 2-3
hours prior to filling it with fresh or frozen foods.
If operation is interrupted, waits 5 minutes before
restarting.
1034
-41-
