InFocus Work Big IN32 Manuale

RS-232 Setup Instructions

Communication Configuration

Baud Rate 19,200bps

Data Bits 8

Parity None

Stop Bits 1

Flow Control None

Emulation VT100

Required Cable

Null Modem Cable – female to female 9-pin serial

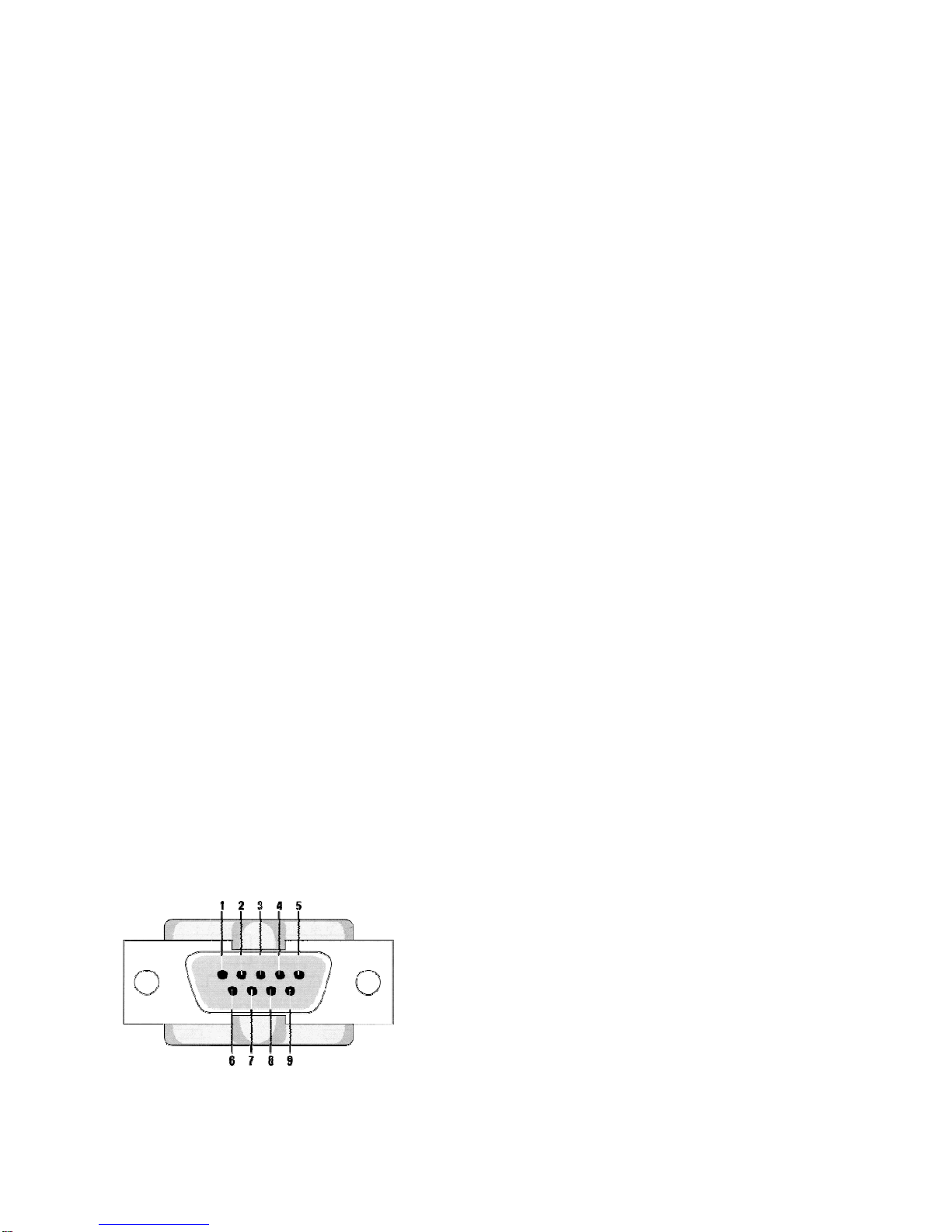

Cable Pinouts

InFocus projectors use the basic form of RS-232 functionality. Following are the required pinouts. Note

that the cables commonly available at local computer or electronic stores meet these requirements.

Three pins need to be terminated: ground, send and receive (5, 3, and 2 respectively).

Function Pin Pin Function

No Connection 1 1 No Connection

Received Data (RxD) 2 3 Received Data (RxD)

Transmitted Data (TxD) 3 2 Transmitted Data (TxD)

No Connection 4 4 No Connection

Signal Ground (GND) 5 5 Signal Ground (GND)

No Connection 6 6 No Connection

No Connection 7 7 No Connection

No Connection 8 8 No Connection

No Connection 9 9 No Connection

Control Software

You can use any one of a variety of available RS-232 programs to control a projector. Hyperterminal, for

example, comes with all versions of Microsoft Windows. Also consider Look RS232 (available at

www.lookrs232.com/). Some programs will allow you to assign RS-232 strings to hot keys or buttons.

Companies such as Crestron (www.crestron.com) and AMX (www.amx.com) make RS-232 control boxes

that make it easier to control your projector.

Command Format

All InFocus projectors use ASCII format command format. All commands consist of 3 alpha characters

followed by a request and all enclosed by parentheses. The request can be a read request (indicated by a

“?”) or a write request (indicated by 1 to 4 ASCII digits).

A read request will report information to you, such as lamp hours. A write request is to tell the projector to

change a setting.

Command Examples

A read request example:

Command to request Brightness setting is (BRT?)

(starts the command

BRT denotes the brightness command

?denotes the read request

)ends the command

The response would appear as (0-22, 10), where

0-22 is the brightness range of the projector.

10 is the current brightness setting

Here are some other examples. To interpret the responses, you may need to refer to the actual list of

commands.

Function Command Response Description

Lamp Hours (LMP?) (0-32767, 250) 250 lamp hours

Aspect Ratio (ARZ?) (0-4, 1) 16:9 aspect ratio

Vertical Keystone (DKC?) (53-203, 60) Vertical keystone set to 60

A write request example:

Command to change Brightness setting to level 10 is (BRT10)

(starts the command

BRT denotes the brightness command

10 denotes the write request

)ends the command

Some commands have ranges, while others are absolute. If a number greater than the maximum range is

received, it is automatically set to the maximum number for that function. If a command is received that is

not understood, a "?" is returned. With absolute settings, "0" is off, 1-9999 is on.

Here are some other examples. Refer to the projector’s command list for other commands.

Function Command Response

Aspect Ratio (ARX2) Sets the aspect ratio to 4:3

Flip the image for

ceiling projection (CEL1) Enable ceiling projection

mode. Flips image.

Power up (PWR1) Powers up the projector.

Power down (PWR2) Powers the projector down.

NOTE To assure the projector can process a command, wait 3 seconds before entering the next

command.

Error Conditions

Not all commands are supported for all projectors. If an unsupported command is issued, the command

will be ignored. If a command is received that is not understood, a ? character will be returned indicating

the command was not understood.

Below is a list of common errors.

Function Command Response Reason

Aspect Ratio (ARZ2)A ? Too many characters

Flip the image (CEILING1) ? Too many characters.

Improper command.

Power Up (PWR99999) ? Invalid value. Too many 9s.

Most programs do not require a line feed after a command. Using a line feed, may cause the projector to

respond with a “?” indicating an invalid command. Commands should respond within seconds of entering

a command. If it does not, then there may issues with your connection, syntax or RS-232 software.

Limitations

The CLI cannot respond to commands coming in at a high-rate. Therefore, a delay must occur between

commands to ensure that the command gets properly executed. To assure the projector can process a

command, wait 3 seconds before entering the next command.

Some commands may only be valid when the projector is receiving an active computer or video signal. If

a setting is not an active feature in the menu, the CLI command will not work. For example: aspect ratio,

color and tint are functions that require an active source.

IN32/34 CLI Command Table v1.0.0

Source Dependent Settings

Function Command

Source 0

[M1

Analog]

(Min-

Max,

Initial,

Step)

Source 1 [M1

Component]

(Min-Max,

Initial, Step)

Source 2

[M1

Digital]

(Min-

Max,

Initial,

Step)

Source 3

[VESA

Analog]

(Min-

Max,

Initial,

Step)

Source 4

[VESA

Component]

(Min-Max,

Initial, Step)

Source 5

[Composite]

(Min-Max,

Initial, Step)

Source

6 [S-

Video]

(Min-

Max,

Initial,

Step)

Auto Color

Space

Enable ACS 0-1, 1, 1 0-1, 1, 1 0-1, 1, 1 0-1, 1, 1 0-1, 1, 1 N/A N/A

Aspect

Ratio ARZ 0-2, 1, 1 0-2, 1, 1 0-2, 1, 1 0-2, 1, 1 0-2, 1, 1 0-2, 1, 1 0-2, 1, 1

Auto

Video

Standard

Enable

(TV Only)

AVS N/A N/A N/A N/A N/A 0-1, 1, 1 0-1, 1, 1

Blue Gain BCG 0-100,

50, 1 0-100, 50, 1 0-100,

50, 1 0-100,

50, 1 0-100, 50, 1 0-100, 50, 1 0-100,

50, 1

Blue Offset BCO 1-255,

128, 1 1-255, 128, 1 0-255,

128, 1 1-255,

128, 1 1-255, 128, 1 N/A N/A

Brightness BRT 8-248,

128, 4 8-248, 128, 4 0-255,

128, 1 8-248,

128, 4 8-248, 128, 4 4-208, 106, 2 4-208,

106, 2

Color (TV

Only) CLR N/A N/A N/A N/A N/A 0-250, 125, 4 0-250,

125, 4

Contrast CON 8-248,

128, 4 8-248, 128, 4 50-150,

100, 1 8-248,

128, 4 8-248, 128, 4 0-62, 31, 1 0-62,

31, 1

Color

Space CSM 0-2, 0, 1 0-2, 0, 1 0-2, 0, 1 0-2, 0, 1 0-2, 0, 1 N/A N/A

Green Gain GCG 0-100,

50, 1 0-100, 50, 1 0-100,

50, 1 0-100,

50, 1 0-100, 50, 1 0-100, 50, 1 0-100,

50, 1

Green

Offset GCO 1-255,

128, 1 1-255, 128, 1 0-255,

128, 1 1-255,

128, 1 1-255, 128, 1 N/A N/A

Horizontal

Position

(Computer

Only)

HPS 0-100,

50, 1 0-100, 50, 1 N/A 0-100,

50, 1 0-100, 50, 1 N/A N/A

Phase

(Computer

Only) MSS 0-100,

50, 1 0-100, 50, 1 N/A 0-100,

50, 1 0-100, 50, 1 N/A N/A

Audio

Mute MTE 0-1, 0, 1 0-1, 0, 1 0-1, 0, 1 0-1, 0, 1 0-1, 0, 1 0-1, 0, 1 0-1, 0, 1

Tracking 0-100, 0-100,

Source Independent Settings

(Computer

Only) MTS 50, 1 0-100, 50, 1 N/A 50, 1 0-100, 50, 1 N/A N/A

Overscan

(TV Only) OVS 0-1, 0, 1 0-1, 0, 1 0-1, 0, 1 0-1, 0, 1 0-1, 0, 1 0-1, 0, 1 0-1, 0, 1

Presets PST 0-7, 1, 1 0-7, 2, 1 0-7, 1, 1 0-7, 1, 1 0-7, 2, 1 0-7, 3, 1 0-7, 2, 1

Red Gain RCG 0-100,

50, 1 0-100, 50, 1 0-100,

50, 1 0-100,

50, 1 0-100, 50, 1 0-100, 50, 1 0-100,

50, 1

Red Offset RCO 1-255,

128, 1 1-255, 128, 1 0-255,

128, 1 1-255,

128, 1 1-255, 128, 1 N/A N/A

Sharpness

(TV Only) SHP N/A N/A N/A N/A N/A 0-4, 2, 1 0-4, 2, 1

Sync

Threshold

Adjust

(Analog

Only)

STH 15-31,

23, 1 15-31, 23, 1 N/A 15-31,

23, 1 15-31, 23, 1 N/A N/A

Color

Temp TMP 0-2, 2, 1 0-2, 2, 1 0-2, 2, 1 0-2, 2, 1 0-2, 2, 1 0-2, 2, 1 0-2, 2, 1

Tint (TV

Only) TNT N/A N/A N/A N/A N/A 0-128, 64, 4 0-128,

64, 4

Audio

Volume VOL 23-63,

43, 1 23-63, 43, 1 23-63,

43, 1 23-63,

43, 1 23-63, 43, 1 23-63, 43, 1 23-63,

43, 1

Vertical

Position

(Computer

Only)

VPS 0-100,

50, 1 0-100, 50, 1 N/A 0-100,

50, 1 0-100, 50, 1 N/A N/A

Video

Standard

(TV Only) VSU N/A N/A N/A N/A N/A 0-9, 0, 1 0-9, 0, 1

White

Peaking WPK N/A N/A N/A N/A N/A 0-10, 2, 1 0-10, 2,

Function Command Min Max Initial Step

Chime Enable ACE 0 1 1 1

Auto Image AIM 0 1 0 1

Auto Power Enable APO 0 1 0 1

Auto Source Enable ASC 0 1 1 1

Blank Screen Enable BLK 0 1 0 1

Blank Screen Color BSC 0 2 2 1

Source Enable 0 CE0 0 1 1 1

Source Enable 1 CE1 0 1 1 1

Source Enable 2 CE2 0 1 1 1

Source Enable 3 CE3 0 1 1 1

Ceiling CEL 0 1 0 1

Current Subsource CRS 0 6 0 1

Vertical Keystone DKV 0 198 99 1

Display Messages Enable DMG 0 1 1 1

Power-up Source DSC 0 3 0 1

Startup Logo DSU 0 1 0 1

Effect Key Program EFK 0 7 6 1

Freeze Enabled FRZ 0 1 0 1

Lamp Power IPM 0 1 0 1

Language LAN 0 11 0 1

Time In Hours Last Bulb1 Lasted LB1 0 65535 0 1

Time In Hours Last Bulb2 Lasted LB2 0 65535 0 1

Time In Hours Last Bulb3 Lasted LB3 0 65535 0 1

Illumination State LML 0 2 0 1

Lamp Hours LMP 0 2147483647 0 1

Number of lamp resets LMR 0 65535 0 1

Lamp Total Time On In Hours For All Bulbs LMT 0 65535 0 1

Perform Lamp Reset LRT 0 1 0 1

Menu Enable MNU 0 1 0 1

Menu Navigation NAV 1 3 1 1

Screen Saver Off NND 0 1 1 1

Number Of Times Unit Has Been Turned On O00 0 2147483647 0 1

Number Of Times Unit Has Been Turned On For At Least 30

Minutes O30 0 2147483647 0 1

Number Of Times Unit Has Been Turned On For At Least 60

Minutes O60 0 2147483647 0 1

Number Of Times Unit Has Been Turned On For At Least 90

Minutes O90 0 2147483647 0 1

Time In Minutes Unit Has Been Turned On ONC 0 2147483647 0 1

Time In Minutes Unit Is Currently On ONL 0 2147483647 0 1

Time In Minutes Unit Was Previously Turned On ONP 0 2147483647 0 1

Power Save Enable PSV 0 1 0 1

Power Enable PWR 0 1 0 1

Rear REA 0 1 0 1

Factory Reset RST 0 1 0 1

Source 1 Program SR1 0 3 0 1

Source 2 Program SR2 0 3 1 1

Source 3 Program SR3 0 3 2 1

Source 4 Program SR4 0 3 3 1

Source SRC 0 3 0 1

Screen Save Time SSV 1 6 6 1

System State SYS 0 18 0 1

Test Pattern Enable TPE 0 1 0 1

Test Pattern Select TPS 0 14 0 1

Save User1 Preset US1 0 1 0 1

Save User2 Preset US2 0 1 0 1

Save User3 Preset US3 0 1 0 1

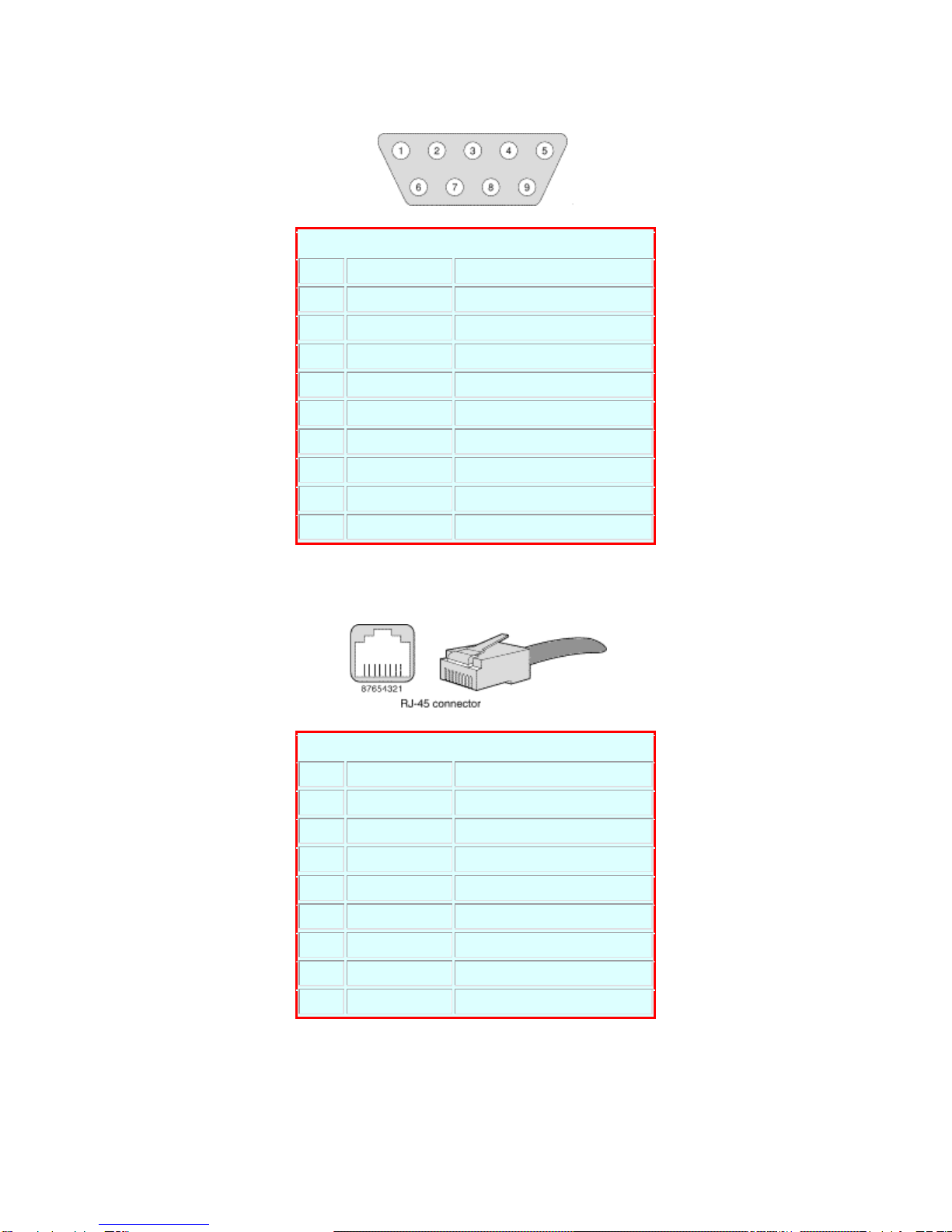

DB-9 Connector Pin Out

Pin # Signal Name Signal Description

1CD Carrier Detect

2RXD Receive Data

3TXD Transmit Data

4DTR Data Terminal Ready

5GND Signal Ground / Common

6DSR Data Set Ready

7RTS Request To Send

8CTS Clear To Send

9RI Ring Indicator

RJ-45 Connector Pin Out

Pin # Signal Name Signal Description

1RI Ring Indicator

2DCD Carrier Detect

3DTR Data Terminal Ready

4GND Signal Ground / Common

5RXD Receive Data

6TXD Transmit Data

7CTS Clear To Send

8RTS Request To Send

Altri manuali per Work Big IN32

Questo manuale è adatto per i seguenti modelli

Altri manuali InFocus Proiettore

InFocus

InFocus ScreenPlay 4800 Manuale utente

InFocus

InFocus DP8000 Manuale utente

InFocus

InFocus Work Big IN38 Manuale utente

InFocus

InFocus Quantum Laser Core Series Manuale utente

InFocus

InFocus Proxima Ovation+ 846 Manuale utente

InFocus

InFocus LP 820 Guida rapida alla configurazione

InFocus

InFocus X2 multi-use perfomance Scheda tecnica

InFocus

InFocus in2100 Series Manuale utente

InFocus

InFocus SP7205 Manuale utente

InFocus

InFocus LP 740 LiteMount Manuale utente

InFocus

InFocus LP130 Istruzioni per il montaggio

InFocus

InFocus CEILING MOUNT LP 1000 SERIES Manuale utente

InFocus

InFocus in5316HD Manuale utente

InFocus

InFocus W3902 Manuale utente

InFocus

InFocus LP790 Manuale utente

InFocus

InFocus Proxima DP8200x Manuale utente

InFocus

InFocus SP7205 Manuale utente

InFocus

InFocus ScreenPlay 4800 Manuale utente

InFocus

InFocus IN3124 Manuale utente

InFocus

InFocus SP7210 Manuale utente

InFocus

InFocus SP4805 Manuale del sistema

InFocus

InFocus IN1156 Manuale utente

InFocus

InFocus LASER PROJECTOR LP 540 Manuale utente

InFocus

InFocus Work Big IN12 Manuale utente

Manuali Proiettore popolari di altre marche

iEmmet

iEmmet MP-312 Manuale utente

Epson

Epson VS400 Manuale utente

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuale utente

Sony

Sony VPL-HW65ES Manuale di servizio

Toshiba

Toshiba TLP-791U Manuale utente

Philips

Philips LC1341 Guida di riferimento

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuale utente

NEC

NEC NP600S EDU Manuale utente

BenQ

BenQ SH753P Manuale utente

Eiki

Eiki EK-623U series Manuale utente

Epson

Epson PowerLite Pro Cinema 6020UB Manuale utente

Epson

Epson PowerLite Home Cinema 705HD Manuale utente

Christie

Christie LHD700 Manuale utente

Navitar

Navitar FX Manuale utente

Sony

Sony SRX-R815P Manuale utente

Vivitar

Vivitar DP1500 X Manuale utente

Acer

Acer C20 Series Manuale utente

Asus

Asus ZenBeam Latte Manuale utente
