User guide

To ensure this product is correctly installed and used in the right way, we highly advise you

to read this user guide very carefully.

1. INTRODUCTION

This UPS range is specially designed for multimedia Personal Computers. Its light weight

and compact design suit limited working environments. The XP range of UPS is equipped

with boost and buck AVR to stabilize input voltage. It also has a built-in DC start function.

This function enables the UPS to be started up without an AC power supply. The main

features of XP UPS are listed below.

2. MAIN CHARACTERISTICS

Microprocessor control guarantees high reliability

Equipped with boost and buck AVR

Green Power Function for energy saving

DC Start Function

Auto restart during AC recovery

Compact size, lightweight

Provides modem / phone line surge protection

3. SAFETY INSTRUCTIONS – Security

The UPS unit uses potentially hazardous voltages. Do not take this equipment apart. It

does not contain accessible components that can be repaired by users.

All repairs should be performed by qualified technicians only.

The UPS has its own internal power supply (battery). There is a risk that output sockets

may still be live after the UPS has been disconnected from the mains power supply.

The UPS has been designed for power computers. It should not be used with power

electronic equipment with inductive loads such as motors or fluorescent lights.

Do not connect any non-computer units to the UPS, such as medical equipment for

artificial life handling, microwave, vacuum cleaner, etc.

Laser printers should not be connected to the UPS as they consume too much power.

Make sure that the power supply required does not exceed the capacity of the UPS. We

recommend using an optimum power load equivalent to half or one third of the nominal

power for longer backup time and battery life.

Do not leave any container with liquid on the UPS or close to it.

Unplug the UPS before proceeding to cleaning it. Do not directly apply any liquid

detergent or sprays.

The UPS should not be used in a damp place, nor exposed to direct sunlight or heat-

emitting sources. Do not cover the ventilation slots.

In case of emergency, switch the UPS to the “OFF” position and then unplug the power

cord from the power socket to disable the UPS completely.

Should the UPS fail to operate correctly, please refer to section 10: Trouble Shooting.

INFOSEC UPS SYSTEM - 4, rue de la Rigotière – 44700 Orvault – FRANCE - www.infosec.fr

Hot Line : tel : + 33 (0)2 40 76 15 82 - fax : + 33 (0)2 40 94 29 51 - [email protected] – 09 05 04 206 02 3

4. STORAGE INSTRUCTIONS

The UPS should be stored with its battery fully recharged. Storage temperatures above

20°C should be avoided as this will significantly shorten battery life. The UPS should be

recharged once every 3 months. This is done by leaving it connected to the mains power

supply for 24 hours. Batteries kept in storage should be recharged every 3 months, failure to

do so could result in battery damage.

5. AFTER SALES SERVICE

IMPORTANT!

When calling the After-Sales Department, please have the following information ready, it will

be required regardless of the problem: UPS model, serial number and date of purchase.

Accurate description of the problem providing the following details: type of equipment

conditions.

You will find the technical information you require on your guarantee or on the identification

plate on the back of the unit. If convenient you may enter the details in the following box.

Model Serial number Date of purchase

… XP SoHo

! Please keep the original packaging. It will be required in the event the USP is returned to

the After-Sales Department.

IMPORTANT :

UPS are part of electronic and electric equipments category. At the end

of their lives, they have to be collected separately.

INFOSEC UPS SYSTEM - 4, rue de la Rigotière – 44700 Orvault – FRANCE - www.infosec.fr

Hot Line : tel : + 33 (0)2 40 76 15 82 - fax : + 33 (0)2 40 94 29 51 - [email protected] – 09 05 04 206 02

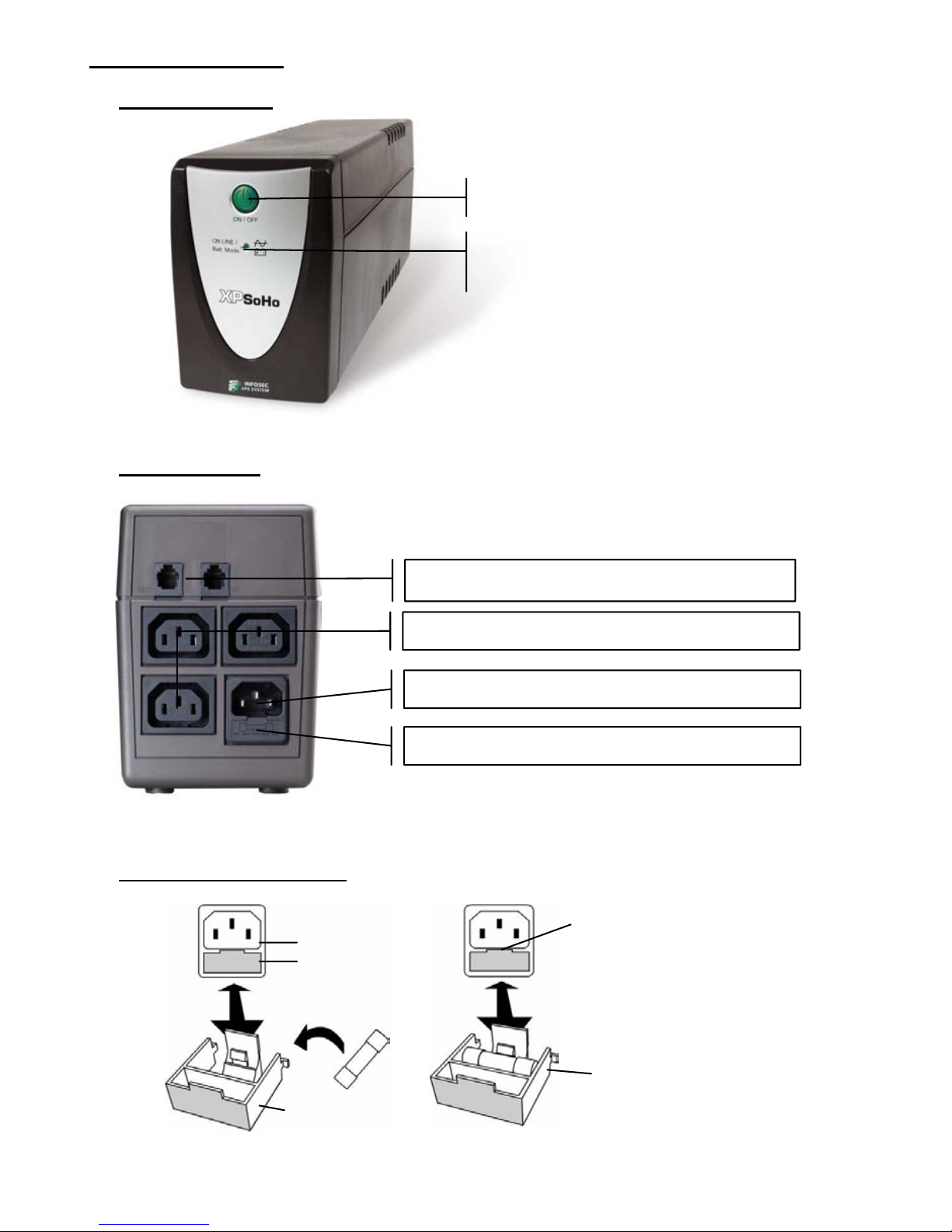

6. DESCRIPTION

FRONT PANEL

BACK PANEL

FUSE REPLACEMENT

Replacement

fuse

AC input socket

Fuse

Protection fuse

position

Insert a screwdriver in the

slot to open the slide

Lighting green led : AC mode

Flashing green led : Battery mode

On / Off switch

RJ11 Telephone/Fax/Internet protected outlets

Input outlet

Fuse

3UPS

rotected outlets

INFOSEC UPS SYSTEM - 4, rue de la Rigotière – 44700 Orvault – FRANCE - www.infosec.fr

Hot Line : tel : + 33 (0)2 40 76 15 82 - fax : + 33 (0)2 40 94 29 51 - [email protected] – 09 05 04 206 02 5

7. INSTALLATION AND OPERATION

1. Checking

When you receive your equipment, open the packaging and check that your UPS has not

been damaged. The packaging includes:

a UPS unit, 2 IEC output cables and a user guide. In the event of damage, please submit a

standard claim to the after-sales service department.

2. Charging the batteries

This unit is shipped from the factory with its internal battery fully charged, however, some

charge may be lost during shipping and the battery should be recharged prior to use. Plug

the unit into an appropriate power supply and allow the UPS to charge fully by leaving it

plugged-in, with no load, for at least 8 hours.

3. Where to set up

The UPS has been designed to operate in a protected environment, at temperatures

between 0°C and 40°C and at a humidity level ranging between 0% and 90% (no

condensation).

Do not obstruct the ventilation slots. Install the unit in an environment which is free from

dust, chemical vapours and conductors.

Moreover, in order to avoid any interference, keep the UPS at least 20cm away from the

CPU (central processing unit).

4. Connection

Check on the identification plate at the back of the UPS that the power supply is compatible

with network voltage and that the device is powerful enough to protect the given power load.

Plug the UPS into a 2-pole, earthed outlet (use the original power cable of your computer or

it is recommended to use a power cable 2P+E/CEE22/10A). Then, use the 2 IEC cables to

connect one computer-related device to each of the power outlets supplied on the back of

the UPS. You can also connect a device that does not require backup time, such as a

printer, to the surge protected and filtered outlet.

5. On/Off

To turn the UPS unit on, lightly press the power switch. To turn it off, press the power switch

again.

6. DC Start

XP units are equipped with an integrated DC start function. To start the UPS in the absence

of a power supply and with a full battery, press the button.

7. Power Saving Function

XP range is equipped with a Power Saving Function. If no load connects to the UPS, it will

automatically shut down after 5 minutes to save energy during a power failure. The Power

switch must be kept in the ‘ON’ position, otherwise, the UPS will be disabled and your

equipment will not be protected during a power failure.

INFOSEC UPS SYSTEM - 4, rue de la Rigotière – 44700 Orvault – FRANCE - www.infosec.fr

Hot Line : tel : + 33 (0)2 40 76 15 82 - fax : + 33 (0)2 40 94 29 51 - [email protected] – 09 05 04 206 02

8. PROTECTION TELEPHONE/FAX/MODEM LINE

If you wish to protect a fax or a modem, connect the telephone cable from the wall outlet to

the “IN” jack. Connect the telephone cable (provided) from the “OUT” jack to the fax or

modem.

Caution: The telephone line lightning arrester could be rendered inoperable if improperly

installed. This surge protection device is for indoor use only. Never install telephone wiring

during a lightning storm.

Note: This connection is optional. It is not necessary to use this UPS.

9. BATTERY

The battery is the only UPS component which is not in permanent use. It has a useful life of

approximately 3 to 5 years. However, frequent major discharges or exposure to

temperatures over 20°C will shorten its life span. We therefore recommend that users

recharge the battery once every 3 months when the unit is not in use in order to compensate

for natural discharging. UPS backup time will depend on the powered load, as well as the

age and condition of the batteries.

WARNING!

Batteries should always be replaced by qualified technicians. Batteries have a very high

short circuit current: connection errors could cause electric arcs resulting in

serious burns.

10. TROUBLE SHOOTING

Should the UPS fail to function correctly we recommend you perform the following tests

before calling the Hot Line.

Check list:

•Is the main switch in the “ON” position?

•Is the UPS plugged into the mains power supply?

•Does the power supply fall within specified unit values?

•Has the fuse gone in the mains plug?

•Is the UPS overloaded?

•Is the battery flat or defective?

INFOSEC UPS SYSTEM - 4, rue de la Rigotière – 44700 Orvault – FRANCE - www.infosec.fr

Hot Line : tel : + 33 (0)2 40 76 15 82 - fax : + 33 (0)2 40 94 29 51 - [email protected] – 09 05 04 206 02 7

SYMPTOM POSSIBLE CAUSE SOLUTIONS

1. Battery missing. 1. Charge battery up to 8

hours.

2. Faulty battery. 2. Replace with the same

type of battery.

No LED display on the

front panel.

3. Power switch was not

pressed for at least 5

seconds.

3. Press and Hold power

switch for at least 5 seconds.

Alarm buzzer beeps

every ½ second when AC

supply is normal.

1. UPS overload.

1. Verify that the load

matches the UPS capability

stipulated in the

specifications.

1. UPS overload or the

connected equipment is

defective.

1. Remove some non-critical

load.

2. Flat battery.

2. Recharge the battery by

plugging the UPS in for 24

hours.

In the event of power

failure, reduced backup

time.

3. Battery defect due to high

temperature operation

environment, or improper

operation to battery.

3. Replace with the same

type of battery.

1. Blown fuse. 1. Replace the same type of

fuse.

2. Power cord is loose. 2. Reconnect the power cord

properly.

Mains normal but LED is

flashing and beeping.

3. No mains power supply or

UPS is not on. 3. Check the power supply

INFOSEC UPS SYSTEM - 4, rue de la Rigotière – 44700 Orvault – FRANCE - www.infosec.fr

Hot Line : tel : + 33 (0)2 40 76 15 82 - fax : + 33 (0)2 40 94 29 51 - [email protected] – 09 05 04 206 02

11. TECHNICAL SPECIFICATIONS

650 XP SoHo 1100 XP SoHo

Technology Line Interactive with Auto Voltage Regulation

Output form Modified sine wave

Protection Discharge / Overcharge and overload protection

+ fax modem line

Power 650 VA 1000 VA

TECHNOLOGY

Power factor 0,55 0,5

Dimensions W x D x H 100 X 330 X 140 (mm)

Weight kg 6 6,5

PHYSICAL

Output connectors 3 UPS protected outlets

2 surge protected RJ11

Voltage [110-120 V ] or [220 - 230 - 240 V]

Voltage range [81 - 145 V] [162 - 290 V]

INPUT

Frequency 50 - 60 Hz auto detection

Voltage [110-120 V ] or [220 - 230 - 240 V]

Regulation +10 % (battery mode)

OUTPUT

Frequency 50 or 60 Hz

Type 12V/7AH x 1pc 12V/9AH x 1pc

Backup time

(depending on the load) 20 mins 25 mins

BATTERY

Recharge time 8 hours to 90 % after complete discharge

FILTER Spike protection 125 Joules

Noise level < 40 dB at 1 meter

ENVIRONMENT Operating

environment 0° C - 40° C, 0 to 90 % humidity rate

(non condensing)

AC Mode Green led lighting

INDICATOR Backup Mode Green led flashing

AC Mode Sounding every 10 seconds

Battery replacement Sounding every 2 seconds

Low battery Sounding every second until automatic stop

Overload or defect Every ½ second

AUDIBLE

ARLARM

Fault Continuously sounding

STANDARDS Security / Standard CE - ISO 9001

INFOSEC UPS SYSTEM - 4, rue de la Rigotière – 44700 Orvault – FRANCE - www.infosec.fr

Hot Line : tel : + 33 (0)2 40 76 15 82 - fax : + 33 (0)2 40 94 29 51 - [email protected] – 09 05 04 206 02 9

Instrukcja obsługi

W celu zapewnienia prawidłowej instalacji oraz eksploatacji niniejszego produktu, usilnie

zalecamy dokładne przeczytanie instrukcji obsługi.

1. WPROWADZENIE

Niniejsza seria zasilaczy UPS została zaprojektowana z myśląo multimedialnych

komputerach osobistych. Ich lekka i kompaktowa konstrukcja nadaje sięidealnie do

środowisk pracy o ograniczonej przestrzeni. Seria XP zasilaczy UPS jest wyposażona w

układ regulacji napięcia AVR, który stabilizuje napięcie wejściowe. Ponadto posiada ona

wbudowanąfunkcjęuruchamiania z prądu stałego. Ta funkcja umożliwia włączenie

zasilacza UPS w razie braku zasilania prądem przemiennym. Podstawowe funkcje zasilaczy

UPS serii XP zostały wymienione poniżej.

2. PODSTAWOWE FUNKCJE

Sterowanie mikroprocesorowe zapewnia wysokąniezawodność

Układ regulacji napięcia AVR

Funkcja „Green Power” zapewnia oszczędność energii

Funkcja uruchamiania z prądu stałego

Automatyczny restart w przypadku odzyskiwania zasilania prądem przemiennym

Kompaktowość i lekkość konstrukcji

Ochrona przeciwudarowa modemu/linii telefonicznej

3. INSTRUKCJA BEZPIECZEŃSTWA – Bezpieczeństwo

Zasilacz UPS wykorzystuje potencjalnie niebezpieczne napięcia. Zabrania się

demontowania urządzenia. Urządzenie nie zawiera części, które mogłyby być

wykorzystane lub naprawione przez użytkownika.

Wszystkie naprawy powinny byćwykonane wyłącznie przez wykwalifikowanych

techników.

Zasilacz UPS posiada własne wewnętrzne źródło zasilania (akumulator). Należy

pamiętać, że po odłączeniu zasilacza UPS od źródła zasilania sieciowego, na gniazdach

wyjściowych może wciąż występowaćnapięcie.

Zasilacz UPS zostałzaprojektowany do stosowania z komputerami osobistymi. Zabrania

sięużywania zasilacza z elektronicznymi urządzeniami siłowymi z obciążeniami

impedancyjnymi, takimi jak silniki czy lampy fluorescencyjne.

Zabrania siępodłączania do zasilacza UPS jakichkolwiek urządzeńniekomputerowych,

takich jak aparatura medyczna do podtrzymywania życia, kuchenki mikrofalowe,

odkurzacze itp.

Do zasilacza UPS nie należy podłączaćdrukarek laserowych, gdyżpobierająone zbyt

dużo mocy.

Sprawdzić, czy wymagane zasilanie nie przekracza parametrów zasilacza UPS. W celu

zapewnienia dłuższego czasu zasilania awaryjnego i przedłużenia żywotności

akumulatora, zalecamy zastosowanie optymalnego obciążenia siłowego równego połowie

lub jednej trzeciej mocy nominalnej.

Nie ustawiaćjakichkolwiek pojemników z ciecząna lub w pobliżu zasilacza UPS.

INFOSEC UPS SYSTEM - 4, rue de la Rigotière – 44700 Orvault – FRANCE - www.infosec.fr

Hot Line : tel : + 33 (0)2 40 76 15 82 - fax : + 33 (0)2 40 94 29 51 - [email protected] – 09 05 04 206 02

Przed przystąpieniem do czyszczenia, odłączyćzasilacz UPS od sieci. Nie nakładać

detergentów w postaci cieczy lub sprayów bezpośrednio na urządzenie.

Zasilacza UPS nie należy stosowaćw miejscu wilgotnym lub narażonym na bezpośrednie

działanie promieni słonecznych, ani teżw pobliżu źródełciepła. Nie zakrywaćotworów

wentylacyjnych.

W razie awarii, przestawićwłącznik zasilacza UPS w położenie „OFF”, a następnie

odłączyćprzewód zasilania od gniazdka w celu całkowitego wyłączenia urządzenia.

W razie wadliwej pracy zasilacza UPS, należy przejść do rozdziału 10: Wykrywanie i

usuwanie usterek.

4. INSTRUKCJA PRZECHOWYWANIA

Zasilacz UPS powinien byćprzechowywany z całkowicie naładowanym akumulatorem.

Należy unikaćtemperatur przechowywania powyżej 200C, gdyżznacząco skrócąone

żywotność akumulatora. Zasilacz UPS należy ponownie naładowaćco 3 miesiące. W tym

celu należy podłączyćgo do zasilania sieciowego i pozostawićna 24 godziny.

Przechowywane akumulatory należy ponownie ładowaćdo 3 miesiące; w przeciwnym razie

może dojść do uszkodzenia akumulatora.

5. OBSŁUGA POSPRZEDAŻNA

WAŻNE!

Zanim użytkownik zadzwoni do Działu Obsługi Posprzedażnej, powinien zgromadzić

następujące dane, które będąwymagane niezależnie od problemu: Model zasilacza UPS,

numer seryjny oraz data zakupu.

Dokładny opis problemu, z podaniem następujących szczegółowych danych: rodzaj

urządzeńzasilanych przez zasilacz UPS, status diody wskaźnikowej, status alarmu, warunki

instalacji oraz środowiska pracy.

Ww. informacje techniczne znajdująsięw gwarancji lub na tabliczce znamionowej z tyłu

urządzenia. Dla własnej wygody, te informacje można wpisaćdo poniższej tabeli.

Model Numer seryjny Data zakupu

… XP SoHo

! Prosimy zachowaćoryginalne opakowanie. Będzie ono potrzebne, jeżeli zajdzie

konieczność przesłania zasilacza UPS do Działu Obsługi Posprzedażnej.

WAŻNE :

Zasilacze UPS należą go kategorii urządzeńelektronicznych i

elektrycznych. Po zakończeniu okresu trwałości użytkowej, należy oddać

je do oddzielnej likwidacji.

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali INFOSEC UPS

INFOSEC

INFOSEC E6 LCD RT EVOLUTION (S) 1000 Manuale utente

INFOSEC

INFOSEC E4 700 VA Manuale utente

INFOSEC

INFOSEC E4 LCD 3000 Manuale utente

INFOSEC

INFOSEC SMART LINE 1000 VA Manuale utente

INFOSEC

INFOSEC E2 LCD Manuale utente

INFOSEC

INFOSEC Hero Pro Dual Plug 700 VA Manuale utente

INFOSEC

INFOSEC 5000 VA Manuale utente

INFOSEC

INFOSEC E4 LCD Pro Series Manuale utente

INFOSEC

INFOSEC Mod5T Manuale utente

INFOSEC

INFOSEC E4 LCD Pro Series Manuale utente

INFOSEC

INFOSEC X4 RM PLUS Series Manuale utente

INFOSEC

INFOSEC E3 LCD-RT Manuale utente

INFOSEC

INFOSEC PFS Tel 1 GE Manuale utente

INFOSEC

INFOSEC X3 EX LCD USB Manuale tecnico

INFOSEC

INFOSEC Z1 Zenergy Cube 400 Manuale utente

INFOSEC

INFOSEC Zenergy Station 2000 Manuale utente

INFOSEC

INFOSEC IPEL EVOLUTION 1000 VA Manuale utente

INFOSEC

INFOSEC E3 LCD-RT Manuale utente

INFOSEC

INFOSEC E6 LCD-RT Manuale utente

INFOSEC

INFOSEC X4 SINUSRT Manuale utente

INFOSEC

INFOSEC P2 SunRise 5000 Manuale utente

INFOSEC

INFOSEC M4T Manuale utente

INFOSEC

INFOSEC Z4 B-box 500 VA Manuale utente

INFOSEC

INFOSEC XP OFFICE 1000 VA Manuale utente

Manuali UPS popolari di altre marche

Pylontech

Pylontech Victron & Pylontech US5000 Manuale utente

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuale utente

Mecer

Mecer ME-1000-WTU Manuale utente

Mustek

Mustek PowerMust 530(B) Plus Manuale di installazione e funzionamento

Emerson

Emerson Liebert NXL series Manuale utente

MAKELSAN

MAKELSAN BOXER SERIES Manuale utente

Block

Block PC-0524-400-0 Manuale utente

CyberPower

CyberPower CP585LCD Manuale utente

Eaton

Eaton 3S Istruzioni per il montaggio

CyberPower

CyberPower Office Tower Series UPS 1000 Manuale utente

CyberPower

CyberPower BM100 Manuale utente

Best Power

Best Power 610 Manuale utente

Best Power

Best Power Unity/I UT3K Manuale utente

Mustek

Mustek PowerMust 400 Offline Manuale utente

Xantrex

Xantrex Trace 512 UR-UPS Manuale utente

Forza

Forza SL-1501UL Manuale utente

LEGRAND

LEGRAND keor 310081 Manuale utente

ABB

ABB Conceptpower DPA 500 Manuale utente
