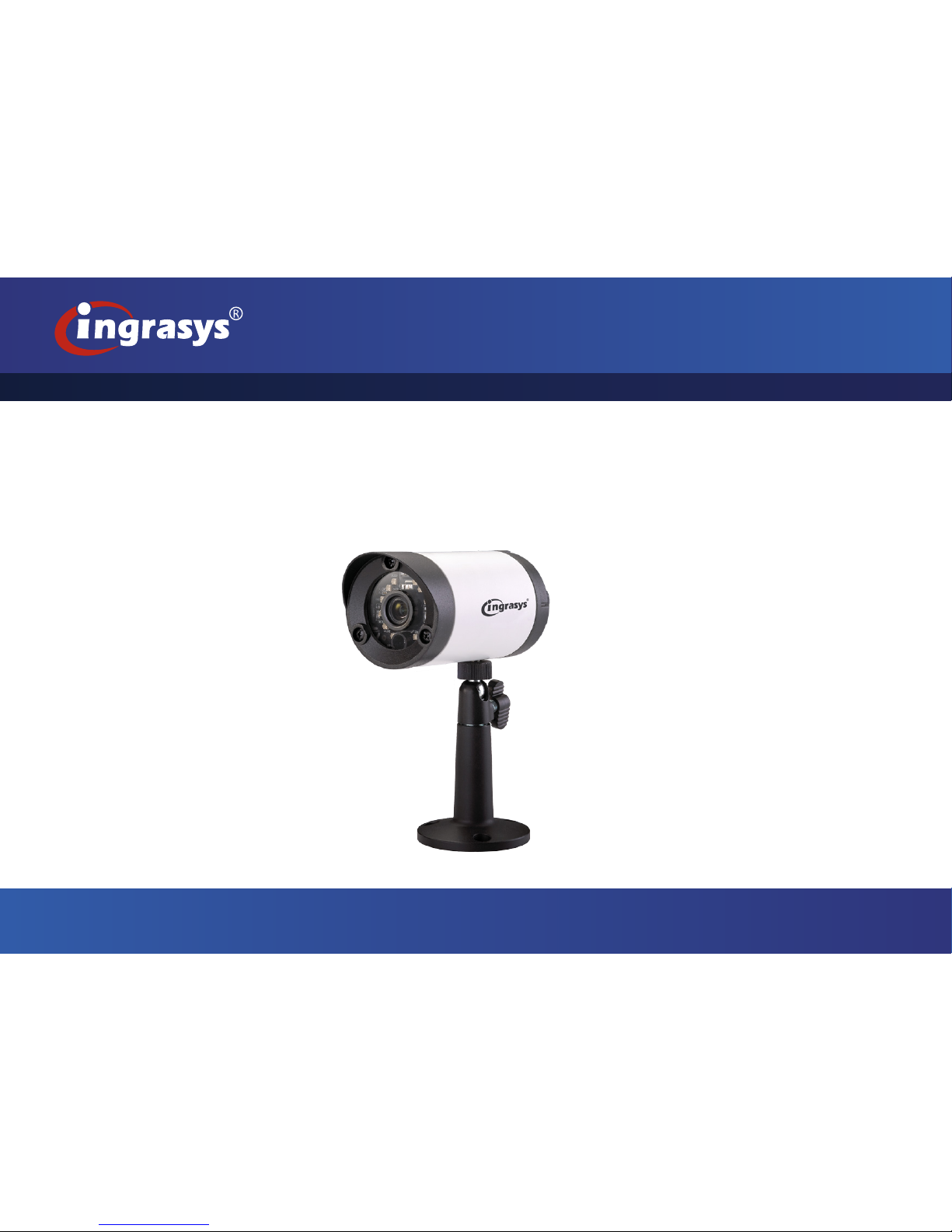

Ingrasys G3211E Manuale utente
Quick Installation Guide
G3211E
Ver: v1.0
G3211E Quick Installation Guide v1.00
Ingrasys Technology Inc.
Package Contents
G3211E Camera Stand Power Adapter
(Optional)
Screws Pack
Quick Installation
Guide
Product CD Warranty Card
screws
Quick Installation Guide
1
A B C D
E F G
Desiccant Bag
v1.00
Ingrasys Technology Inc.
G3211E Quick Installation Guide v1.00
2
Physical Description & Connection
Connections
LAN
BNC Output
Line Out (Green)
Ext. Mic. In (Purple)
DC Power
Terminal Block
Terminal Block
DO
GND
D1
AC-
AC+
1. Dene the type of network device.
2. If the network device supports PoE
(Power over Ethernet) function,
simply connect the camera to it via
Ethernet cable.
3. If not, the connections to the network
device (via Ethernet cable) and DC or
AC adapter are required.
G3211E Quick Installation Guide v1.00
Ingrasys Technology Inc.
3
Assigning IP address
1. Launch Ingrasys Discovery Tool (IngrasysDiscovery.exe). The tool will start searching and then displaying the
cameras on the Device List after they are found.
2. Check the checkbox to select a camera device from the list.
3. The IP Camera may be assigned with a valid IP address via DHCP server. It can be also manually given a static
IP address. To do so, click on “Set IP”, and then input the IP, Subnet Mask and Gateway. Input account info if
the camera is password protected. (Default ID/Password : Admin/Admin)
4. Click on the “Browse” button to get access to the camera web page immediately.
v1.00
Ingrasys Technology Inc.
G3211E Quick Installation Guide v1.00
4
Accessing the camera
1. Launch IE browser and input the IP address of the camera, or click on “Browse” button on Ingrasys Discovery
Tool. The web page with video will then be shown as below.
2. The live video of the camera can be played with a RTSP player, such as VLC or QuickTime. The network URL
is rtsp://Camera IP/stream1. The example given below is that live video is displayed with QuickTime player.
G3211E Quick Installation Guide v1.00
Ingrasys Technology Inc.
v1.00
Ingrasys Technology Inc.
G3211E Quick Installation Guide v1.00
Ingrasys Technology Inc.
