Innovative MAX Manuale utente

MAX ROLL BENCH ASSEMBLY INSTALLATION

Complete Instructional Guide

! Attention!

Before starting the assembly of your benching

system, check floor surface to ensure a level starting

point. If your floors are damaged, heavily sloped or

contain obstacles, you may have issues with proper

bench setup. These issues should have been noted

during the Floor Layout/Quoting phase and may

need custom designed components to correct these

issues.

Innovative Growers Equipment, Inc. is not liable for

the replacement of parts and components.

Before starting the assembly of your benching

system, ensure that Bench Assembly Layout and

Staal & Plast tray gluing instruction packets are

available prior to starting installation.

If not, please contact Innovative Growers Equipment,

Inc. contact information located at the end of this

instruction packet.

7/16” & 3/4” WRENCHS & SOCKETS

TAPE MEASURE

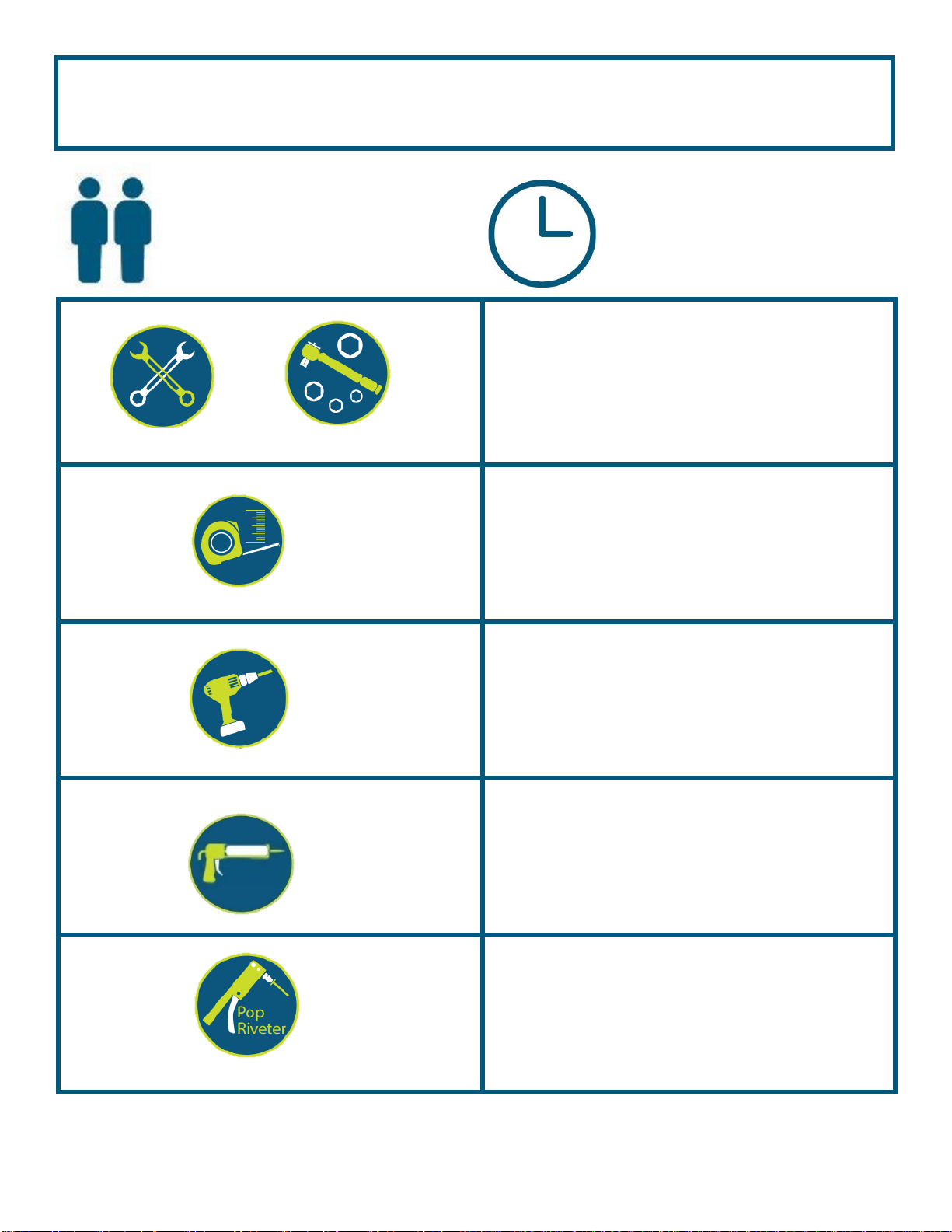

TOOLS NEEDED FOR INSTALLATION

POWER DRILL/IMPACT

W/BITS & NUT DRIVERS

CAULK GUN

POP RIVET GUN

*Pneumatic Rivet Gun Suggested

2+ People Needed

for installation.

Estimated Time:

1-2 hours depending on

bench length.

2’ LEVEL

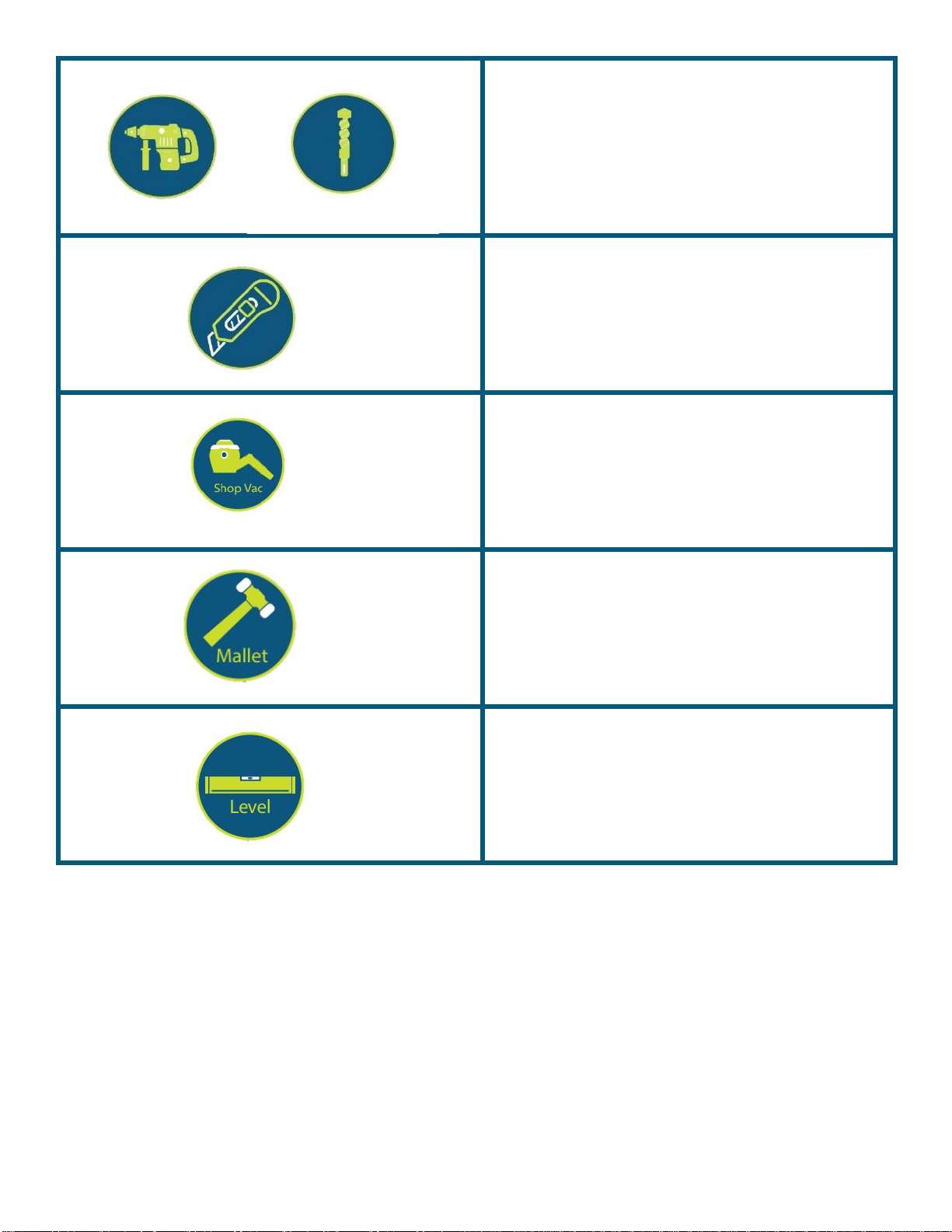

HAMMER DRILL W/

5/32 MASONRY BIT

UTILITY KNIFE

MALLET

VACUUM/BLOWOUT BULB

PARTS NEEDED FOR INSTALLATION

Confirm all parts are present before starting assembly. If parts are

missing or damaged refer to contact information on last page.

* Parts are only applicable if Bench Assembly Layout calls for

multiple parts.

Group

Part

Description

Refer to Bench

Assembly Layout/

Parts List for Lengths,

Dimensions and

Quantities

◼A1: Leg Units

◼A2: Load

Bearing Plug

◼A3: Stringer

Pipe 1” x 1”

◼*A4: Additional

Stringer Pipe 1”

x 1”

◼A5: Stringer

Insert .813” x 5”

Long

◼A6: Square to

Square Clamp

A3&4

◼B1: Anti-Tip

System

◼B2: Plain

Header Unit

◼C1: Rolling

pipe

Swedged/

Crimped End

◼C2: Rolling

Pipe Plain End

◼C3: Bench

Cross Bar

◼D1: Bench

Corner

◼D2: Aluminum

Side Rail –Longer

with 3/2 hole combo

on ends

◼*D3: Additional

Aluminum Side

Rail

◼D4: Aluminum

End Rail –Shorter

with 3/3 hole combo

on ends

◼D5: Joiner

Plates

◼D6: End Frame

(For 5’ wide or wider

benches only)

D2-D3

◼E1: End Tray

W/ Well

◼E2: Middle

Tray

◼E3: Filler Tray

◼E4: End Tray

No Well

◼F1: Pop-Rivet

◼F2: Self-

Tapping Screw

◼F3: ¼-20 Hex

Nut

◼F4: ¼-20 x .75”

Hex Screw

◼F5: ½” Flat

Washer

◼F6: Tap Con

3/16 x 1-3/4”

◼F7: Safety

Chain

◼F8: Angle

Bracket

STEP #1

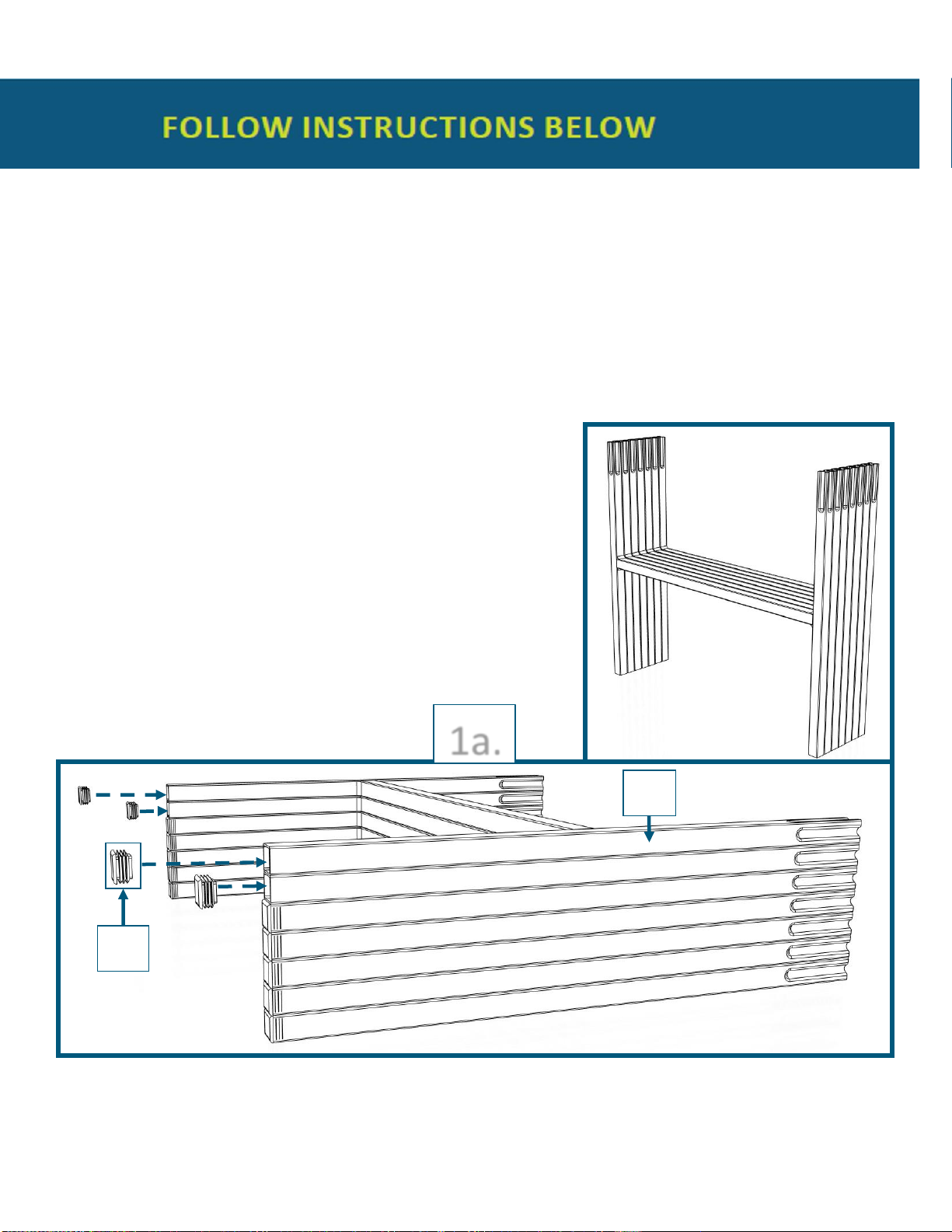

Lay out Leg Units and Stringer Pipe.

◼Before (A1) Leg Units are removed from bundle, install (A2) Load Bearing Plugs into

uncrimped ends.

◼(A2) Load Bearing Plugs to be inserted in non-crimped bottom two openings. Shown

Fig. 1a.

◼Note: Mallet may be used to help seat

(A2) Load Bearing Plugs onto (A1) Legs Units

1a.
