Innovative 9120 Manuale utente

Model 9120 Double Horizontal

LCD Pole Arm

The following patents apply: 6,505, 988

Ergonomic mounting solutions for monitors and keyboards.

Installation Instructions

IOP-502577

Loop cable from monitor under

forearm. Pull handle down and tuck

cables betweem the plastic cable

management.

Use the cable clip to keep cables organized

and in tact around the pole.

Step 6 Cable Management

Your assembly and modiﬁcations are complete. If you need additional assistance

regarding this product or if you need to return this arm for any reason, please

contact our customer service department at 800.524.2744 to obtain a Return

Authorization Number (R/A).

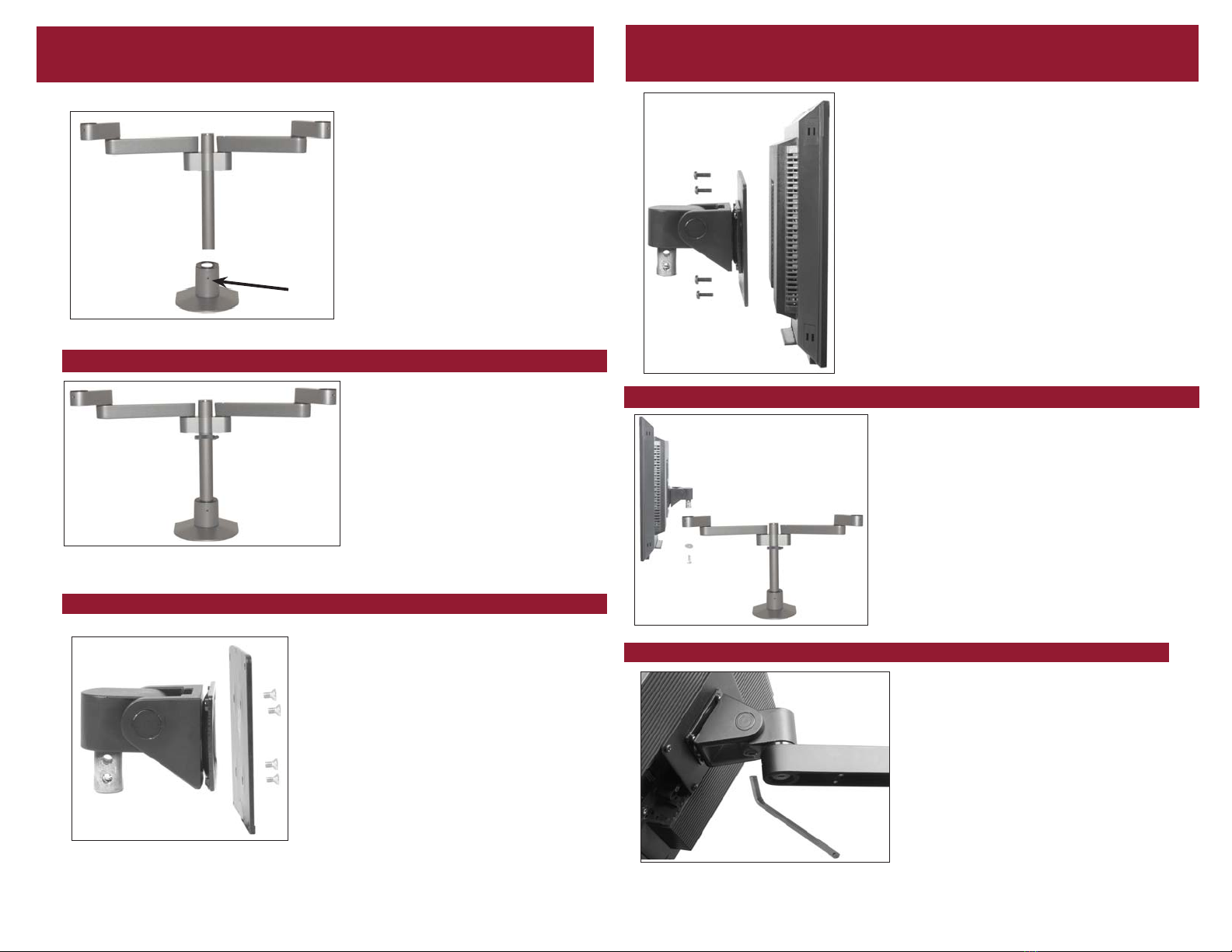

Step 1 Arm Assembly

Be sure the mount is securely fastened to the surface before beginning.

Insert the pole of the arm assembly

into the mount. (Mounts will vary).

Use the 3/32” allen wrench, to tighten

the set screw on the mount. (Tighten

enough so the pole does not spin or

slip through the mount).

Align the tilter and VESA bracket with the hole

pattern on the back of the ﬂat panel monitor.

Use the four (4) M4-12 Philips Pan Head screws to

attach the plate to the back of the LCD monitor.

After securing the plate to the ﬂat panel

insert the tilter into the arm.

Use the 10-32” Philips Pan Head screw

and washer and fasten them to the hole in

the underside of the tilter shaft, locking the

monitor in place.

Tilt the monitor so it faces upward and

locate the set screw under the tilter. Insert

the 7/32” Allen wrench into set screw to

adjust the tilt friction.

* To tighten friction turn the wrench to the

right.

* To loosen, turn the wrench to the left.

Step 1A Arm Height Adjustment

To adjust the position of the extension(s),

loosen the set screw on the back of

the of the extension(s) then loosen the

thumbscrew attached to the collar under

the arm.

The extension(s) and collar(s) will easily

slide up and down the pole. Tighten

the thumbscrew on the collar and the set

screw on the back of the extension(s) to lock into place at the desired height.

Step 2 Attach Tilter/VESA bracket to the monitor

Step 3 Apple Bracket Assembly Continued

Step 4 Monitor to Arm Assembly

Step 5 Tilt Mechanism Adjustments

Set

Screw

Carefully remove the base from the ﬂat

panel monitor. (See your monitor’s User’s

Guide for instructions on how to do this.)

Attach the adapter plate (75MM or 100MM)

to the tilter mechanism, using four (4) #10-32

x 3/8” Flat Head Philips screws.
