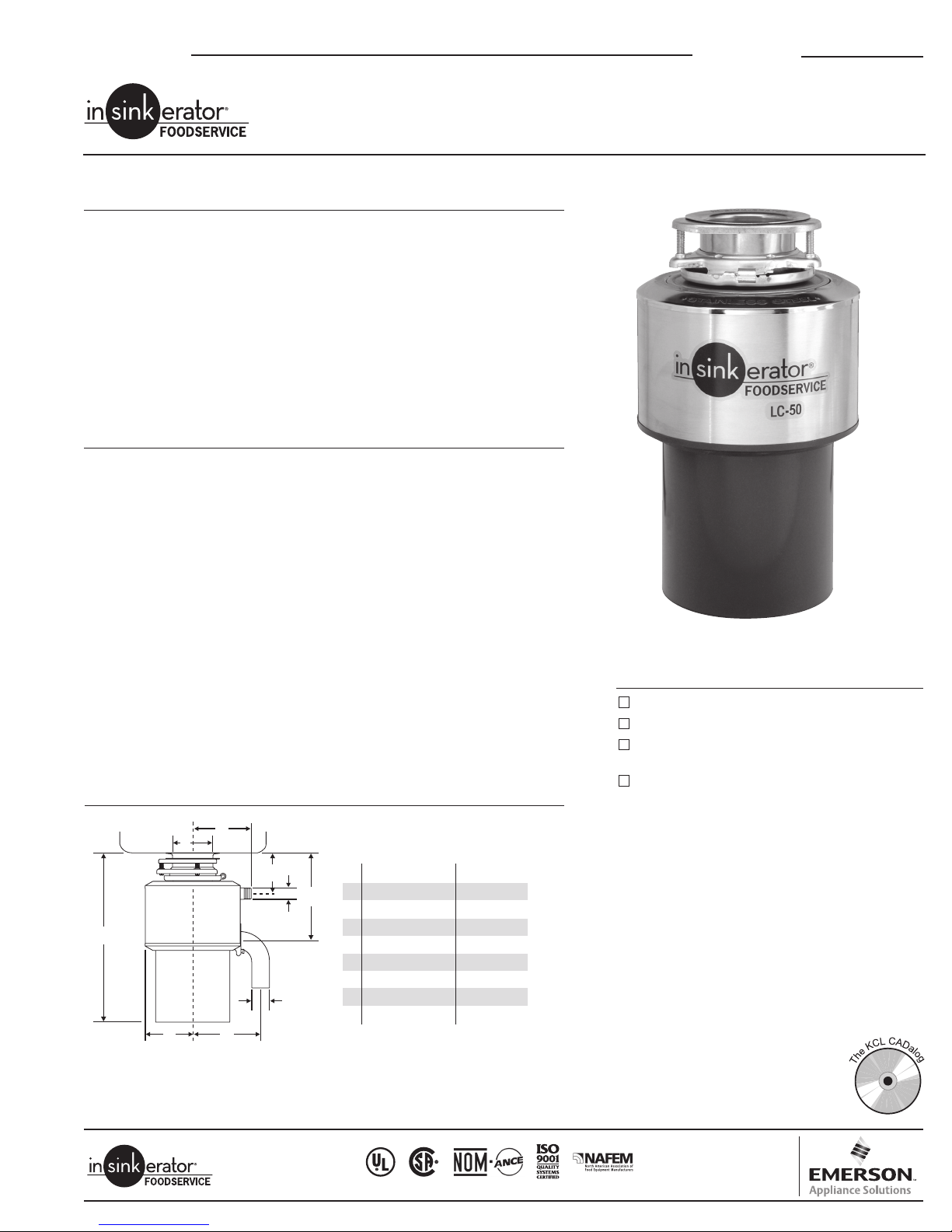

LIGHT DUTY MODEL LC-50

APPLICATION

Designed for light duty foodservice operation in:

• Convenience/grocery store deli's

• Fast food restaurants

• Church/office kitchens

• Bed and breakfast inns

IMPORTANT: The model LC-50 is designed specifically for light duty

foodservice use. Use of this disposer in applications other than those

named above may void your warranty. If you are unsure of a potential

application, call the factory at 1-800-845-8345.

PRODUCT FEATURES & SPECIFICATIONS

• Foodservice design with the ease and flexibility of a household unit

• Disposer mounting included with unit. Mounting fits standard 3-1/2 – 4"

(88.9 mm – 101.6 mm) sink opening. No welding required.

• Standard wall switch operates the disposer

• Automatic reversing motor for longer life and trouble-free operation

• Stainless steel grind chamber

• Cast nickel chrome cutting element

• 1-year full warranty from date of installation

• 35 lb. (15.9 kg) shipping weight

• 1/2 HP

• Continuous-duty commercial motor

• 1725 RPM

• 5.8 amps

• Single Phase

LC50-11 – 120V, 60 Hz, 5.8 amps, UL/CUL

LC50-12 – 230V, 50/60 Hz, 375 watts

LC50-13 – 220-240V, 50 Hz, 375 watts,

BEAB, supplied with shuko plug

LC50-14 – 120V, 60 Hz, 5.8 amps, NOM

ELECTRICAL SPECIFICATIONS

PROJECT: ITEM NO.:

NOTE: Plumb 1-1/2" (38.1 mm) waste line to prevent standing water

in disposer motor housing.

14-1/4"

3-5/16" min. ID

4-15/16"

3-7/16"

15/16" DIA

7-3/8"

5-3/4"

15/16" ID

361.9 mm

85.1 mm

125.2 mm

86.8 mm

24.3 mm

187.1 mm

101.6 mm

145.2 mm

33.0 mm

DIMENSIONS

The Emerson logo is a

trademark and a service mark

of Emerson Electric Co.

NOTE: InSinkErator Commercial Air Switch (Part No. 13754) is available for 120V model only.

INSTALLATION WITH WALL SWITCH

Air Switch

Power Junction

Solenoid Valve

Water Shutoff Valve

Syphon Breaker

Cold Water Supply

OPTIONAL

DIRECT WATER

CONNECTION

Air Hose

Push Button

Wall Switch

Electrical Junction Box

Electric Supply

INSTALLATION WITH REMOTE AIR SWITCH AND OPTIONAL DIRECT WATER CONNECTION
