Intel845GL/GV Main board

User’s Manual

Rev: 1.0/1.2

PCB: M248

CONTENTS

CHAPTER 1 PACKAGE CONTENTS………………….…………………

CHAPTER 2 INTRODUCTION……………………….…………………...

CHAPTER 3 MAIN BOARD LOCATIONS……………………………….

CHAPTER 4 INSTALLATION…………………………….………………

4.1 JUMPER SETTING AND SLOT…………………….………………

4.2 CPU INSTALLATION……………………………………………….

4.3 MEMORY INSTALLATION………………………………………..

4.4 IDE DEVICES INSTALLATION…………………………………...

4.5 OTHER DEVICE INSTALLATION………………………………...

CHAPTER 5 DRIVE INSTALLATION……………………………………

5.1 INSTALLATION DIRECTORY…………………………………….

5.2 INTEL CHIPSET SOFTWARE SETUP……………………………..

5.3 IAA (INTEL APPLICATION ACCELERATOR) SETUP…………..

5.4 SOUND DRIVER SETUP………………...………………………….

5.5 USB 2.0 DRIVER SETUP……………………………………………

CHAPTER 6 BIOS SETUP…………………………………………………

6.1 MAIN MENU…………………………………………………………

6.2 STANDARD CMOS FEATURES……………………………………

6.3 ADVANCED BIOS FEATURES……………………………………..

6.4 ADVANCED CHIPSET FEATURES…………………………………

6.5 INTEGRATED PERIPHERALS………………………………………

6.6 POWER MANAGEMENT SETUP……………………………………

6.7 PNP/PCI CONFIGURATIONS………………………………………..

6.8 FREQUENCY/VOLTAGE CONTROL……………………………….

6.9 LOAD FAIL-SAFE DEFAULTS………………………………………

6.10 LOAD OPTIMIZED DEFAULTS……………………………………..

6.11 CHANGE PASSWORD………………………………………………..

6.12 SAVE EXIT & WITHOUT SAVE EXIT SETUP……………………..

Chapter 1 Package Contents

Your main board package contains the following items:

1. One M248 Rev:1.0/1.2 main board

2. One 80-Pin Ultra DMA 66/100 IDE drive ribbon cable

3. One 34-Pin Floppy drive ribbon cable

4. One front panel connector ribbon cable (optional)

5. Software Install CD

6. One user’s manual

Chapter 2 Introduction

This main board has the Intel 845GL/GV chipset that contains Intel 82845GL/GV

Memory Controller Hub and Intel 82801DB I/O Controller Hub. This main board has a

Socket-478 support for Intel Pentium 4 processors with front-side bus (FSB) speeds up to

400/533, supports DDR200/DDR266 memory bus, supports AC97 audio codec,

integrated AC97 audio that supports full surround sound with up to six channels, front

panel audio output function, provides Ultra DMA66/100 function, the integrated display

function technologies without extend display card, provides three PCI slots. The main

board integrated main board, VGA card, sound card three function all in one.

Key Features:

-Chipset:

Intel 845GL/GV chipset GMCH: Intel 82845GL/GV; ICH4: Intel 82801DB (DBM)

-Processor:

Supports Intel Celeron CPU Socket 478 CPU

Supports Intel Pentium 4 (Northwood) Socket 478 CPU

Supports Intel Pentium 4 (Willamette) Socket 478 CPU

Supports Intel Pentium 4 (Prescott) Socket 478 CPU

Supports Intel Celeron D (Prescott) Socket 478 CPU

-Supports 400/533MHz HOST BUS Frequency

-Memory Support:

Supports DDR200/DDR266 (Double Data Rate) SDRAM

Two 184-pin DIMM slots for DDR SDRAM memory modules

-Integrated display function technologies without extend VGA card

Integrated 2D/3D Graphics Controller

-USB Ports

Six USB ports

Supports compliant with Universal Serial Bus Specification Revision 2.0

-BIOS Supports

Supports Plug and Play

Supports Advanced Power Management Interface

-IDE Port

Provides two channel connecting four IDE drives

Supports Ultra ATA66/100 synchronous DMA modes

-I/O Ports

One Floppy port support format 360k/720k/1.2M/1.44M/2.88M disk driver

One serial port

One parallel port

Six USB ports (two back-panel USB ports, onboard USB headers providing

Maximum four extra ports)

One PS/2 Keyboard port

One PS/2 Mouse

One Game/MIDI port

One IrDA port support 115.2KB/S transfers’ data.

-Onboard Sound AC’97 2.2 specification compliant

Support 16bit stereo codec

Multiple stereo input mixers

Provides onboard Line-in Jack, Microphone-in Jack

-Expansion Slot

Three PCI slots 2.2 specifications compliant

-Hardware detects function (Optional)

Auto detect CPU Voltage and CPU Temperature

Auto detect CPU FAN and Power FAN speed

-Other function

Supports Wake-on-LAN

Supports Wake-on-Modem

-Dimension

Micro ATX form factor

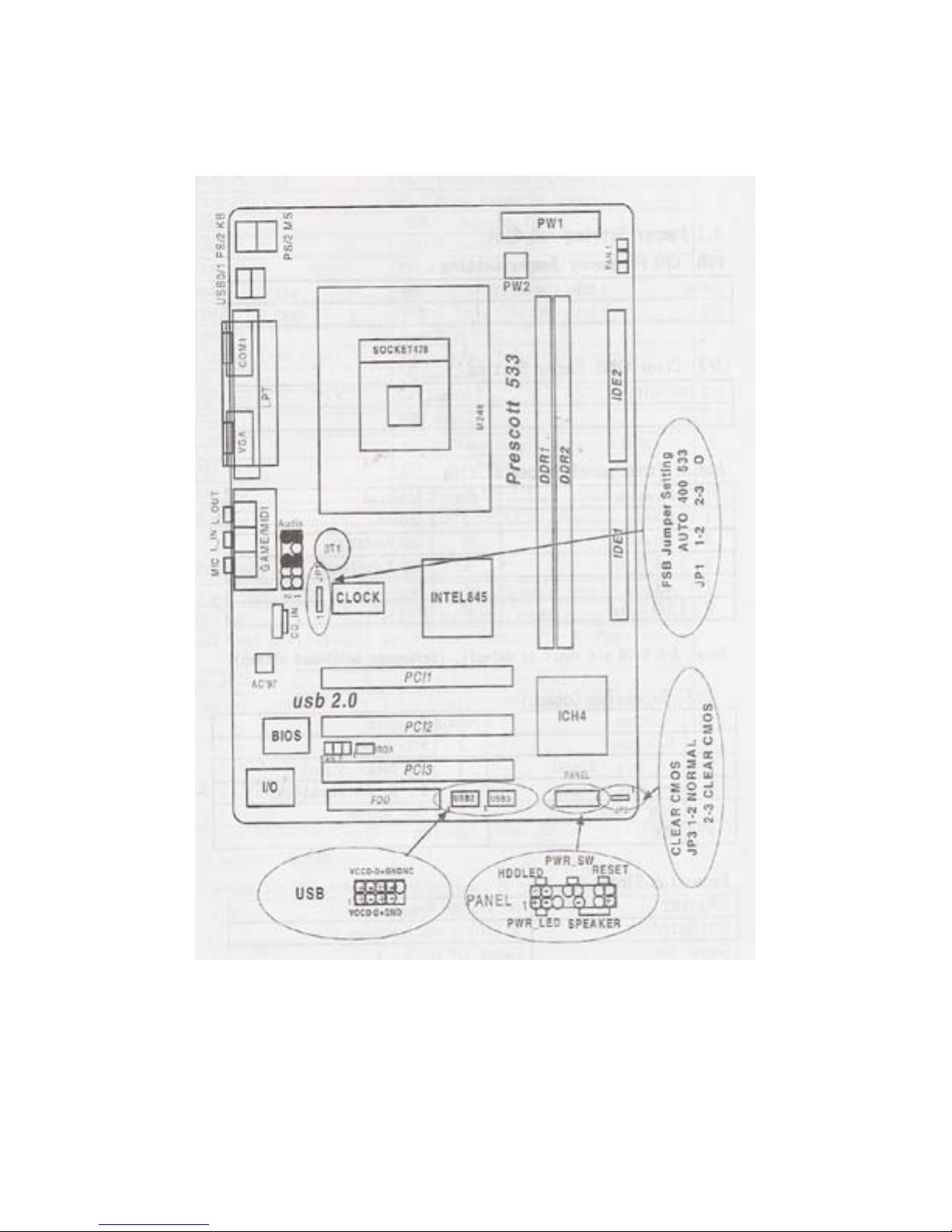

Chapter 3 Main board Locations

Chapter 4 Installation

4.1 Jumper Setting and Slot

FSB CPU Frequency Jumper Setting

JUMPER AUTO (Default) 400 533

JP1 1-2 2-3 OPEN

JP3: Clear CMOS Jumper Setting

1-2 (Default) Normal

2-3 Clear CMOS

Audio: Front panel Jumper setting

PIN Function PIN Function

1 MIC+ 2 Ground

3 Vbias 4 AuD_Vcc (AVCC)

5 AuD_R_Out 6 AuD_R_Out Back

7 N.C. 8 Key

9 AuD_L_Out 10 AuD_L_Out Back

Note: 5-6, 9-10 pin short is default. (Reference main board bitmap)

USB: Expansion Connector

PIN Function PIN Function

1 VCC: Power 2 Ground

3 D-: Data – Signal 4 AuD_Vcc (AVCC)

5 D+: Data + Signal 6 AuD_R_Out Back

7 GND: Ground 8 Key

9 KEY 10 AuD_L_ Back

Expansion Slots

DDR1/DDR2 184 Pin DDR Memory Slots

PCI1/PCI2/PCI3 32 bit PCI BUS Expansion Slots

Socket 478 Socket 478 CPU Slots

Connectors

PS/2 (Bottom) PS/2 Keyboard (Down Purple)

PS/2 (Top) PS/2 Mouse Header (Up Green)

USB 0/1 USB 0/1 Connector Port

USB 2/3 USB 2/3 Connector Port

LPT Printer Connector Port

VGA VGA Display Connector Port

COM1 Serial Ports COM1 Connector Port

GAME/MIDI Game/MIDI Port

LINE OUT/LINE IN/MIC Audio Output/Audio Input/Microphone

CD_IN CD-ROM Audio Input Port

IDE1/IDE2 Primary IDE/Secondary IDE Port

FDD Floppy Disk Drive Connector Port

PW1 ATX_20 Power Supply Connector Port

PW2 ATX_4 Power Supply Connector Port

FAN ½ CPU System Fan Port

IrDA IrDA Infrared Port

Function Port Pane1

Power Supply LED Pin 1:Power Supply Anode; Pin 3: Ground

HDD LED Pin 2: Power Supply Anode; Pin 4: LED Signal

ATX Power Supply Switch Pin 8: Switch Signal; Pin 10: Power Supply

Anode

Reset Switch Pin 14: Ground; Pin 16:Reset Signal

Speaker Input Pin 9: Speaker Audio Input; Pin 15 : Power

Supply Anode

4.2 CPU Installation

This main board has a socket 478 processor socket. Follow these instructions to install

the CPU:

1. Unhook the CPU socket’s locking lever pulling it away from socket and raising it to

the upright position.

2. Match the pin 1 corner of CPU socket to the one of processor, and insert the processor

into the socket. Do not use force.

3. Push the locking lever down and hook it under the latch on the edge of socket.

4. Apply thermal grease to the top of the CPU.

5. Lower the CPU fan/heat sink unit onto the CPU and CPU socket, and then use the

retention module clamps to snap the fan/heat sink into place.

6. Plug the CPU fan power cable into the CPU cooling fan power supply connector on the

main board.

4.3 Memory installation

This main board supports DDR200/DDR266 DDR memory you may install

64/128/256/512MB 184 pin DDR memory. DDR SDROM uses additional power and

ground lines and requires 184-pin 2.5V unbuffered DIMM module rather than the 168-

pin 3.3V unbuffered DIMM used by SDRAM.

Follow these instructions to install the Memory:

1. Push the latches on each side of the DIMM slot down.

2. Align the memory module with the slot. The DIMM slots are keyed with notches and

the DIMMS are keyed with cutouts so that they can only be installed correctly.

3. Check that the cutouts on the DIMM module edge connector match the notches in the

DIMM slot.

4. Install the DIMM module into the slot and press it firmly down until it seats correctly.

The slot latches are levered upwards and latch on to the edges of the DIMM.

5. Install any remaining DIMM modules.

4.4 IDE Devices Installation

IDE devices include hard disk drives, high-density diskette drives, and CD-ROM or

DVD-ROM drives, among others.

The main board ships with an IDE cable that can support one or two IDE devices. If you

connect two devices to a single cable, you must configure one of the drives as Master and

one of the drives as Slave. The documentation of the IDE device will tell you how to

configure the device as a Master or Slave device. The Master device connects to the end

of the cable.

4.5 Other Device Installation

4.5.1 Floppy Disk Drive Installation

This main board ships with a floppy disk drive cable that can support one or two drives.

Drives can be 3.5” or 5.25” wide, with capacities of 360K, 720K, 1.2MB, 1.44MB, or

2.88MB.

Install your drives and connect power from the system power supply. Use the cable

provided to connect the drives to the floppy disk drive connector floppy.

4.5.2 Sound Connector Port Installation

This main board has three audio ports connects audio device.

The left side jack (green) is for a stereo line-out signal. The middle jack (gray) is for a

stereo line-in signal. The right side jack (red) is for a microphone.

4.5.3 Wake on LAN (WOL)

If you have installed a LAN card, use the cable provided with the card to plug into the

main board WOL connector. This enables the Wake on LAN feature. When you system is

in a power saving mode, any LAN signal automatically resumes the system. You must

enable this item using the power Management page of the Setup Utility.

4.5.4 Clear CMOS (JP3)

This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can

clear the CMOS memory of date, time, and system setup parameters by erasing the

CMOS RTC RAM data. The RAM data in CMOS, that include system setup information

such as system passwords, is powered by the onboard button cell battery.

1. Turn OFF the computer and unplug the power cord.

2. Move the jumper cap from pin 1-2(default) to pin 2-3. Keep the cap on pin 2-3 for

about 5-10 seconds, and then move the cap back to pinsl-2.

3. Plug the power cord and turn ON the computer.

4. Hold down the <DEL> key during the boot process and enter BIOS setup to re-enter

data.

Note1: Except when clearing RTC RAM, never remove the cap on CLRTC1 jumper

default position. Removing the cap will cause system boot failure!

Note2: You do not need to clear the RTC when the system hangs due to over

clocking. For system failure due to over clocking, use the C.P.R. (CPU Parameter

Recall) feature. Shut down and reboot the system so BIOS can automatically reset

parameter settings to defaults values.

4.5.5 ATX Power connectors (20-pin ATXPWRI, 4-pin ATX 12V1)

These connectors connect to an ATX 12V power supply. The plugs from the power

supply are designed to fit these connectors in only one orientation. Find the proper

orientation and push down firmly until the connectors completely fit. In addition to the

20-pin ATXPWR1 connector, connect the 4-pin ATX +12v power plug to provide

sufficient power to the CPU.

Note1: Make sure that you ATX 12V power supply can provide at least 15A on the

+12V lead and at least 2A on the +5-volt standby lead (+5VSB). The minimum

recommended wattage is 300W or above for a fully configured system. The system

may become unstable and may experience difficulty powering up if the power

supply is inadequate.

Note2: Do not forget to connect the 20-pin ATXPWRI and 4-pin ATX12V1power

plugs. Failure to do so may cause severe damage to the CPU or motherboard!

Chapter 5 Driver Installation

5.1 Installation Directory

The utility CD is supplied with that main board the connects contained in it is showed as

below:

Directory Driver OS

INTEL\INF\XXX Intel chipset software

Windows 9x

Windows 2000/XP

Windows NT4.0

INTEL\IAA\845\XXX Intel IAA setup Windows 9X/SE/XP

Windows 2000/XP

SOUND\REALTEK\XXX Realtek AC’ 97 Audio

driver

Windows 9x

Windows 2000/XP

Windows NT4.0

INTEL\USB2.0\845 USB 2.0 driver setup

Windows 9x

Windows 2000/XP

Windows NT4.0

INTEL\VGA\845 VGA driver setup

Windows 9x

Windows 2000/XP

Windows NT4.0

Before installing audio driver, you must identify the mode of AC’ 97 codec.

For example: If you use realtek serial codec, you need to enter into the realtek directory

installing.

5.2 Intel Chipset Software Setup

Insert the driver CD, running driver software CD, choose the directory: \CD-

ROM:\INTEL\INF\XXX

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Intel Scheda madre

Intel

Intel D102GGC2 Manuale utente

Intel

Intel BLKD865GBF Manuale utente

Intel

Intel BOXDX38BT - 1333 1066FSB DDR3 Audio Lan Raid SATA ATX 10Pack... Manuale utente

Intel

Intel BLKD945GCLF2D Guida alla configurazione

Intel

Intel D845EPI Manuale utente

Intel

Intel DH67CF Manuale utente

Intel

Intel DP67BA Manuale utente

Intel

Intel D865GBF Manuale utente

Intel

Intel BOXD845GVFNL Manuale utente

Intel

Intel MI910F Manuale utente

Intel

Intel BLKD945PSNLK Guida alla configurazione

Intel

Intel D850MVSE Manuale utente

Intel

Intel Desktop Board D850EMD2 Manuale utente

Intel

Intel D945PSN Manuale utente

Intel

Intel Desktop Board D915PSY Manuale utente

Intel

Intel DG41TY Guida alla configurazione

Intel

Intel BLKDH61CRB3 Guida alla configurazione

Intel

Intel DZ75ML-45K Manuale utente

Intel

Intel D815EEA2 Guida alla configurazione

Intel

Intel Desktop Board D845GLAD Guida di riferimento

Intel

Intel ITX-IC2M1026S Series Manuale utente

Intel

Intel DX79SI Manuale utente

Intel

Intel D2550MUD2 Manuale utente

Intel

Intel WX58BP - Workstation Board Motherboard Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
