Intel®Desktop Board D815EGEW

Universal Platforms for 370-pin Processors

Quick Reference

This guide is written for technically qualified personnel with experience installing and

configuring desktop boards.

Before You Begin

Warnings and Cautions............................................................................ 3

Safety and Regulatory Requirements....................................................... 3

Supported Components

Processors................................................................................................ 4

Memory Modules..................................................................................... 4

Processor and Memory Module Combinations ........................................ 5

Desktop Board Components for D815EGEW..........................6

Installation Steps

1 Installing Memory Modules............................................................... 8

2 Installing the I/O Shield..................................................................... 9

3 Installing the Desktop Board............................................................ 10

4 Installing the Processor.................................................................... 10

5 Connecting the Fans......................................................................... 11

6 Connecting the IDE Drives.............................................................. 12

Setting the BIOS Setup Configuration Jumper Block.......13

Setting the PS/2 and USB Wake Configuration

Jumper Blocks........................................................................ 14

BIOS Setup Program Defaults........................................................15

Items on the CD-ROM

• Product warranty

• Intel®Express Installer

• Intel®Desktop Board D815EGEW Product Guide

• Software utilities and drivers

• Software license agreement

• Readme file

Part number: A70496-001

2 Intel Desktop Board D815EGEW Quick Reference

Getting Help

View or download product support information from Intel’s World Wide

Web site:

http://support.intel.com/support/motherboards/desktop/

Follow the link to your Intel®Desktop Board for the following information:

• Known Issues and Solutions

• Software and Drivers (latest BIOS and driver updates)

• Compatibility (supported Intel®processors and memory information)

• Product Documentation

 Technical Product Specification

 Specification Update

If you can’t find the information you need on the Web, contact your point of

purchase. The Intel Web site also includes telephone numbers and billing

charges, if applicable, for Intel customer support.

Information in this document is provided in connection with Intel®products. No

license, express or implied, by estoppel or otherwise, to any intellectual property

rights is granted by this document. Except as provided in Intel’s Terms and

Conditions of Sale for such products, Intel assumes no liability whatsoever, and

Intel disclaims any express or implied warranty, relating to sale and/or use of Intel

products including liability or warranties relating to fitness for a particular purpose,

merchantability, or infringement of any patent, copyright or other intellectual

property right. Intel products are not intended for use in medical, life saving, or life

sustaining applications. Intel may make changes to specifications and product

descriptions at any time, without notice.

The D815EGEW desktop board may contain design defects or errors known as

errata which may cause the product to deviate from published specifications.

Current characterized errata are available on request.

Contact your local Intel sales office or your distributor to obtain the latest

specifications and before placing your product order.

Copies of documents which have an ordering number and are referenced in this

document, or other Intel literature, may be obtained from Intel Corporation by

going to the World Wide Web site at: http://www.intel.com or by calling

1-800-548-4725.

Intel, Pentium and Celeron are trademarks or registered trademarks of Intel

Corporation or its subsidiaries in the United States and other countries.

†Other names and brands may be claimed as the property of others.

Intel Desktop Board D815EGEW Quick Reference 3

Before You Begin

Warnings and Cautions

WARNING

Disconnect the desktop board’s power supply from its ac power

source before you connect or disconnect cables, or install or remove

any desktop board components. Failure to do this can result in

personal injury or equipment damage. Some circuitry on the

desktop board can continue to operate even though the front panel

power switch is off.

CAUTION

Electrostatic Discharge (ESD) can damage desktop board components.

Install the desktop board at an ESD-controlled workstation. If such a

workstation is not available, wear an antistatic wrist strap.

Safety and Regulatory Requirements

See the Intel®Desktop Board D815EGEW Product Guide for all applicable

regulatory compliance statements, product certification markings, and safety and

electromagnetic compatibility (EMC) standards and regulations the desktop

board is compliant with.

Replacement battery warning label provided: Place the label inside the chassis

in an easy-to-see location near the battery but not on the board itself.

Intended uses: This product was evaluated as information technology

equipment (I.T.E.) for home or office use when installed in an appropriate

computer chassis. Other end uses or locations may require further evaluation.

4 Intel Desktop Board D815EGEW Quick Reference

Supported Components

Processors

The Intel Desktop Board D815EGEW supports the following processors:

Processor Type Designation

(GHz) Designation

(MHz) System Bus

Frequency (MHz)

Intel®Pentium®III

processors

(FC-PGA2 socket)

1.2 and 1.13 N/A 133

Intel Pentium III

processors

(FC-PGA socket)

1.0 933, 866, 800EB,

733, 667, 600EB,

and 533EB

133

N/A 850, 800, 750,

700, 650, 600E,

550E, and 500E

100

Intel®Celeron™

processors

(FC-PGA2 socket)

1.2 N/A 100

Intel Celeron

processors

(FC-PGA socket)

1.1 and 1.0 950, 900, 850, and

800 100

Intel Celeron

processors

(FC-PGA socket)

N/A 766, 733, 700,

667, 633, 600,

566, and 533A

For the latest information on processors supported by the board, refer to the Intel

customer support World Wide Web site:

http://support.intel.com/support/motherboards/desktop/

Memory Modules

✏ NOTE

The D815EGEW board uses 1 MB of system memory at boot up for

video, specifically for legacy VGA graphics. Once the operating system

boots, this 1 MB memory is not visible to the operating system.

The two DIMM sockets on the board support the following memory features:

• 3.3 V, 168-pin SDRAM Dual Inline Memory Modules (DIMMs) with gold-

plated contacts

• Unbuffered single or double-sided DIMM configurations

• 100 MHz PC100 SDRAM (all system bus frequencies)

• 133 MHz PC133 SDRAM (only supported with 133 MHz system bus)

Intel Desktop Board D815EGEW Quick Reference 5

• Minimum system memory: 64 MB

• Maximum system memory: 512 MB

• Non-SPD defaults at 100 MHz

• Mixed speed DIMM configuration will default to the slowest speed DIMM

installed

Processor and Memory Module Combinations

The D815EGEW board supports the processor and memory module

combinations shown below.

Processor Type

(System Bus Frequency) PC100 Memory

Modules… PC133 Memory

Modules…

Intel Celeron processor

(66 MHz) …will operate at

100 MHz …will operate at

100 MHz

Intel Celeron processor

(100 MHz) …will operate at

100 MHz …will operate at

100 MHz

Intel Pentium III processor

(100 MHz) …will operate at

100 MHz …will operate at

100 MHz

Intel Pentium III processor

(133 MHz) …will operate at

100 MHz …will operate at

133 MHz

✏NOTES

All memory components and DIMMs used with the desktop boards must

comply with the PC SDRAM specifications. These include the PC

SDRAM Specification (memory component specific), the PC Unbuffered

DIMM Specification, and the PC Registered DIMM Specification. To view

or download these specifications, refer to this Intel World Wide Web site:

http://www.intel.com/technology/memory/pcsdram/

For information about vendors that support these memory requirements,

refer to the D815EGEW link on the Intel customer support World Wide

Web site:

http://support.intel.com/support/motherboards/desktop/

6 Intel Desktop Board D815EGEW Quick Reference

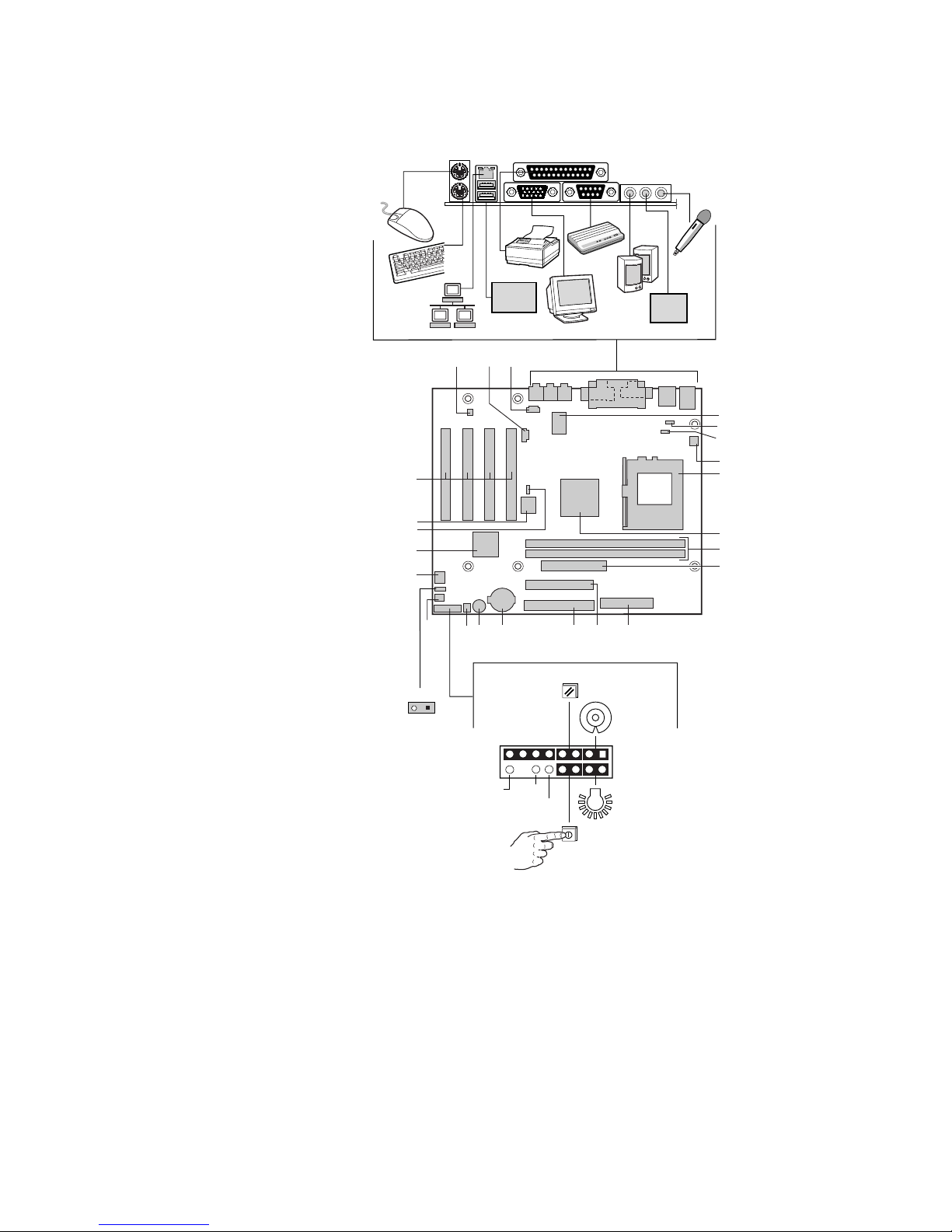

Desktop Board Components for D815EGEW

OM12566

USB

Devices

Ground

Reset

HD LED

Power LED

J9H3

+5V No

Connection

2-pin alternate

power LED/Sleep

connector

N MO

Line

J9G2

Intel Desktop Board D815EGEW Quick Reference 7

D815EGEW Desktop Board Components

A ADI AD1885 audio codec

B Auxiliary line in connector

C CD-ROM connector

D National PC87360 Super I/O controller

E PS/2†port wake configuration jumper block

F USB port wake configuration jumper block

G Processor fan connector (fan 1)

H Processor socket

I Intel®82815EG Graphics and Memory Controller Hub (GMCH)

J DIMM sockets

K Diskette drive connector

L Power connector

M Secondary IDE connector

N Primary IDE connector

O Battery

P Speaker

Q SCSI hard drive activity LED connector

R Chassis intrusion connector

S Chassis fan connector (fan 2)

T Intel®82801BA I/O Controller Hub (ICH2)

U BIOS configuration jumper block

V Firmware hub (FWH)

W PCI bus add-in card connectors

CAUTION

Many of the internal desktop board connectors provide operating voltage

(+5 V dc and +12 V dc, for example) to devices inside the computer

chassis, such as fans and internal peripherals. These connectors are not

overcurrent protected. Do not use these connectors for powering devices

external to the computer chassis. A fault in the load presented by the

external devices could cause damage to the computer, the

interconnecting cables, and the external devices themselves.

8 Intel Desktop Board D815EGEW Quick Reference

Installation Steps

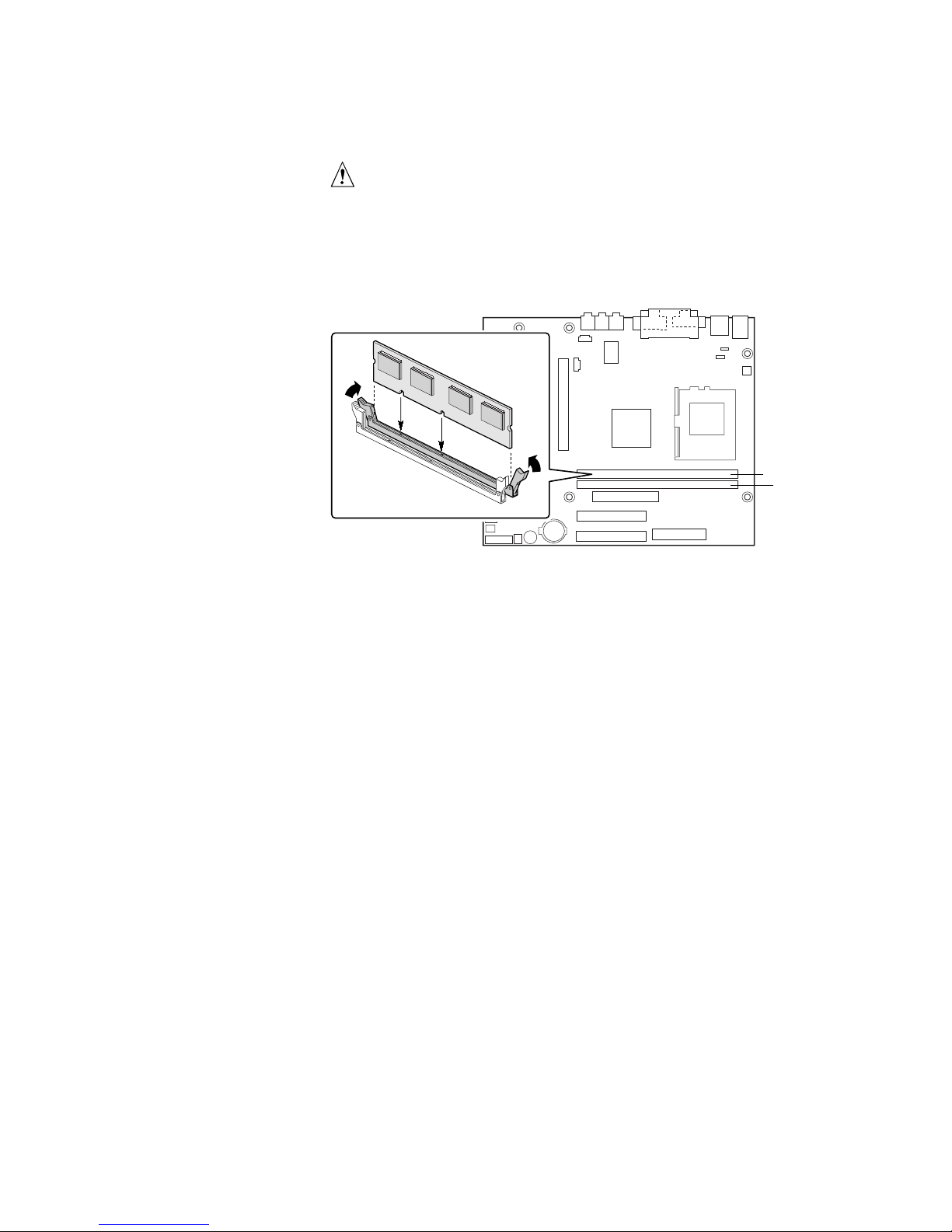

1Installing Memory Modules

CAUTION

Devices in PCI slot 1 may interfere with the memory retention mechanism.

Remove the device from PCI slot 1 before adding or removing memory.

The D815EGEW board requires that DIMMs be installed as shown in the figure

below. The two DIMM sockets are arranged as banks 0 and 1 as shown below.

If installing a single DIMM, install it in bank 0.

OM12552

To install DIMMs, follow these steps:

1. Observe the precautions in “Before You Begin”(see page 3).

2. Turn off all peripheral devices connected to the computer. Turn off and

unplug the computer.

3. Remove the computer cover and locate the DIMM sockets.

4. Holding the DIMM by the edges, remove it from its antistatic package.

5. Make sure the clips at either end of the socket are pushed away from the

socket as shown above.

6. Position the DIMM above the socket. Align the two small notches in the

bottom edge of the DIMM with the keys in the socket.

7. Insert the bottom edge of the DIMM into the socket.

8. When the DIMM is inserted, push down on the top edge of the DIMM until

the retaining clips snap into place. Make sure the clips are firmly in place.

9. Replace the computer cover.

Intel Desktop Board D815EGEW Quick Reference 9

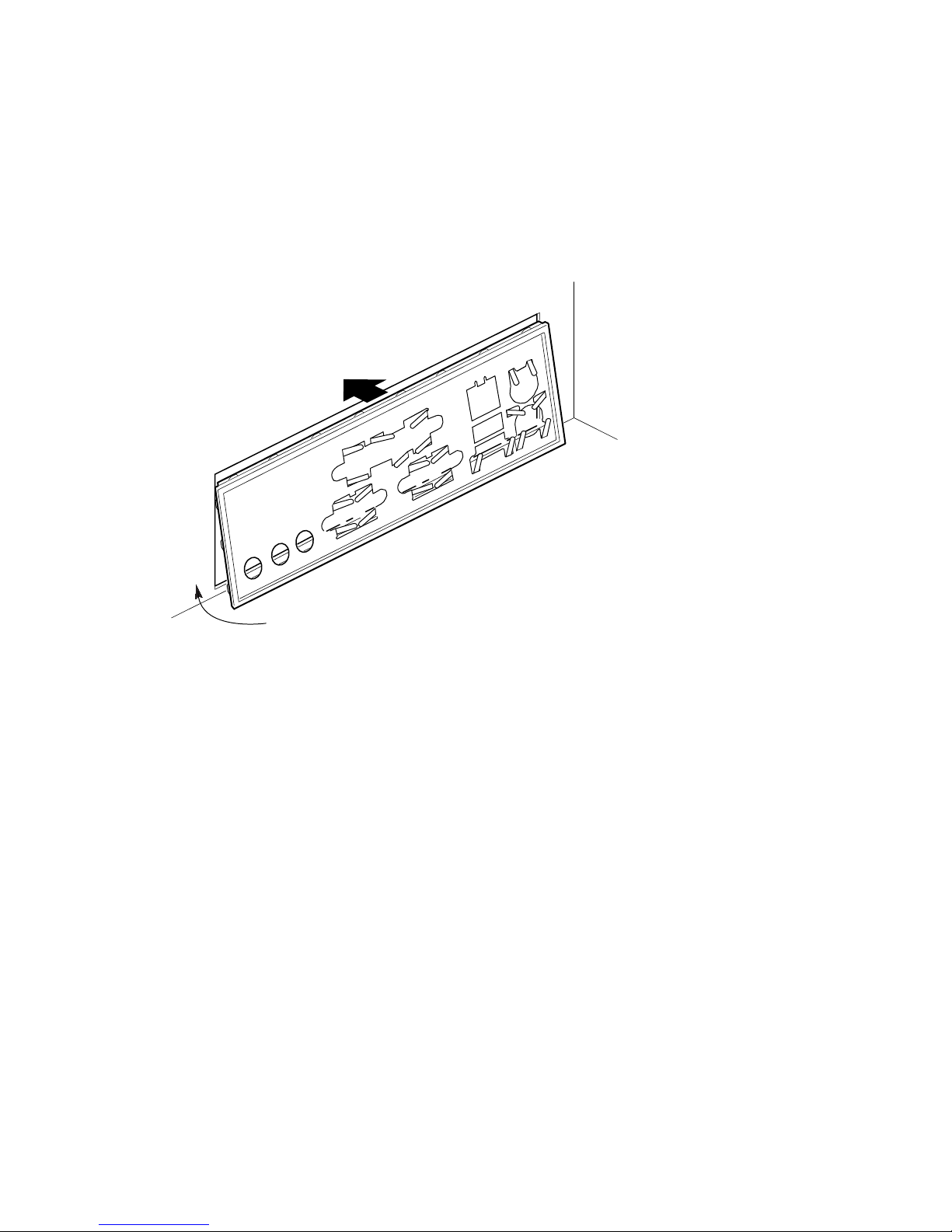

2 Installing the I/O Shield

The desktop board comes with an I/O shield. When installed in the chassis, the

shield blocks radio frequency transmissions, protects internal components from

dust and foreign objects, and promotes correct airflow within the chassis.

Install the I/O shield before installing the desktop board in the chassis. Place the

shield inside the chassis as shown in the following figure. Press the shield into

place so that it fits tightly and securely. If the shield doesn’t fit, obtain a

properly-sized shield from the chassis supplier.

OM12554

10 Intel Desktop Board D815EGEW Quick Reference

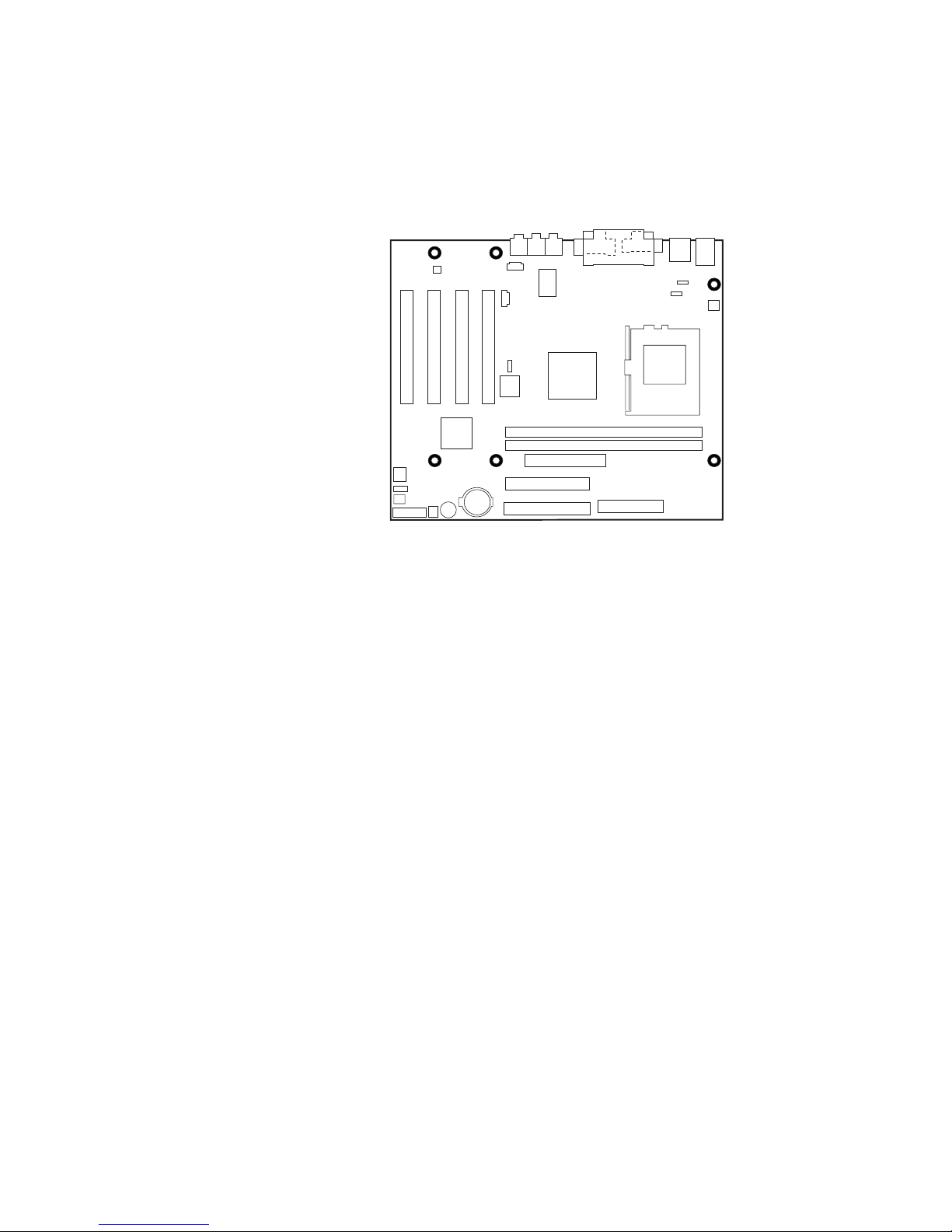

3 Installing the Desktop Board

Refer to your chassis manual for specific instructions on installing and removing

the desktop board.

Secure the desktop board to the chassis standoffs using six screws. Insert the

screws in the mounting holes shown in the figure below.

OM12555

4 Installing the Processor

Follow the instructions included with the boxed processor.

Altri manuali per D815EGEW

Indice

Altri manuali Intel Scheda madre

Intel

Intel D33217GKE Manuale utente

Intel

Intel D810E2CA3 Manuale utente

Intel

Intel D865PERL Manuale utente

Intel

Intel BOXD850MVSE Manuale utente

Intel

Intel Galileo Manuale utente

Intel

Intel D925XHY Manuale utente

Intel

Intel DX58OG Manuale utente

Intel

Intel DP55KG - Desktop Board Extreme Series... Guida rapida

Intel

Intel Arria 10 series Manuale utente

Intel

Intel BOXD915PCML - Desktop Board D915PCML Manuale utente

Intel

Intel BOXDH57JG Manuale utente

Intel

Intel D845GVSR - Desktop Board Motherboard Manuale utente

Intel

Intel D946GZAB - Desktop Board Motherboard Manuale utente

Intel

Intel BOXDX58SO2 Manuale utente

Intel

Intel BOXD945PAWLK - Desktop Board D945PAW Manuale utente

Intel

Intel DZ68DB Manuale utente

Intel

Intel D925XCV Manuale utente

Intel

Intel D945GCNL - Desktop Board Motherboard Manuale utente

Intel

Intel BLKDP55WB Manuale utente

Intel

Intel D946GZIS - Desktop Board Motherboard Manuale utente

Intel

Intel DB65AL Manuale utente

Intel

Intel 82563EB Guida

Intel

Intel DB85FL Guida rapida alla configurazione

Intel

Intel DQ965WC Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
