Intel D845GRG Manuale utente

Intel®Desktop Boards

D845GRG and D845GBV

Quick Reference

This guide is written for technically qualified personnel with experience

installing and configuring desktop boards.

Before You Begin

Warning and Cautions......................................................................... 3

Safety and Regulatory Notice ............................................................. 3

Desktop Board Components ....................................................... 4

Supported Components................................................................. 5

Installation Steps

1Installing the I/O Shield ................................................................ 6

2Installing the Desktop Board......................................................... 7

3Installing the Processor ................................................................. 7

4Installing the Memory Modules .................................................... 8

5Installing an AGP Card................................................................. 9

6Connecting the Fans..................................................................... 10

7Attaching the IDE Drives............................................................. 10

Using the BIOS Setup Program................................................. 11

Setting the BIOS Configuration Jumper Block................. 11

Items on the Intel®Express Installer CD-ROM

• Product warranty

• Intel Express Installer

• Intel®Desktop Boards D845GRG and D845GBV Product Guide

• Software utilities and drivers

• Software license agreement

• Readme file

Part Number: A84616-002

2 Intel Desktop Boards D845GRG and D845GBV

Quick Reference

Getting Help

View or download product support information from Intel’s World Wide

Web site:

http://support.intel.com/support/motherboards/desktop/

Follow the link to your Intel Desktop Board for the following information:

• Known Issues and Solutions

• Software and Drivers (latest BIOS and driver updates)

• Compatibility (supported Intel®processors and memory information)

• Product Documentation

 Technical Product Specification

 Specification Update

If you can’t find the information you need on the Web, contact your point of

purchase. The Intel World Wide Web site also includes telephone numbers and

billing charges, if applicable, for Intel customer support.

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH

INTEL®PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL

OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED

BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL’S TERMS AND

CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO

LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR

IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL

PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO

FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR

INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL

PROPERTY RIGHT. INTEL PRODUCTS ARE NOT INTENDED FOR USE IN

MEDICAL, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS. INTEL MAY

MAKE CHANGES TO SPECIFICATIONS AND PRODUCT DESCRIPTIONS AT

ANY TIME, WITHOUT NOTICE.

The Desktop Boards D845GRG and D845GBV may contain design defects or

errors known as errata which may cause the product to deviate from published

specifications. Current characterized errata are available on request.

Contact your local Intel sales office or your distributor to obtain the latest

specifications and before placing your product order.

Copies of documents which have an ordering number and are referenced in this

document, or other Intel literature, may be obtained from Intel Corporation by

going to the World Wide Web site at: http://www.intel.com or by calling

1-800-548-4725.

Intel and Pentium are registered trademarks of Intel Corporation or its

subsidiaries in the United States and other countries.

†Other names and brands may be claimed as the property of others.

Intel Desktop Boards D845GRG and D845GBV 3

Quick Reference

Before You Begin

Warning and Cautions

WARNING

Disconnect the board’s power supply from its AC power source

before you connect or disconnect cables, or install or remove any

board components. Failure to do this can result in personal injury or

equipment damage. Some circuitry on the desktop board can

continue to operate even though the front panel power switch is off.

CAUTION

Electrostatic discharge (ESD) can damage desktop board components.

Install the board at an ESD-controlled workstation. If such a workstation

is not available, wear an antistatic wrist strap or touch the surface of the

antistatic package before handling the board.

CAUTION

Many of the midboard and front panel connectors provide operating

voltage (+5 V DC and +12 V DC, for example) to devices inside the

computer chassis, such as fans and internal peripherals. These

connectors are not overcurrent protected. Do not use these connectors

for powering devices external to the computer chassis. A fault in the load

presented by the external devices could cause damage to the computer,

the interconnecting cables, and the external devices themselves.

Safety and Regulatory Notice

See the Intel Desktop Boards D845GRG and D845GBV Product Guide for all

applicable regulatory compliance statements, product certification markings, and

safety and electromagnetic compatibility (EMC) standards and regulations these

desktop boards are compliant with.

Replacement battery warning label provided: Place the label inside the chassis

in an easy-to-see location near the battery but not on the board itself.

Intended uses: This product was evaluated as information technology

equipment (ITE) for home or office use when installed into an appropriate

computer chassis. Other end uses or locations may require further evaluation.

4 Intel Desktop Boards D845GRG and D845GBV

Quick Reference

Desktop Board Components

OM13885

USB 2.0

Devices

Line

2-pin alternate

power/sleep LED

connector

AB C D E

USB 2.0

Devices

Reset

HD LED

Power LED

No Connection

Intel Desktop Boards D845GRG and D845GBV 5

Quick Reference

Desktop Board Components (continued)

A Analog Devices Inc. AD1981A codec N Primary IDE connector

B Front panel audio connector O Speaker

C Auxiliary line-in connector (ATAPI) P Battery

D Rear chassis fan connector

(tach input)

Q SCSI hard drive activity LED

connector

E CD-ROM connector (ATAPI) R Chassis intrusion connector

F 12 V processor core voltage

connector

S Front chassis fan connector

G Intel®Graphics and Memory

Controller Hub (GMCH)

T BIOS configuration jumper block

H Processor socket U Intel®82801DB I/O Controller

Hub (ICH4)

I Processor fan connector V Front panel USB 2.0 connector

J DIMM sockets W AGP connector

K Power connector X PCI bus add-in card connectors

L Diskette drive connector Y Communication and Networking

Riser (CNR) (optional)

M Secondary IDE connector

CAUTION

Failure to use an ATX12V power supply, or not connecting the additional

power supply lead to the Desktop Board D845GRG or D845GBV may

result in damage to the desktop board and/or power supply.

For more information on the ATX12V power supply, refer to the Intel

Desktop Boards D845GRG and D845GBV Product Guide on the Intel

Express Installer CD-ROM.

✏NOTE

The number of PCI slots on your board may differ from those in the

illustration.

Supported Components

Processors

The board supports the following processors:

Type

Designation

Front Side Bus

Frequency

L2 Cache

Intel®Pentium®4 processor on

.13 micron process in an mPGA478

package

2.40 and 2.26 GHz 533 MHz 512 KB

Intel Pentium 4 processor on

.13 micron process in an mPGA478

package

2.20, 2A, 1.80A,

and 1.60A GHz

400 MHz 512 KB

Intel Pentium 4 processor on

.18 micron process in an mPGA478

package

2, 1.90, 1.80, 1.70,

1.60, and 1.50 GHz

400 MHz 256 KB

6 Intel Desktop Boards D845GRG and D845GBV

Quick Reference

For the latest information on processors supported by Desktop Boards

D845GRG and D845GBV, refer to the Intel World Wide Web site at:

http://support.intel.com/support/motherboards/desktop

Memory Module Requirements

The desktop boards supports system memory as defined below:

• Up to two 184-pin Double Data Rate (DDR) 200/266 SDRAM Dual Inline

Memory Modules (DIMMs) with gold-plated contacts

• Unbuffered and non-registered single or double-sided DIMMs

• Serial Presence Detect (SPD) memory only

• Non-ECC and ECC DIMMs

• 2.5 V memory

✏NOTES

The Desktop Boards D845GRG and D845GBV have been designed to

support DIMMs based on 512 Mbit technology up to 2 GB, but this

technology has not been validated on these boards.

All memory components and DIMMs used with the desktop boards must

comply with the PC SDRAM specifications. These include the PC

SDRAM Specification (memory component specific), the PC Unbuffered

DIMM Specification. To view or download these specifications, refer to

this Intel World Wide Web site:

http://www.intel.com/technology/memory/pcsdram/

For information about vendors that support these memory requirements,

refer to the Desktop Boards D845GRG and D845GBV link on this Intel

World Wide Web site:

http://support.intel.com/support/motherboards/desktop/

Installation Steps

1 Installing the I/O Shield

The board comes with an I/O shield. When installed in the chassis, the shield

blocks radio frequency transmissions, necessary to pass emissions (EMI)

certification testing, protects internal components from dust and foreign objects,

and promotes correct airflow within the chassis.

Install the I/O shield before installing the board in the chassis. Place the shield

inside the chassis as shown in the following figure. Press the shield into place so

that it fits tightly and securely. If the shield doesn’t fit, obtain a properly sized

shield from the chassis supplier.

Intel Desktop Boards D845GRG and D845GBV 7

Quick Reference

OM12116

2 Installing the Desktop Board

CAUTION

Failure to use an ATX12V power supply, or not connecting the additional

power supply lead to the Desktop Boards D845GRG and D845GBV may

result in damage to the desktop board and/or power supply.

For more information on the ATX12V power supply, refer to the Intel

Desktop Boards D845GRG and D845GBV Product Guide on the Intel

Express Installer CD-ROM.

Refer to your chassis manual for specific instructions on installing and removing

the desktop board.

Secure the desktop board to the chassis standoffs using the screws. The Desktop

Board D845GRG is secured to the chassis with six and Desktop Board

D845GBV with eight screws. Refer to the board illustration on page 4 for the

location of the mounting holes.

3 Installing the Processor

To install the processor, follow these steps

1. Observe the precautions in “Before You Begin”on page 3.

2. Lift the processor socket lever.

3. Install the processor so that the corner with the triangle marking (A) is

aligned with the corner where the lever is attached to the socket.

4. Lower the lever back to its original position.

8 Intel Desktop Boards D845GRG and D845GBV

Quick Reference

OM12078

mPGA478B

5. The desktop boards have an integrated processor fan heat sink retention

mechanism (RM). For instructions on how to install the processor fan heat

sink, refer to the boxed processor manual or the Intel World Wide Web

site at:

http://support.intel.com/support/processors/pentium4/intnotes478.htm

4 Installing the Memory Modules

CAUTION

Install memory in the DIMM sockets prior to installing the AGP video card

to avoid interference with the memory retention mechanism.

The Desktop Boards D845GRG and D845GBV’s two DIMM sockets are

arranged as Banks 0 and 1, as shown in the following figure. If installing a

single DIMM, install it in Bank 0.

To install DIMMs, follow these steps:

1. Remove the AGP video card if it interferes with the DIMM clips from

being easily opened and closed.

2. Align the small notch in the bottom edge of the DIMM with the key in the

socket.

3. Insert the bottom edge of the DIMM into the socket.

4. When the DIMM is inserted, push down on the top edge of the DIMM until

the retaining slips snap into place. Make sure the clips are firmly in place.

Intel Desktop Boards D845GRG and D845GBV 9

Quick Reference

OM13600

5 Installing an AGP Card

✏ NOTE

The D845GRG and D845GBV boards are only compatible with 1.5 V AGP

cards.

The Desktop Boards D845GRG and D845GBV have an integrated AGP card

retention mechanism (RM). Follow these instructions to install an AGP card:

1. Place the AGP card in the AGP connector.

2. Press down on the card until it is completely seated in the connector and the

card retention notch snaps into place below the RM.

3. Secure the card’s metal bracket to the chassis back panel with a screw.

To remove the AGP card, push back on the RM lever (A) until the retention pin

completely clears the notch in the card.

OM13851

10 Intel Desktop Boards D845GRG and D845GBV

Quick Reference

6 Connecting the Fans

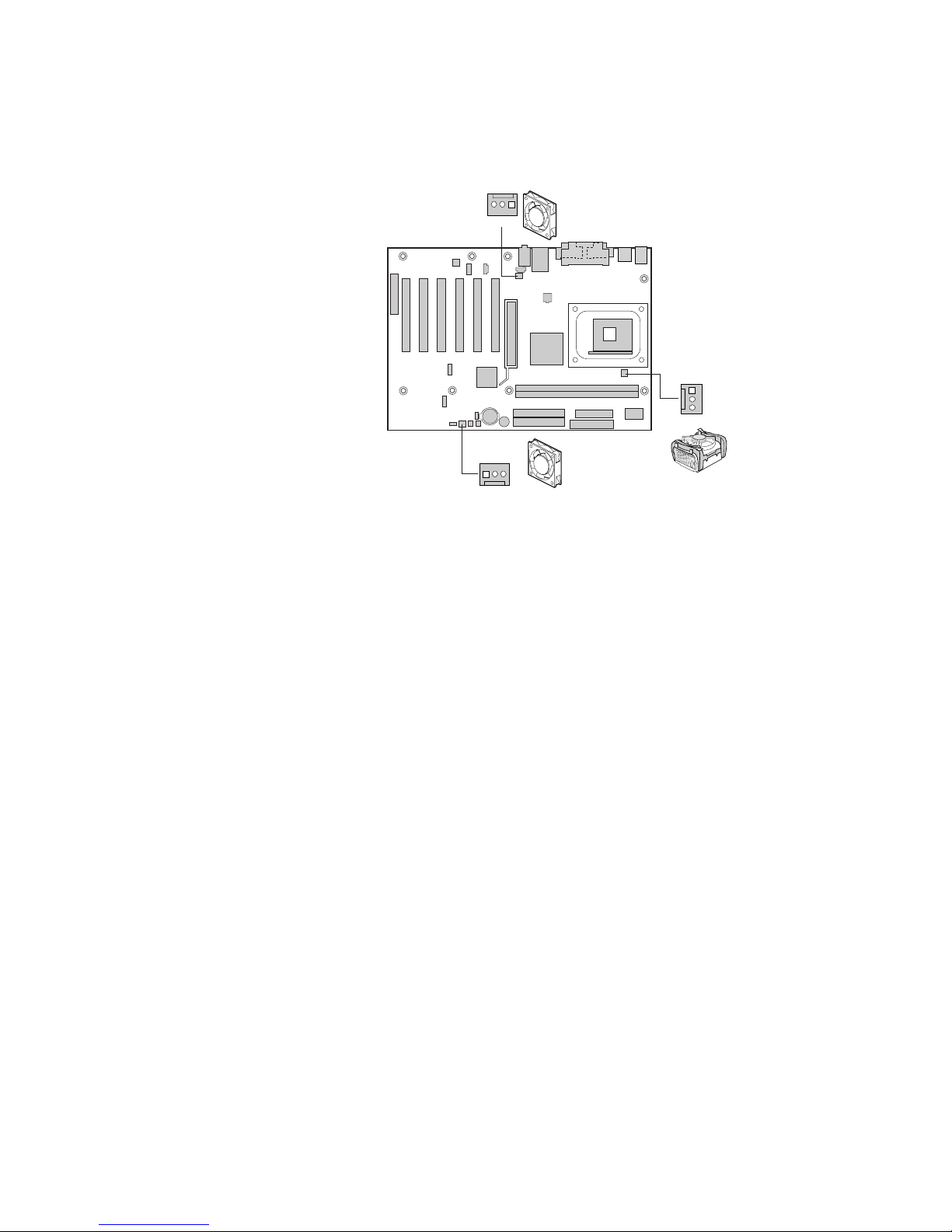

The following figure shows the location of the fan connectors. Connect the

processor’s fan heatsink cable to the processor fan connector on the board.

Connect the chassis fan cables to the board connectors as shown in the following

figure.

OM13699

Processor

Fan

Chassis Front

Fan

J2F1

J9H3

Chassis Rear

Fan

J6B2

7 Attaching the IDE Drives

The Intel®boxed desktop board package includes two IDE cables. Either cable

can connect two drives to the desktop board. The cables support the Ultra

DMA-33 (40-contact, 40-conductor) or ATA-66/100 (40-contact, 80-conductor)

transfer protocols and are backward compatible with drives using slower IDE

transfer protocols.

The cable will work correctly only when oriented as shown in the following

figure. For correct cable function:

1. Observe the precautions in “Before You Begin”on page 3.

2. Attach the cable end with the single connector (A) to the board.

3. Attach the cable end with the two closely spaced connectors (B) to the

drives.

Altri manuali per D845GRG

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Intel Scheda madre

Intel

Intel DQ77MK Manuale utente

Intel

Intel D945PWM Guida alla configurazione

Intel

Intel D201GLY2A - Desktop Board Motherboard Manuale utente

Intel

Intel DH61BF Guida alla configurazione

Intel

Intel BX Manuale utente

Intel

Intel DP67BG Guida rapida

Intel

Intel D845GVAD2 - P4 Socket 478 ATX Motherboard Manuale utente

Intel

Intel DG965SS Manuale utente

Intel

Intel BLKDG965WHMKR Guida alla configurazione

Intel

Intel S2600IP4 Manuale utente

Intel

Intel Braswell Series Manuale utente

Intel

Intel WX58BP - Workstation Board Motherboard Manuale utente

Intel

Intel BLKD945GCPE - LGA775 1066FSB 2DDR2 2GB Audio Video Lan mATX 10Pack... Guida alla configurazione

Intel

Intel DG31PR - Desktop Board Classic Series... Manuale di installazione e funzionamento

Intel

Intel D845EPT2 Manuale utente

Intel

Intel D945GBO Manuale utente

Intel

Intel D915GMHLK - Desktop Board - Mainboard Manuale utente

Intel

Intel BLKDP55SB Guida alla configurazione

Intel

Intel NUC5i3MYHE Manuale utente

Intel

Intel DZ68BC Manuale utente

Intel

Intel DH61CR Manuale utente

Intel

Intel DZ77GA-70K Manuale utente

Intel

Intel MI810 Manuale utente

Intel

Intel DB65AL Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
