Intel DH61SKCH Manuale utente

December 2011

Order Number: G37720-001

The Intel®Desktop Board DH61SKCH may contain design defects or errors known as errata that may cause the product to deviate from published specifications. Current

characterized errata are documented in the Intel Desktop Board DH61SKCH Specification Update.

Intel® Desktop Board

DH61SKCH

Technical Product Specification

Revision History

Revision Revision History Date

-001 Intel®Desktop Board DH61SKCH Technical Product Specification December 2011

This product specification applies to only the standard Intel®Desktop Board DH61SKCH with

BIOS identifier SKH6110H.86A.

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL®PRODUCTS. NO LICENSE,

EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS

GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL’S TERMS AND CONDITIONS OF SALE FOR

SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR

IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR

WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT

OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. UNLESS OTHERWISE AGREED IN

WRITING BY INTEL, THE INTEL PRODUCTS ARE NOT DESIGNED NOR INTENDED FOR ANY APPLICATION IN

WHICH THE FAILURE OF THE INTEL PRODUCT COULD CREATE A SITUATION WHERE PERSONAL INJURY OR

DEATH MAY OCCUR.

Intel Corporation may have patents or pending patent applications, trademarks, copyrights, or other

intellectual property rights that relate to the presented subject matter. The furnishing of documents and

other materials and information does not provide any license, express or implied, by estoppel or otherwise,

to any such patents, trademarks, copyrights, or other intellectual property rights.

Intel may make changes to specifications and product descriptions at any time, without notice.

Designers must not rely on the absence or characteristics of any features or instructions marked “reserved”

or “undefined.” Intel reserves these for future definition and shall have no responsibility whatsoever for

conflicts or incompatibilities arising from future changes to them.

Intel®desktop boards may contain design defects or errors known as errata, which may cause the product

to deviate from published specifications. Current characterized errata are available on request.

Contact your local Intel sales office or your distributor to obtain the latest specifications before placing your

product order.

Intel and the Intel logo are trademarks of Intel Corporation in the U.S. and/or other countries.

* Other names and brands may be claimed as the property of others.

iii

Board Identification Information

Basic Desktop Board DH61SKCH Identification Information

AA Revision BIOS Revision Notes

G35198-001 SKH6110H.86A.0009 1, 2

Notes:

1. The AA number is found on a small label on the component side of the board.

2. The H61 PCH used on this AA revision consists of the following component:

Device Stepping S-Spec Numbers

H61 PCH B3 SLJ4B

Errata

Current characterized errata, if any, are documented in a separate Specification

Update. See http://developer.intel.com/products/desktop/motherboard/index.htm

for the latest documentation.

Intel Desktop Board DH61SKCH Technical Product Specification

Preface

This Technical Product Specification (TPS) specifies the board layout, components,

connectors, and power and environmental requirements for Intel®Desktop Board

DH61SKCH. It describes the standard product and available manufacturing options.

Intended Audience

The TPS is intended to provide detailed, technical information about the Intel Desktop

Board DH61SKCH and its components to the vendors, system integrators, and other

engineers and technicians who need this level of information. It is specifically not

intended for general audiences.

What This Document Contains

Chapter Description

1 A description of the hardware used on the board

2 Technical reference for the board

3 Regulatory compliance and battery disposal information

Typographical Conventions

This section contains information about the conventions used in this specification. Not

all of these symbols and abbreviations appear in all specifications of this type.

Notes, Cautions, and Warnings

NOTE

Notes call attention to important information.

INTEGRATOR’S NOTES

Integrator’s notes are used to call attention to information that may be useful to

system integrators.

CAUTION

Cautions are included to help you avoid damaging hardware or losing data.

Intel Desktop Board DH61SKCH Technical Product Specification

Other Common Notation

# Used after a signal name to identify an active-low signal (such as USBP0#)

GB Gigabyte (1,073,741,824 bytes)

GB/s Gigabytes per second

Gbit Gigabit (1, 073,741,824 bits)

KB Kilobyte (1024 bytes)

Kbit Kilobit (1024 bits)

kbits/s 1000 bits per second

MB Megabyte (1,048,576 bytes)

MB/s Megabytes per second

Mbit Megabit (1,048,576 bits)

Mbit/s Megabits per second

xxh An address or data value ending with a lowercase h indicates a hexadecimal value.

x.x V Volts. Voltages are DC unless otherwise specified.

* This symbol is used to indicate third-party brands and names that are the property of their

respective owners.

vii

Contents

1Product Description

1.1Overview.......................................................................................... 9

1.1.1Feature Summary .................................................................. 9

1.1.2Board Layout

....................................................................... 10

2Technical Reference

2.1Connectors, Headers, and Jumpers .................................................... 13

2.1.1Component-side Headers and Connectors ................................ 13

2.1.2Clear CMOS Jumper

.............................................................. 17

2.1.3Back Panel Connectors

.......................................................... 18

2.2Mechanical Considerations ................................................................ 19

2.2.1Form Factor......................................................................... 19

2.3Electrical Considerations

................................................................... 20

2.3.1Power Supply Considerations ................................................. 20

2.4Thermal Considerations

.................................................................... 21

2.5Reliability ....................................................................................... 21

2.6ACPI Wake-up Devices and Events

..................................................... 22

3Regulatory Compliance and Battery Disposal Information

3.1Regulatory Compliance..................................................................... 23

3.1.1Product Ecology Statements................................................... 23

3.1.2China RoHS

......................................................................... 24

3.2Battery Disposal Information............................................................. 25

Figures

1. Major Board Components.................................................................. 10

2. Component-side Connectors and Headers ........................................... 13

3. Clear CMOS Jumper ......................................................................... 17

4. Back Panel Connectors ..................................................................... 18

5. Board

Dimensions ........................................................................... 19

6. Intel Desktop Board DH61SKCH China RoHS Material

Self Declaration Table ...................................................................... 24

Intel Desktop Board DH61SKCH Technical Product Specification

viii

Tables

1. Feature Summary.............................................................................. 9

2. Board Components Shown in Figure 1 ................................................ 11

3. Connectors and Headers Shown in Figure 2 ......................................... 14

4. Serial ATA Connectors...................................................................... 14

5. COM Port Header............................................................................. 14

6. Chassis Fan Header ......................................................................... 15

7. Processor Fan Header ...................................................................... 15

8. Front Panel Audio Header ................................................................. 15

9. Front Panel Header .......................................................................... 15

10. Front Panel USB 2.0 Headers ............................................................ 15

11. Front Panel USB 3.0 Connector.......................................................... 16

12. Processor Core Power Connector........................................................ 16

13. Main Power Connector...................................................................... 16

14. Speaker

Header .............................................................................. 16

15. S/PDIF

Connector............................................................................ 17

16. Clear CMOS Jumper Settings............................................................. 17

17. Recommended Power Supply Current Values ....................................... 20

18. Thermal Considerations for Components ............................................. 21

19. Wake-up Devices and Events ............................................................ 22

1Product Description

1.1 Overview

1.1.1 Feature Summary

Table 1 summarizes the major features of the Intel Desktop Board DH61SKCH.

Table 1. Feature Summary

Form Factor Mini-ITX (6.70 inches by 6.70 inches [164.15 millimeters by 164.15 millimeters])

Processor •Intel®Core™ i7, Intel®Core™ i5, Intel®Core™ i3, and Intel®Pentium®

processors in an LGA1155 socket with up to 65 W TDP:

―Integrated graphics processing (processors with Intel®Graphics Technology)

―External graphics interface controller

―Integrated memory controller

Memory •Two 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets

•Support for DDR3 1333 MHz and DDR3 1066 MHz DIMMs

•Support for up to 16 GB of system memory with two DIMMs

•Support for non-ECC memory only

Chipset Intel®H61 Express Chipset consisting of the Intel®H61 Platform Controller

Hub (PCH)

Graphics •Integrated graphics support for processors with Intel®Graphics Technology:

―DVI-I

―DisplayPort*

―HDMI*

•Discrete graphics support for PCI Express 2.0 x16 add-in graphics card

Audio 8 (7.1)-channel audio subsystem including:

•Back panel analog audio jacks

•Back panel optical S/PDIF output connector

•Front panel audio header

•Onboard mono speaker header (for buzzer support)

•Onboard S/PDIF connector

Legacy I/O

Control Legacy I/O controller that provides serial, parallel, PS/2* ports, and hardware

management

Peripheral

Interfaces

•Eight USB 2.0 ports (four back panel connectors and two front panel headers

each providing two ports)

•Four USB 3.0 ports (two back panel connectors and one front panel connector

providing two ports)

•Three Serial ATA (SATA) interfaces

•One back panel external SATA (eSATA) interface

•PS/2 keyboard port

•One on-board serial port header

BIOS AMI* BIOS

Expansion

Capabilities

•PCI Express x16 bus add-in card connector

•PCI Express Full-Mini Card slot

WiFi Support WiFi Card, installed in the PCI Express Full-Mini Card slot, compliant with the

IEEE 802.11n Draft 2.0 Standard

Intel Desktop Board DH61SKCH Technical Product Specification

1.1.2 Board Layout

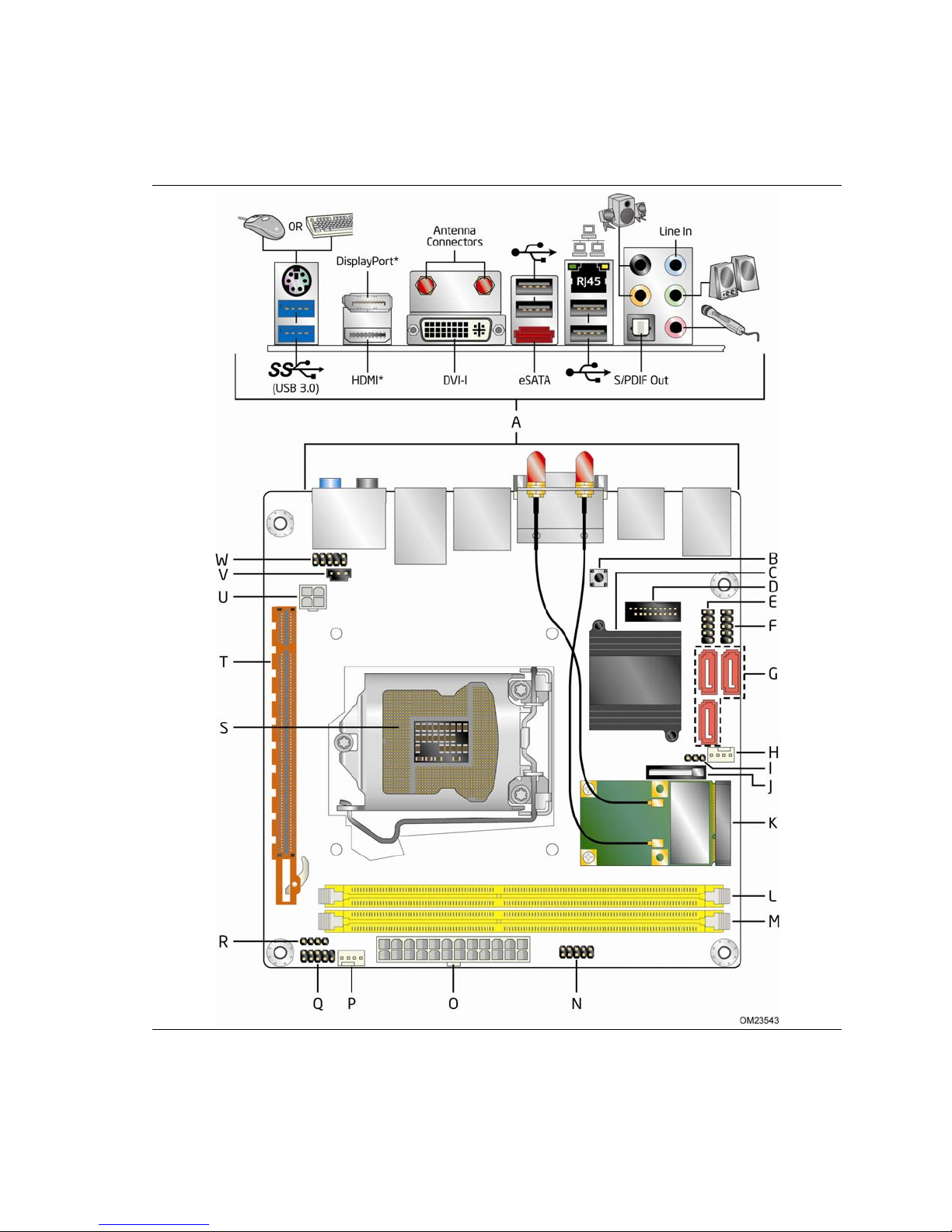

Figure 1 shows the location of the major components of Intel Desktop DH61SKCH.

Figure 1. Major Board Components

Altri manuali per DH61SKCH

Indice

Altri manuali Intel Scheda madre

Intel

Intel BLKD102GGC2 Guida alla configurazione

Intel

Intel D845HV Manuale utente

Intel

Intel MB899 Manuale utente

Intel

Intel BLKDG45FC Guida alla configurazione

Intel

Intel D865GSA Manuale utente

Intel

Intel D845GEBV2 - OCTOBRE 2002 Manuale utente

Intel

Intel DX58OG Manuale utente

Intel

Intel DQ965WC Manuale utente

Intel

Intel D865PERLX Manuale utente

Intel

Intel D845EPI Manuale utente

Intel

Intel DZ68ZV Manuale utente

Intel

Intel DH55HC Guida alla configurazione

Intel

Intel iUP-200A Manuale utente

Intel

Intel D946GZIS - Desktop Board Motherboard Manuale tecnico

Intel

Intel D945GCNL - Desktop Board Motherboard Manuale utente

Intel

Intel Z68 Manuale utente

Intel

Intel BLKD101GGCL Manuale utente

Intel

Intel D945PLNM Manuale utente

Intel

Intel BLKDP55WG - P55 LG1156 MAX-16 GB DDR3 ATX... Guida alla configurazione

Intel

Intel D201GLY - Desktop Board Motherboard Manuale utente

Intel

Intel DG41AN Manuale utente

Intel

Intel DG43RK Manuale utente

Intel

Intel D865GBF Manuale utente

Intel

Intel MS-6112 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
