Intel i845E Manuale utente
TRADEMARK
All products and company names are trademarks or registered
trademarks of their respective holders.
These specifications are subject to change without notice.
Manual Revision 1.0
September 03, 2003
User’User’
User’User’
User’ss
ss
s
ManualManual
ManualManual
Manual
$ "*-)
IntelIntel
IntelIntel
Intel i845Ei845E
i845Ei845E
i845E mainboardmainboard
mainboardmainboard
mainboard
for Intel Socket 478 processorfor Intel Socket 478 processor
for Intel Socket 478 processorfor Intel Socket 478 processor
for Intel Socket 478 processor
DISCLAIMER OF WARRANTIES:
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE
DESCRIPTION ON THE FACE OF THE MANUFACTURER LIMITED
WARRANTY. THE MANUFACTURER EXPRESSLY EXCLUDES ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED, REGARDING ITS
PRODUCTS; INCLUDING ANY IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR
NONINFRINGEMENT. THIS DISCLAIMER OF WARRANTIES SHALL
APPLY TO THE EXTENT ALLOWED UNDER LOCAL LAWS IN THE
COUNTRY PURCHASED IN WHICH LOCAL LAWS DO NOT ALLOW
OR LIMIT THE EXCLUSION OF THE IMPLIED WARRANTIES.
Table of Contents
Section 1 Introduction
Package Contents ...................................................... 1-1
Intel Pentium 4 Processors......................................... 1-2
Chipset Components.................................................. 1-2
Accelerated Graphics Port ......................................... 1-
Ultra ATA66/100 ........................................................ 1-
Hardware Monitoring ................................................. 1-
LAN (Optional) .......................................................... 1-
Mainboard Form-Factor ............................................. 1-4
I/O Shield Connector.................................................. 1-5
Power-On/Off (Remote).............................................. 1-5
System Block Diagram ............................................... 1-6
Section 2 Features
Mainboard Features ................................................... 2-1
Section 3 Installation
Mainboard Layout ..................................................... -2
Easy Installation Procedure
CPU Installation ......................................................... -
Jumper Settings .......................................................... -5
System Memory Configuration .................................. -6
Expansion slots .......................................................... -8
Device Connectors..................................................... -10
External Modem Ring-in Power ON and
Keyboard Power ON Function (KBPO) ..................... -15
STR (Suspend To RAM) Function .......................... -16
Page
Section 4 BIOS Setup
Main Menu ................................................................ 4-1
Standard CMOS Setup ............................................... 4-2
Advanced BIOS Features .......................................... 4-
Advanced Chipset Features ...................................... 4-8
Integrated Peripherals ................................................ 4-10
Power Management Setup ......................................... 4-15
PNP/PCI Configuration Setup.................................... 4-20
PC Health Status ........................................................ 4-22
Power BIOS Features ................................................. 4-24
Defaults Menu ........................................................... 4-28
Supervisor/User Password Setting ............................ 4-29
Exit Selecting .............................................................. 4- 0
Section 5 Driver Installation
Easy Driver Installation.............................................. 5-1
Realtek Sound Manager Quick User Guide ................ 5-2
Appendix Appendix A
Realtek Media Player Users Guide ............................ A-1
Appendix B
Update Your System BIOS ......................................... B-1
Appendix C
EEPROM BIOS Remover ........................................... C-1
Appendix D
GHOST 7 Quick Users Guide (Optional) ................... D-1
Introduction
Page 1-1
B
A
C
D
USERS
MANUAL
E
or
F
Section 1
INTRODUCTION

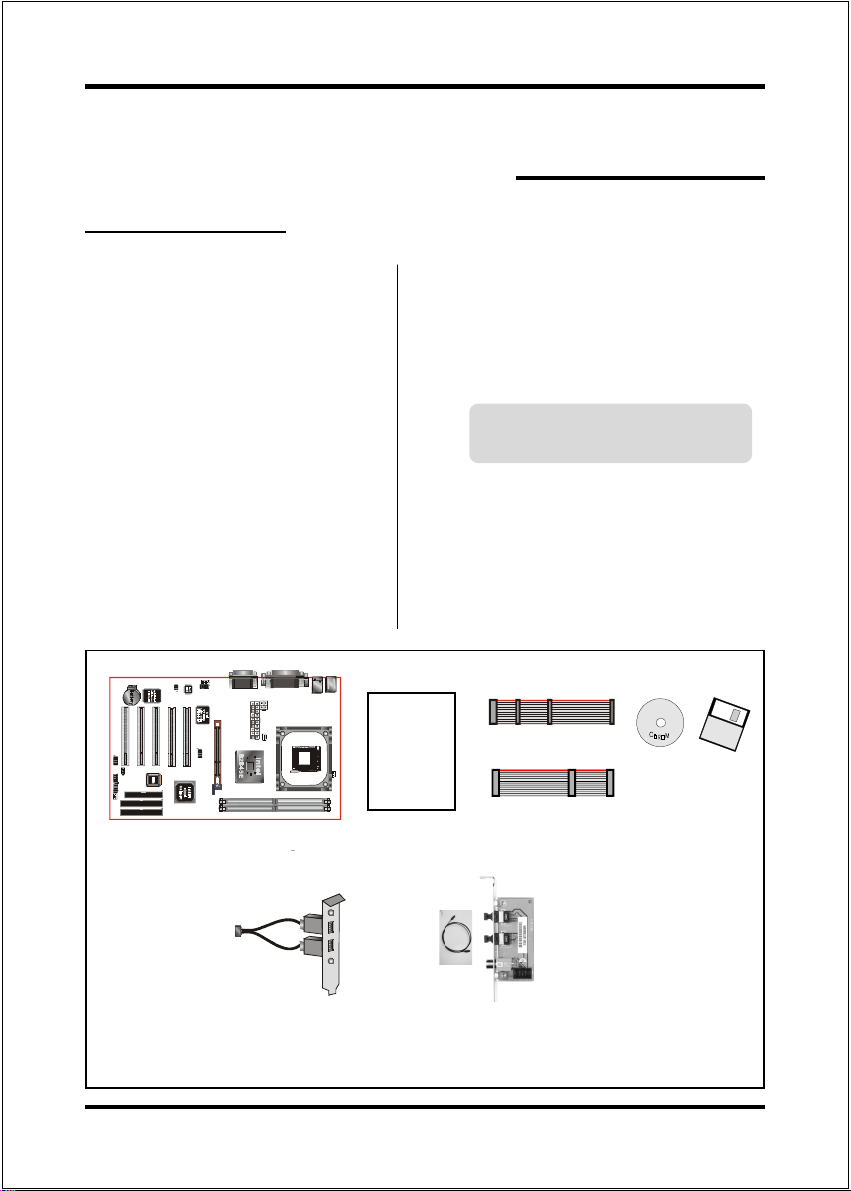

Package Contents
Contents
A. Mainboard
B. Users manual
C. Floppy drive cable
D. HDD drive cable
E. CD or diskette (drivers and
utilities
Optional Items
F. Extra USB2.0 port cable
G. S/PDIF Module
G
If you need the optional item, please
contact your dealer for assistance.
Introduction
Page 1-2
Intel®Pentium®4 processors
The Intel Pentium 4 processor, Intel's most advanced, most powerful processor for
desktop PCs and entry-level workstations, is based on Intel NetBurstTM
microarchitecture. The Pentium 4 processor is designed to deliver performance
across applications and usages where end-users can truly appreciate and experience
the performance. These applications include Internet audio and streaming video,
image processing, video content creation, speech, 3D, CAD, games, multimedia, and
multi-tasking user environments. The Pentium 4 processor delivers this world-class
performance for consumer enthusiasts and business professional desktop PC users
as well as for entry-level workstation users.
Intel adds support for Hyper-Threading Technology to the Pentium 4 processor
family. HT Technology allows a single, physical Pentium 4 processor to function as
two logical processor for next generation multi threaded application.
For more information about all the new features Pentium 4 deliver check out the
Intel website at http://www.intel.com
Chipset Components
This board is designed with Intel® 845E chipset. The Intel® 845E chipset consists of
the Memory Controller Hub (MCH and the I/O Controller Hub (ICH4 .
Memory Controller Hub (MCH)
The MCH provides the interconnect between the AGP, DDR SDRAM and the
system logic. It integrates:
- Supports for single processor with a data transfer rate of 400/533/533+MHz.
- Supports dual channel of 200/266/266+ DDR SDRAM up to 2GB.
- 4X 1.5V AGP interface (Only support 1.5V on AGP interface .
- Downstream hub link for access to the ICH4.
I/O Controller Hub (ICH4)
The I/O controller Hub provides the I/O subsystem with access to the rest of the
system. Additionally, it integrates many I/O functions:
Introduction
Page 1-3
- Upstream hub link for access to the MCH
- 2-Channel Ultra ATA/100 Bus Master IDE controller
- USB controller
- SMBus controller
- LPC / Flash BIOS interface
- PCI 2.2 interface
- Integrated System Management Controller
Accelerated Graphics Port (AGP)
The AGP slot on the board is compliant with the new AGP 2.0 specification. This
new specification enhances the functionality of the original AGP specification by
allowing 4X data transfers ( 4 data samples per clock resulting in maximum band-
width of 1GB/s. In addition, it defines 1.5 volt power supply operation. Complying
with this specification, this board supports external AGP-4X cards with Fast Write
Transactions. Only 1.5V AGP cards are supported.
Ultra ATA/66/100
The mainboard provides an Ultra ATA/66/100 Bus Master IDE controller. This
controller supports Ultra ATA/66/100 protocols which are ideal to support demanding
applications such as real-time video, multimedia, and a high performance operating
system. A new IDE cable is required for Ultra ATA/66/100; this cable is an 80-pin
conductor cable which is backward compatible with ATA/33 connectors.
Hardware Monitoring
Hardware monitoring enables you to monitor various aspects of the system operation
and status. The features include CPU temperature, voltage and fan speed in RPMs.
LAN (Optional)
This mainboard is optionally mounted with a LAN chipset. It allows the mainboard to
connect to a local area network by means of a network hub.
Introduction
Page 1-4
Mainboard Form-Factor
This board is designed with ATX form factor - the latest industry standard for
chassis design. The ATX form factor is essentially a Baby-AT baseboard rotated
90 degrees within the chassis enclosure and a new mounting configuration for
the power supply. With these changes the processor is relocated away from the
expansion slots, allowing them all to hold full length add-in cards. ATX defines a
double height aperture to the rear of the chassis which can be used to host a
wide range of onboard I/O. Only the size and position of this aperture is defined,
allowing PC manufacturers to add new I/O features (e.g.; TV input, TV output,
joystick, modem, LAN, audio, etc. to systems. This will help systems integrators
differentiate their products in the marketplace, and better meet your needs.
By integrating more I/O down onto the board and better positioning the hard
drive and floppy connectors material cost of cables and add-in cards is
reduced.
By reducing the number of cables and components in the system, manufac-
turing time and inventory holding costs are reduced and reliability will
increase.
By using an optimized power supply, it's possible to reduce cooling costs
and lower acoustical noise. An ATX power supply, which has a side-
mounted fan, allows direct cooling of the processor and add-in cards making
a secondary fan or active heatsink unnecessary in most system applications.
PCI slots
Expandable I/O
Figure 2: Summary of ATX chassis features
CPU socket
Single chassis
fan for system
AT X
Power
Supply
ATX power connector
IDE connectors
AGP slot
3 1/2-inch
Bay
5 1/4-inch
Bay
ATX 12V power
connector
Floppy
connector
Introduction
Page 1-5
Power-On/Off (Remote)
This board has a 20-pin ATX power supply connector (Figure 4 . For power
supplies that support the Remote On/Off feature, this should be connected to the
mainboard front panel PW_ON connector for the computer power On/Off button.
This board has been designed with Soft Off" function. You can turn off the system
in two ways: by pressing the front panel power On/Off button or using the "Soft
Off" function that can be controlled by an operating system such as Windows®XP/
ME/2000/98.
Note: For maintaining the DDR SDRAM power during STR (ACP S3) function, it is strongly
recommended to use power supplies that have a +5VSB current of (>=) 2A. Please check the
5VSBs specification printed on the power supplys outer case.
Note: The board requires a minimum of 250 Watt power supply to operate. Your system configura-
tion (amount of memory, add-in cards, peripherals, etc.) may exceed this minimum power
requirement. To ensure that adequate power is provided, use a 300 Watt (or higher) power
supply.
I/O Shield Connector
The I/O back panel for this mainboard is shown below (Figure 3 .
Figure 3: I/O ports
PW-ON
Case (chassis) Po er ON/OFF button (PW-ON)
POWER SUPPLY
12V 4-pin
20-pin
Figure 4: Simple ATX po er ON/OFF controller
USB 2.0
port
PS/2 Mouse
PS/2 Keyboard
COM1
Parallel Port
RJ45 L N Joystick/Midi port
COM2
(Optional)
Mic-in/Center&Subwoofer(Pink)
Line-out/Front out (Lime)
Line-in/Rear out (Light Blue)
Introduction
Page 1-6
Figure 5: System Block Diagram
System Block Diagram
Altri manuali per i845E
1
Indice
Altri manuali Intel Scheda madre
Intel
Intel BLKD865GSAL Guida alla configurazione
Intel
Intel D865GSA Manuale utente
Intel
Intel BOXD915GVWBL - Desktop Board D915GVWBL Manuale utente
Intel
Intel DQ965CO Manuale utente
Intel
Intel BLKDP43BF Guida alla configurazione
Intel
Intel BLKD102GGC2 Guida alla configurazione
Intel
Intel 41210 Manuale utente
Intel
Intel B785Z Manuale utente
Intel
Intel BOXD915GEV - LGA775 800FSB 4DDR2 Aud+Vdo SATA ATX... Manuale utente
Intel
Intel NUC5i3MYHE Manuale utente
Intel
Intel DG41BI Manuale utente
Intel
Intel Galileo Manuale utente
Intel
Intel D845EPI Guida rapida
Intel
Intel D925XBC - Desktop Board Motherboard Manuale utente
Intel
Intel WX58BP - Workstation Board Motherboard Manuale utente
Intel
Intel DZ68DB Manuale utente
Intel
Intel i945P Manuale utente
Intel
Intel BOXDG43GT Manuale utente
Intel
Intel H67 Manuale utente
Intel
Intel LGA775 Manuale utente
Manuali Scheda madre popolari di altre marche
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manuale utente
Gigabyte
Gigabyte GA-9IVDT Manuale utente
Texas Instruments
Texas Instruments ADS8372EVM Manuale utente
Commell
Commell MS-C73 Manuale utente
IBT Technologies
IBT Technologies MB860 Manuale utente
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manuale utente
