Intel I865PE Manuale utente

TRADEMARK

All products and company names are trademarks or registered

trademarks of their respective holders.

These specifications are subject to change without notice.

Manual Revision 1.0

October 15, 2004

User’User’

User’ss

ManualManual

Manual

60000025PDA10

IntelIntel

Intel i865PEi865PE

i865PEi865PE

i865PE mainboardmainboard

mainboardmainboard

mainboard

for Intel Socket 775 processorfor Intel Socket 775 processor

for Intel Socket 775 processor

DISCLAIMER OF WARRANTIES:

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE

DESCRIPTION ON THE FACE OF THE MANUFACTURER LIMITED

WARRANTY. THE MANUFACTURER EXPRESSLY EXCLUDES ALL

OTHER WARRANTIES, EXPRESS OR IMPLIED, REGARDING ITS

PRODUCTS; INCLUDING ANY IMPLIED WARRANTIES OF

MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR

NONINFRINGEMENT. THIS DISCLAIMER OF WARRANTIES SHALL

APPLY TO THE EXTENT ALLOWED UNDER LOCAL LAWS IN THE

COUNTRY PURCHASED IN WHICH LOCAL LAWS DO NOT ALLOW

OR LIMIT THE EXCLUSION OF THE IMPLIED WARRANTIES.

iii

80 Port Frequently Asked Questions

Below is a list of some basic POST Codes, possible problems, and solutions. For

more detailed information about POST Codes, refer to Appendix C in this manual.

POST CODE Problem Solution

FFh or CFh 1.BIOS chip inserted

incorrectly

2. Incorrect BIOS update

version

3. Mainboard problem

4. Add-on card inserted

incorrectly.

1. Reinsert the BIOS

chip

2. Download the correct

BIOS version update

from the manufacturer's

Web site.

3. Replace mainboard

4. Remove and replace the

add-on card

C1h - C5h 1. Memory module

inserted incorrectly

2. Memory compatibility

problem

3. Memory module

damaged

1. Reinsert memory

module

2. Replace memory

with correct type

3. Replace memory

module

2Dh 1. Error occured in VGA

BIOS

2. VGA card inserted

incorrectly

1. Replace VGA card

2. Reinsert the VGA

card

26h Overclock error Clear CMOS or press the insert

key to power on the system

07h - 12h 1. Init keyboard

controller error

2. RTC error

1. Ensure that the keyboard and

mouse are connected

correctly.

2. Replace the RTC battery.

Initial Keyboard

Table of Contents

Section 1 Introduction

Package Contents ...................................................... 1- 1

Mainboard Features ................................................... 1- 2

System Block Diagram ............................................... 1- 5

Section 2 Specification

Mainboard Specification ............................................ 2- 1

Section 3 Installation

Mainboard Layout ..................................................... 3- 1

Easy Installation Procedure ....................................... 3- 3

CPU Insertion ............................................................. 3- 3

Jumper Settings .......................................................... 3- 4

System Memory Configuration .................................. 3- 5

Expansion Slots .......................................................... 3- 7

Device Connectors..................................................... 3- 8

Power-On/Off (Remote) .............................................. 3-14

External Modem Ring-in Power ON and

Keyboard Power ON Function (KBPO) ..................... 3-14

ACPI S3 (Suspend To RAM) Function ...................... 3-15

Section 4 BIOS Setup

Main Menu ................................................................ 4- 1

Standard CMOS Setup ............................................... 4- 2

Advanced BIOS Features .......................................... 4- 3

Advanced Chipset Features ...................................... 4- 5

Integrated Peripherals ................................................ 4- 8

Power Management Setup ......................................... 4- 13

PNP/PCI Configuration Setup .................................... 4-17

PC Health Status ........................................................ 4-18

Power BIOS Features ................................................. 4-20

Page

Defaults Menu ........................................................... 4-23

Supervisor/User Password Setting ............................ 4-24

Exit Selecting .............................................................. 4- 25

Section 5 Driver Installation

Easy Driver Installation .............................................. 5- 1

Realtek Sound Manager Quick User guide ................ 5- 2

Appendix Appendix A

Update Your System BIOS ......................................... A- 1

Appendix B

EEPROM BIOS Remover ........................................... B-1

Appendix C

POST Codes ............................................................... C- 1

Page Left Blank

Introduction

Page 1-1

Section 1

INTRODUCTION

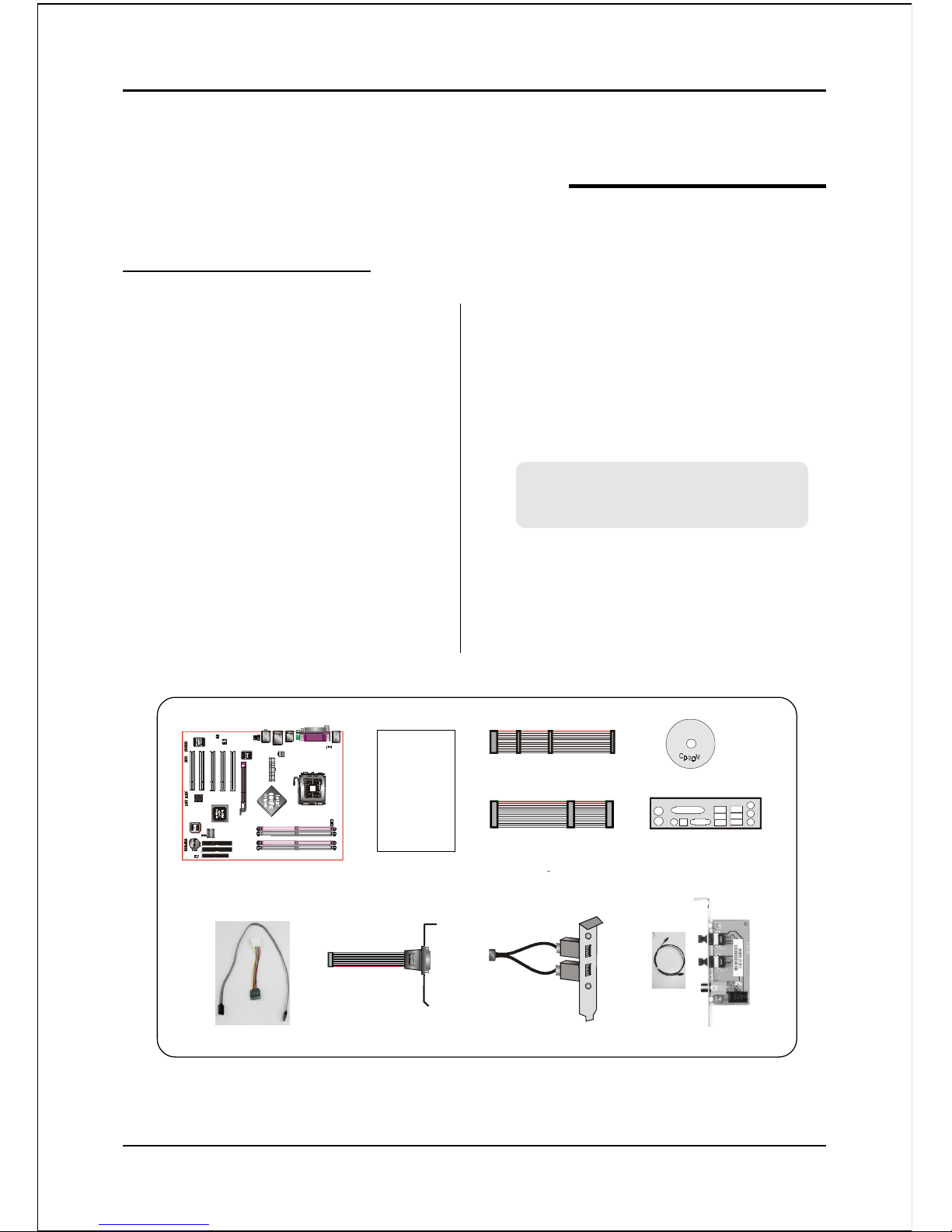

1-1 Package Contents

Contents

A. Mainboard

B. User’s manual

C. Floppy drive cable

D. HDD drive cable

E. CD (drivers and utilities)

F. I/O Shield

G. S-ATA data and power cable

Optional Items

H. Game port cable

I. Extra USB2.0 port cable

J. S/PDIF Module

USER’S

MANUAL

If you need the optional item, please

contact your dealer for assistance.

Introduction

Page 1-2

1-2 Mainboard Features

Brief Introduction

2Intel®Pentium®4 processors

The Pentium 4 processor is designed to deliver performance across applications

and usages where end-users can truly appreciate and experience the

performance. The Pentium 4 processor delivers this world-class performance for

consumer enthusiasts and business professional desktop PC users as well as for

entry-level workstation users.

Intel adds support for Hyper-Threading Technology to the Pentium 4 processor

family. HT Technology allows a single, physical Pentium 4 processor to function

as two logical processor for next generation multi threaded application.

For more information about all the new features the Pentium 4 delivers, check out the

Intel website at http://www.intel.com

2Chipset

This board is designed with Intel®865PE (Springdale-PE) chipset. The Intel®

865PE chipset consists of the Memory Controller Hub (MCH) and the I/O

Controller Hub (ICH5).

2DDR400

Supports dual channel of DDR400 memory to give you twice the memory

bandwidth for greater system performance.

2Accelerated Graphics Port (AGP)

The AGP slot is compliant with the new AGP 3.0 specification. This new specifi-

cation enhances the functionality of the original AGP specification by allowing

8X data transfers ( 8 data samples per clock) resulting in maximum bandwidth of

2.1GB/s. Only 1.5V AGP cards are supported.

2Ultra ATA100

The mainboard provides an Ultra ATA100 Bus Master IDE controller. This

controller supports Ultra ATA100 protocols which are ideal to support demanding

applications such as real-time video, multimedia, and a high performance operating

system. A new IDE cable is required for Ultra ATA100.

Introduction

Page 1-3

2Hardware Monitoring

Hardware monitoring enables you to monitor various aspects of the system

operation and status. This includes CPU temperature, voltage and fan speed in

RPMs.

10/100 LAN

This mainboard is mounted with an ethernet LAN chipset. It allows the mainboard

to connect to a local area network by means of a network hub.

2GbE LAN (for high-end model only)

This mainboard is optionally mounted with a Gigabit ethernet LAN chipset. The

new Gigabit Ethernet LAN allows data transmission at 1,000 megabits per second

(Mbps), which runs 10 times faster than conventional 10/100BASE-T Ethernet

LANs.

2Serial ATA

Support Serial ATA, an evolutionary replacement for Parallel ATA IDE storage

interface. Increases the peak data transfer speed up to 150MB/sec and allows

future enhancements to the computing platform.

2USB2.0

A popular USB standard for plugging in peripherals with up to 480Mbps transfer

speed while maintaining backward compatibility with older USB1.1 device.

26ch

Delivers 6 channel audio to bring you the latest in audio realism from DVD

movies and games. Perfect for your home theatre system.

Introduction

Page 1-4

Special Features

&80 Port

An onboard LED-display trouble-shooting device, facilitating user to detect

boot-up problems.

&QuickSPDIF

On board SPDIF-out connector for quick connection to multi-channel speakers.

Not only removes cable cluttering but also delivers loss-free digital audio to let

you enjoy DVD movies and games with crystal clear sound.

&Magic Health

Reports your system hardware status for every boot-up to help detect faults

early. Monitor hardware status including CPU temperature, CPU/Memory/AGP

voltage, fan RPM speed for chassis fan, CPU fan & Power supply fan.

&EZ-Boot

Simply press “ESC” to select your bootable device. No more hassle to search the

BIOS menu, change and re-start.

&PowerBIOS

Supporting a full range of overclocking setting via BIOS. Various adjustable

feature include clock and voltage tweaking for FSB/AGP/Memory.
