Intel Pentium NR110 Manuale utente

NR110

Intel® 845 Motherboard

USER’S MANUAL

Pentium®4 Processor Motherboard

Rev. 1.0

NR110 Motherboard

Revision History

Revision Date Description

1.0 Initial release of NR110 motherboard user’s manual

Item Checklist

1 NR110 Motherboard

1 Floppy Cable

1 ATA Cable 66/100

1 I/O Shield

1 Heatsink Retention Module

1 CD for Motherboard Driver

NR110 User Manual

Quick Installation Guide

Intel® Pentium 4 are registered trademark of Intel Corporation.

NR110 Motherboard

Safety Instructions

Please follow some precautions when operating your computer.

1. Always unplug the power cord when inserting any add-on card or module inside the system.

2. Use a grounded wrist strap before handling computer components. If one is not available, touch both of your

your hands to a safely grounded object or to a metal object.

3. Place components on a level grounded antistatic pad or on the packaging that came with the components

whenever the components are separated from the system.

4. Keep equipment away from moisture and humidity.

5. Keep this User’s Manual for future reference.

NR110 Motherboard

Table of Contents

Chapter 1. Introduction …………………………………………………………………… 1

Motherboard Specification …………………………………………………………………………. 1

NR110 Motherboard Layout …………………………………………………………………….…. 3

Chapter 2. Hardware Installation Process ………………………………………..4

Installing Central Process Unit (CPU) ……………………………………………………………..4

Installing Memory Modules ………………………………………………………………………… 6

Connecting IDE and Floppy Disk Cables and Drives ……………………………………………7

Installing Expansion Cards ………………………………………………………………………… 9

Connect Power Supply Cable ……………………………………………………………………. 10

I/O Back Panel Introduction ………………………………………………………………………. 11

Jumpers Introduction ……………………………………………………………………………… 13

Chapter 3. AMI® BIOS Setup ………………………………………………………….. 15

Entering Setup ……………………………………………………………………………………... 15

The Main Menu ……………………………………………………………………………………. 15

Standard CMOS Setup …………………………………………………………………………… 16

Advanced Chipset Setup …………………………………………………………………………. 17

Advanced BIOS Setup ……………………………………………………………………………. 18

Power Management Setup ……………………………………………………………………….. 19

PCI/Plug and Play Setup …………………………………………………………………………. 20

Peripheral Setup …………………………………………………………………………………… 21

Hardware Monitor Setup ………………………………………………………………………….. 22

Auto-Detect Hard Disks …………………………………………………………………………… 23

Change User Password …………………………………………………………………………... 24

Change Supervisor Password ……………………………………………………………………. 25

Auto Configuration with Optimal Settings ……………………………………………………….. 26

Auto Configuration with Fail Safe Settings ……………………………………………………… 27

Save Settings and Exit ……………………………………………………………………………. 28

Exit Without Saving ………………………………………………………………………………... 29

NR110 Motherboard

Chapter 1 Introduction

Motherboard Specifications

Form Factor:

• Standard µATX 9.6”x 9.6”

Processor:

• Supports single IntelPentium4 Processor in 478 ball FC-PGA2 package

• Processor socket mPGA478B

• 400 MHz system bus

Cache Memory:

• Processor integrated level-1 cache and level-2 cache.

System Memory:

• Three 168-pin DIMM socket (90 degree, tin plated contact)

• Support PC133 SDRAM

• Support 64Mb, 128Mb, 256Mb, and 512Mb SDRAM devices

• Support minimum 64MB to 3GB maximum

• Support suspend -to-RAM sleep state (ACPI S3)

Core Logic Chipset:

• Inteli845 MCH (Memory Controller Hub) in 593 ball FC-BGA package

• Intel 82801BA ICH2 (I/O Controller Hub 2) in 360 ball EBGA package

• Intel 82802AB 2 Mb FWH (Firmware Hub) or equivalent.

• AGP Controller

• AGP v2.0 compliant.

• Supports 1x/2x/4x AGP signaling and 2x/4x Fast Writes

• Optimized point-to-point topology using 1.5V signaling in 4x mode.

• 66 MHz asynchronous clock AGP-to-Host interface.

PCI bus:

• PCI 2.2 compliant

• PME# and 3.3Vaux signals to support power management.

Audio:

• ADI AD1885 analog CODEC

• AC’97 Revision 2.1 compliant (Integrated in ICH2)

• Three mini-DIN audio jacks (Line-out, Line-in, and Mic-in)

•

Two audio headers, locking type: CD-in, Aux-in

NR110Motherboard

On board EIDE:

• 2x PCI IDE ports supporting up to 4 devices

• Support ATA-33/66/100, PIO up to mode 4

On board I/O:

• Low Pin Count (LPC) 3.3V interface between FWH and ICH2

• 2 serial ports - DB9 (16550 UART).

• 1 Parallel Port - DB25 with ECP/EPP support.

• 1 Floppy port with 1.2MB, 1.44MB and 2.88MB support.

• 1 PS/2 mouse connector, 1 PS/2 keyboard connector.

• 3 fan output headers.

• 4 USB Ports: 2 ports with RJ-45/USB connector in back panel, 2 ports with 2X5 header for

front panel connection.

BIOS:

• Plug & Play BIOS (AMI).

• 2 Mb Firmware Hub

• ACPI v2.0 – WfM 2.0 – SMBIOS v2.3 – DMI v2.1 – PC2001.

• Auto detect for: CPU Speed – AGP 4X – ATA-100.

• Wake-on PS/2 (KB, Mouse) & USB devices.

• Rapid Boot support

• WOL, ASF support

• Power management: ACPI S3, S4 support

Additional Features:

• Case intrusion header

• Thermal sensor & CPU monitoring.

• NIC with integrated MBA boot (complete WOL support)

• BIOS recovery & Boot-Block overwrite via jumper.

• Hardware Monitor Capability (SMSC LPC47M192).

Expansion Slots:

• 1 AGP Slot (2X/4X mode).

• 3 PCI Slots (including 1 shared PCI/CNR Slot)

Other:

• Front panel I/O 2X9 header, key pin 14.

• On-board buzzer.

NR110Motherboard

NR110 Motherboard Layout

A CPU Socket G Jumper Connector

B CPU Fan Socket H Front Panel Connector

C Memory Sockets I Expansion Slots

D Power Supply Connector J Audio Connector

E Floppy Connector K Back Panel Connectors

F IDE Connectors

Front Panel Connector Pin Definition

Pin Signal Name I/O Description

1 HD_PWR O Hard Disk LED pull-up to VCC

2 HDR_BLNK_GRN O Front panel GreenLED signal

3 HDA* O Hard Disk Active LED signal

4 HDR_BLNK_YEL O Front panel Yellow LED signal

5 GND - Ground

6 FPBUT_IN I Front panel On/Off button signal

7 FP_RESET* I Front panel Reset button signal

8 GND - Ground

9 VCC O

10 FPSLP* I Front panel sleep button signal

11 IRRX I IRDA serial input

12 GND - Ground

13 GND - Ground

14 KEY - KEY

15 IRTX O IRDA serial output

16 VCC O

17 NC - not connected

18 NC - not connected

DEF

NR110 Motherboard

Chapter 2 Hardware Installation Process

Installing the Central Process Unit (CPU)

CPU Installation

1. Unlock the CPU socket by pulling the lever up to a 90-degree angle.

2. Position the CPU above the socket such that the marked corner (pin1) matches the corner near the base

of the lever.

3. Place the CPU into the socket. If the CPU is unable to insert properly, check its orientation and attempt to

re-install.

Warning! Do not force the CPU into the socket. Doing so will prompt bending of the pins and create

damage to the CPU.

4. Close the socket by lowering the lever and locking the lever in place.

Step 1

90 degree angle

Step 2

Pin1

NR110 Motherboard

Installing the Central Process Unit (CPU)

cont.

CPU Heat Sink Installation

1. Read the related CPU heat sink user’s manual for more detailed installation procedures.

2. Connect CPU fan power cable into the CPU fan connector on the motherboard.

NR110 Motherboard

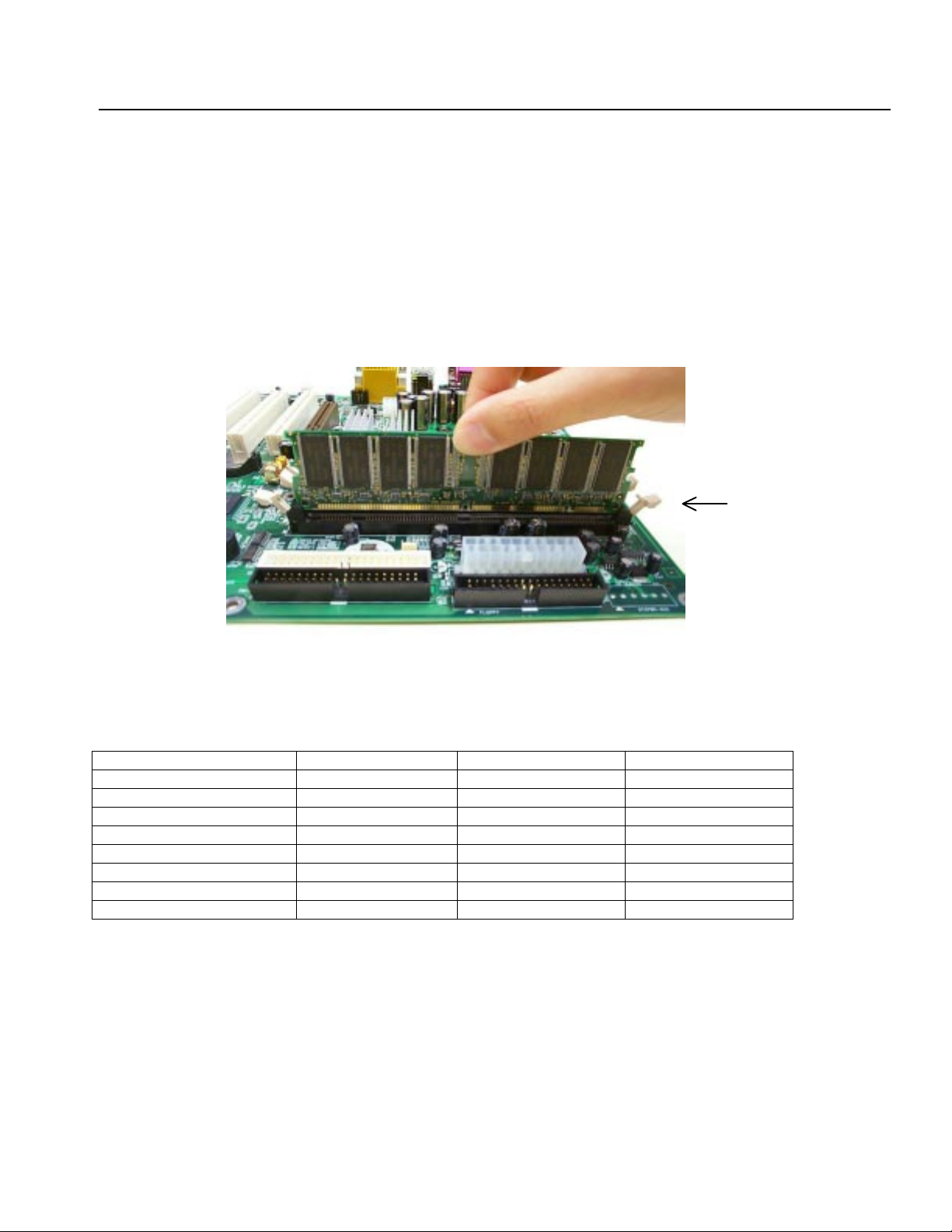

Installing Memory Modules

1. Push the white retaining clips on each of the memory socket outwards.

2. Match the notches on the contact edge of the memory module to the ridges in the memory socket.

3. Insert the memory module vertically into place. When properly inserted, the white retaining clips will move

inward to lock in the module.

4. Repeat installation process when adding additional modules.

Total Memory Sizes With Unbuffered SDRAM DIMM

Devices used on DIMM 1 DIMMx64/x72 2 DIMMsx64/x72 3 DIMMsx64/x72

64 Mbit (2Mx8x4 banks) 128 MBytes 256 MBytes 384 MBytes

64 Mbit (1Mx16x4 banks) 64 MBytes 128 MBytes 192 MBytes

128 Mbit (4Mx8x4 banks) 256 MBytes 512 MBytes 786 MBytes

128 Mbit (2Mx16x4 banks) 128 MBytes 256 MBytes 384 MBytes

256 Mbit (8Mx8x4 banks) 512 MBytes 1 GByte 1.5 GBytes

256 Mbit (4Mx16x4 banks) 256 MBytes 512 MBytes 768 Mbytes

512 Mbit (16Mx8x4 banks) 1 GByte 2 GBytes 3 GBytes

512 Mbit (8Mx16x4 banks) 512 MBytes 1 GByte 1.5 GBytes

Retaining Clip
