Intel S2600IP4 Manuale utente

Intel®

Server Board S2600IP4

Intel®

Server System Family P4000IP4

Intel®

Server System Family R2000IP4

Spares/Accessories List and Configuration Guide

A reference guide to assist customers in ordering the necessary components to

configure the Intel®Server Board S2600IP4, the 4U Intel®Server Chassis, and the 2U

Intel®Server Chassis.

~ Intel Confidential ~

~ Preliminary and Subject to Change ~

Revision 1.0

January 2012

Enterprise Platforms and Services Marketing

Intel Confidential 2

Revision History

May ’11- Rev 0.1 –initial release for Beta

Aug ’11 – Rev 0.2 –initial draft for Production

Oct ’11 – Rev 0.3 –updated draft for Production

Oct ’11 – Rev 0.4 –incorporated feedback

Nov ’11 – Rev 0.5 –Posted to CDI

Dec ’11 – Rev 0.6 –Making corrections: removed front bezel from 2U BIKs.

Jan ’12 – Rev 0.7 –Updated descriptions, images, sales ordering details.

Jan ’12 – Rev 0.8 - Final revision prior to “Books Open”. Posted to CDI.

Jan ’12 –Rev 1.0 –Updated revision for “Books Open”. Posted to CDI.

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS.

NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL

PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL'S

TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY

WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO

SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO

FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY

PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

Intel products are not intended for use in medical, life saving, life sustaining applications. Intel may make

changes to specifications and product descriptions at any time, without notice.

Intel server boards, server chassis, and processors may contain design defects or errors known as

errata, which may cause the product to deviate from published specifications. Current characterized

errata are available on request.

Intel, Intel Xeon, Pentium, and the Intel logo are trademarks or registered trademarks of Intel Corporation

or its subsidiaries in the United States and other countries.

*Other names and brands may be claimed as the property of others.

Intel Confidential 3

Intel Confidential 4

Table of Contents:

1. SYSTEM PRODUCT ORDER CODES...........................................................................................................................5

1.1 PRODUCT DESCRIPTIONS –OVERVIEW.......................................................................................................................5

1.2 SUMMARY TABLE.......................................................................................................................................................... 5

1.3 AVAILABLE PRODUCTION BOARD ORDER CODE FOR S2600IP4 ...............................................................................6

1.4 AVAILABLE PRODUCTION SYSTEM ORDER CODES FOR R2000IP4 FAMILY...............................................................6

1.5 AVAILABLE PRODUCTION SYSTEM ORDER CODES FOR P4000IP4 FAMILY...............................................................8

2. SPARES AND ACCESSORIES ORDER CODES......................................................................................................11

2.1 GENERAL COMMON SPARES AND ACCESSORIES...................................................................................................... 11

2.2 P4000 CHASSIS UNIQUE SPARES AND ACCESSORIES............................................................................................. 12

2.3 R2000 CHASSIS UNIQUE SPARES AND ACCESSORIES............................................................................................. 15

2.4 STORAGE SUBSYSTEM SPARES AND ACCESSORIES ..................................................................................................18

2.5 EXPANSION MODULES:IO MODULE,SAS MODULE,RMM4, TPM......................................................................... 19

2.6 VMWARE VSPHERE*AND VCENTER*SERVER SKUS............................................................................................... 23

2.7 SYMANTEC BACKUP EXEC 2010 SKUS.................................................................................................................... 25

Intel Confidential 5

1. System Product Order Codes

1.1 Product Descriptions –Overview

The Intel®Server Board S2600IP4 is a Maximum IO server board supporting two E5-2600 CPUs. It is

designed with the Medium Business, Storage, Embedded, and High Performance Computing markets in

mind. This board will be offered fully integrated in a 4U pedestal chassis and a 2U rack chassis. Should

you have any questions or feedback, please feel free to contact Jeannette Larson at

jeannette.h.larson@intel.com.

1.2 Summary Table

For a quick overview, all configuration options described in this document are summarized in the table

below. For more details such as MM numbers, product order codes and availability, please refer to the

other sections in this document.

Pedestal Systems in a 4U Chassis

Product Code

Form

Factor

HDD

# of

HDD

Power

supply

Rails

RAID

Storage

Upgrade

Included

Expander

P4224IP4LHKC

2.5”

2x1600W

None

RKSAS8

None

P4216IP4LHKC

2.5”

2x1600W

None

RMS25CB080

None

P4216IP4LHJC

2.5”

2x1200W

None

RKSAS8

None

P4208IP4LHGC

2.5”

2x750W

None

RKSAS8

None

P4308IP4LHKC

3.5”

2x1600W

None

RMS25CB080

None

P4308IP4LHJC

3.5”

2x1200W

None

RKSATA8

None

P4308IP4LHGC

3.5”

2x750W

None

RKSATA8

None

P4XXXIP4LXXC*

N/A

None

N/A

None

*Note: For maximum flexibility, this “bare bones” SKU allows the customer to choose the quantity and

type of disk drives and power supplies that best meets their needs.

Rackable Systems in a 2U Chassis

Product Code

Form

Factor

HDD

# of

HDD

Power

supply

Rails

RAID

Storage

Upgrade

Included

Expander

R2224IP4LHPC

2.5”

2x750W

ERPS

Value

RKSAS8

36-port

RES2CV360

Intel Confidential 6

R2216IP4LHPC

2.5”

2x750W

ERPS

Value

RMS25CB080

24-port

RES2CV240

R2208IP4LHPC

2.5”

2x750W

ERPS

Value

RKSAS8

None

R2312IP4LHPC

3.5”

2x750W

ERPS

Value

RMS25CB080

RES2SV240

R2308IP4LHPC

3.5”

2x750W

ERPS

Value

RKSATA8

None

1.3 Available Production Board Order Code for S2600IP4


Product Code

UPC

EAN

MOQ

Description

S2600IP4

916026

735858239295

5032037034067

Intel® Server Board S2600IP4 with 16 DIMMs and Quad NIC

Supports Dual Intel® Xeon E5-2600 processors

135W max

Intel® C600 series chipset

16 DDR3/DDR3L DIMM slots

8 PCIe slots

Intel® SAS ROC Mezz slot: PCIe Gen3 x8

Intel® IO Module Mezz slot: PCIe Gen3 x8

8 SCU SATA/SAS ports (4 ports functional w/ no storage

Keys and 4 ports require storage keys)

2 SATA 6G AHCI ports

Intel® Quad Gigabit Ethernet with Intel® Virtualization

Technology

Integrated Baseboard Management Controller with

IPMI 2.0

Option for advanced management functions with KVM and

dedicated NIC for remote management

1.4 Available Production System Order Codes for R2000IP4 Family

EPSD Romley Chassis and Systems shipped to the US & Canada will contain North American power

cords. North American customers no longer need to order skus ending in “NA” to receive power cords

on Romley products.

Intel Confidential 7


Product Code

UPC

EAN

MOQ

Description

*Demonstration only, see

description for

configuration details.

Need updated image.

R2224IP4LHPC

916049

UPC TBD

EAN TBD

Integrated Intel® Server System

S2600IP4 board in Intel R2000 2U rack chassis includes:

24x2.5'' Hot-swap HDD carriers

Power distribution board

Two CPU heat sinks, ABPSRCACP

Control panel

Redundant System fans

Processor/memory air duct

Two Power supplies 750W, Gold level efficiency

Value Rails Kit

Integrated 36-port expander

Intel® RAID C600 Upgrade Key RKSAS8

Full RMM4 with dedicated NIC

Quick Start Guide

*Demonstration only, see

description for

configuration details.

Need updated picture.

R2216IP4LHPC

916050

735858239196

5032037033961

Integrated Intel® Server System

S2600IP4 board in Intel R2000 2U rack chassis includes

6x2.5'' Hot-swap HDD carriers

Power distribution board

Two CPU heat sinks, ABPSRCACP

Control panel

Redundant System fans

Processor/memory air duct

Two Power supplies 750W, Gold level efficiency

Value Rails Kit

Integrated 24-port expander

8-port SAS ROC module with HW raid support pre-installed

Full RMM4 with dedicated NIC

Quick Start Guide

*Demonstration only, see

description for

configuration details.

Need updated picture.

R2208IP4LHPC

919047

UPC TBD

EAN TBD

Integrated Intel® Server System

S2600IP4 board in Intel R2000 2U rack chassis includes:

8x2.5'' Hot-swap HDD carriers

Power distribution board

Two CPU heat sinks, ABPSRCACP

Control panel

Redundant System fans

Processor/memory air duct

Two Power supplies 750W, Gold level efficiency

Value Rails Kit

Intel® RAID C600 Upgrade Key RKSAS8

Full RMM4 with dedicated NIC

Quick Start Guide

Intel Confidential 8

*Demonstration only, see

description for

configuration details.

Need updated picture.

R2312IP4LHP

916052

UPC TBD

EAN TBD

Integrated Intel® Server System

S2600IP4 board in Intel R2000 2U rack chassis includes:

12x3.5'' Hot-swap HDD carriers

Power distribution board

Two CPU heat sinks, ABPSRCACP

Control panel

Redundant System fans

Processor/memory air duct

Two Power supplies 750W

Value Rails Kit

24-port expander

Full RMM4 with dedicated NIC

8-port SAS ROC module with HW raid support pre-installed

Quick Start Guide

*Demonstration only, see

description for

configuration details.

Need updated picture.

R2308IP4LHPC

919048

735858239189

5032037033954

Integrated Intel® Server System

S2600IP4 board in Intel R2000 2U rack chassis

8x3.5'' Hot-swap HDD carriers

Power distribution board

Two CPU heatsinks, ABPSRCACP

Control panel

Redundant System fans included

Processor/memory air duct

Two Power supplies 750W

Value Rails Kit

Intel® RAID C600 Upgrade Key RKSATA8

Full RMM4 with dedicated NIC

Quick Start Guide

1.5 Available Production System Order Codes for P4000IP4 Family

EPSD Romley Chassis and Systems shipped to the US & Canada will contain North American power

cords. North American customers no longer need to order skus ending in “NA” to receive power cords

on Romley products.


Product Code

UPC

EAN

MOQ

Description

*Demonstration only, see

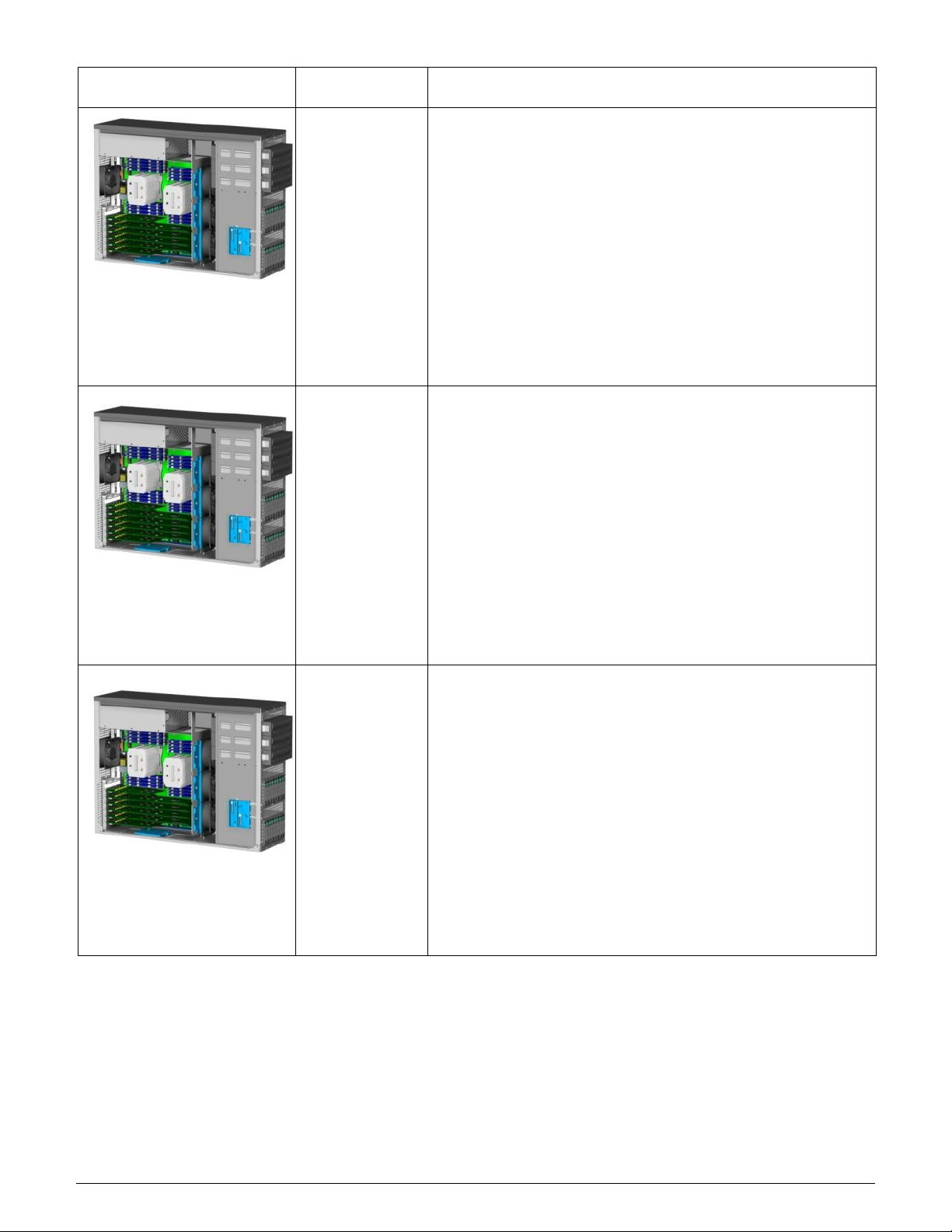

P4208IP4LHGC

916062

735858239219

5032037033985

Integrated Intel® Server System

S2600IP4 board in an Intel “Union Peak L” 4U pedestal chassis

Supports upto 8x2.5'' Hot-swap SAS/SATA HDD

Power distribution board

Passive CPU heatsinks

Control panel

Front Bezel

Redundant System fans included

Processor/memory air duct

Redundant power supply 750W, Platinum level efficiency

Intel Confidential 9

description for

configuration details.

Need updated image.

Intel® RAID C600 Upgrade Key RKSAS8

*Demonstration only, see

description for

configuration details.

Need updated picture.

P4308IP4LHGC

916065

735858239271

5032037034043

Integrated Intel® Server System

S2600IP4 board in an Intel “Union Peak L” 4U

pedestal chassis

Supports upto 8x3.5'' Hot-swap SAS/SATA HDD

Power distribution board

Passive CPU heatsinks

Control panel

Front Bezel

Redundant System fans included

Processor/memory air duct

Redundant power supply 750W, Platinum level

efficiency

Intel® RAID C600 Upgrade Key RKSATA8

*Demonstration only, see

description for

configuration details.

Need updated picture.

P4216IP4LHJC

916059

735858239202

5032037033978

Integrated Intel® Server System

S2600IP4 board in an Intel “Union Peak L” 4U pedestal chassis

Supports upto 16x2.5'' Hot-swap SAS/SATA HDD

Power distribution board

Passive CPU heatsinks

Control panel

Front Bezel

Redundant System fans included

Processor/memory air duct

Redundant power supply 1200W, Platinum level

efficiency

Intel® RAID C600 Upgrade Key RKSAS8

*Demonstration only, see

description for

configuration details.

Need updated picture.

P4308IP4LHJC

916064

735858239257

5032037034029

Integrated Intel® Server System

S2600IP4 board in an Intel “Union Peak L” 4U pedestal chassis

Supports upto 8x3.5'' Hot-swap SAS/SATA HDD

Power distribution board

Passive CPU heatsinks

Control panel

Front Bezel

Redundant System fans included

Processor/memory air duct

Redundant power supply 1200W, Platinum level

efficiency

Intel® RAID C600 Upgrade Key RKSATA8

*Demonstration only, see

description for

configuration details.

Need updated picture.

P4216IP4LHKC

918306

UPC TBD

EAN TBD

Integrated Intel® Server System

S2600IP4 board in an Intel “Union Peak L” 4U pedestal chassis

Supports upto 16x2.5'' Hot-swap SAS/SATA HDD

Power distribution board

Passive CPU heatsinks

Control panel

Front Bezel

Redundant System fans included

Processor/memory air duct

Redundant power supply 1600W, Platinum level

efficiency

Intel Confidential 10

This SKU will not be available at launch. Target availability is Q3’12.

*Demonstration only, see

description for

configuration details.

Need updatde picture.

P4224IP4LHKC

916055

UPC TBD

EAN TBD

Integrated Intel® Server System

S2600IP4 board in an Intel “Union Peak L” 4U pedestal chassis

Supports upto 24x2.5'' Hot-swap SAS/SATA HDD

Power distribution board

Passive CPU heatsinks

Control panel

Front Bezel

Redundant System fans included

Processor/memory air duct

Redundant power supply 1600W, Platinum level

efficiency

Intel® RAID C600 Upgrade Key RKSAS8

This SKU will not be available at launch. Target availability is Q3’12.

*Demonstration only, see

description for

configuration details.

Need updated picture.

P4308IP4LHKC

916063

UPC TBD

EAN TBD

Integrated Intel® Server System

S2600IP4 board in an Intel “Union Peak L” 4U pedestal chassis

Supports upto 8x3.5'' Hot-swap SAS/SATA HDD

Power distribution board

Passive CPU heatsinks

Control panel

Front Bezel

Redundant System fans included

Processor/memory air duct

Redundant power supply 1600W, Platinum level

efficiency

8-port SAS ROC module with HW raid support pre-installed

This SKU will not be available at launch. Target availability is Q3’12.

*Demonstration only, see

description for

configuration details.

Need updated picture.

P4XXXIP4LXXC

919046

735858239288

5032037034050

Intel® “Bare Bones” Server System

S2600IP4 board in an Intel “Union Peak L” 4U pedestal chassis

Includes:

Power distribution board which supports 750W PSU or

greater

Passive CPU heatsinks

Control panel

Front Bezel

Redundant System fans included

Processor/memory air duct

Does NOT include:

Power supplies

HDD carriers or backplane

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Intel Scheda madre

Intel

Intel D2550DC2 Manuale utente

Intel

Intel D915GMH Manuale utente

Intel

Intel Galileo Gen 2 Manuale utente

Intel

Intel D845PEBT2 Manuale utente

Intel

Intel BLKDX38BT Guida alla configurazione

Intel

Intel BOXDG41BI Guida alla configurazione

Intel

Intel Desktop Board D845GLLY Manuale utente

Intel

Intel D845GBV Manuale tecnico

Intel

Intel G4V500-B Manuale utente

Intel

Intel DZ77RE-75K Manuale utente

Intel

Intel VS440FX Manuale

Intel

Intel S1200BTL Manuale utente

Intel

Intel DZ77GA-70K Guida rapida

Intel

Intel D510MO Manuale utente

Intel

Intel DQ35MP Manuale utente

Intel

Intel Cougar Canyon 2 Istruzioni di montaggio

Intel

Intel DQ77CP Manuale utente

Intel

Intel iSBC 86/12 Guida rapida per l'utente

Intel

Intel LGA775 Manuale utente

Intel

Intel DP67BA Manuale utente

Intel

Intel BLKD945GTPL Guida alla configurazione

Intel

Intel DX58OG Manuale utente

Intel

Intel G41 Express Chipset Manuale utente

Intel

Intel DH67BL Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
