Intel NetStructure 6000 Manuale utente

A19062-001

Intel®

NetStructure™ 6000

Switch

Quick Start

Intel Corporation, 5200 NE Elam Young Parkway, Hillsboro OR 97124-6497

Information in this document is provided in connection with Intel® products. No license, express or

implied, by estoppel or otherwise, to any intellectual property rights is granted by this document. Except as

provided in Intel's Terms and Conditions of Sale for such products, Intel assumes no liability whatsoever,

and Intel disclaims any express or implied warranty, relating to sale and/or use of Intel products including

liability or warranties relating to fitness for a particular purpose, merchantability, or infringement of any

patent, copyright or other intellectual property right. Intel products are not intended for use in medical, life

saving, or life sustaining applications. Intel may make changes to specifications and product descriptions at

any time, without notice.

*Other product and corporate names may be trademarks of other companies and are used only for explanation and to the

owners’ benefit, without intent to infringe.

First Edition May 2000 A19062-001

Quick Start

Set up the switch

For complete installation requirements,

see the User Guide.

1 Remove the switch and parts from the

box.

2 If you plan to install the switch in a 19-

inch rack, remove the four front panel

screws on each side of the unit, then use

the screws included in the accessory kit

to fasten the rack-mount brackets.

3 Install the switch in a rack or on a shelf.

Install the carrier

tray module

1 Slide the carrier tray module into Slot 5

(the bottom slot) until it meets the con-

nector inside the chassis, and the capture

panel screws engage the chassis.

2 Tighten both capture panel screws

simultaneously.

Install the Control

Processor module

1 Slide the Control Processor (CP) mod-

ule into the left side of the carrier tray.

2 Push the module back until it meets the

connector inside the chassis, and the

capture panel screws engage the carrier

tray.

3 Tighten both capture panel screws

simultaneously.

4 If you ordered a second module, remove

the face plate on the right side of the

bottom slot and follow the instructions

above to install the module.

1Front Panel Screws

Carrier Tray

Gender

Adapter Bar

Slot 5

Primary CP

Slot 5

Install additional

power supplies

If you purchased an additional power sup-

ply, place it in one of the empty power

supply bays at the top of the chassis.

1 Loosen and remove the capture panel

screws on the face plate of the power

supply bay.

2 Push the power supply into the power

supply bay until the capture panel

screws engage the chassis.

3 Tighten the capture panel screws.

ActInstall the

network modules

You can install network modules, such as

the 1000Base-SX, 1000BaseLX /

1000BaseSX and 10/100Base-TX, in any

available slot on the chassis

1 Remove the filler panels from any slots

(1-4) that will hold network modules.

2 Push the module back until it connects

with the backplane connector, and the

capture panel screws engage the chassis.

3 Tighten both capture panel screws

simultaneously.

4 Leave the filler panels in any unused

slots. Doing so keeps dust out of the

switch and helps maintain proper air-

flow.

Capture Panel

Screws

Gigabit

Ethernet

Module

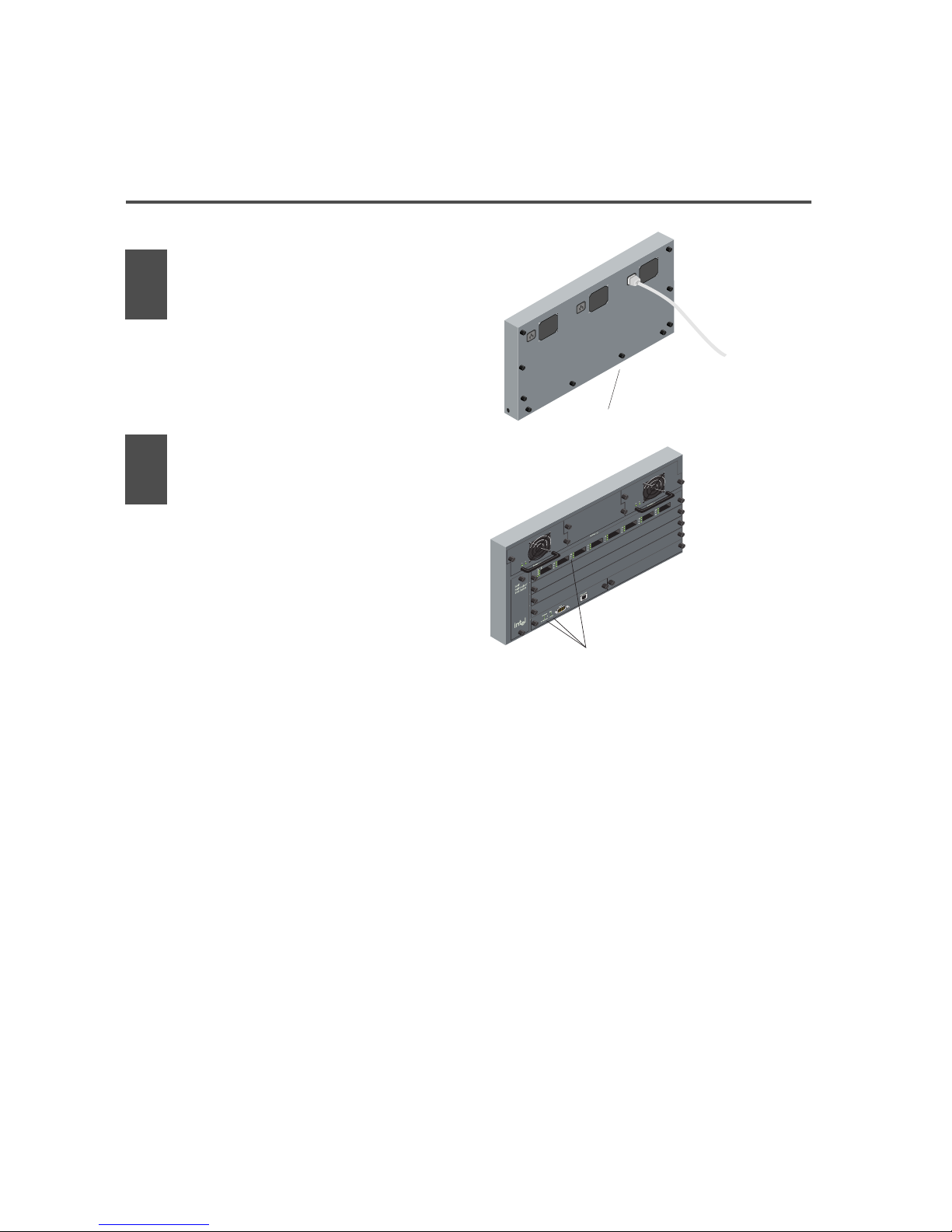

Plug in the switch

After you’ve installed all modules, plug

power cords into each installed power sup-

ply at the back of the chassis.

Connect to devices

After you have powered on the switch,

plug in the network cables.

Use the network module LEDs to verify

link status and activity.

See the User Guide for more information

on network cabling and LED usage.

Back Panel

LEDs

Management Options

Configure and

manage the switch

Option 1: Local Management

1 Connect your PC directly to the Console port on

the Control Processor module using the

included null modem cable.

2 Set a VT-100-compatible terminal emulation

program (such as HyperTerminal*) to these

parameters:

3 At the Password prompt, press Enter. By

default, no password is set. See the User Guide

for information on setting passwords.

4 Configure IP settings:

At the prompt, type

ifconfig et0 [x.x.x.x] netmask [y.y.y.y]

• The out-of-band port or management port on

the front of the CP is identified as interface

et0.

• [x.x.x.x] is the IP address you want to assign

to the switch.

• [y.y.y.y] is the subnet mask you want to

assign to the switch.

The IP address allows you to access and manage the

switch using a Web browser or Telnet application.

Note: In-band through the switched ports is identified by interfaces sw1 through sw4093

and are assigned for each VLAN configured to use IP.

For example

Enter the following commands on a single line.

See the User Guide for complete information on

using Local Management and configuring VLANs.

- 9600 baud - 8 data bits

- No parity - 1 stop bit

out-of-band ifconfig et0 134.134.34.122 netmask 255.255.0.0

in-band ifconfig sw1 134.134.34.122 netmask 255.255.0.0

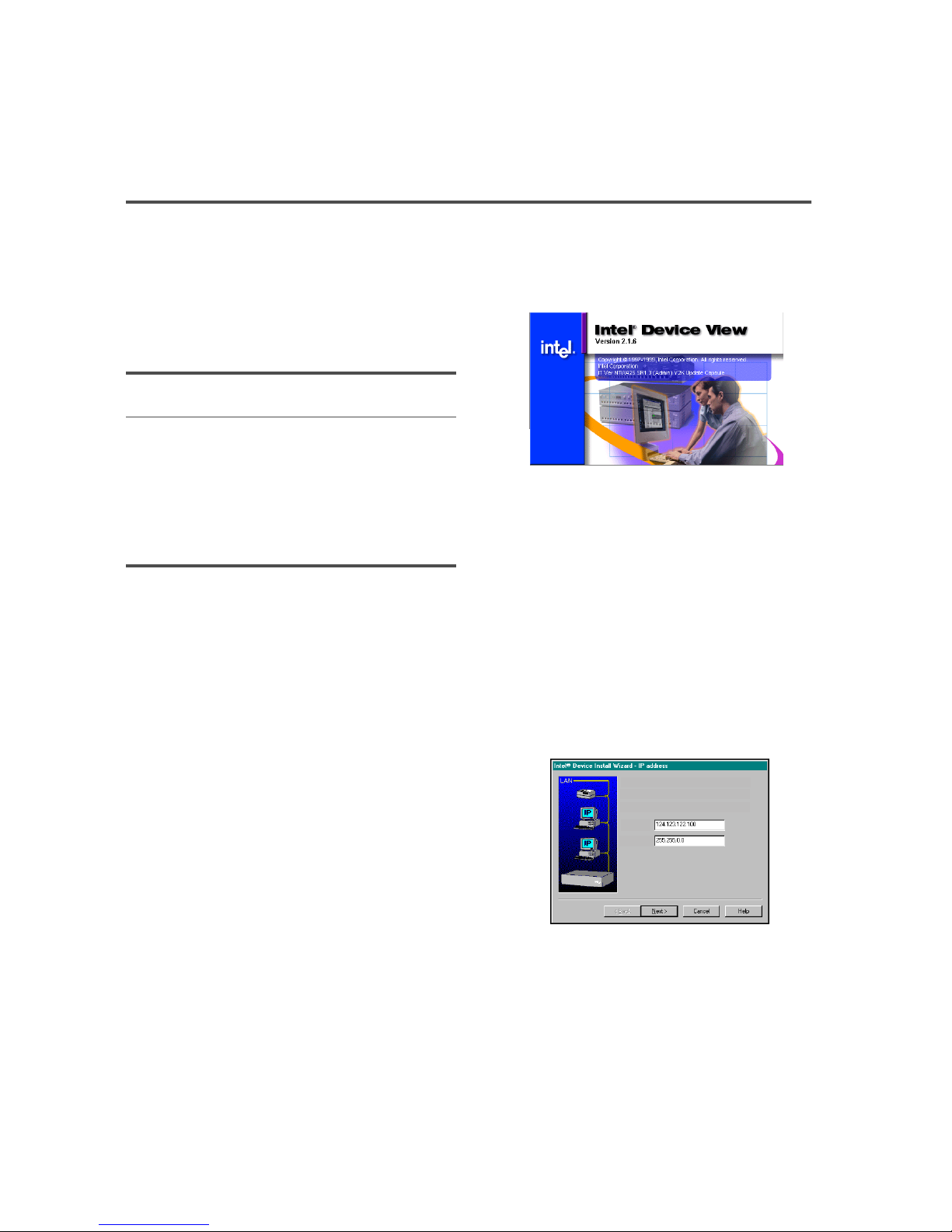

Option 2: Intel® Device View

Use Intel® Device View if you want to manage

other Intel devices (such as hubs or switches) in

addition to the Intel NetStructure™ 6000 Switch.

For Intel Device View, use the following software:

1 Place the CD-ROM in the computer’s CD-ROM

drive. Select the Windows* or Web version and

follow the on-screen instructions in the Intel

Device View installation wizard.

2 Start Intel Device View.

•Windows: After installation, the program

automatically restarts the computer (if nec-

essary) and launches the Device Install

wizard. Follow the on-screen instructions.

Web: After installing on a PC with a Web

server, (see table above for requirements)

double-click the Intel Device View icon to

run the program. The MAC address of the

new switch appears under Unconfigured

Devices in the SNMP Device Tree. Double-

click the MAC address to assign an IP

address to the switch.

To view Intel Device View from another PC

on your network, type the following URL in

Internet Explorer’s Address field:

http://

servername

/devview/main.htm

where servername is the IP address or name

of the Intel Device View server.

For more information on Intel Device View, see the

User Guide on the Intel Device View CD-ROM.

Intel Device View

(Windows)

- Windows* 95 or 98

- Windows NT* 4.0

Intel Device View

(Web)

Browser - Internet Explorer 4.0 or

later

OS - Windows NT 4.0

- Windows 95 or 98

Web Server - IIS 2.0 or later

- Peer Web Services

- Netscape Enterprise*

Web Server 3.01 or later

Intel Device View’s Install Wizard detects and

allows you to configure the 6000 Switch.

Assign an IP address to the Intel NetStructure 6000 Switch

1. IP address (partly filled out by the wizard)

2. Subnet mask (filled out by the wizard)

IP Address:

Subnet Mask:

Intel Device View allows you to manage Intel

hubs, routers, and switches from a single PC

or any PC using Internet Explorer 4.0x or

later.

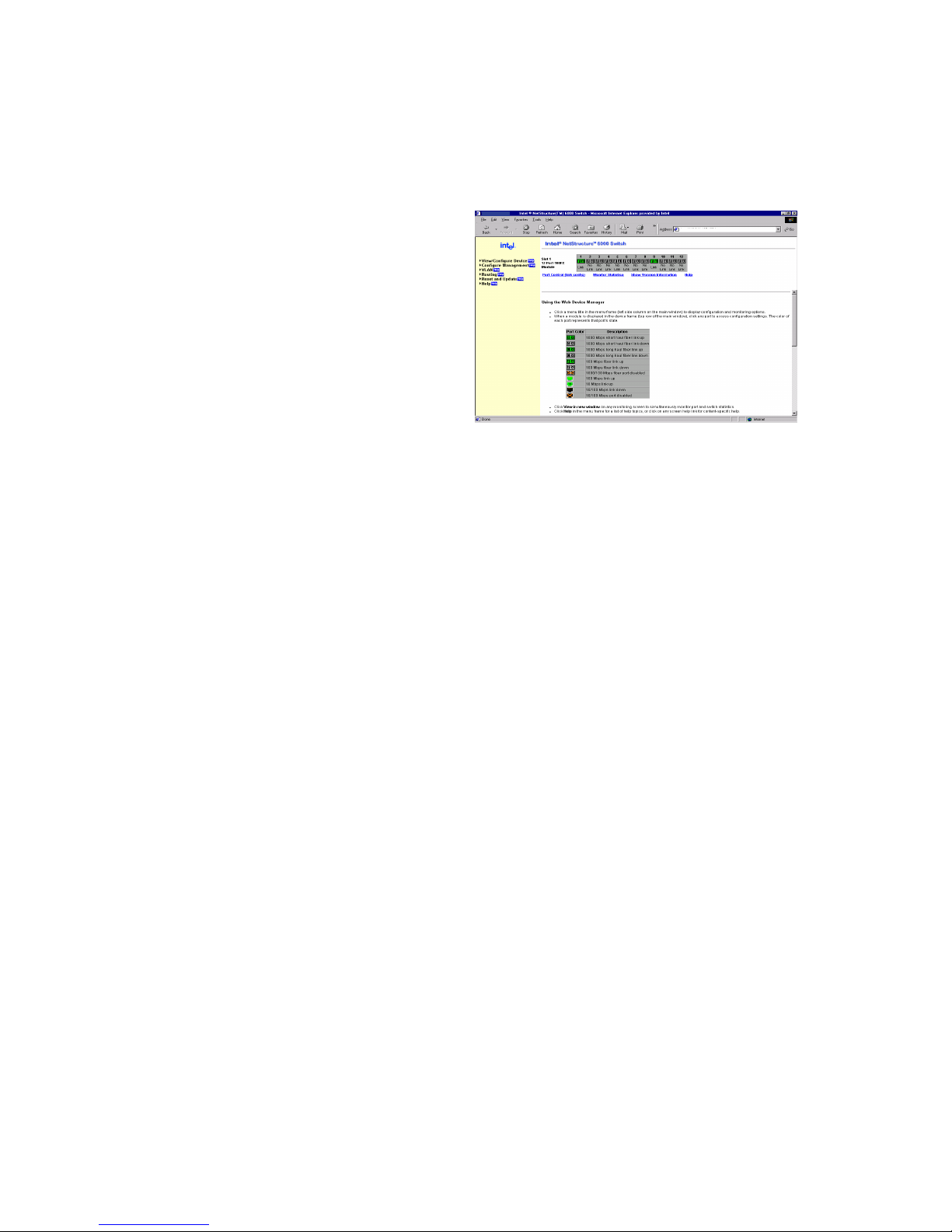

Option 3: Web Device Manager

Before you can use the Web Device Manager, you

must configure the switch’s IP settings. See the

Local Management or Intel Device View sections

for more information.

1 Open your Web browser. The Web Device Man-

ager supports Internet Explorer* 4.0x or later or

Navigator* 4.0x or later.

2 Type the switch’s IP address in the Address (or

Location) field, then press Enter.

3 When prompted for a user name and password,

type the privileged name “priv” and password

you set using Local Management, then press

Enter.

Note: “priv” is the default name.

4 Click the menus on the left side of the window

to display configuration and management

options.
