Interlogix TVC-5125BE-3 Manuale utente

P/N 1072502A • ISS 04JUN12

TVC-5125BE-3 Bullet IR

Camera Pocket Guide

Overview

This is the Pocket Guide for TVC-5125BE-3-P/TVC-

5125BE-3-N Bullet IR Camera. The guide describes a

standard installation.

The camera consists of the following:

• Camera with power and video output cable

• Mounting bracket

• Sunshield

Refer to the figures when performing the camera

setup procedures.

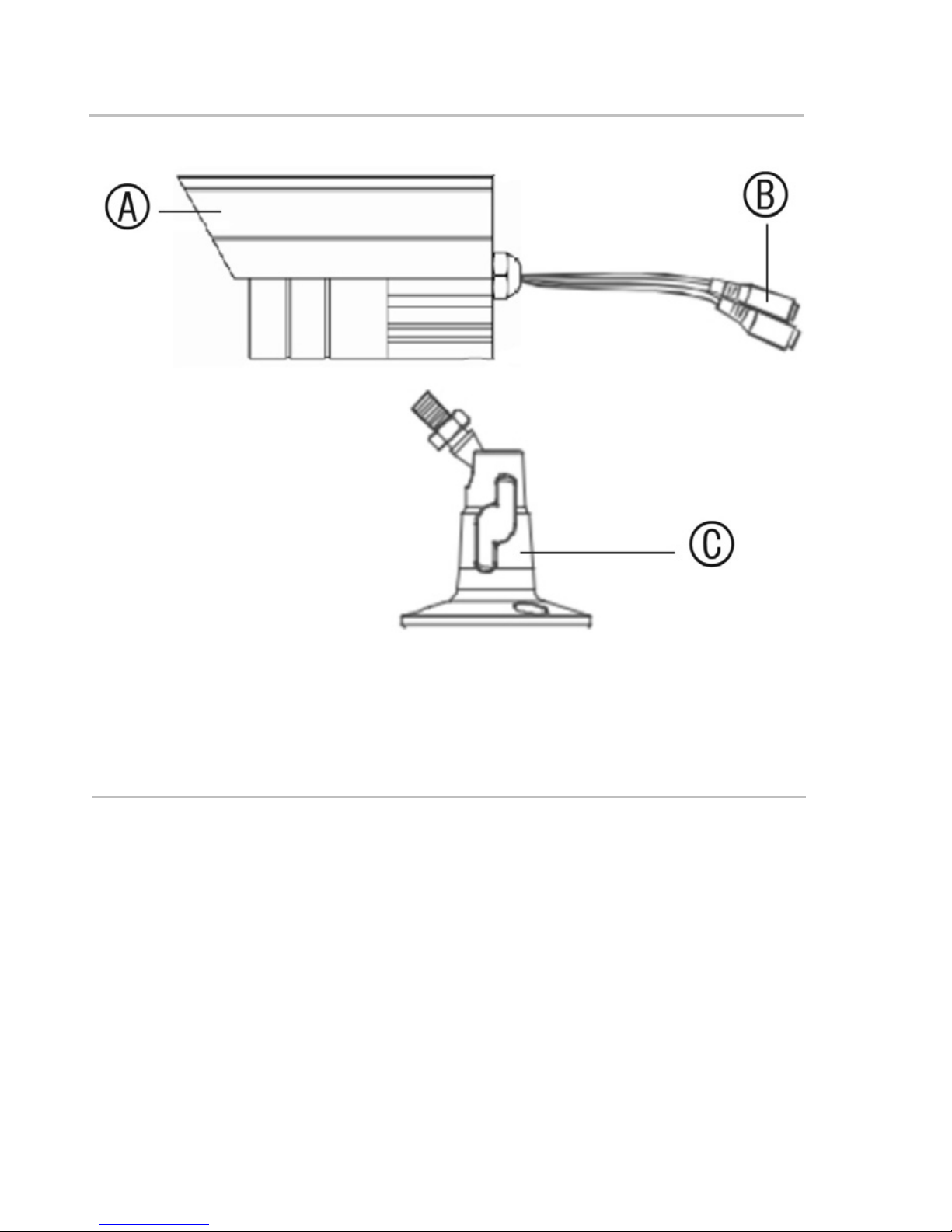

Figure 1. Parts of the camera

A. Sunshield

B. Video and power cables

C. Mounting bracket

Figure 2: Camera front

A. 18 LED IR lights

B. Lens

C. Light sensor

Figure 3: Mounting sticker template (mm)

Figure 4: Dimensions

Installation

To install the camera:

1. Using the mounting sticker as a template, place it

level against the mounting surface and mark the

position of the mounting holes.

2. Following all local codes, drill and prepare the

mounting holes.

3. Securely fasten the mount to the mounting

surface with the appropriate fasteners.

4. If needed, seal all mounting holes so that no

moisture can leak into the mounting surface.

5. Screw the camera into the mounting bracket.

Ensure that the camera is firmly attached to the

bracket.

6. Connect a 75 ohm coaxial video cable to the

video cable, and connect a 12 VDC power supply

to the power cable.

7. Adjust the camera position and angle as

required.

Specifications

Power supply 12 VDC ± 10% / 500mA

Current 60 mA (IR off)

174 mA (IR on)

Power consumption 2 W max.

Operating temperature -10to +50 °C

(14 to 122°F)

Storage temperature -20to70 °C

(-4 to +158°F)

Weight 320 g (0.7 lb.)

Dimensions (H × W × L) 55 × 50 × 65 mm

(2.2 × 4.9 × 4.95 in.)

Contact information

For contact information, see www.interlogix.com or

www.utcfssecurityproducts.eu.

Regulatory information

Manufacturer

UTC Fire & Security Americas Corporation, Inc.

2955 Red Hill Avenue, Costa Mesa, CA 92626 5923, USA

Authorized EU manufacturing representative:

UTC Fire & Security B.V.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

FCC compliance

Class B: This equipment has been tested and found to

comply with the limits for a Class B digital device, pursuant to

part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses,

and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause

harmful interference to radio communications.

Changes or modifications not expressly approved by the

party responsible for compliance could void the user’s

authority to operate the equipment.

ACMA compliance

Notice! This is a Class A product. In a domestic environment

this product may cause radio interference in which case the

user may be required to take adequate measures.

Canada

This Class A digital apparatus complies with Canadian ICES-

003.

Cet appareil numérique de la classe A est conforme à la

norme NMB-0330 du Canada.

Certification

N4131

European Union directives

12004/108/EC (EMC directive): Hereby, UTC Fire & Security

declares that this device is in compliance with the essential

requirements and other relevant provisions of Directive

2004/108/EC.

2002/96/EC (WEEE directive): Products

marked with this symbol cannot be

disposed of as unsorted municipal waste in

the European Union. For proper recycling,

return this product to your local supplier

upon the purchase of equivalent new

equipment, or dispose of it at designated

collection points. For more information see:

www.recyclethis.info.
